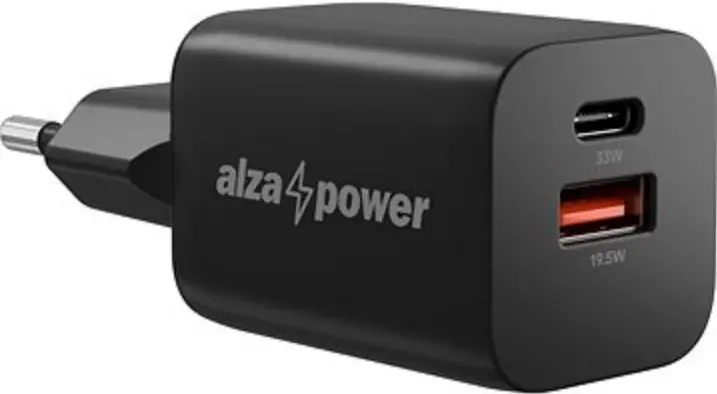

alza power APW-CCA120 Fast Charge User Manual
THANK YOU FOR CHOOSING US!
We value your trust. We hope that you will be happy with our product, and as excited about it as we are. We try to offer products of the highest quality that satisfy even the most demanding requirements. If you are satisfied, it would make us very happy if you chose us again the next time you make a purchase. We are environmentally conscious, therefore we use special eco -friendly packaging. Please recycle!
Recycling and Environmental Protection
Recycling and Environmental ProtectionWe try to avoid using plastic packaging and film and only use them when they are absolutely necessary to protect the product. So how are we different?
Packaging you can eat… Well, almost. 🙂
We use ink made from soybeans as opposed to classic petroleum -based ink. The majority of our packaging is made from 100% recyclable paper. We limit the use of adhesives. If absolutely necessary, we make sure to choose only water -soluble ones.
We think globally, which means that we actively search for eco -friendly solutions. We keep an eye on trending technology and place findings of the scientific community into practice. We don’t just try to meet quotas and mandates, we aim to exceed them.
TECHNICAL PARAMETERS
| Input voltage | 100–240 V~ |
| Input frequency | 50/60 Hz |
| Max. output power | 20 W |
| Efficiency | >85% |
| Efficiency at low load (10%) | >78% |
| No-load power consumption | 0.1 W |
| Output USB-C | 5 V⎓; 3 A (15 W)9 V⎓; 2.22 A (20 W)12 V⎓; 1.67 A (20 W) |
| Supported fast charging standards | PD3.0 (pps), PD2.0, QC3.0, QC2.0, AFC, FCP, SCP, Apple 2.4A |
| Dimensions | 66,9 × 35,8 × 30 mm |
| Weight | 40 g |
| Operating temperature | -10–35 °C |
| Storage temperature | -10–70 °C |
| Operating humidity | 10 – 90 % |
| Storage humidity | 5 – 95 % |

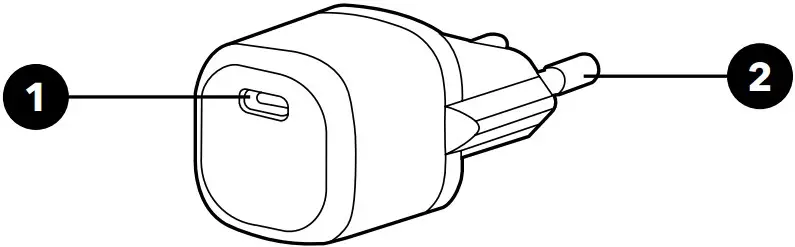

OVERVIEW
- USB-C connector Connector for connecting a USB-C charging cable
- Wall plug Input voltage range from 100 to 240 V~
SAFETY INFORMATION
- Please check compatibility with the information specified on the product before use.
- Do not use the product to charge devices that require a charging current greater than that specified in the technical specification.
- Once your device is fully charged, first disconnect the product from the power source and then from the device.
- Unplug the product from power sources when not in use.
- Use the product only for the purposes for which it is designed.
- Improper use of the product may present a risk of fire, explosion, or other hazard and may void your warranty.
- This product is not a toy. It may contain small components. Please keep away from children.
- Do not use or leave the product in a dusty or otherwise polluted nvironment.
- Do not expose the product to high temperatures or low temperatures. Store the product in a dry place
- Do not disassemble the product. Inexpert modifications can damage the product and cause serious injuries.
- Do not use the product if it is damaged or emits a suspicious odour.
- Use a soft, clean, dry towel for cleaning the surface of the product.
Degree of protection against electric shock: II
Protection against electric shock is provided by double or reinforced insulation.
