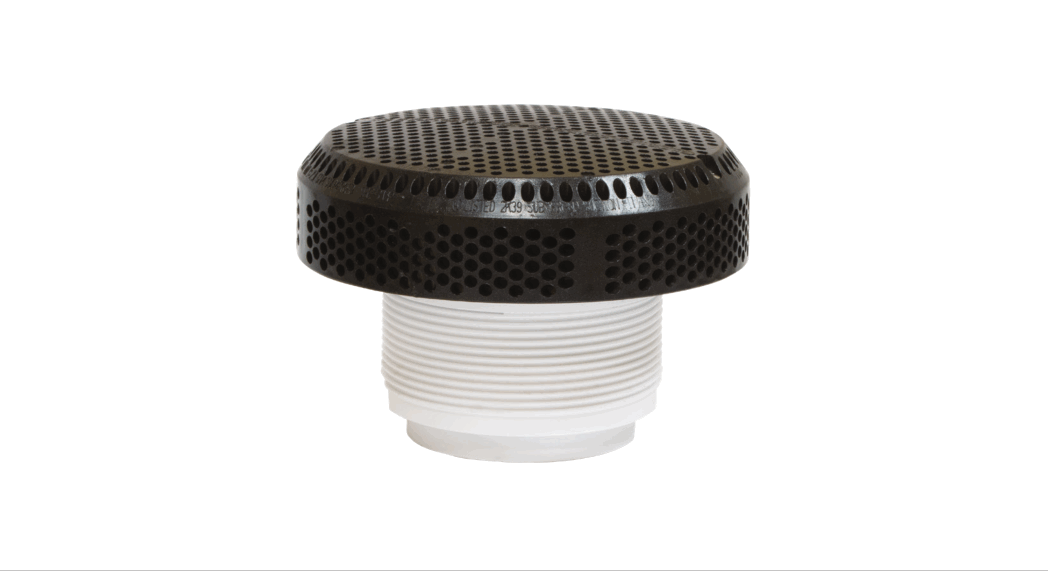

Suction Load Washer
User Guide

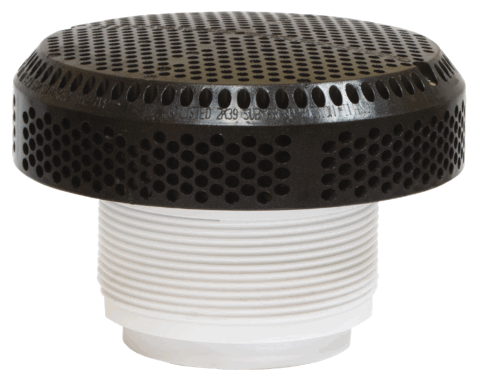

Suction Load Washer
No silicone • No spot facing • No cracked rings
Patent# US11,484,467
Features:
- No more back facing or silicone required!
- Fast and easy to install

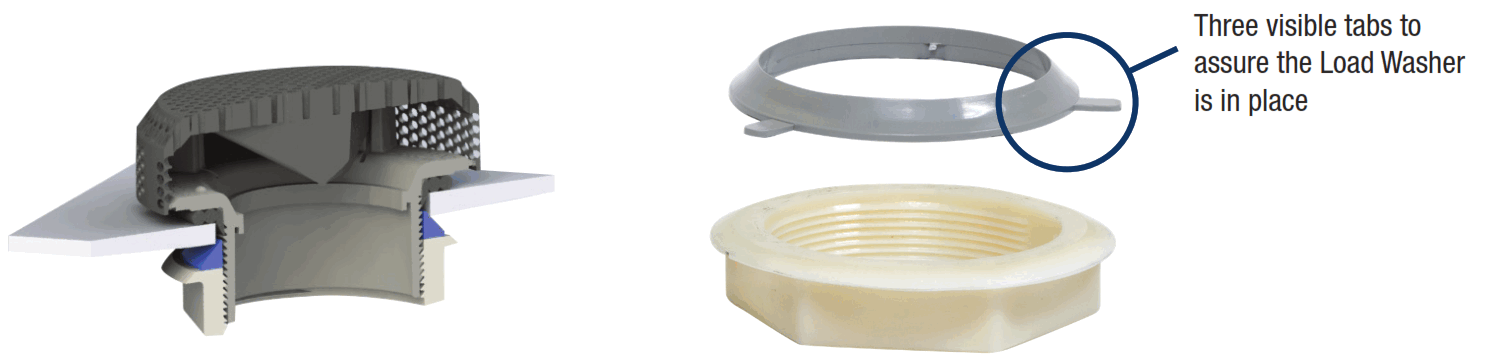

- Self-aligns easily and accurately
- Works with uneven surfaces
- Available with all 5″ Suctions
Specifications:
- Fits wall thicknesses from 3/16″ to 7/16″

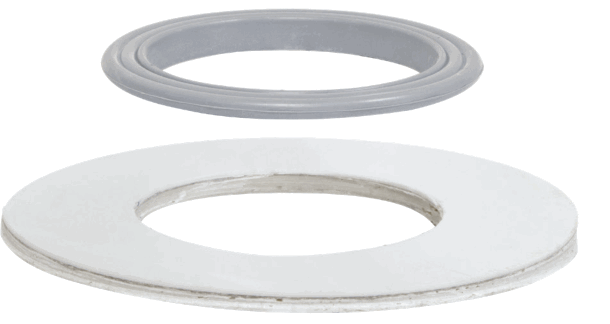

- Extra thick EPDM Gasket
- 3 7/16″ Hole Saw Size
- Torque = 22 ft/lbs.
Ask your Waterway sales representive for available part numbers.
www.waterwayplastics.com
807-XXXX.1022
Designed, Engineered &
Manufactured in the USA.
