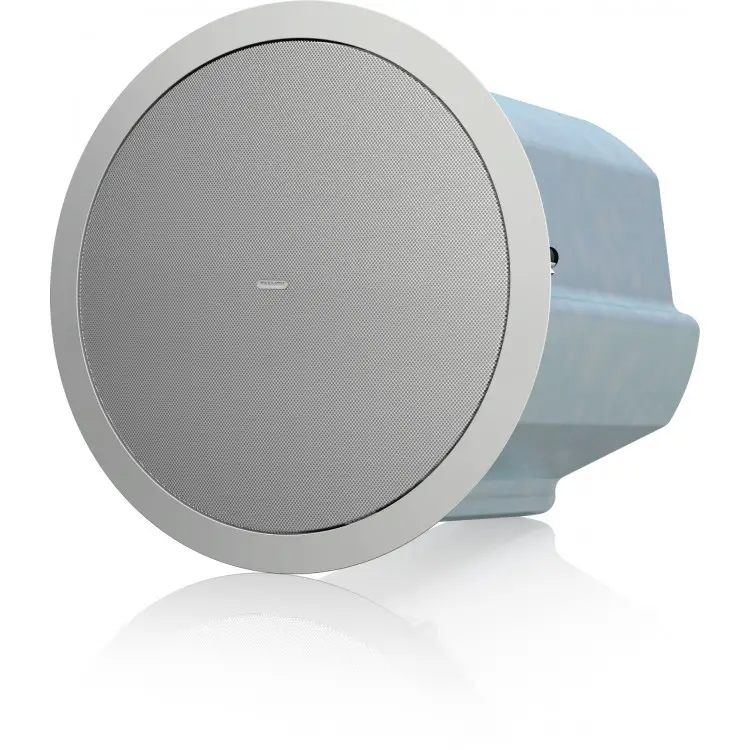

TANNOY CMS 801 Series 8 Inch Compact Ceiling Mounted Subwoofer
Important Safety Instructions
- Terminals marked with this symbol carry electrical current of sufficient magnitude to constitute risk of electric shock.
- Use only high-quality professional speaker cables with ¼” TS or twist-locking plugs pre-installed. All other installation or modification should be performed only by qualified personnel.
- This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure – voltage that may be sufficient to constitute a risk of shock.
- This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Please read the manual.
- Caution: To reduce the risk of electric shock, do not remove the top cover (or the rear section).No user serviceable parts inside. Refer servicing to qualified personnel.
- Caution: To reduce the risk of fire or electric shock, do not expose this appliance to rain and moisture. The apparatus shall not be exposed to dripping or splashing liquids and no objects filled with liquids, such as vases, shall be placed on the apparatus.
- Caution :These service instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operation instructions. Repairs have to be performed by qualified service personnel.
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with dry cloth.
- Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
- Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
- Use only attachments/accessories specified by the manufacturer.
- Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid
- Unplug this apparatus during lightning storms or when unused for long periods of time.
- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
- The apparatus shall be connected to a MAINS socket outlet with a protective earthing connection.
- Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
- Correct disposal of this product: This symbol indicates that this product must not be disposed of with household waste, according to the WEEE Directive (2012/19/EU) and your national law. This product should be taken to a collection center licensed for the recycling of waste electrical and electronic equipment (EEE). The mishandling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the efficient use of natural resources. For more information about where you can take your waste equipment for recycling, please contact your local city office, or your household waste collection service.
- Do not install in a confined space, such as a book case or similar unit.
- Do not place naked flame sources, such as lighted candles, on the apparatus.
- Please keep the environmental aspects of battery disposal in mind. Batteries must be disposed-of at a battery collection point.
- This apparatus may be used in tropical and moderate climates up to 45°C.
Introduction
Thank you for purchasing this Tannoy Ceiling Monitor System product. This product range is suited for high-level music and speech reinforcement applications requiring exceptional sonic quality with uncompromised reliability.
Unpacking
Every Tannoy product and accessory is carefully inspected before packing. After unpacking, please inspect your product to make sure no damage has occurred in transit. In the unlikely event of any damage, would you please notify your dealer immediately and retain your shipping carton, as your dealer may ask you to return the faulty unit to him for inspection.
Each CMS loudspeaker is packed in pairs and provided with the following accessories as standard; C Ring, tile-bridge kit, grille, cut-out template, and paint mask.

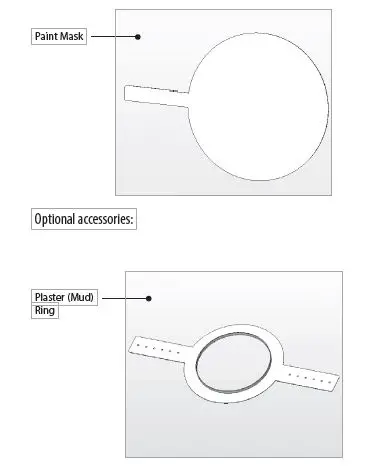

A plaster (mud) ring is also available as an optional extra.
Safety Notices
Some regional construction codes require the use of a secondary method of securing loudspeakers in ceiling to provide security of a back up support. A secondary support line should be attached from the safety loop on the rear of the product to a source point on the ceiling. Please consult the relevant construction codes in your region.
When using a power driver to install the product it is essential to use the correct torque level settings to avoid over tightening and damage to the ceiling
material or clamps. Recommended torque setting: 1.5Nm Tannoy will not be held responsible for any damages caused by the improper installation of these loudspeakers.
Electrical Saftey Notice:
To comply with the standard UL1480, metal – clad flexible conduit (BX) is required for connection to the terminal block for proper earth grounding.
In order to comply with UL regulations, the PI back-can must always be used with the CMS PI models.
In order to comply with relevant fire safety regulations (i.e. BS 5839:1998), it is required that in the event of fire, that failure of the circuit to which the loudspeaker is connected does not occur before evacuation of the building is complete. Suitable measures include: – a) use of terminal blocks (for connection to primary) with a melting point of not less than 650°C, for example constructed from ceramic materials; c) use of terminal blocks of a lower melting point but protected with thermal insulation; d) use of terminal blocks such that, on melting, an open-circuit or a short-circuit does not occur.

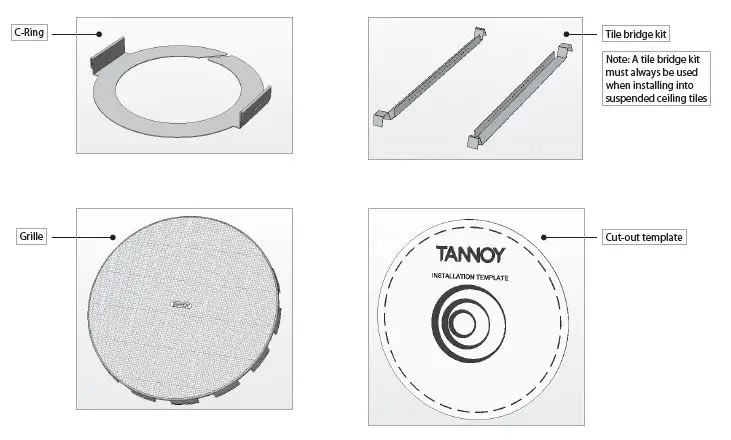

Accessories
Mechanical Installation Guide for Suspended Ceilings

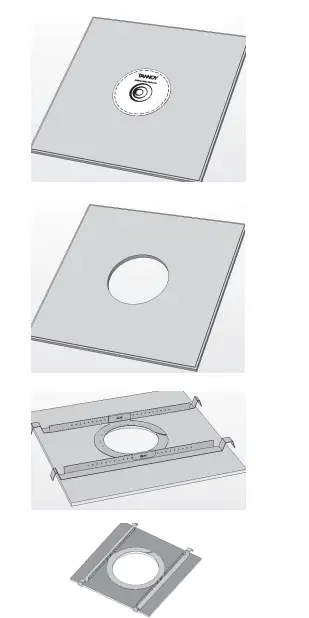

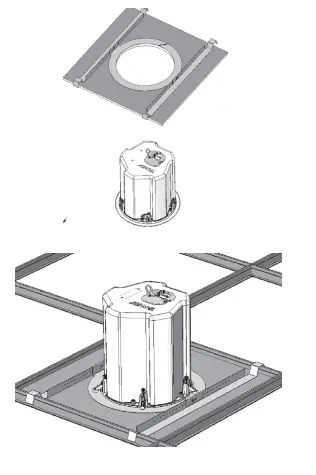

1. Remove the ceiling tile from its frame and place it on a flat surface. Mark the cut-out area on the ceiling tile by tracing around the template provided.
- Remove the ceiling tile from its frame and place it on a flat surface. Mark the cut-out area on the ceiling tile by tracing around the template provided.
- Cut out the hole in the ceiling tile using a circular saw or pad saw.
- Place the C-ring and tile-bridge on top of the ceiling panel, aligning the C-ring over the hole, and screw the C-ring to the tile bridge using the fixings provided.

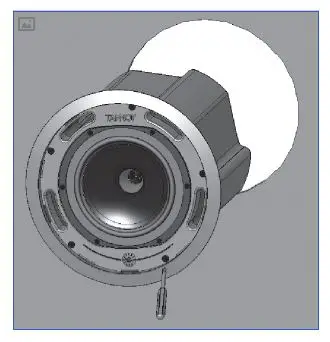

- Slide the speaker assembly through the hole and turn the screws on the front of the speaker to extend the mounting wings. Tighten the screws until a firm grip is achieved. If using a power driver, Tannoy recommends a torque setting of 1.5 Nm.
- Slide the tile panel back into the suspended ceiling. The tile bridge ends will catch over the railings, supporting the weight of the speaker.
Go to the ’Wiring and Setting Up’ section for instructions on wiring and set-up instructions.
Mechanical Installation Guide for SheetRock (Plasterboard) Ceilings
- Mark the cut-out area on the ceiling by tracing around the template provided.
- Cut out the hole in the ceiling using a circular saw or pad saw, then slide the C-ring into the ceiling, aligning it over the cut-out hole).
- Go to the ’Wiring and Setting Up’ section for wiring and set-up instructions then return to point 4 below.
- Slide the speaker assembly through the hole and turn the screws to extend the mounting wings. Tighten the screws until a firm grip is achieved.
If using a power driver, Tannoy recommends a torque setting of 1.5 Nm.

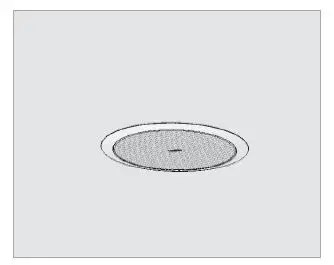

DO NOT OVERTIGHTEN! - Insert grille by pushing it onto the speaker.

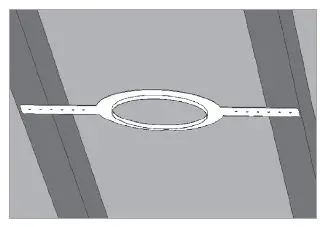

Mechanical Installation Instructions for Optional Plaster Ring
- Nail or screw the plaster ring to the joists.
- Lay the speaker wiring to where the speaker will be fitted and complete the plastering work on the ceiling.
- Cut out the hole in the ceiling using a circular saw or pad saw.
- Go to the ’Wiring and Setting Up’ section for instructions on wiring then return to point 5 below.
- Slide the speaker assembly through the hole and turn the screws to extend the mounting wings. Tighten the screws until a firm grip is achieved. If using a power driver, Tannoy recommends a torque setting of 1.5 Nm. DO NOT OVERTIGHTEN!
- Insert grille by pushing it onto the speaker.
Wiring And Setting Up:
- Open the wiring cover at the back of the speaker can to access the Euro type connector plug and socket.
- For connection to an amplifier, use pins 1 and 2:
- Pin 1 is positive
- Pin 2 is negative
For connection to additional speakers in a distributed line, pins 3 and 4 are in parallel where: - Pin 3 is negative
- Pin 4 is positive
- Close the wiring cover and tighten both screws on the cable clamp. Use the rotary switch located on the front of the unit to select whether you wish to use the speaker in a low-impedance or distributed-line application.
THE SPEAKER IS SUPPLIED IN LOW IMPEDANCE MODE. NEVER CONNECT THE SPEAKER TO A 70/100 VOLT AMPLIFIER WHILE IT IS SET FOR LOW IMPEDANCE.
All CMS 801 models use a 60 W transformer. When using distributed-line systems, the transformer can be tapped at 60 W, 30 W and 15 W, with an additional 7.5 W tapping for 70.7 V line systems.

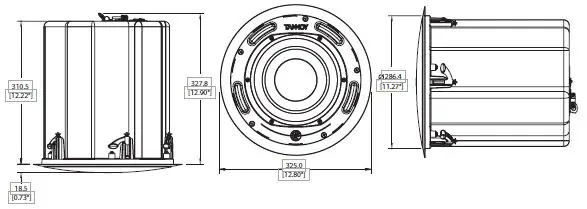

CMS 801 sub BM Dimensions
Template hole cutout size: 295 mm
CMS 801 sub PI Dimensions
Template hole cutout size: 295 mm

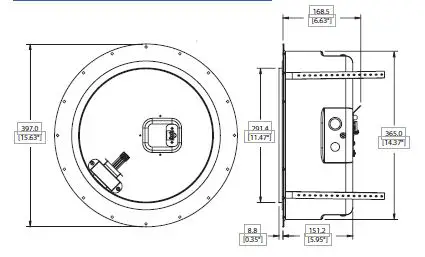

CMS 801 PI Back Can Dimensions
Template hole cutout size: 295 mm
| System | ||
| Frequency response (-3 dB) (1) | 58 Hz – 160 Hz | |
| Frequency range (-10 dB) (1) | 42 Hz – 300 Hz | |
| System sensitivity (1 W @1 m) (2) | 92 dB (1 W = 2.45 V for 8 Ohms) | |
| Rated maximum SPL (2) With THP60 | 112 dB (average) 118 dB (peak) 110 dB (average) | |
| Power Handling (3) | ||
| Average | 100 W | |
| Programme | 200 W | |
| Peak | 400 W | |
| Recommended amplifier power | 200 W @ 8 Ohms | |
| Nominal impedance | 8 Ohms | |
| Transformer Taps (via front rorary switch) | ||
| Input signal frequency range | 58 Hz – 20 kHz | |
| 70 V | 60 W/30 W/15 W/7.5 W/OFF & Low impedance operation ” Refer to Note 4″ | |
| 100 V | 60 W/30 W/15 W/OFF & Low impedance operation ” Refer to Note 4″ | |
| Crossover | Integral 2nd order passive, 160 Hz | |
| Transducers | ||
| Low frequency | 1x 200 mm (8.00″) long throw woofer with multi fibre paper pulp cone | |
| High frequency | ||
| Enclosure | ||
| Back can | Zinc plated steel | |
| Baffle | Reflex loaded UL 94V-0 rated ABS | |
| Grille | Steel, with weather resistant coating | |
| Safety Features | Safety ring located at rear of enclosure for load bearing safety bond | |
| Clamping Design | Security toggle clamp | |
| Transducers | ||
| Backcan Options | ||
| Blind Mount (BM) | Complete with fixed back can | |
| Pre Install (PI) | Separate back can for pre installation | |
| Cable Entry Options | Cable clamp & squeeze connector for conduit up to 22mm | |
| Conduit Knockouts | 3 Sets of horizontal positions 19 / 22 / 28 mm (0.75 / 0.87 / 1.1″) | |
| Connectors | Removable locking connector with screw terminals with “loop through” facility | |
| Safety agency ratings (pending) | UL-1480, UL-2043, CE | |
| BM hole cutout diameter | 295 mm (11.61″) | |
| PI hole cutout diameter | 295 mm (11.61″) |
| Dimensions | |
| Bezel diameter | 325 mm (12.80″) |
| Front of ceiling to rear of back can (BM) | 310.5 mm (12.22″) |
| Front of ceiling to top of safety loop (BM) | 327.8 mm (12.90″) |
| Back of ceiling surface to rear of back can (PI) | 151.2 mm (5.95″) |
| Back of ceiling surface to top of safety loop (PI) | 168.5 mm (6.63″) |
| Front of ceiling to rear of bass ports (no back can) PI | 123.7 mm (4.87″) |
| Net Weight (ea) | |
| CMS 801 BM | 8.4 kg (18.48 lbs) |
| CMS 801 PI | 4.7 kg (10.34 lbs) |
| PI back can | 4.2 kg (9.25 lbs) |
| Included Accessories | C Ring, tile bridge, paint mask, cutout template, grille |
| Optional Accessories | Plaster (Mud) Ring |
| Ordering Information | |
| Model name Baffle / Grille Colo | ur Packed Quantity Packed weight kg (lbs) |
| CMS 801 SUB BM WHITE | 2 20.2 (44.44) |
| CMS 801 SUB PI WHITE | 2 12.2 (26.84) |
