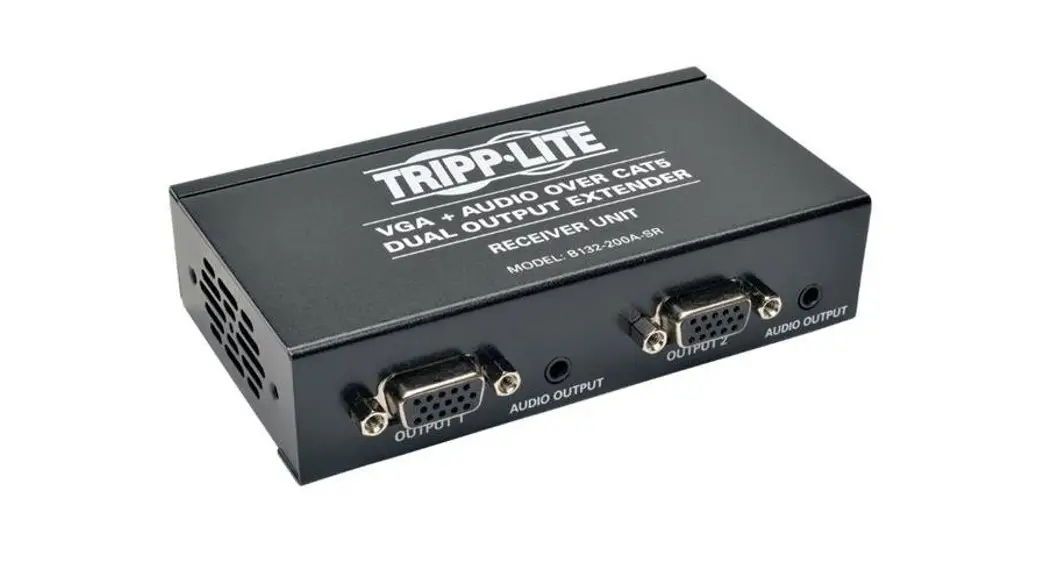

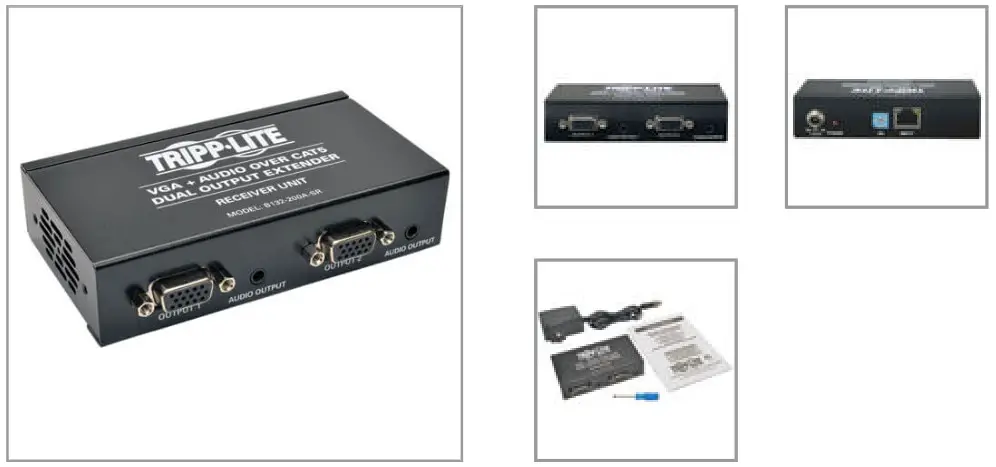

Dual VGA with Audio over Cat5/Cat6 Extender, Box-Style Receiver, 1440×900 60 Hz, Up to 300 ft. (90 m), TAA
MODEL NUMBER: B132-200A-SR
Extends a VGA and audio signal to two sets of monitors and speakers up to 300-ft. from the source
Features
- Features dual VGA and audio ports for the connection of two sets of monitors and speakers
- Works with a B13 or B13 Transmitter Unit to extend a VGA video and audio signal up to 300-ft. from the source
- Extends a 1440 x 900 video and audio signal up to 150-ft, or a 1024 x 768 video and audio signal up to 300-ft.
- 24AWG, Solid Wire Cat5e/6 cable (such as Tripp Lite’s N20 Cat6 cables) is required to achieve maximum distance and resolution
- Features a built-in equalization control to adjust the video image
- All operating systems supported
- Plug and play; no software or drivers required
- HDCP and EDID compliant
- Ideal for digital signage installations for retail, schools, churches, etc.
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Highlights
- Features dual VGA and audio ports for the connection of two sets of monitors and speakers
- Works with a B132-002A-2 or B132-004A-2 Transmitter Unit to extend a VGA video and audio signal up to 300-ft. from the source
- Extends a 1440 x 900 video and audio signal up to 150-ft, or a 1024 x 768 video and audio signal up to 300-ft.
- Plug and play, no software or drivers required
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Package Includes
- B132-200A-SR
- External Power Supply with NEMA 1-15P Plug (Input: 100240V, 50/60Hz, 0.5A; Output: 5V, 2A, 4.5 ft.)
- Screwdriver for EQ adjustment
- Owner’s Manual
Specifications
| OVERVIEW | |
| UPC Code | 37332185570 |
| Product Type | Receiver |
| Technology | VGA/SVGA; Stereo Audio; Cat5/5e; Cat6 |
| VIDEO | |
| Max Supported Video Resolution | 1440×900 @ 60Hz |
| Max 720P Range (ft) | 150 |
| Max 1280 x 720 (720p) Range (ft) | 150 |
| Receiver/Transceiver Video Output | VGA |
| Receiver – Number of Video Outputs | 2 |
| Recommended Cabling | Solid Wire Cat6 Cables (Tripp Lite’s N202-Series) |
| HDR Support | No |
| 3D Video Supported | No |
| Maximum Signal Range (ft) | 300 |
| Maximum Signal Range (m) | 91 |
| Maximum Signal Range Details | 300 ft @ 1024 x 768 (60Hz)150 ft @ 1440 x 900 (60Hz) |
| AUDIO | |
| Audio Output | 3.5mm |
| Audio Specification | Stereo Audio |
| INPUT | |
| Bus Powered | No |
| POWER | |
| Power Source Type | AC Adapter |
| AC Plug Type | NEMA 1-15P |
| Power Source | Unit (Included) |
| Power Over Cable (PoC) Support | No |
| AC Adapter | Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 4.5 ft. |
| External Power Supply Input Specs (V / Hz / A) | 100-240V / 50-60Hz / 0.5A |
| External Power Supply Output Specs (V / A) | 5V/2A |
| External Power Supply Cord Length (ft.) | 4.5 |
| External Power Supply Cord Length (m.) | 1.38 |
| DC Barrel Plug | OD: 5.5 x 2.1 x 7.5mm, Positive Pin, Negative Sleeve |
| USER INTERFACE, ALERTS & CONTROLS | |
| LED Indicators | Red (Power) RJ45: Green (Connection), Orange (Data Transmission) |
| PHYSICAL | |
| Color | Black |
| Included Mounting Accessories | Wallmount |
| Number of Displays | 2 |
| Form Factor/Mounting Options | Box; Wall-mount |
| Shipping Dimensions (hwd / cm) | 5.59 x 15.75 x 18.29 |
| Shipping Dimensions (hwd / in.) | 2.20 x 6.20 x 7.20 |
| Shipping Weight (kg) | 0.5 |
| Shipping Weight (lbs.) | 1.1 |
| Unit Dimensions (hwd / in.) | 1.06 x 4.53 x 2.46 |
| Unit Dimensions (hwd / cm) | 2.7 x 11.5 x 6.24 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 0.5 |
| Unit Weight (kg) | 0.23 |
| Housing | Metal |
| ENVIRONMENTAL | |
| Operating Temperature Range | 32 to 122 F (0 to 50 C) |
| Storage Temperature Range | -4 to 158 (-20 to 70 C) |
| Relative Humidity | 10% to 90% RH, Non-Condensing |
| COMMUNICATIONS | |
| Max 1024 x 768 Range (ft) | 300 |
| Max 480P Range (ft) | 300 |
| Max 1440 x 900 Range (ft) | 150 |
| Max 480i Range (ft) | 300 |
| Max 640 x 480 Range (ft) | 300 |
| Max 800 x 600 Range (ft) | 300 |
| EDID Compatible | Yes |
| IR Remote Extension Support | No |
| RS-232 Serial Extension Support | No |
| Consumer Electronics Control (CEC) Supported | No |
| USB Extension Support | No |
| CONNECTIONS | |
| Number of Ports | 2 |
| Side A – Connector 1 | RJ45 (FEMALE) |
| Side B – Connector 1 | (2) HD15 (FEMALE) |
| FEATURES & SPECIFICATIONS | |
| Driver Required | No |
| 10/100 Ethernet Extension Support | No |
| Built-In Equalizer | Yes |
| STANDARDS & COMPLIANCE | |
| External Power Supply Certifications | FCC; PSE; TUV; UL; cUL |
| Product Compliance | RoHS; REACH; FCC (USA) |
| WARRANTY | |
| Product Warranty Period (Worldwide) | 1-year limited warranty |
