Rootcloud T-ams Li1520 Pro Vehicles Data Collection Device Owner's Manual

ROOTCLOUD T-AMS LI1520 Pro Vehicles Data Collection Device

Product introduction

Equipment operation data collection, GPS location and Irootech cloud communication. Control parameter download.

Product specification

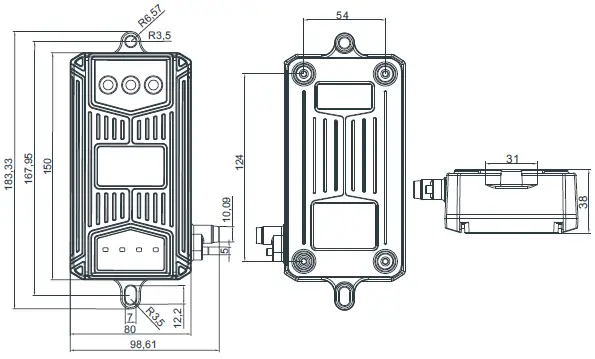

Dimension

Product weight:455g;
(with USB port and connector in packing box)

Product connector

Connector

Connector instruction
Area①：Antenna Area

1.  Spare antenna
2. GPS antenna
3. 4G Main antenna

Area② : LEDs Area

1. Power light.Red:Normal working.
2. Online or Offline light. Green:Normal 4G connection.
3.  GPS light. Green:Normal position.
4.  Data light. Green twinkle:Data processing.

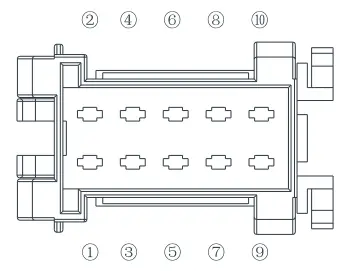

Area③ : Connect with a connector

1.  GND
2.  CAN3_H
3.  CAN1_H
4.  CAN2_H
5.  V+
6.  CAN3_L
7.  CAN1_L
8.  CAN2_L
9.  BUS_ACC
10.  BUS_IG

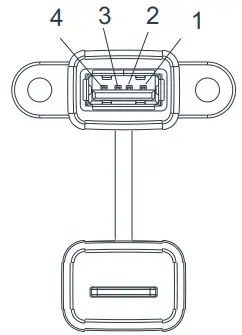

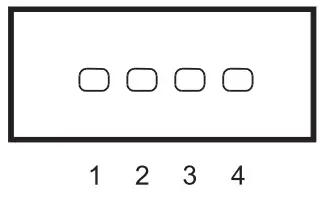

Connect with the USB interface which has waterproof cover

1.  VBUS
2.  D-
3.  D+
4.  GND

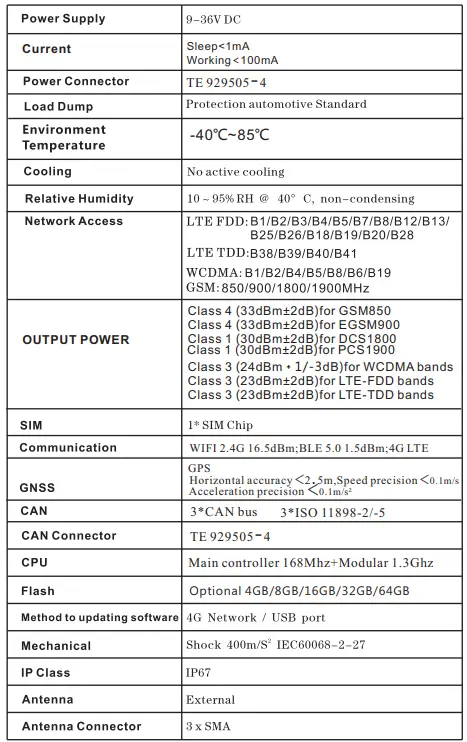

Hardware parameter

Federal Communication Commission (FCC) Radiation Exposure Statement: When using the product, maintain a distance of 20cm from the body to ensure compliance with RF exposure requirements. This product can be used in which EU members, in accordance with Article 10(10). Hereby, Rootcloud technology CO.,LTD declares that the radio equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration DOC is available at the following internet address: https://en.rootcloud.com/

Others

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
In cases where the manual is provided only in a form other than paper, such as on a computer disk or over the Internet, the information required by this section may be included in the manual in that alternative form, provided the user can reasonably be expected to have the capability to access information in that form.In addition to containing other required statements specified elsewhere in this standard or in the applicable RSS, user manuals for licence-exempt radio apparatus shall contain the following text, or an equivalent notice, that shall be displayed in a conspicuous location, either in the user manual or on the device, or both: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: This device may not cause interference. This device must accept any interference, including interference that may cause undesired operation of the device.
