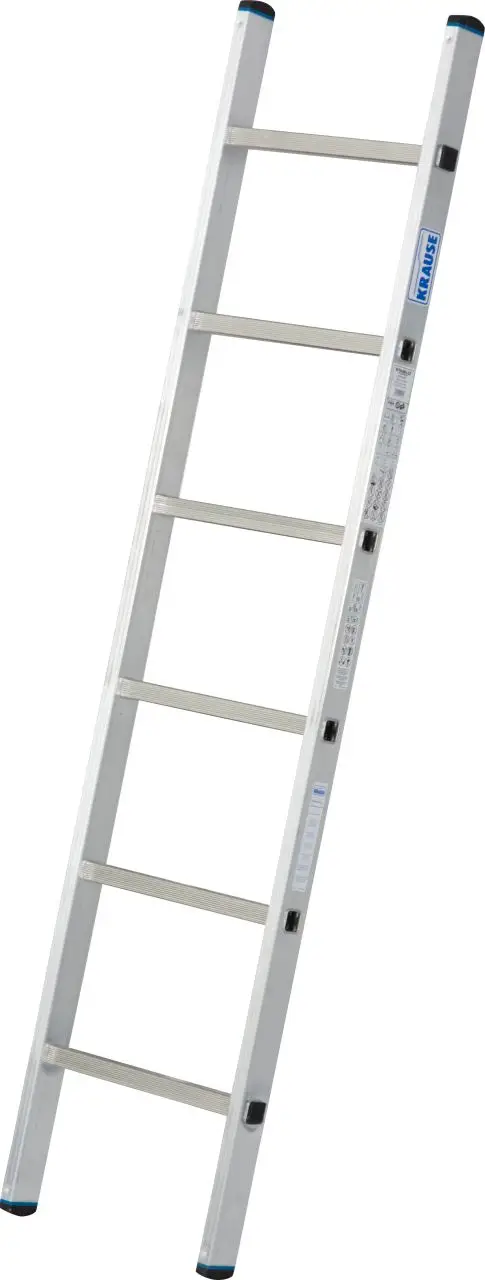

KRAUSE 1103 Leaning Ladder User Manual
INSTRUCTION
| B.-Nr. | ca. m A  | ca. m C  | D | ca. kg | ca. kg | |||
| 1 x 4 | 2,25 | 0,25 | 1,20 | 1,10 | 150 kg | 2,4 kg | ||
| 1 x 5 | 2,45 | 0,45 | 1,45 | 1,30 | 150 kg | 3,0 kg | ||
| 1 x 6 | 2,70 | 0,70 | 1,70 | 1,55 | 150 kg | 3,6 kg | ||
| 1 x 7 | 2,95 | 0,95 | 1,95 | 1,80 | 150 kg | 4,2 kg | ||
| 1 x 8 | 3,15 | 1,15 | 2,20 | 2,00 | 150 kg | 4,8 kg | ||
| 1 x 9 | 3,40 | 1,40 | 2,45 | 2,25 | 150 kg | 5,4 kg | ||
| 1 x 10 | 3,65 | 1,65 | 2,70 | 2,50 | 150 kg | 6,0 kg | ||
| 1103* | 1 x 11 | 3,85 | 1,85 | 2,95 | 2,70 | 150 kg | 7,1 kg | |
| 1 x 12 | 4,10 | 2,10 | 3,20 | 2,95 | 150 kg | 7,7 kg | ||
| 1 x 13 | 4,35 | 2,35 | 3,45 | 3,20 | 150 kg | 8,3 kg | ||
| 1 x 14 | 4,55 | 2,55 | 3,70 | 3,40 | 150 kg | 8,9 kg | ||
| 1 x 15 | 4,80 | 2,80 | 3,95 | 3,65 | 150 kg | 9,5 kg | ||
| 1 x 16 | 5,05 | 3,05 | 4,20 | 3,90 | 150 kg | 10,1 kg | ||
| 1 x 17 | 5,25 | 3,25 | 4,45 | 4,10 | 150 kg | 10,7 kg | ||
| 1 x 18 | 5,50 | 3,50 | 4,70 | 4,35 | 150 kg | 11,3 kg | ||
| 1 x 4 | 2,25 | 0,25 | 1,20 | 1,10 | 225 kg | 2,40 kg | ||
| 1 x 5 | 2,45 | 0,45 | 1,45 | 1,30 | 225 kg | 3,00 kg | ||
| 1 x 6 | 2,70 | 0,70 | 1,70 | 1,55 | 225 kg | 3,60 kg | ||
| 1 x 7 | 2,95 | 0,95 | 1,95 | 1,80 | 225 kg | 4,20 kg | ||
| 1103-1* | 1 x 8 | 3,15 | 1,15 | 2,20 | 2,00 | 225 kg | 4,80 kg | |
| 1 x 9 | 3,40 | 1,40 | 2,45 | 2,25 | 225 kg | 5,40 kg | ||
| 1 x 10 | 3,65 | 1,65 | 2,70 | 2,50 | 225 kg | 6,00 kg | ||
| 1 x 11 | 3,85 | 1,85 | 2,95 | 2,70 | 225 kg | 7,10 kg | ||
| 1 x 12 | 4,10 | 2,10 | 3,20 | 2,95 | 225 kg | 7,70 kg | ||
| 1 x 4 | 2,25 | 0,25 | 1,20 | 1,10 | 150 kg | 2,30 kg | ||
| 1 x 5 | 2,45 | 0,45 | 1,45 | 1,30 | 150 kg | 2,90 kg | ||
| 1 x 6 | 2,70 | 0,70 | 1,70 | 1,55 | 150 kg | 3,50 kg | ||
| 1 x 7 | 2,95 | 0,95 | 1,95 | 1,80 | 150 kg | 4,10 kg | ||
| 1 x 8 | 3,15 | 1,15 | 2,20 | 2,00 | 150 kg | 4,70 kg | ||
| 1 x 9 | 3,40 | 1,40 | 2,45 | 2,25 | 150 kg | 5,20 kg | ||
| 1 x 10 | 3,65 | 1,65 | 2,70 | 2,50 | 150 kg | 5,80 kg | ||
| 1103-2* | 1 x 11 | 3,85 | 1,85 | 2,95 | 2,70 | 150 kg | 6,90 kg | |
| 1 x 12 | 4,10 | 2,10 | 3,20 | 2,95 | 150 kg | 7,50 kg | ||
| 1 x 13 | 4,35 | 2,35 | 3,45 | 3,20 | 150 kg | 8,20 kg | ||
| 1 x 14 | 4,55 | 2,55 | 3,70 | 3,40 | 150 kg | 8,60 kg | ||
| 1 x 15 | 4,80 | 2,80 | 3,95 | 3,65 | 150 kg | 9,20 kg | ||
| 1 x 16 | 50,50 | 48,50 | 4,20 | 3,90 | 150 kg | 9,80 kg | ||
| 1 x 17 | 5,25 | 3,25 | 4,45 | 4,10 | 150 kg | 10,40 kg | ||
| 1 x 18 | 5,50 | 3,50 | 4,70 | 4,35 | 150 kg | 11,00 kg | ||
| 1 x 4 | 2,25 | 0,25 | 1,20 | 1,10 | 225 kg | 2,40 kg | ||
| 1 x 5 | 2,45 | 0,45 | 1,45 | 1,30 | 225 kg | 3,00 kg | ||
| 1 x 6 | 2,70 | 0,70 | 1,70 | 1,55 | 225 kg | 3,60 kg | ||
| 1 x 7 | 2,95 | 0,95 | 1,95 | 1,80 | 225 kg | 4,20 kg | ||
| 1103-3* | 1 x 8 | 3,15 | 1,15 | 2,20 | 2,00 | 225 kg | 4,80 kg | |
| 1 x 9 | 3,40 | 1,40 | 2,45 | 2,25 | 225 kg | 5,40 kg | ||
| 1 x 10 | 3,65 | 1,65 | 2,70 | 2,50 | 225 kg | 6,00 kg | ||
| 1 x 11 | 3,85 | 1,85 | 2,95 | 2,70 | 225 kg | 7,10 kg | ||
| 1 x 12 | 4,10 | 2,10 | 3,20 | 2,95 | 225 kg | 7,70 kg | ||
| B.-Nr. | ca. m A | B | ca. m C | D | ca. kg | ca. kg | ||
| 1 x 6 | 2,70 | 0,70 | 1,70 | 1,60 | 150 kg | 2,4 kg | ||
| 1 x 7 | 2,95 | 0,95 | 1,95 | 1,85 | 150 kg | 2,8 kg | ||
| 1 x 8 | 3,20 | 1,20 | 2,25 | 2,10 | 150 kg | 3,2 kg | ||
| 1 x 9 | 3,45 | 1,45 | 2,50 | 2,40 | 150 kg | 3,6 kg | ||
| 1 x 10 | 3,75 | 1,75 | 2,80 | 2,65 | 150 kg | 4,0 kg | ||
| 1 x 11 | 4,00 | 2,00 | 3,10 | 2,90 | 150 kg | 4,4 kg | ||
| 1202*/1226** | 1 x 12 | 4,25 | 2,25 | 3,40 | 3,15 | 150 kg | 5,3 kg | |
| 1 x 13 | 4,50 | 2,50 | 3,65 | 3,45 | 150 kg | 5,6 kg | ||
| 1 x 14 | 4,75 | 2,75 | 3,90 | 3,70 | 150 kg | 5,9 kg | ||
| 1 x 15 | 5,00 | 3,00 | 4,20 | 4,00 | 150 kg | 6,3 kg | ||
| 1 x 16 | 5,25 | 3,25 | 4,50 | 4,25 | 150 kg | 6,6 kg | ||
| 1 x 17 | 5,50 | 3,50 | 4,75 | 4,55 | 150 kg | 6,9 kg | ||
| 1 x 18 | 5,75 | 3,75 | 5,05 | 4,85 | 150 kg | 7,3 kg | ||
| 1 x 6 | 2,80 | 0,80 | 1,85 | 1,75 | 150 kg | 2,9 kg | ||
| 1 x 7 | 3,05 | 1,05 | 2,15 | 2,00 | 150 kg | 3,4 kg | ||
| 1 x 8 | 3,30 | 1,30 | 2,40 | 2,30 | 150 kg | 3,8 kg | ||
| 1 x 9 | 3,60 | 1,60 | 2,70 | 2,55 | 150 kg | 4,3 kg | ||
| 1 x 10 | 3,85 | 1,85 | 2,95 | 2,80 | 150 kg | 4,7 kg | ||
| 1 x 11 | 4,10 | 2,10 | 3,25 | 3,05 | 150 kg | 5,7 kg | ||
| 1 x 12 | 4,35 | 2,35 | 3,55 | 3,35 | 150 kg | 6,1 kg | ||
| 1 x 13 | 4,65 | 2,65 | 3,80 | 3,60 | 150 kg | 6,5 kg | ||
| 1 x 14 | 4,90 | 2,90 | 4,10 | 3,85 | 150 kg | 7,0 kg | ||
| 1203* | 1 x 15 | 5,15 | 3,15 | 4,35 | 4,15 | 150 kg | 7,4 kg | |
| 1 x 16 | 5,40 | 3,40 | 4,65 | 4,40 | 150 kg | 7,9 kg | ||
| 1 x 17 | 5,70 | 3,70 | 4,95 | 4,65 | 150 kg | 8,4 kg | ||
| 1 x 18 | 5,95 | 3,95 | 5,20 | 4,90 | 150 kg | 8,8 kg | ||
| 1 x 19 | 6,20 | 4,20 | 5,50 | 5,20 | 150 kg | 10,2 kg | ||
| 1 x 20 | 6,45 | 4,45 | 5,75 | 5,45 | 150 kg | 10,7 kg | ||
| 1 x 21 | 6,75 | 4,75 | 6,05 | 5,70 | 150 kg | 11,2 kg | ||
| 1 x 22 | 7,00 | 5,00 | 6,35 | 5,95 | 150 kg | 11,7 kg | ||
| 1 x 23 | 7,25 | 5,25 | 6,60 | 6,25 | 150 kg | 12,2 kg | ||
| 1 x 24 | 7,55 | 5,55 | 6,90 | 6,50 | 150 kg | 14,7 kg | ||
| 1 x 6 | 2,80 | 0,80 | 1,85 | 1,75 | 150 kg | 3,2 kg | ||
| 1 x 7 | 3,05 | 1,05 | 2,15 | 2,00 | 150 kg | 3,7 kg | ||
| 1 x 8 | 3,30 | 1,30 | 2,40 | 2,30 | 150 kg | 4,1 kg | ||
| 1 x 9 | 3,60 | 1,60 | 2,70 | 2,55 | 150 kg | 4,7 kg | ||
| 1 x 10 | 3,85 | 1,85 | 2,95 | 2,80 | 150 kg | 5,1 kg | ||
| 1 x 11 | 4,10 | 2,10 | 3,25 | 3,05 | 150 kg | 6,1 kg | ||
| 1 x 12 | 4,35 | 2,35 | 3,55 | 3,35 | 150 kg | 6,7 kg | ||
| 1 x 13 | 4,65 | 2,65 | 3,80 | 3,60 | 150 kg | 7,1 kg | ||
| 1 x 14 | 4,90 | 2,90 | 4,10 | 3,85 | 150 kg | 7,6 kg | ||
| 1204* | 1 x 15 | 5,15 | 3,15 | 4,35 | 4,15 | 150 kg | 8,1 kg | |
| 1 x 16 | 5,40 | 3,40 | 4,65 | 4,40 | 150 kg | 8,6 kg | ||
| 1 x 17 | 5,70 | 3,70 | 4,95 | 4,65 | 150 kg | 9,1 kg | ||
| 1 x 18 | 5,95 | 3,95 | 5,20 | 4,90 | 150 kg | 9,6 kg | ||
| 1 x 19 | 6,20 | 4,20 | 5,50 | 5,20 | 150 kg | 11,1 kg | ||
| 1 x 20 | 6,45 | 4,45 | 5,75 | 5,45 | 150 kg | 11,6 kg | ||
| 1 x 21 | 6,75 | 4,75 | 6,05 | 5,70 | 150 kg | 12,1 kg | ||
| 1 x 22 | 7,00 | 5,00 | 6,35 | 5,95 | 150 kg | 12,7 kg | ||
| 1 x 23 | 7,25 | 5,25 | 6,60 | 6,25 | 150 kg | 13,2 kg | ||
| 1 x 24 | 7,55 | 5,55 | 6,90 | 6,50 | 150 kg | 15,7 kg | ||
| B.-Nr. | ca. m A | B | ca. m C | D | ca. kg | ca. kg | ||
| 1 x 6 | 2,80 | 0,80 | 1,95 | 1,85 | 150 kg | 4,9 kg | ||
| 1 x 7 | 3,10 | 1,10 | 2,20 | 2,15 | 150 kg | 5,4 kg | ||
| 1 x 8 | 3,35 | 1,35 | 2,50 | 2,40 | 150 kg | 5,9 kg | ||
| 1 x 9 | 3,60 | 1,60 | 2,75 | 2,70 | 150 kg | 6,4 kg | ||
| 1 x 10 | 3,90 | 1,90 | 3,05 | 2,95 | 150 kg | 6,9 kg | ||
| 1314* | 1 x 11 | 4,15 | 2,15 | 3,35 | 3,20 | 150 kg | 7,4 kg | |
| 1 x 12 | 4,45 | 2,45 | 3,60 | 3,50 | 150 kg | 7,9 kg | ||
| 1 x 13 | 4,70 | 2,70 | 3,90 | 3,75 | 150 kg | 8,4 kg | ||
| 1 x 14 | 5,00 | 3,00 | 4,15 | 4,05 | 150 kg | 9,9 kg | ||
| 1 x 15 | 5,25 | 3,25 | 4,45 | 4,30 | 150 kg | 10,4 kg | ||
| 1 x 16 | 5,50 | 3,50 | 4,75 | 4,55 | 150 kg | 10,9 kg | ||
| 1 x 6 | 2,80 | 0,80 | 1,95 | 1,85 | 150 kg | 5,0 kg | ||
| 1 x 7 | 3,10 | 1,10 | 2,20 | 2,15 | 150 kg | 5,5 kg | ||
| 1 x 8 | 3,35 | 1,35 | 2,50 | 2,40 | 150 kg | 6,0 kg | ||
| 1 x 9 | 3,60 | 1,60 | 2,75 | 2,70 | 150 kg | 6,5 kg | ||
| 1 x 10 | 3,90 | 1,90 | 3,05 | 2,95 | 150 kg | 7,0 kg | ||
| 1315* | 1 x 111 x 12 | 4,154,45 | 2,152,45 | 3,353,60 | 3,203,50 | 150 kg150 kg | 7,5 kg8,0 kg | |
| 1 x 13 | 4,70 | 2,70 | 3,90 | 3,75 | 150 kg | 8,5 kg | ||
| 1 x 14 | 5,00 | 3,00 | 4,15 | 4,05 | 150 kg | 10,0 kg | ||
| 1 x 15 | 5,25 | 3,25 | 4,45 | 4,30 | 150 kg | 10,5 kg | ||
| 1 x 16 | 5,50 | 3,50 | 4,75 | 4,55 | 150 kg | 11,0 kg | ||
Introduction
This user and operating guide describes how to safely use this leaning ladder. Please read it carefully before using the ladder and keep it safe for future reference. Always include this User Manual when handing the ladder over to a new owner.

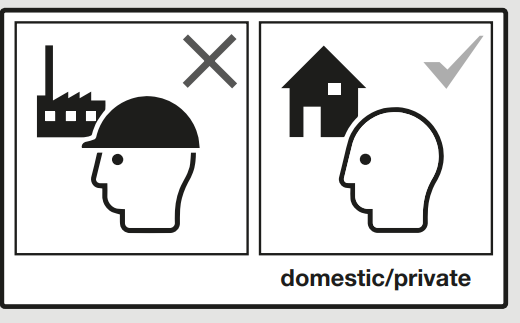

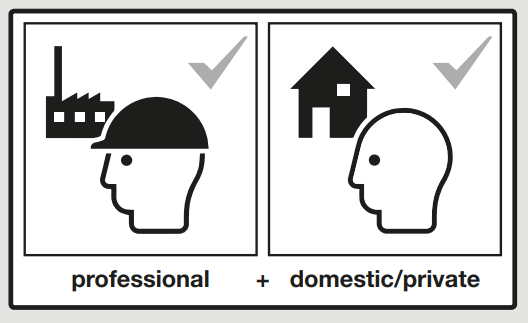

Intended use
This ladder is a mobile piece of equipment that can be used in different locations. It is designed for performing small-scale jobs at heights that would make the use of other types of equipment inappropriate (see the German Ordinance on Industrial Safety and Health). This ladder must only be used as described in this User Manual. All other uses are regarded as inappropriate use. We do not accept any liability for damage arising from the inappropriate use of the ladder. This type of ladder is primarily designed for indoor use. Any changes made to the ladder without the manufacturer‘s authorisation will void the warranty.
Technical information
Description of the leaning ladder and component list. The technical information specific to this ladder is affixed to the ladder itself. Please refer to the table for more information.

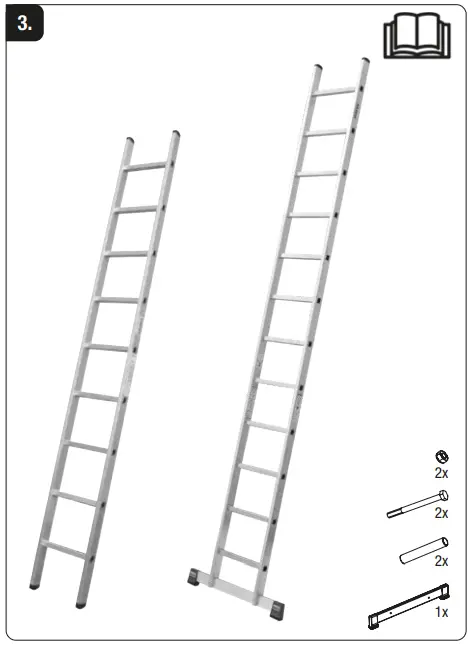

Scope of delivery
List of all of the components that are supplied with the ladder (example): Leaning ladder (complete ladder) + User Manual + Optional Stabiliser + Optional Handrail (not shown – take note of separate assembly guide)

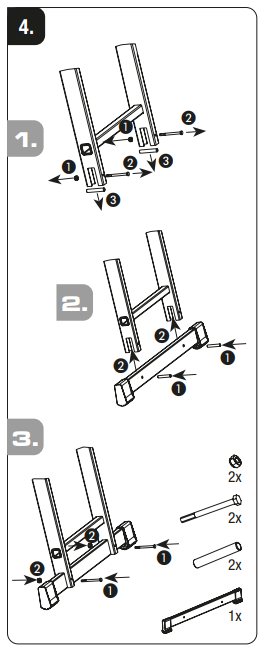

Assembly instructions
Depending on the ladder type and delivery condition, the ladder may yet have to be fully assembled before use. Some leaning ladders come with a stabiliser that has to be fitted before use. Some leaning ladders come with handrails that have to be fitted before use. Please refer to the separate assembly instructions for stabilisers and handrails.
General safety information
The packaging can pose a suffocation hazard. Use of this ladder is always associated with a risk of falling off the ladder and of the ladder tipping over. This can result in injury to persons and damage to objects. Ladders and packaging materials are not toys. All of the work performed with and on the ladder must be performed in such a way as to minimise these risks as much as possible. This ladder is only designed for light work and short periods of use. Do not work on the ladder for too long without taking regular breaks. Fatigue is a hazard and can impact on the safe use of the ladder. The ladder must be suitable for its relevant use and must only be used in the specified position. Only use the steps provided. The ladder and ladder components must not be modified. Always make sure to have a safe handhold and foothold when working on and climbing the ladder. Always observe the national rules and regulations, in particular if using this ladder for professional work. Only use manufacturer approved accessories.
Assembly/Use
Always observe the instructions provided in the user and operating guide and on the ladder itself when assembling and using the ladder.
Information on the leaning ladder‘s design: This leaning ladder has to be leant against a solid surface in order to be used.
Information on using the leaning ladder: Setting up and positioning the leaning ladder safely. Fitting the stabiliser (if supplied).
General safety information
Using the ladder as a leaning ladder
Maintenance/Servicing
The maintenance and servicing work performed on the ladder is intended to make sure that the ladder is working properly. The ladder must be regularly checked for damage. Make sure all of the ladder‘s moving parts are in proper working order. All moving parts must be regularly lubricated. Any repairs to the ladder must be performed by a qualified person and in correspondence with the manufacturer‘s instructions. Always clean the ladder and the moving parts in particular immediately after use if the ladder becomes dirty. Only use conventional, water-soluble cleaning agents. Do not use aggressive or abrasive cleaning agents. If the ladder is being used commercially, it must be regularly inspected by an authorised person to make sure that it is in proper working order (visual inspection and performance test). In this case, it is essential to draw up an inspection schedule that defines the type, scope and intervals at which the requisite inspections are performed. The intervals between these inspections have to be determined in accordance with the relevant operating conditions, in particular the relevant frequency of use, loads applied to the ladder during use and the frequency and severity of any defects identified during previous inspections. The owner is also responsible for removing defective ladders from use and storing them in such a way as to prevent their use until they have been properly repaired or disposed of.
| Ladder component(s): | Inspection point: | ||
| General inspection points | All connecting elements (rivets, screws, bolts etc.) have to be in place. Are any of the connecting elements loose or corroded? Is there any dirt (e.g. soil, mud, paint, oil or grease) on the ladder? | yes | no |
| Side rails/rungs or steps/safety rail | None of the rungs/steps must be missing. Are the side rails, rungs or safety rails bent, twisted, dented, cracked or corroded? Are the rungs or steps worn, loose, corroded or damaged? Is the platform (if available) or are any of the platform components/fastening elements corroded or missing? | ||
| Connectingelements, guides, fittings | Check ladder guides, locking devices and safety equipment for proper function, tightness, damage and corrosion. Are the locking devices or safety equipment damaged, loose or corroded or completely missing? | ||
| Feet Stabilizer | Check feet and stabiliser brace for proper function, tightness, damage and corrosion. None of the ladder feet/end caps must be missing. Are the ladder feet loose, worn or corroded? | ||
| Ladder labels/ User manual | Are all of the ladder labels and the user and operating guide available and easily legible? | ||
| RESULT | The ladder is in good working order and is fit for use. | ||
| The ladder must only be used after having been repaired. | |||
| The ladder is broken and must be disposed of. | |||

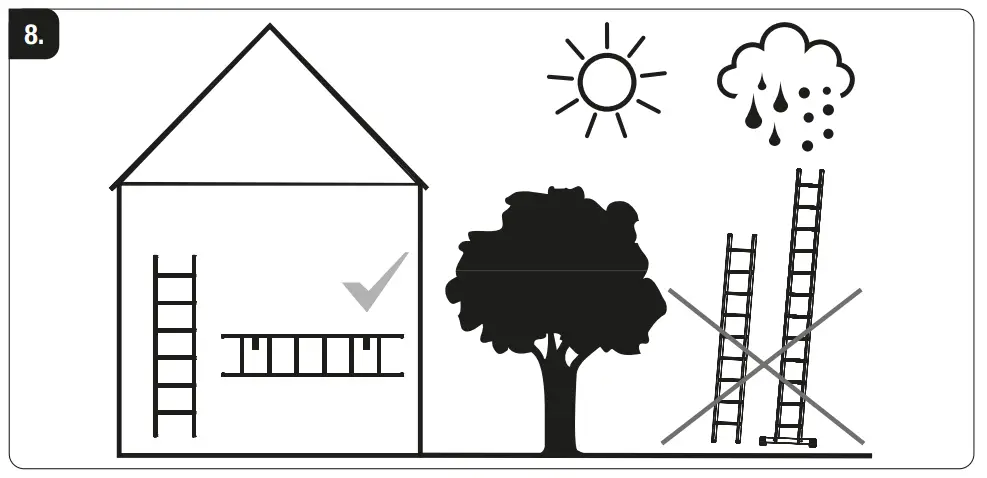

Storage: Securely fasten and tie down ladders when transporting them (e.g. on roof racks or in cars) to avoid any
damage. The ladder should be stored in a dry environment either standing upright, flat on the ground or hung on a
wall with a suitable wall holder. It must be stored in such a way as to prevent it from becoming damaged and all of
its components must be protected from the weather. The ladder must be stored in such a way as to be protected
from children and such that it does not represent a hazard (e.g. tripping hazard). It must furthermore be stored in
such a way that it cannot be used/removed for unlawful purposes.
Packaging/Disposal: The packaging must be disposed of in correspondence with the relevant regulations and
laws. When having reached the end of its service life, the ladder must be disposed of in compliance with the relevant regulation. Aluminium is a high quality material and should be recycled. Please refer to your local authority for more information on recycling.
Service life: This ladder is a high quality product and designed to have a long service life if if used as intended
and regularly serviced.
Manufacturer: KRAUSE-Werk GmbH & Co. KG
• Am Kreuzweg 3 • D-36304 Alsfeld
Tel.: +49 (0) 66 31 / 7 95-0 • Fax: +49 (0) 66 31 / 7 95-139 • E-Mail: [email protected]
www.krause-systems.com • Issue date: 01/04/2023
