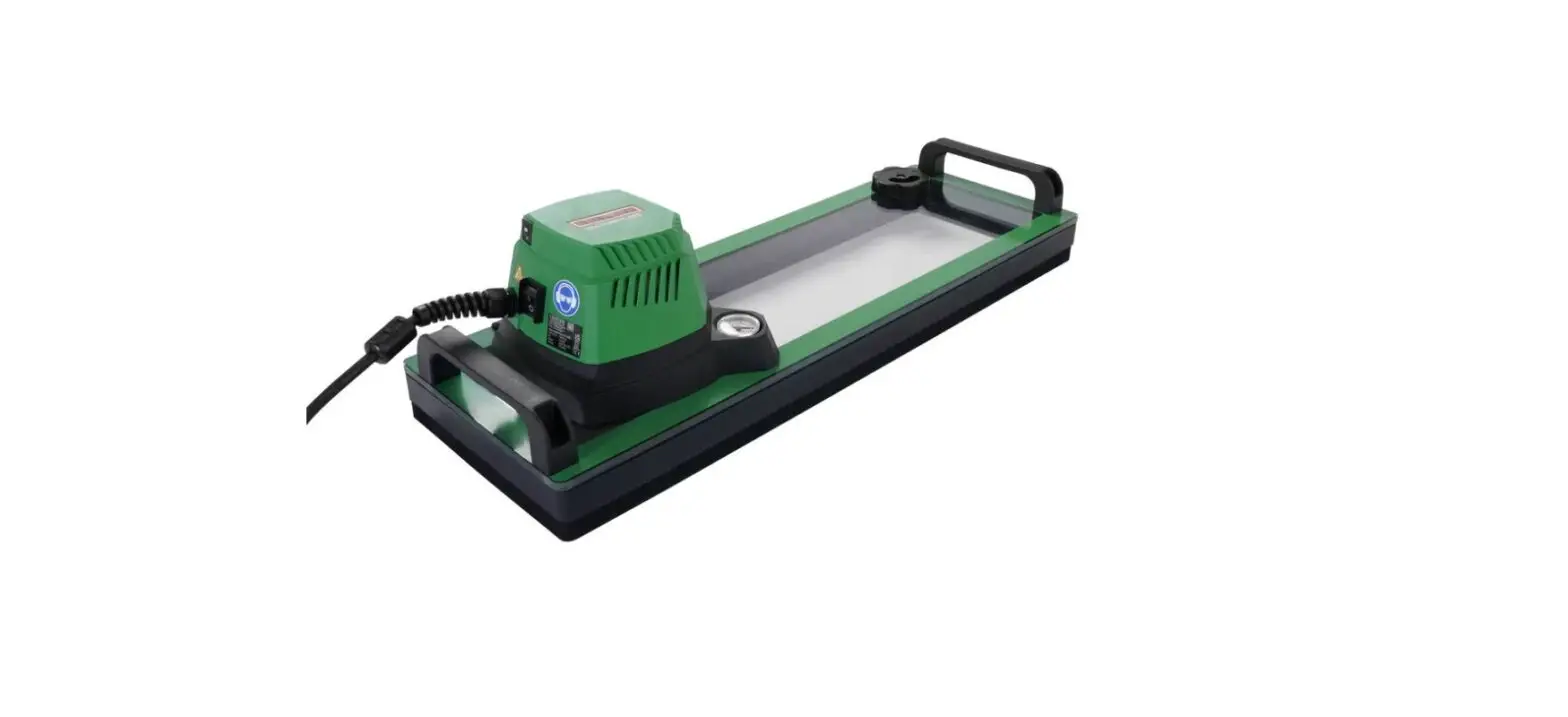

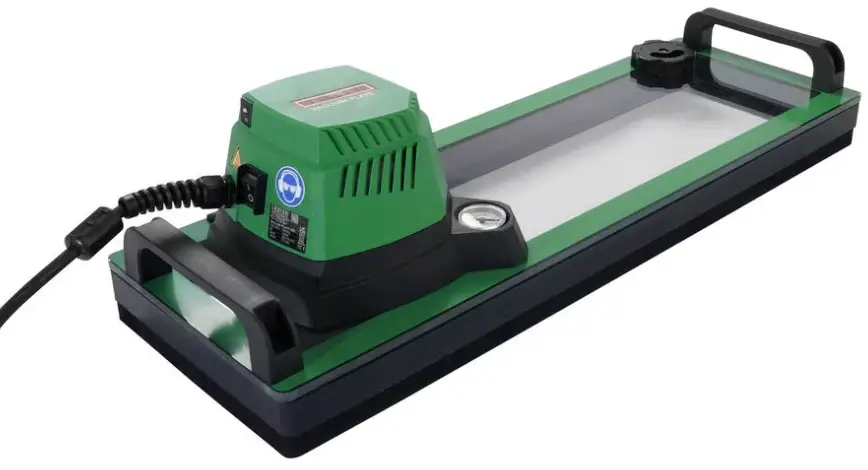

LEISTER VACUUM PLATE 300 Vacuum Leak Testing Machine Instructions
Safety instructions VACUUM PLATE 300 test device
Read through the operating instructions before using for the first time. You can find the operating instructions in your language at www.leister.link/UM-DLP-Vacuum-Plate-300 or via the following QR code:
Important safety instructions
Warning
Dangerous voltage, danger to life from electric shock:
There are live components inside the device. Maintenance and repairs are to be carried out by trained specialist personnel only. If the housing is damaged, the power cord must be disconnected from the power source immediately. Keep the device away from moisture and wet conditions. Before starting, check the power cord, the plug and the extension cable for electrical and mechanical damage.
Fire and explosion hazard
Admixtures (e.g. combustible or explosive gases or vapors), traces of oil, oil vapor and grease must not be sucked in. Any operation in a potentially explosive environment is prohibited. The device must only be operated with the filter plate installed.
No hazardous leak tracer is to be used for testing the weld seams. There is a risk of inhalation
of liquid particles. Read the material safety data sheet from the manufacturer of the material and
follow that company’s instructions.
Risk of injury from plastic chips at startup.
Damaged plastic glass can lead to implosion. This may cause eye injuries. The plastic glass must be protected against mechanical damage by impact or fall, for example. Do not put a defective VACUUM PLATE into operation. Wear protective goggles
Vacuum blower causes high noise levels. There is therefore a risk of hearing damage while operating the device. Wear hearing protection.
Risk of inhalation of dust particles while operating the device. If the membrane is contaminated, dust particles can be sucked in and ejected by the blower. The membrane must be free of impurities in the test area.
If the device is being used on construction sites, a fault current circuit breaker must be used to protect site personnel from electrical shock due to dampness and moisture.
Risk of burns
The device may only be operated at intervals. If the on duration is too long (>2min), the temperature on the motor housing can cause burns. Always allow the device to cool down. The device can only be operated using the handles and switches provided. The main switch must be switched off in the event of a mains voltage failure.
Be aware of hazards in the surrounding area, e.g., risk of tripping, risk of slipping, strong sunlight, unattended equipment, etc.
Be aware of hazards in the surrounding area, e.g., risk of tripping, risk of slipping, strong sunlight, unattended equipment, etc.
Note
The local supply voltage must match the nominal voltage specified on the device. Incorrect mains voltage can cause the device to fail. The main switch must be switched off in the event of a mains voltage failure.
Avoid contact with aggressive substances (e.g. acetone, diluent, etc.). There is a risk of damage to the installed components.
Declaration of Conformity
EU Declaration of Conformity
Leister Technologies AG, Galileo-Strasse 10, 6056 Kaegiswil, Switzerland confirms that this product in the model made available for purchase, fulfills the requirements of the following EU directives.
Directives: 2006/42/EG, 2014/30/EU, 2011/65/EU
Harmonized EN ISO 12100:2010, EN 60335-1:2012 + A11:2014 + A13:2017 + AC:2014,
Standards: EN 55014-1:2017 + A11:2020, EN 55014-2:1997 + A1:2001 + A2:2008 + AC:1997, EN IEC 63000:2018
Kaegiswil, 02/24/2022
Bruno von Wyl, CTO
Christoph Baumgartner, GM
UK Declaration of Conformity
Leister Technologies AG, Galileo-Strasse 10, 6056 Kaegiswil, Switzerland confirms that this product in the model made available for purchase, fulfills the requirements of the following UK Statutory Instruments. UK Statutory
Instruments: 2008 No.1597, 2016 No. 1091, 2012 No. 3032
Designated EN ISO 12100:2010, EN 60335-1:2012 + A11:2014 + A13:2017 + AC:2014,
Standards: EN 55014-1:2017 + A11:2020, EN 55014-2:1997 + A1:2001 + A2:2008 + AC:1997, EN IEC 63000:2018
Kaegiswil, 02/24/2022
Bruno von Wyl, CTO
Christoph Baumgartner, GM
Leister Technologies AG
Galileo-Strasse 10 6056 Kaegiswil/Switzerland
Tel. +41 41 662 74 74
Fax +41 41 662 74 16
www.leister.com
[email protected]
VACUUM PLATE 300 Safety Instructions Art. 172.406 / 03.2022
