DW24UT4I2 Integrated Dishwasher
User Guide

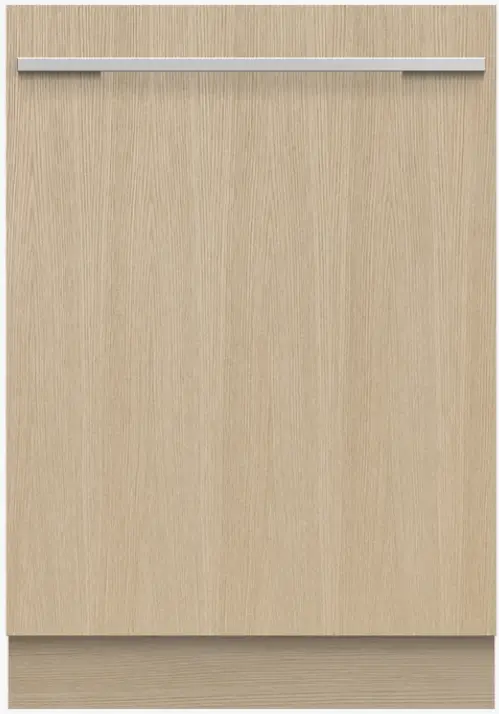

DW24UT4I2 Integrated Dishwasher
QUICK REFERENCE GUIDE > DW24UT4I2
Integrated Dishwasher, Tall, Sanitize
Series 7 | Integrated
Panel Ready
Designed to integrate seamlessly into surrounding cabinetry, this dishwasher delivers superior wash performance and advanced drying.
- Customize with your own front panel and handle to match your kitchen cabinetry
- Eight wash programs from Heavy to Light, including Auto, 60min and Glassware
- Dry+, Sanitize, Half Load and Intensive modifiers provide extra wash options
- Wi-Fi enabled and works with the SmartHQTM app for remote control and notifications
DIMENSIONS
| Height | 33 3/4 – 36 1/8″ |
| Width | 23 1/2″ |
| Depth | 22 13/16″ |
FEATURES & BENEFITS
SEAMLESS INTEGRATION
Customize your dishwasher with a panel and handle matching your cabinetry, for a seamless finish in your kitchen.
ADVANCED DRYING
For beautifully dry dishes every time, this dishwasher features an advanced drying system that combines fan-assisted drying and automatic door opening at the end of the cycle. By opening to release excess steam, Auto Door Open Dry helps to ensure your dishes come out dry and ready to use or store.
AN EXCEPTIONAL CLEAN
This dishwasher offers eight wash programs including Glassware and Auto, which automatically senses the optimal wash settings for your dishes. The three-stage filtration system delivers a superior clean, while the rinse aid indicator reminds you to top up for beautifully clean dishes.
CUSTOMIZE YOUR WASH
Create the perfect wash with our range of modifiers, from Intensive for a thorough clean to Half Load, ideal for a partial load. The Sanitize modifier provides extra protection, killing 99.9% of bacteria* in the final rinse, while Dry+ is great for plastic dishes. *Certified to NSF/ANSI Standard 184
QUIET PERFORMER
Running at a very low decibel rating, this dishwasher does its job without making a fuss. The combination of clever technology and simple mechanics means greater reliability and superior wash performance, with minimal noise.
EFFICIENT PERFORMANCE
With an Energy Star Most Efficient rating, this dishwasher is recognised as among the most energy efficient models on the market. Use the Eco wash program for optimal water and energy consumption, or choose when the cycle begins with Delay Start.
FLEXIBLE LOADING
Designed to fit 15 place settings, this spacious model lets you stack large items with ease. Adjustable rack options provide flexibility for any load, with a full-width cutlery tray, heightadjustable middle rack, cup holders and wine glass supports.
SPECIFICATIONS
| Accessories | |
| Contemporary round handle | AHS-OBDD-60S |
| Contemporary square fine | AHD5-OBDD-60S |
| Contemporary square handle | AHD3-OBDD-60S |
| Cutlery basket | • |
| Professional round flush handle | AHP3-DWDD-SX |
| Stainless steel door panel | ADDW24TPX |
| Capacity and loading | |
| Accommodates round plates | 12 9/16″ |
| Accommodates round plates | 9 13/16″ |
| Adjustable height, foldable | • |
| Fold down tines | • |
| Full width cutlery/utensil tray | • |
| Large crockery insert in lower | • |
| Place settings | 15 |
| Telescopic slides | • |
| Wine glass supports with | • |
| Consumption | |
| Energy rating | Energy star Most efficient |
| Energy usage | 210 kWh/year |
| Water usage (per wash cycle) | 3.2 gal/cycle |
| Controls | |
| Child lock | • |
| Energy saving delay start | • |
| Floor light cycle feedback | • |
| Internal light | • |
| Internal wash selector | • |
| Intuitive capacitive touch | • |
| Rinse aid indicator light | • |
| Wi-Fi connectivity | • |
| Features | |
| Air curtain for bench | • |
| Auto Door Open Dry | • |
| Fan assisted drying | • |
| Flood protection | • |
| Fully independent spray arms | • |
| Half load option | • |
| Internal tub material | Stainless Steel |
| Motor type | BLDC |
| Three-stage filtration system | • |
| Variable wash pressure | • |
| Performance | |
| Noise emissions | 42dBA |
| Power requirements | |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Product dimensions | |
| Depth | 22 13/16″ |
| Height | 33 3/4 – 36 1/8″ |
| Width | 23 1/2″ |
| Warranty | |
| Parts and labor | 2 years |
| Wash Program Modifiers | |
| Dry + | • |
| Half-load | • |
| Intensive | • |
| Sanitize | • |
| Wash modifiers | 4 |
| Wash Programs | |
| 60 min | • |
| Auto | • |
| Eco | • |
| Glassware | • |
| Heavy | • |
| Light | • |
| Medium | • |
| Rinse | • |
| Wash programs | 8 |
| Water connection | |
| Water pressure | Min 5 psi (34.5 Kpa), Max 150 |
| SKU | 82445 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
 | Service & Warranty |
| User Guide Dishwasher |
| Energy Label Dishwasher |
| Installation Guide Built Under Dishwasher |
| Preliminary Specification Guide Dishwasher |
A PEACE OF MIND SALE
24 Hours 7 Days a Week
Customer Support
T 1.888.936.7872
Wwww.fisherpaykel.com
Date: 02.03.2023 > 3
