GRILL- UND BRATENTHERMOMETER
DUAL 2IN1
GRILL AND MEAT THERMOMETER
DUAL 2IN1
Art.Nr. 97 03 10
Original Instructions

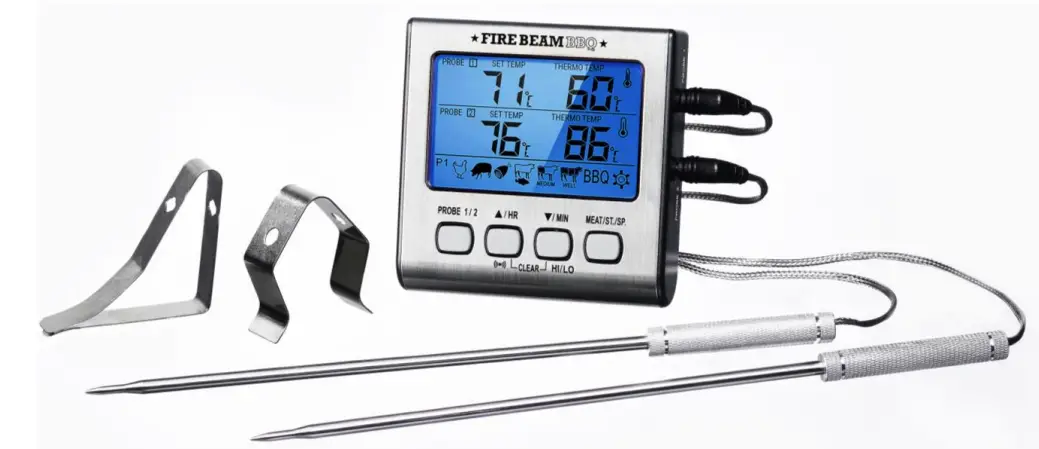

Grill and meat thermometer

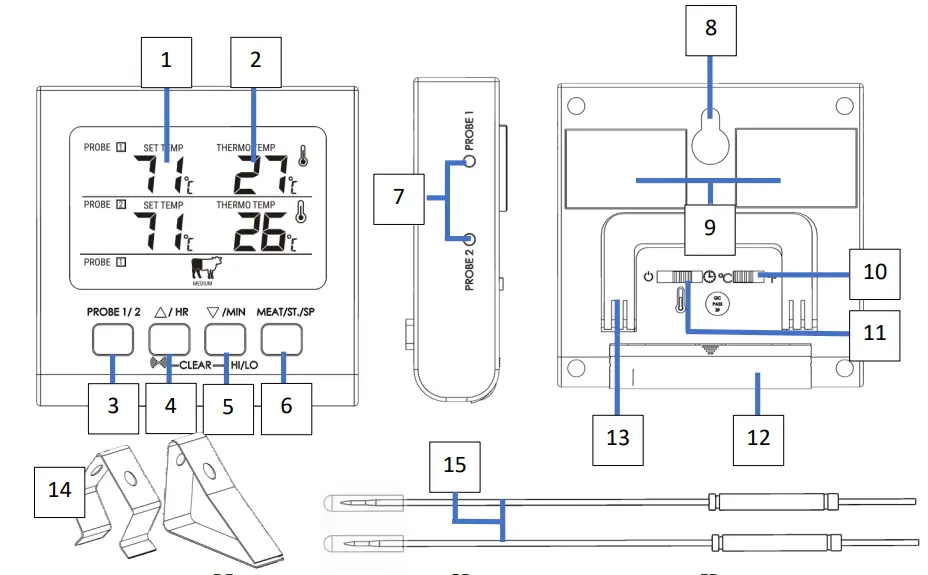

97 03 10 Grill and Meat Thermometer
- Target temperature
- Actual temperature
- Probe selection
- ▲/ HR selection
- ▼/ MIN/HI/LO selection
- MEAT/START/STOP button
- Probe connections
- Wall mount
- Magnetic attachment
- °C/°F selection
- Mode selection
- Battery compartment
- Flip-out stand
- Cooking Grate & Pot/Pan Clips
- Temperature probe
Dear Customers,
Instruction manuals provide valuable hints for using your new device. They enable you to use all functions, and they help you avoid misunderstandings and prevent damage. Please take the time to read this manual carefully and keep it for future reference.

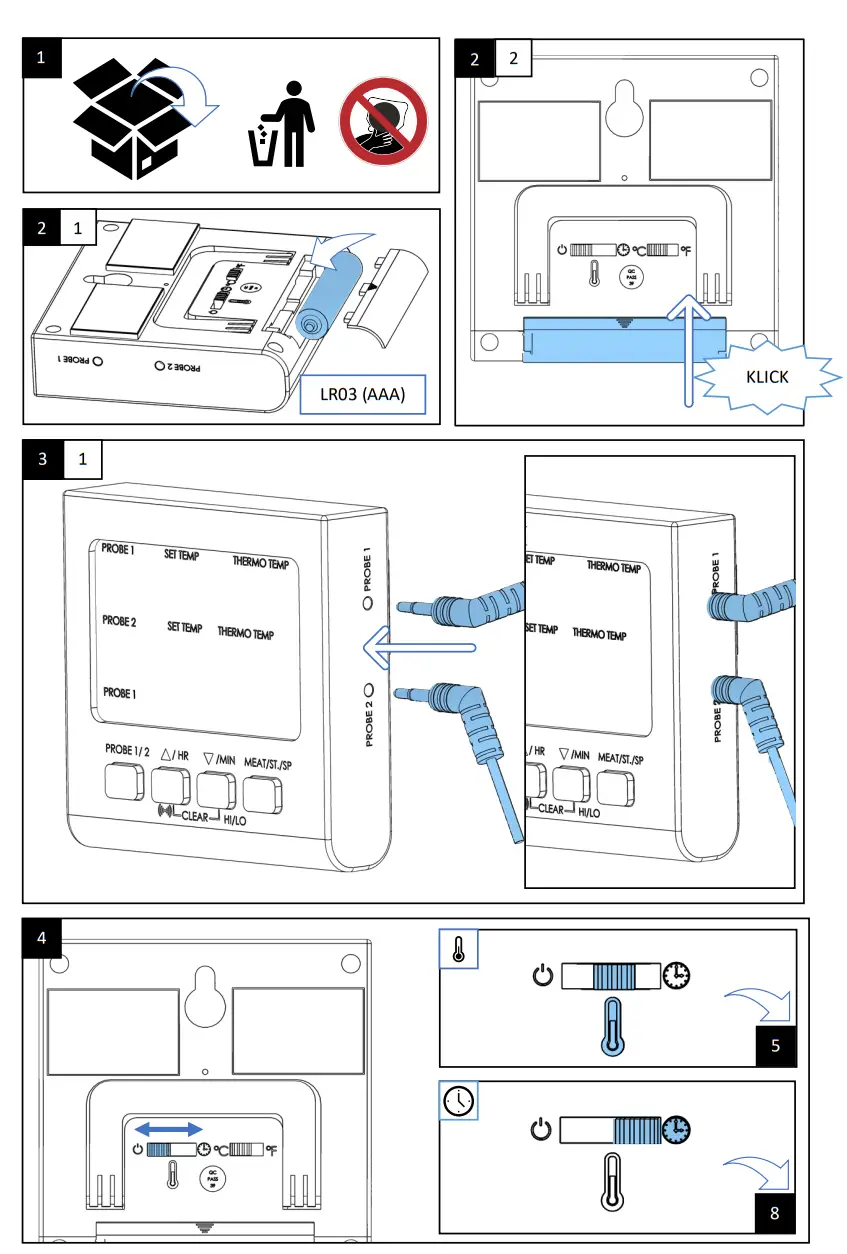

Unbox device
TECHNICAL DATA
| Temperature range | 10°C – 300° 14°F – 572°F |
| Temperature tolerance | ± 1°C ± 1,8°F |
| Max. time setting | 99 h 59 min |
| Dimensions | 82 x 82 mm |
| Meat type selection | 4 |
| Presets | 8 |
| Probe length | 21 cm |
| Cable length | 104 cm |
| Weight (without battery) | 121 g |
| Battery* | 1 x LR03 (AAA) |
| Doneness settings beef | 3 |
not included
 | Batteries do not belong in the household garbage. For battery disposal please check with a local council. |  |
SAFETY NOTES
Please note the included General Safety Notes and the following safety notes to avoid malfunctions, damage or physical injury.
- Keep the thermometer out of reach of children or persons in need of supervision.
The unit is not a toy. - Do not use the thermometer in the microwave.
- Make sure to use heat-resistant hand protection, the temperature sensors take on the ambient heat.
- Be careful when handling the measuring probe of thermometer. The probe is very spikey.
- Keep this measuring probe clean at all times as it comes into direct contact with food.
- Do not immerse the unit in liquids and do not allow water to enter the key pad and display. Do not use the key pad with wet hands.
- Do not expose the unit to strong vibrations or high levels of humidity and avoid strong mechanical stresses.
- Always store the unit in a dry place.
- Do not disassemble, burn, or short-circuit batteries and do not attempt to recharge non-rechargeable batteries. Do not mix rechargeable batteries and nonrechargeable batteries and use only batteries of the same type.
- If you do not use the unit for a long period of time, remove the batteries.
- Should the unit become damaged, do not use it and have it repaired by a professional or contact our customer support department. Do not disassemble the unit or try repairing it yourself.
EC DECLARATION OF CONFORMITY
We, the Westfalia Werkzeugcompany, Werkzeugstraße 1, D-58093 Hagen,
Grill and Meat Thermometer Dual 2in1
Article No. 97 03 10
is according to the basic requirements, which are defined in the European Directives and their amendments.
2011/65/EC
Restriction of the Use of certain hazardous Substances in electrical and electronic Equipment (RoHS)
2014/30/EC
Electromagnetic Compatibility (EMC)
EN 6100-6-1 :2007, EN 61000-6-3 :2007+A1 :2011
The technical documentations are on file at the QA department of the Westfalia Werkzeugcompany.
Hagen, 07nt of February, 2022
Thomas Klingbeil,
QA Representative
CUSTOMER SERVICES
DEUTSCHLAND
Westfalia
Werkzeugstraße 1
D-58093 Hagen
Telefon: (0180) 5 30 31 32
Telefax: (0180) 5 30 31 30
Internet: www.westfalia.de
SCHWEIZ
Westfalia
Wydenhof 3a
CH-3422 Kirchberg (BE)
Telefon: (034) 4 13 80 00
Telefax: (034) 4 13 80 01
Internet: www.westfalia-versand.ch
DISPOSAL
Dear Customer,
Please help avoid waste materials.
If you at some point intend to dispose of this article, then please keep in mind that many of its components consist of valuable materials, which can be recycled. Please do not discharge it in the rubbish bin, but check with your local council for recycling facilities in your area.
©Westfalia 02/22
