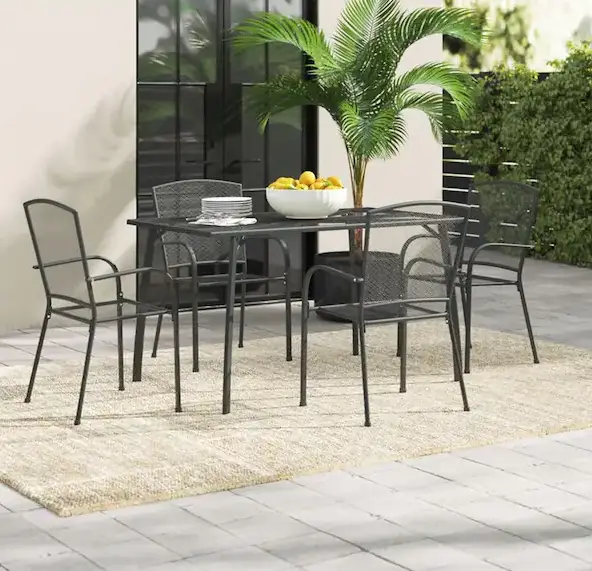

AECOJOY 19033GR 5 Pieces Chairs and Rectangular Table Set
Attention
- We highly value customer’s user experience. Please contact us freely if there’s any parts missing or damaged. We will provide professional advice or efficient customer support in 24 hours.
- Item will come with 2 boxes, box A(1/2) and box B(2/2). In box A, you will receive 4 chairs(hardware not included). In box B, you will receive 1 rectangular table and all hardware for table and chairs. We suggest you install the whole item after receiving both boxes.
- We recommend tighten all the bolts after you put all the bolts into the holes.
PART-I Install the Table
Carton A=A
Carton B= B

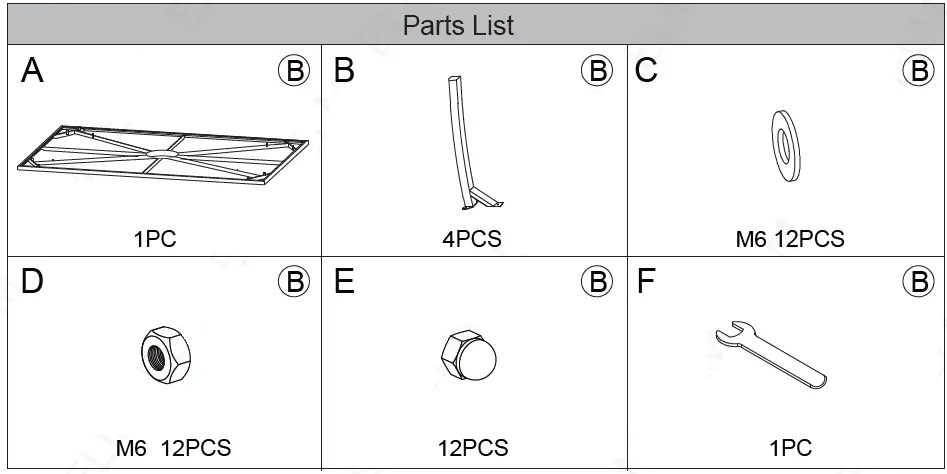

Parts List
Note: Please do not fix bolts tightly before all the screws are aligned. Tighten all screws at last.
Instruction

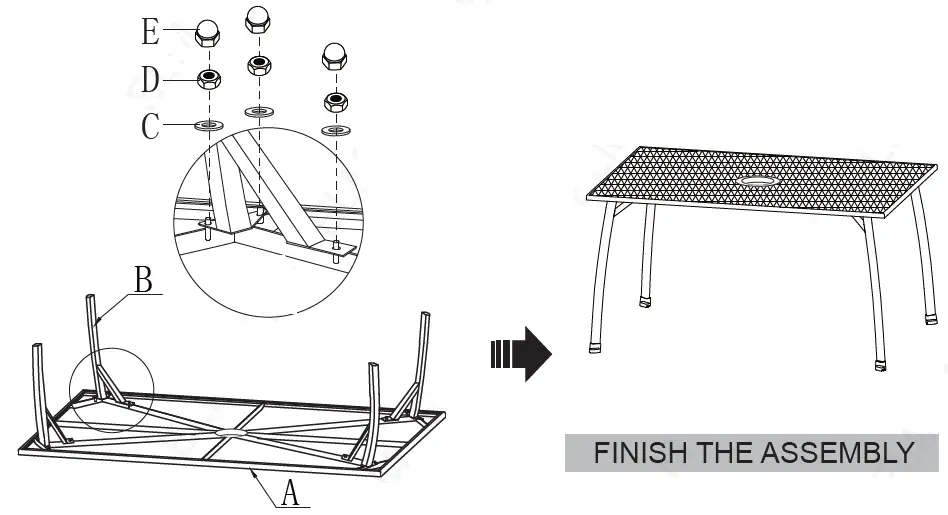

STEP 1
Connect 4 legs(B) to table top(A) with flat washer(C), nut(D) and cap(E). Secure all the screws tightly after you put all the screws into the hole.

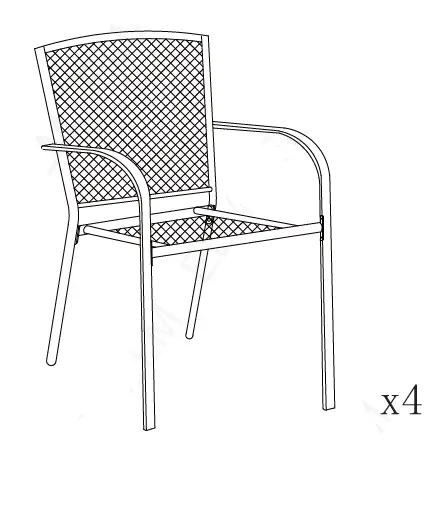

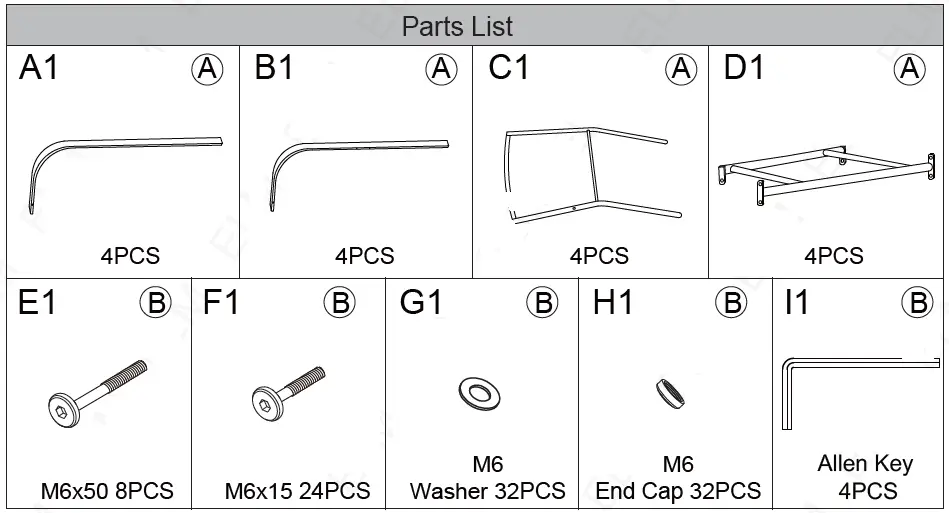

PART-II Install the Chairs
Carton A=A
Carton B= B
Note: Please do not fix bolts tightly before all the screws are aligned. Tighten all screws at last.

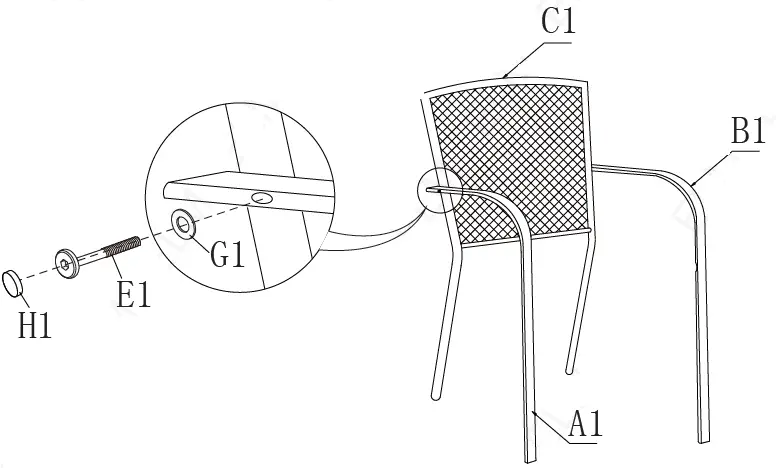

STEP 1
Connect right armrest (A1) and left armrest (B1) to backrest (C1) with flat washer (G1), long bolt (E1) and cap (H1). Please do not tighten them now.

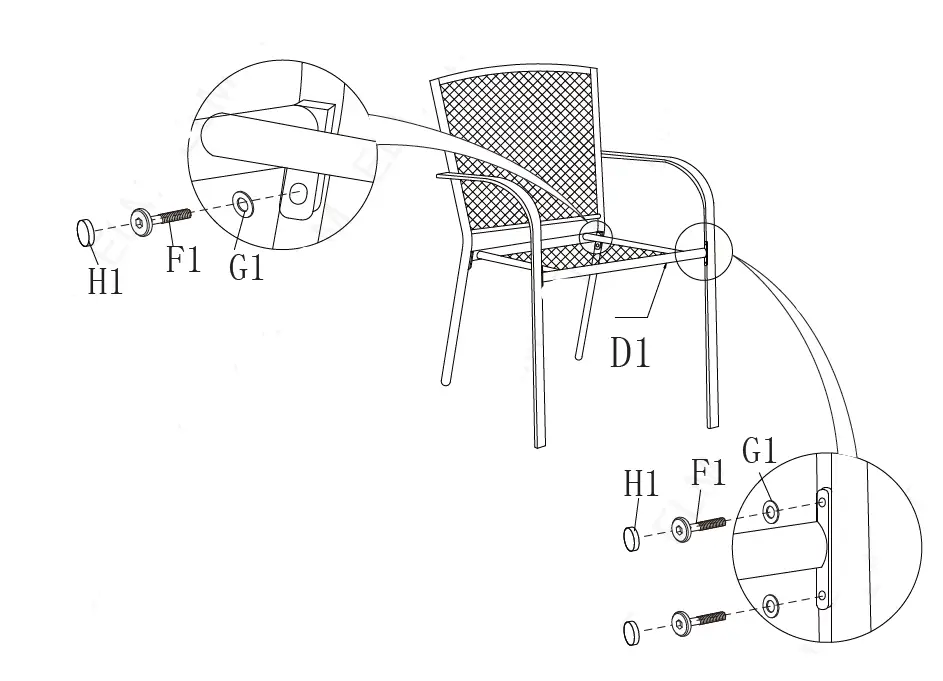

STEP 2
Connect seat (D1) to backrest (C1) with flat washer (G1), short bolt (F1) and cap (H1).
Then connect seat (D1) to armrests (A1&B1) with flat washer (G1), short bolt (F1) and cap (H1). Please tighten all the bolts after you put all the screws into the holes.
FINISH THE ASSEMBLY
