FISHER PAYKEL HPB3011-4 N 30Inch Insert Range Hood User Guide
With edge-to-edge extraction, this efficient, stylish range hood is perfectly hidden away in your cabinetry.
- With five fan speeds, select the perfect extraction rate for your cooking
- With dimmable LED strip lighting 400CFM maximum airflow
- Dishwasher safe filters that are easy to remove and clean

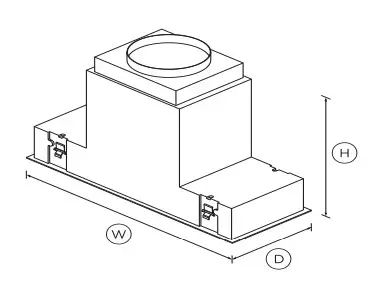

DIMENSIONS
| Height | 16 1/4″ |
| Width | 28 3/4″ |
| Depth | 11″ |
FEATURES & BENEFITS
Achieve the invisible
<> Edge to edge extraction
Filters effectively reach edge to edge, which maximizes the amount of extraction area.
Full surface lighting
The even lighting provides full coverage of the cooktop, illuminating food in its true color, with no hot or dark spots and no glare or shadows. The dimmable lights have fade in and fade out features.
Easy to use
This easy to use range hood operates with fingertip control of LED-illuminated soft touch buttons. Selected models also come with a remote control.
Energy efficiency
Powered by a brushless DC motor, the Insert Range Hood operates more efficiently, more reliably and with less noise than units with AC motors. Plus, fewer moving parts mean less erosion and longer lifetime.
Effortless cleaning
<> Simple installation
The simple installation process is compatible with most precut cabinetry. The adjustable mounting system can be installed with ⅝” to 9/16” cabinetry board.
SPECIFICATIONS
Accessories
| Remote control | HPBRF1 Part number 50137 |
Fan ratings
| Maximum air movement | 400CFM |
| Maximum blower air flow | 400CFM |
Installation and cleaning
| Air outlet size | 8″ |
| Dishwasher safe filters | 2 |
| Ducted | Vertical only |
Performance
| Extraction type | Surface |
| Fan speeds | 5 |
Power requirements
| Supply voltage | 120V |
Product dimensions
| Depth | 11″ |
| Height | 16 1/4″ |
| Width | 28 3/4″ |
Product information
| Control type | Electronic |
Ventilation features
| Auto-off/Run-on timer | • |
| Dimmable lights | • |
| Filter cleaning alert | • |
| Light type | LED |
| Number of light settings | 5 |
| Over heat sensing | • |
Warrant
| Parts and labor | 2 years |
| SKU | 50094 |
TEST The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher
& Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020

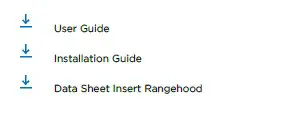

Other product downloads available at fisherpaykel.com
