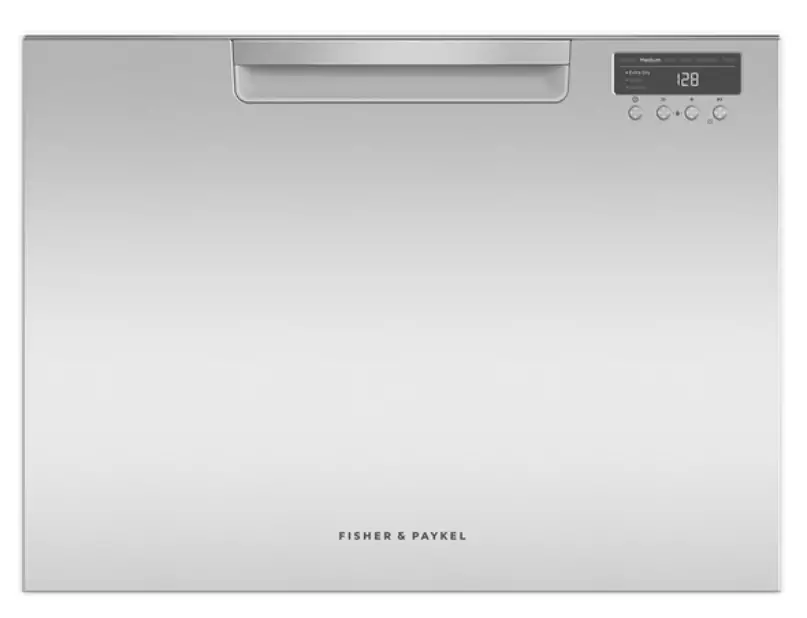

DD24SCTX9 N Single DishDrawer Inch Dishwasher, Tall, Sanitize
User Guide
DD24SCTX9 N Single DishDrawer Inch Dishwasher Tall Sanitize
Designed to fit your full-sized dinner plates, this DishDrawer™ can be placed anywhere in your kitchen, for loading dishes with less bending.
- Six wash programs, as well as additional Quick wash, Sanitize and Extra Dry options
- American Disabilities Act (ADA) compliant, this can be installed at an accessible height for loading and unloading.
- Flexible racking can be folded down to fit bigger dishes

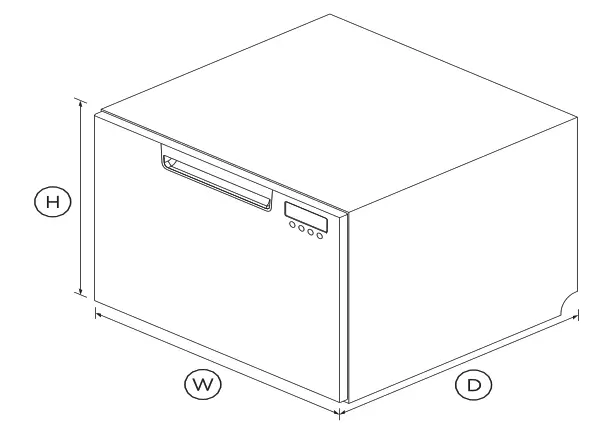

DIMENSIONS
| Height | 17 7/8″ |
| Width | 23 9/16″ |
| Depth | 22 9/16″ |
FEATURES & BENEFITS
DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.
QUICK, SANITIZE AND EXTRA DRY
The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitize option provides extra protection killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.
QUIET PERFORMER
Running at a very low decibel rate, these DishDrawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
COMPLEMENTARY DESIGN
DishDrawer™ Dishwashers can be installed in any kitchen space and are designed to match the Fisher & Paykel family of kitchen appliances, with matching handles, premium styling and quality materials.
SPECIFICATIONS
| Accessories | |
| Cutlery basket | • |
| Knife clip and multipurpose | • |
| Capacity and loading | |
| Accommodates round plates | 12.25″ |
| Adjustable height, foldable | • |
| Fold down tines | • |
| Pitch adjustable tines | • |
| Place settings | 7 |
| Consumption | |
| Energy rating | Energy star |
| Energy usage | 151 kWh/year |
| Water usage (per wash cycle) | 1.8 gal |
| Controls | |
| Child lock | • |
| QUICK REFERENCE GUIDE > | DD24SCTX9 N |
| Electronic fault/Diagnostic | • |
| End of cycle beeps | • |
| Energy saving delay start | • |
| Rinse aid indicator light | • |
| Features | |
| Fan assisted drying | • |
| Flood protection | • |
| Flow through detergent | • |
| Quiet operation | • |
| SmartDrive™ technology | • |
| Performance | |
| Noise emissions | 44dBA |
| Power requirements | |
| Amperage | 5A |
| Electric circuit | 3 wire |
| Rated current | 15A |
| Supply voltage | 120V |
| Product dimensions | |
| Depth | 22 9/16″ |
| Height | 17 7/8″ |
| Width | 23 9/16″ |
| Safety and compliance | |
| ADA compliant | • |
| Warranty | |
| Parts and labour | Limited 2 years |
| Wash Program Modifiers | |
| Extra Dry | • |
| Quick | • |
| Sanitize | • |
| Wash modifiers | 3 |
| Wash Programs | |
| Delicate | • |
| Eco | • |
| Fast | • |
| Heavy | • |
| Medium | • |
| Rinse | • |
| Wash programs | 6 |
| SKU | 82336 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
