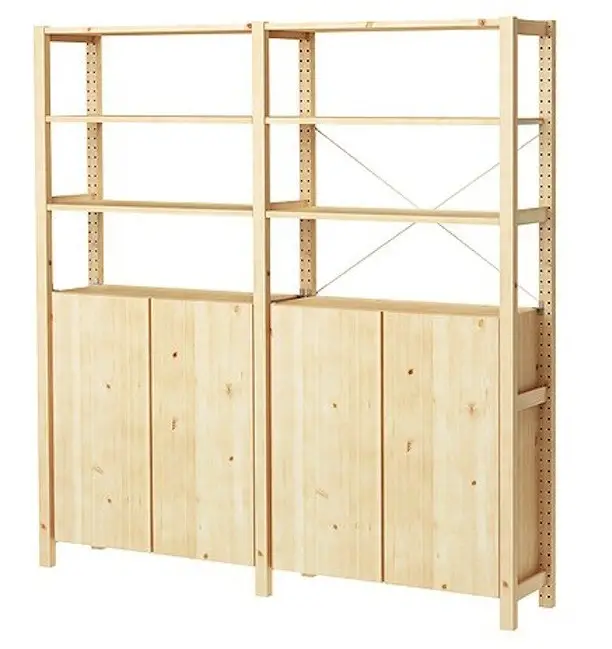

IKEA sg22 IVAR Storage solution
Care instruction
For a durable and easy care surface, treat with oil, wax, varnish, paint or stain.
Environment
Renewable material (wood).
Solid wood – not from intact natural forests.
We have clear require-ments for all the wood we use, including a ban on illegally harvested wood. By 2020, we want all our wood to come from more sustainable sources, defined as certified or recycled.
The material in this product may be recyclable. Please check the recycling rules in your community and if recycling facilities exist in your area.
Safety
We recommend you to fix the furniture to the wall with the enclosed safety bracket to prevent it from tipping over if a child climbs or hangs on it. Different wall materials require different types of fixing devices. Use fixing devices suitable for the walls in your home (not included). For higher stabil-ity, complete every second section with a cross-brace.
Good to know
Max. load for IVAR shelves: 42 cm width
- 30 cm depth; 18 kg
- 50 cm depth; 30 kg
- 83 cm width
- 30 cm depth; 35 kg
- 50 cm depth; 45 kg
- 56 cm width
- 50 cm depth; 30 kg
- 76 cm width
- 50 cm depth; 50 kg
By combining parts in the IVAR storage system you can put the space you have to best use. Start by thinking about your needs and your space. Then, combine different heights and depths, make use of cor-ners and add the finishing touch with cabinets and doors.
Tired of boxes and things scattered all over your office? With the IVAR storage system you can quickly organise all the office supplies in the stock room, paper piles in the desk area and binders in the archive. You will be surprised at how easy it is to put everything in order.
Drill into the solid wood side units and add hooks. Paint or wax the entire shelf in a colour you really like. The possibilities are many – even if the space is limited.
All the products (shown here) may not be available at the store. Please contact the staff or look at IKEA.sg for more information. For more detailed product information,
see the pricetag and the Internet. All units require assembly.

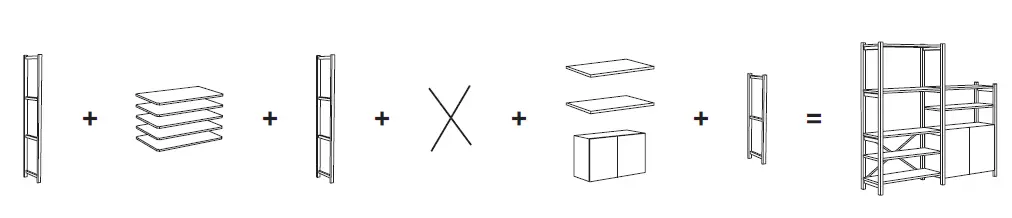

How to build
Start by thinking about what you want to store and the space you have available. For the first section you need two side units, shelves and a cross-brace. E×tend sideways, either at the same height or a different one. For each additional section, you need just one side unit, which you link to the storage solution with shelves or a cabinet. To ensure stability we recommend that you fit a cross-brace to every other section.
Combinations

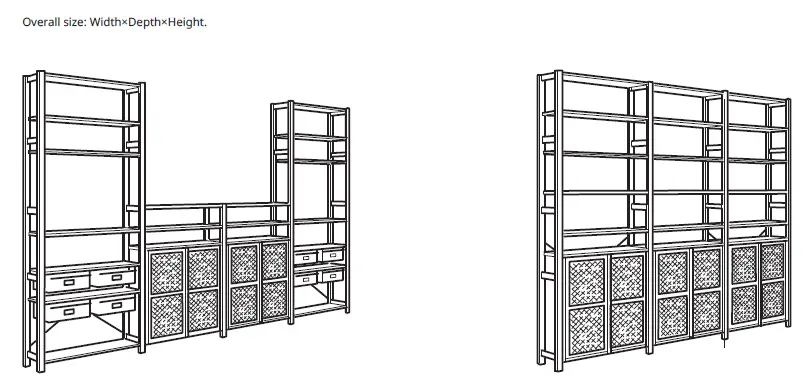

Overall size: Width×Depth×Height.
| IVAR shelving unit with cabinets and drawers. Total size: 344×30×226 cm. This combination in pine/grey mesh $1,045 (293.957.32) | ||
| Shopping list | ||
| IVAR shelf 83×30 cm, pine | 103.181.64 | 18 pcs |
| IVAR side unit 30×124 cm | 701.928.40 | 1 pc |
| IVAR side unit 30×226 cm | 301.928.42 | 4 pcs |
| IVAR cabinet with doors 80×83, grey mesh | 804.840.89 | 2 pcs |
| IVAR drawer 39×30×14 grey | 203.047.79 | 8 pcs |
| OBSERVATÖR cross-brace 100 cm, galvanized | 101.895.48 | 2 pcs |
| IVAR shelving unit with cabinets. Total size: 259×30×226 cm. This combination in pine/grey mesh $875 (693.957.30) This combination in pine/green mesh $875 (694.013.83) | ||
| Shopping list | ||
| IVAR shelf 83×30 cm, pine | 103.181.64 | 15 pcs |
| IVAR side unit 30×226 cm | 301.928.42 | 4 pcs |
| IVAR cabinet with doors 80×83, grey mesh | 804.840.89 | 3 pcs |
| OBSERVATÖR cross-brace 100 cm, galvanized | 101.895.48 | 2 pcs |
| IVAR cabinets. Total size: 160×30×83 cm. This combination in grey mesh $300 (393.957.79) This combination in green mesh $300 (394.174.70) | ||
| Shopping list | ||
| IVAR cabinet with doors 80×83, grey mesh | 804.840.89 | 2 pcs |
| IVAR shelving unit with a cabinet. Total size: 89×30×124 cm. This combination in pine/grey mesh $212.50 (793.957.77) This combination in pine/green mesh $212.50 (694.014.77) | ||
| Shopping list | ||
| IVAR side unit 30×124 cm | 701.928.40 | 2 pcs |
| IVAR shelf 83×30 cm, pine | 103.181.64 | 1 pc |
| IVAR cabinet with doors 80×83, grey mesh | 804.840.89 | 1 pc |
| OBSERVATÖR cross-brace 100 cm, galvanized | 101.895.48 | 1 pc |

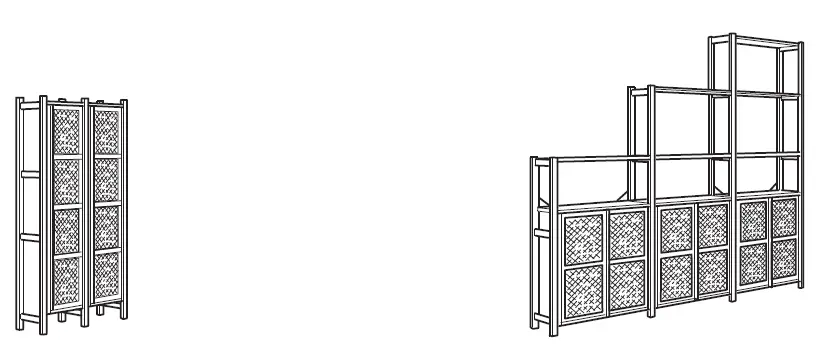

| IVAR shelving unit with doors. Total size: 89×30×179 cm. This combination in pine/bamboo $262.50 (793.195.85) | ||
| Shopping list | ||
| IVAR shelf 83×30 cm, pine | 103.181.64 | 5 pcs |
| IVAR side unit 30×179 cm | 501.928.41 | 2 pcs |
| IVAR doors 42×83 cm, bamboo | 404.530.75 | 2 pcs |
| OBSERVATÖR cross-brace 100 cm, galvanized | 101.895.48 | 1 pc |
| IVAR shelving unit with doors. Total size: 259×30×226 cm. This combination in pine/bamboo $575 (293.957.89) | ||
| Shopping list | ||
| IVAR side unit, 30×124 cm | 701.928.40 | 1 pc |
| IVAR side unit 30×179 cm | 501.928.41 | 1 pc |
| IVAR side unit 30×226 cm | 301.928.42 | 2 pcs |
| IVAR shelf, 83×30 cm, pine | 103.181.64 | 15 pcs |
| OBSERVATÖR cross-brace, 100 cm, galvanized | 101.895.48 | 2 pcs |
| IVAR door, 42×83 cm, 2-p | 404.530.75 | 3 pcs |

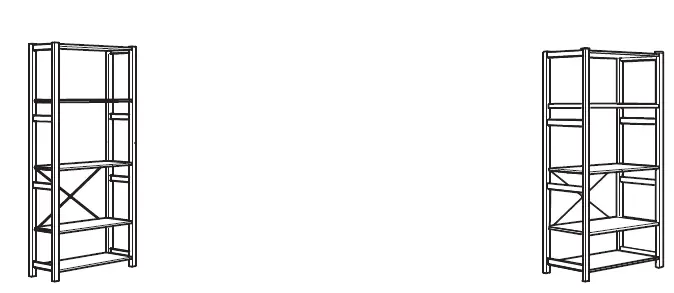

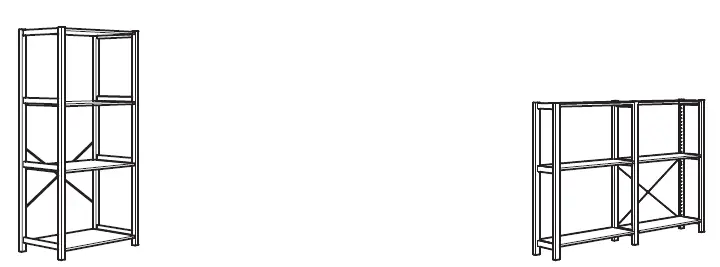

| IVAR shelve unit. Total size: 89×30×179 cm. This combination in pine $152.50 (292.483.12) | ||
| Shopping list | ||
| IVAR side unit, 30×179 cm, pine | 501.928.41 | 2 pcs |
| IVAR shelf, 83×30 cm, pine | 103.181.64 | 5 pcs |
| OBSERVATÖR cross-brace, 100 cm, galvanised | 101.895.48 | 1 pc |
| IVAR 1 section/shelves. Total size: 89×50×179 cm. This combination in pine $187.50 (492.513.46) | ||
| Shopping list | ||
| IVAR side unit, 50×179 cm, pine | 901.928.44 | 2 pcs |
| IVAR shelf, 83×50 cm, pine | 603.181.66 | 5 pcs |
| OBSERVATÖR cross-brace, 100 cm, galvanised | 101.895.48 | 1 pc |
| IVAR 1 section/shelves. Total size: 89×50×179 cm. This combination in pine $162.50 (392.483.21) | ||
| Shopping list | ||
| IVAR side unit, 50×179 cm, pine | 901.928.44 | 2 pcs |
| IVAR shelf, 83×50 cm, pine | 603.181.66 | 4 pcs |
| OBSERVATÖR cross-brace, 100 cm, galvanised | 101.895.48 | 1 pc |

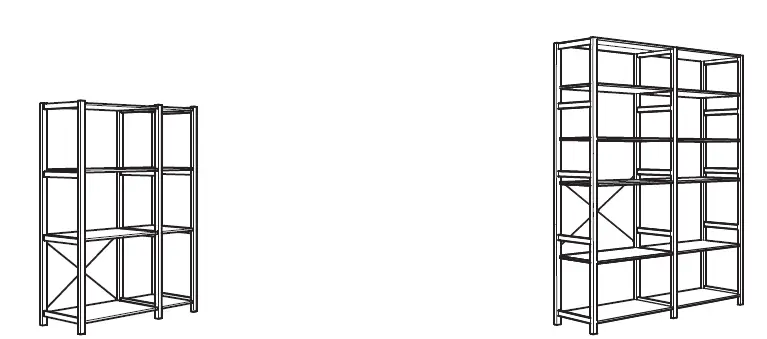

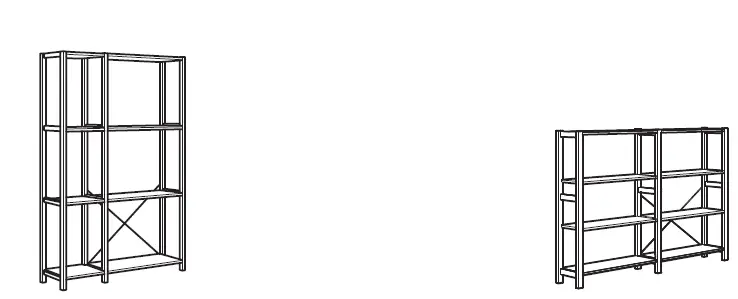

| IVAR 2 sections/shelves. Total size: 174×30×124 cm. This combination in pine $182.50 (492.483.49) | ||
| Shopping list | ||
| IVAR side unit, 30×124 cm, pine | 701.928.40 | 3 pcs |
| IVAR shelf, 83×30 cm, pine | 103.181.64 | 6 pcs |
| OBSERVATÖR cross-brace, 100 cm, galvanised | 101.895.48 | 1 pc |
| IVAR 2 sections/shelves. Total size: 134×30×179 cm. This combination in pine $217.50 (192.483.17) | ||
| Shopping list | ||
| IVAR side unit, 30×179 cm, pine | 501.928.41 | 3 pcs |
| IVAR shelf, 83×30 cm, pine | 103.181.64 | 4 pcs |
| IVAR shelf, 42×30 cm, pine | 903.181.60 | 4 pcs |
| OBSERVATÖR cross-brace, 100 cm, galvanised | 101.895.48 | 1 pc |
| IVAR 2 sections/shelves. Total size: 174×50×124 cm. This combination in pine $277.50 (892.483.52) | ||
| Shopping list | ||
| IVAR side unit, 50×124 cm, pine | 101.928.43 | 3 pcs |
| IVAR shelf, 83×50 cm, pine | 603.181.66 | 8 pcs |
| OBSERVATÖR cross-brace, 100 cm, galvanised | 101.895.48 | 1 pc |
| IVAR 2 sections/shelves. Total size: 134×50×179 cm. This combination in pine $272.50 (292.483.26) | ||
| Shopping list | ||
| IVAR side unit, 50×179 cm, pine | 901.928.44 | 3 pcs |
| IVAR shelf, 83×50 cm, pine | 603.181.66 | 4 pcs |
| IVAR shelf, 42×50 cm, pine | 503.181.62 | 4 pcs |
| OBSERVATÖR cross-brace, 100 cm, galvanised | 101.895.48 | 1 pc |
| IVAR 2 sections/shelves. Total size: 174×50×226 cm. This combination in pine $407.50 (192.483.55) | ||
| Shopping list | ||
| IVAR side unit, 50×226 cm, pine | 601.928.45 | 3 pcs |
| IVAR shelf, 83×50 cm, pine | 603.181.66 | 12 pcs |
| OBSERVATÖR cross-brace, 100 cm, galvanised | 101.895.48 | 1 pc |

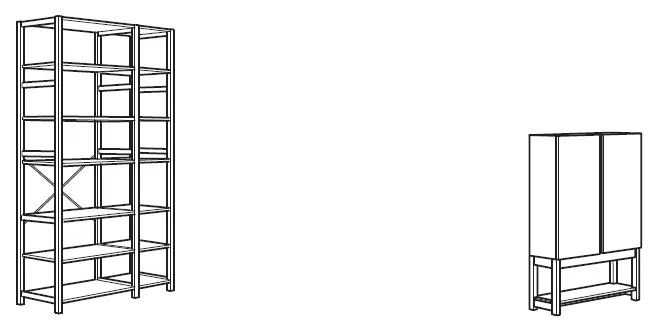

| IVAR 2 sections/shelves. Total size: 130×50×226 cm. This combination in pine $422.50 (092.483.46) | ||
| Shopping list | ||
| IVAR side unit, 50×226 cm, pine | 601.928.45 | 3 pcs |
| IVAR shelf, 42×50 cm, pine | 503.181.62 | 7 pcs |
| IVAR shelf, 83×50 cm, pine | 603.181.66 | 7 pcs |
| OBSERVATÖR cross-brace, 100 cm, galvanised | 101.895.48 | 1 pc |
| IVAR shelving unit with cabinet. Total size: 80×30×120 cm. This combination in pine $225 (094.223.31) | ||
| Shopping list | ||
| IVAR cabinet, 80×30×83 cm, pine | 502.149.99 | 1 pc |
| IVAR underframe, 80×30×37 cm, pine | 104.889.10 | 1 pc |

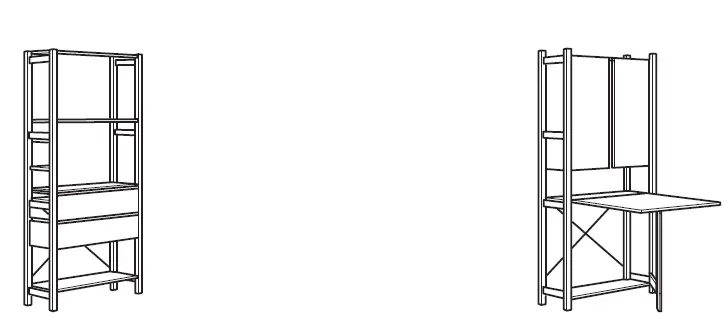

| IVAR 1 section/shelves/drawers. Total size: 89×30×179 cm. This combination in pine $225.50 (694.702.15) | ||
| Shopping list | ||
| OBSERVATÖR cross-brace, 100 cm, galvanised | 101.895.48 | 1 pc |
| IVAR side unit, 30×179 cm | 501.928.41 | 2 pcs |
| IVAR shelf, 83×30 cm, pine | 103.181.64 | 4 pcs |
| IVAR drawer, 80×30×18 cm, pine | 904.889.06 | 2 pcs |
| IVAR 1 section/storage unit with foldable table. Total size: 89×30×179 cm. This combination in pine $382.50 (594.695.28) | ||
| Shopping list | ||
| OBSERVATÖR cross-brace, 100 cm, galvanised | 101.895.48 | 1 pc |
| IVAR folding table, 80×30-95 cm, pine | 905.125.86 | 1 pc |
| IVAR cabinet, 80×30×83 cm, pine | 502.149.99 | 1 pc |
| IVAR side unit, 30×179 cm | 501.928.41 | 2 pcs |
| IVAR shelf, 83×30 cm, pine | 103.181.64 | 1 pc |

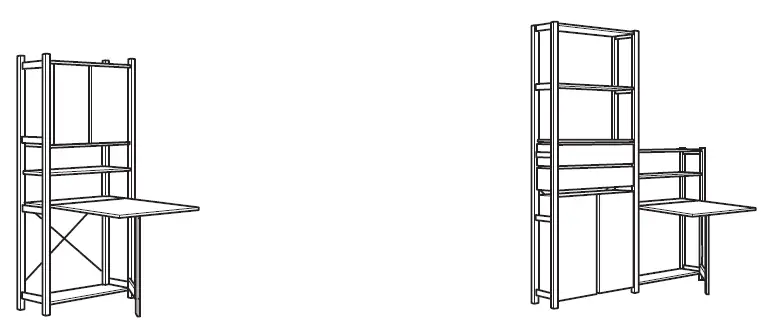

| IVAR section/foldable table/sliding door. Total size: 89×30×179 cm. This combination in pine $412.50 (494.695.19) | ||
| Shopping list | ||
| OBSERVATÖR cross-brace, 100 cm, galvanised | 101.895.48 | 1 pc |
| IVAR cabinet with sliding doors, 80×30×60 cm, pine | 704.943.95 | 1 pc |
| IVAR folding table, 80×30×95 cm, pine | 905.125.86 | 1 pc |
| IVAR side unit, 30×179 cm | 501.928.41 | 2 pcs |
| IVAR shelf, 83×30 cm, pine | 103.181.64 | 1 pc |
| IVAR 2 section/storage unit with foldable table. Total size: 175×30×226 cm. This combination in pine $612.50 (894.222.90) | ||
| Shopping list | ||
| OBSERVATÖR cross-brace, 100 cm, galvanised | 101.895.48 | 1 pc |
| IVAR folding table, 80×30-95 cm, pine | 905.125.86 | 1 pc |
| IVAR shelf, 83×30 cm, pine | 103.181.64 | 5 pcs |
| IVAR cabinet with sliding doors 80×30×83 cm, pine | 704.943.95 | 1 pc |
| IVAR drawer, 80×30×18 cm, pine | 904.889.06 | 2 pcs |
| IVAR side unit, 30×226 cm | 301.928.42 | 2 pcs |
| IVAR side unit, 30×124 cm | 701.928.40 | 1 pc |

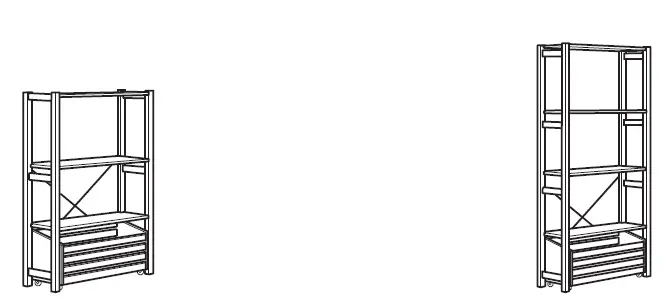

| IVAR shelving unit with storage box. Total size: 89×30×124 cm. This combination in pine $162.50 (594.015.24) | ||
| Shopping list | ||
| IVAR shelf, 83×30 cm, pine | 103.181.64 | 3 pcs |
| IVAR side unit, 30×124 cm | 701.928.40 | 2 pcs |
| OBSERVATÖR cross-brace, 100 cm, galvanised | 101.895.48 | 1 pc |
| IVAR storage box on wheels, 78×30 cm, pine | 404.871.41 | 1 pc |
| IVAR shelving unit with storage box. Total size: 89×30×179 cm. This combination in pine $192.50 (394.015.20) | ||
| Shopping list | ||
| IVAR side unit, 30×179 cm | 501.928.41 | 2 pcs |
| IVAR shelf, 83×30 cm, pine | 103.181.64 | 4 pcs |
| OBSERVATÖR cross-brace, 100 cm, galvanised | 101.895.48 | 1 pc |
| IVAR storage box on wheels, 78×30 cm, pine | 404.871.41 | 1 pc |

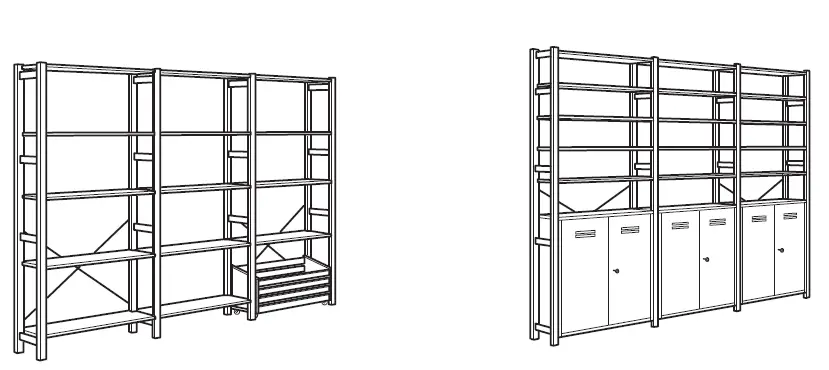

| IVAR shelving unit with storage box. Total size: 259×30×179 cm. This combination in pine $445.00 (794.017.59) | ||
| Shopping list | ||
| IVAR side unit, 30×179 cm | 501.928.41 | 4 pcs |
| IVAR shelf, 83×30 cm, pine | 103.181.64 | 14 pcs |
| OBSERVATÖR cross-brace, 100 cm, galvanised | 101.895.48 | 2 pcs |
| IVAR storage box on wheels, 78×30 cm, pine | 404.871.41 | 1 pc |
| IVAR 3 sections/cabinet/shelves. Total size: 259×30×226 cm. This combination in pine/white $875 (492.482.12) | ||
| Shopping list | ||
| IVAR cabinet with doors 80×83 cm, white | 101.895.48 | 3 pcs |
| IVAR shelf 83×30 cm, pine | 103.181.64 | 15 pcs |
| IVAR side unit 30×226 cm, pine | 301.928.42 | 4 pcs |
| OBSERVATÖR cross-brace 100 cm, galvanised | 101.895.48 | 2 pcs |
| IVAR 2 sections/shelves/cabinets. Total size: 174×30×179 cm. This combination in pine $497.50 (192.483.60) | ||
| Shopping list | ||
| IVAR side unit, 30×179 cm | 501.928.41 | 3 pcs |
| IVAR shelf, 83×30 cm | 103.181.64 | 6 pcs |
| IVAR cabinet, 80×30×83 cm | 502.149.99 | 2 pcs |
| OBSERVATÖR cross-brace, 100 cm, galvanised | 101.895.48 | 1 pc |
| IVAR 2 sections/shelves/cabinets. Total size: 174×50×179 cm. This combination in pine $602.50 (592.483.63) | ||
| Shopping list | ||
| IVAR side unit, 50×179 cm | 901.928.44 | 3 pcs |
| IVAR shelf, 83×50 cm | 603.181.66 | 6 pcs |
| IVAR cabinet, 80×50×83 cm | 102.150.00 | 2 pcs |
| OBSERVATÖR cross-brace, 100 cm, galvanised | 101.895.48 | 1 pc |

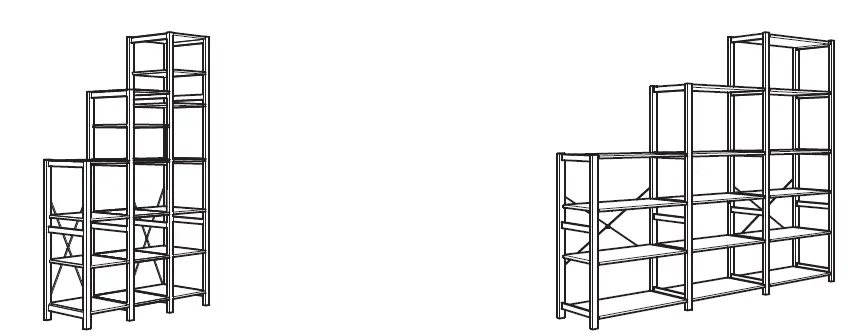

| IVAR 3 sections/shelves. Total size: 139×50×124–226 cm. This combination in pine $470 (092.485.39) | ||
| Shopping list | ||
| IVAR side unit, 50×124 cm, pine | 101.928.43 | 1 pc |
| IVAR side unit, 50×179 cm, pine | 901.928.44 | 1 pc |
| IVAR side unit, 50×226 cm, pine | 601.928.45 | 2 pcs |
| IVAR shelf, 42×50 cm, pine | 503.181.62 | 17 pcs |
| OBSERVATÖR cross-brace, 100 cm, galvanised | 101.895.48 | 2 pcs |
| IVAR 3 sections/shelves. Total size: 255×50×226 cm. This combination in pine $505 (692.485.36) | ||
| Shopping list | ||
| IVAR shelf, 83×50 cm, pine | 603.181.66 | 15 pcs |
| IVAR side unit, 50×124 cm, pine | 101.928.43 | 1 pc |
| IVAR side unit, 50×179 cm, pine | 901.928.44 | 1 pc |
| IVAR side unit, 50×226 cm, pine | 601.928.45 | 2 pcs |
| OBSERVATÖR cross-brace, 100 cm, galvanised | 101.895.48 | 2 pcs |

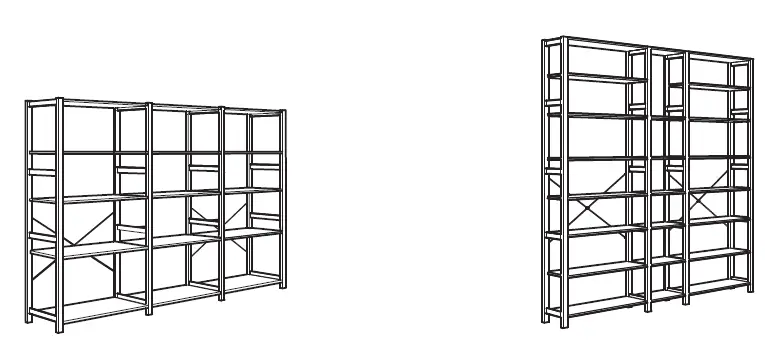

| IVAR 3 sections/shelves. Total size: 259×30×179 cm. This combination in pine $405 (992.483.75) | ||
| Shopping list | ||
| IVAR side unit, 30×179 cm, pine | 501.928.41 | 4 pcs |
| IVAR shelf, 83×30 cm, pine | 103.181.64 | 15 pcs |
| OBSERVATÖR cross-brace, 100 cm, galvanised | 101.895.48 | 2 pcs |

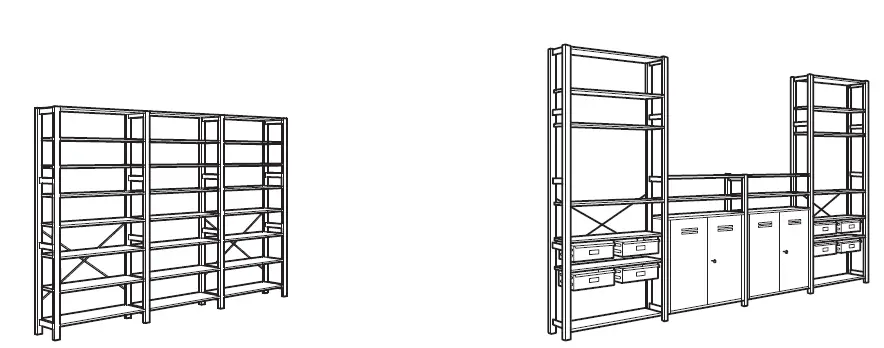

| IVAR 3 sections/shelves. Total size: 219×30×226 cm. This combination in pine $550 (692.483.72) | ||
| Shopping list | ||
| IVAR side unit, 30×226 cm, pine | 301.928.42 | 4 pcs |
| IVAR shelf 42×30 cm, pine | 903.181.60 | 7 pcs |
| IVAR shelf, 83×30 cm, pine | 103.181.64 | 16 pcs |
| OBSERVATÖR cross-brace, 100 cm, galvanised | 101.895.48 | 2 pcs |
| IVAR 3 sections/shelves. Total size: 259×30×179 cm. This combination in pine $585 (492.483.87) | ||
| Shopping list | ||
| IVAR side unit, 30×179 cm, pine | 501.928.41 | 4 pcs |
| IVAR shelf, 83×30 cm, pine | 103.181.64 | 24 pcs |
| OBSERVATÖR cross-brace, 100 cm, galvanised | 101.895.48 | 2 pcs |
| IVAR 4 sections/shelves/cabinet. Total size: 344×30×226 cm. This combination in pine/white $1,045 (092.482.09) | ||
| Shopping list | ||
| IVAR cabinet with doors 80×83 cm, white | 803.855.03 | 2 pcs |
| IVAR drawer 39×30×14cm, white | 303.855.05 | 8 pcs |
| OBSERVATÖR cross-brace 100 cm, galvanised | 101.895.48 | 2 pcs |
| IVAR shelf 83×30 cm, pine | 103.181.64 | 18 pcs |
| IVAR side unit 30×124 cm, pine | 701.928.40 | 1 pc |
| IVAR side unit 30×226 cm, pine | 301.928.42 | 4 pcs |
| IVAR 3 sections/shelves/cabinets. Total size: 259×30×124 cm. This combination in pine $505 (792.483.81) | ||
| Shopping list | ||
| IVAR side unit, 30×124 cm, pine | 701.928.40 | 4 pcs |
| IVAR cabinet, 80×30×83 cm, pine | 502.149.99 | 2 pcs |
| IVAR shelf 83×30 cm, pine | 103.181.64 | 6 pcs |
| OBSERVATÖR cross-brace, 100 cm, galvanised | 101.895.48 | 2 pcs |
| IVAR 4 sections/shelves. Total size: 344×226 cm. This combination in pine $595 (792.485.45) | ||
| Shopping list | ||
| IVAR shelf, 83×30 cm, pine | 103.181.64 | 22 pcs |
| IVAR side unit, 30×226 cm, pine | 301.928.42 | 5 pcs |
| OBSERVATÖR cross-brace, 100 cm, galvanised | 101.895.48 | 2 pcs |
| IVAR 4 sections/shelves. Total size: 179×50×179 cm. This combination in pine $595 (892.513.49) | ||
| Shopping list | ||
| IVAR shelf, 42×50 cm, pine | 503.181.62 | 18 pcs |
| IVAR side unit, 50×179 cm, pine | 901.928.44 | 5 pcs |
| OBSERVATÖR cross-brace, 100 cm, galvanised | 101.895.48 | 2 pcs |

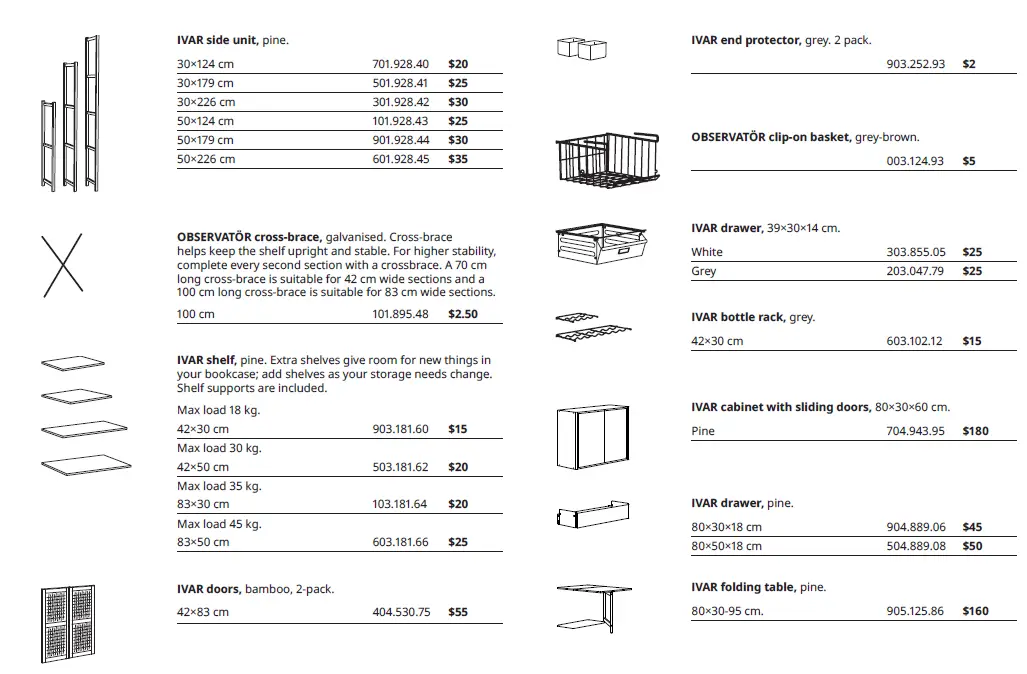

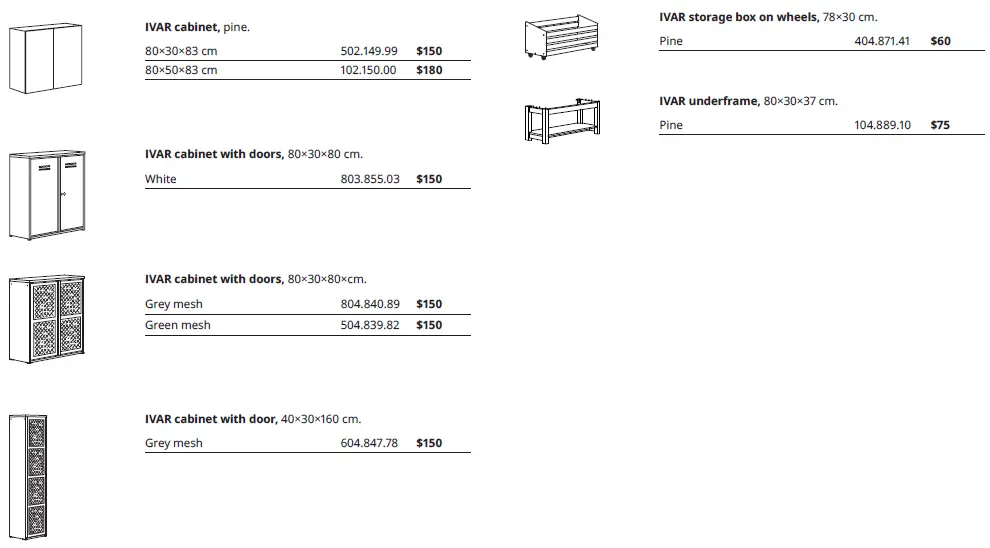

All parts and prices
Accessories
Peg board

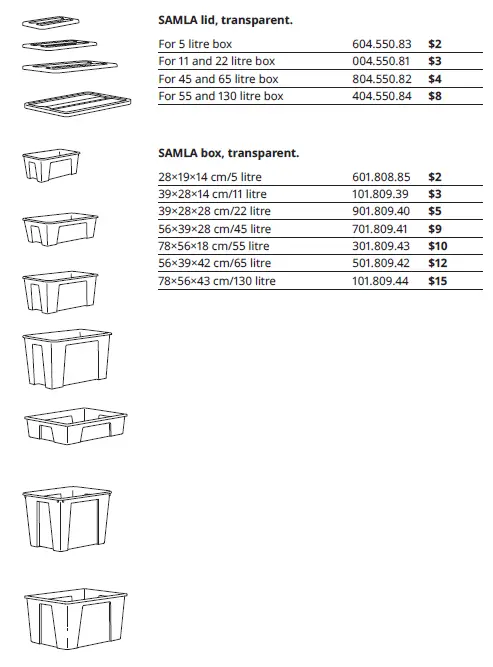

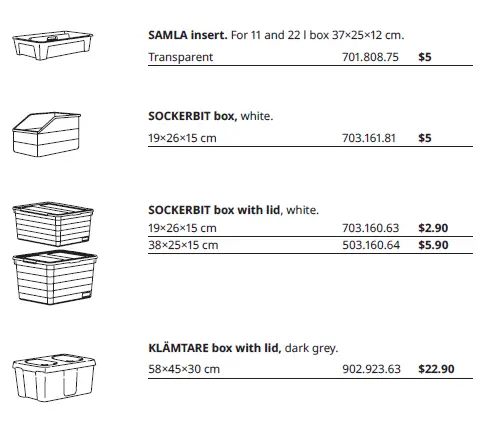

Storage
