ThinkSystem 18.5-inch LCD Console

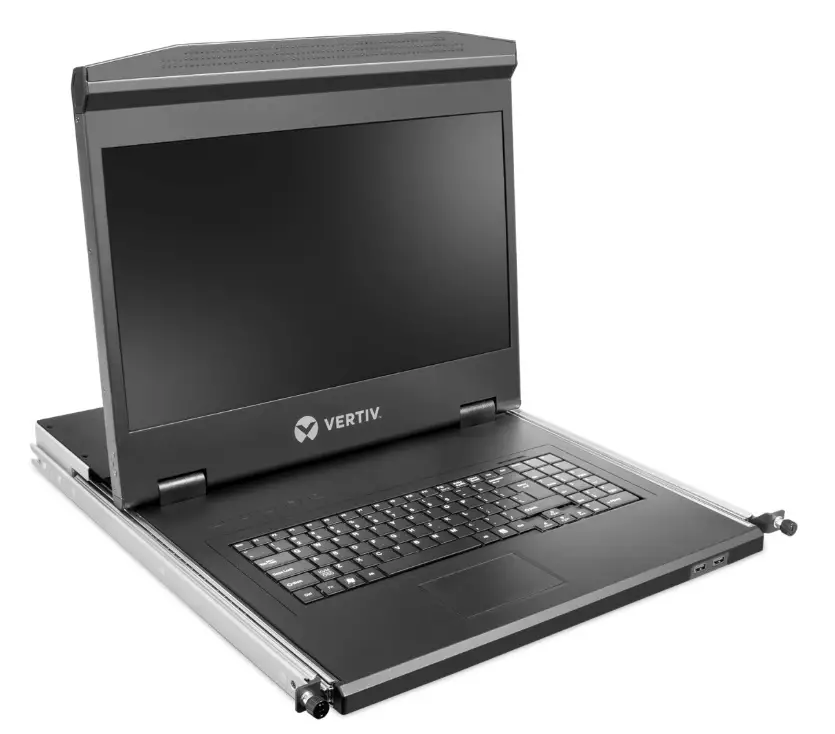

The ThinkSystem 18.5″ LCD Console is a flat-panel console that offer a convenient way to manage space constrained rack environments from a single console. This densely packed 1U solution let you easily set up and control rack-mounted servers. It offers additional space savings by allowing the mounting of a KVM switch in the space behind the console. The console includes an 18.5-inch LCD display and US English keyboard, and is based on the Vertiv CLRA Local Rack Access Console, model CLRA19KMM.

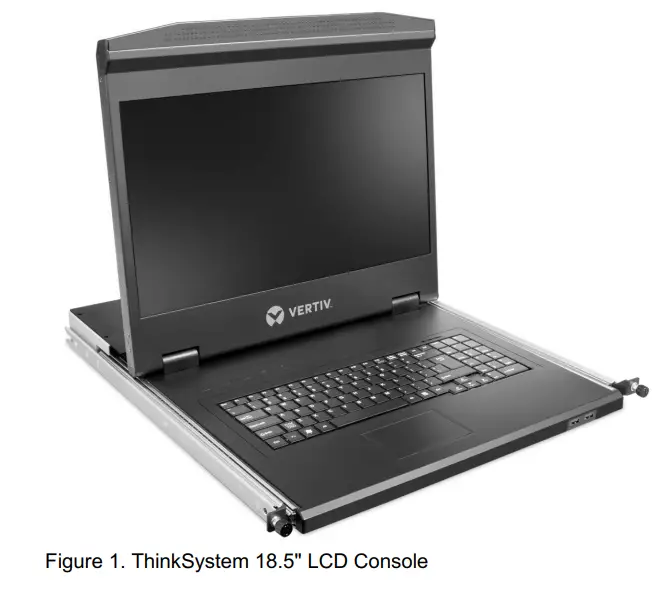

The ThinkSystem 18.5″ LCD Console is shown in the following figure.

Did you know?

The ThinkSystem 18.5″ LCD Console, when used with a Lenovo KVM console switch provides a convenient way to locally access all systems installed in a rack. Consuming only 1 U of rack space, it uses the least amount of space possible and ensures that your rack aisles remain free of equipment and cables.

Click here to check for updates

Part number information

The following table lists ordering part number and feature code for the console.

Table 1. Ordering information

The part number for the console includes the following items:

• One console unit with a 18.5-inch LCD display, cable management arm, and integrated USB keyboard
• Rail slides and mounting hardware
• 1.8m 10A/250V C13-C14 power cable

The following figure shows the rear of the console.

Features

The features of the ThinkSystem 18.5″ LCD Console include:

• Integrated 18.5-inch high-resolution display supports selectable display methods and resolutions
• The flat-panel display extends well above the keyboard and offers an easy viewing angle
• Installs in a rack and consumes only 1U of rack space
• Supports the mounting of a KVM switch behind the console to save space
• Tool-less installation for ease of use and installation in minutes
• Includes slides and integrated cable-management arm so the unit can close and slide back into the rack
• Provides easy local access and control of a server
• Compatible with Console Managers for control and access of multiple servers
• Testing to ensure easy integration into Lenovo rack solutions
• A complete, ready-to-install package
• Able to be shipped installed in the rack
• Includes a cable-management arm (CMA)
• Includes a USB-attached 100-key US English keyboard with touchpad pointing device and number keypad
• Includes two passthrough USB 2.0 ports accessible from the front, for the use of optical media, secure access keys, or other USB devices

Technical specifications

The following table lists the specifications of the ThinkSystem 18.5″ LCD Console.

Table 2. Specifications

Supported servers

The ThinkSystem 18.5″ LCD Console can be used with a server or KVM console switch with VGA and USS local console ports.

Warranty options

The ThinkSystem 18.5″ LCD Console has a 3 year warranty. When ordered as a feature code as part of a supported Lenovo rack cabinet, the console assumes the rack cabinet’s base warranty and any warranty upgrades.

Physical specifications

The ThinkSystem 18.5″ LCD Console has the following physical specifications.

• Height (rack units): 1 U
• Dimensions (console only): 481 mm x 526mm x 43mm
• Weight (console only): 8.3kg
• Supported rack post distances (measured outside-to-outside):
  • Console only: 620mm – 920mm
  • Including space for KVM switch: 730mm – 920mm

Operating environment

The ThinkSystem 18.5″ LCD Console is supported in the following environment:

• Temperature
  • 0°C – 50°C, operation
  • -20°C – 60°C, storage
• Humidity
  • 10% – 80%, operation
  • 5% – 95%, storage
• Altitude
  • Om to 3000m, operation
  • -15m to 10,000m, storage

Agency approvals

The ThinkSystem 18.5″ LCD Console conforms to the following regulations:

• UL
• CE
• CCC
• PSE
• RCM

Rack cabinets

The following table lists the supported rack cabinets.

Table 3. Rack cabinets

For specifications about these racks, see the Lenovo Rack Cabinet Reference, available from : https://lenovopress.com/lp1287-lenovo-rack-cabinet-reference
For more information, see the list of Product Guides in the Rack cabinets category: https://lenovopress.com/servers/options/racks

Rack KVM console switches

Certain rack console switches can be mounted behind the ThinkSystem 18.5″ LCD Console in the same 1 U space, as listed in the following table.

Table 4. KVM console switches

For more information, see the Lenovo Press Product Guides in the KVM Switches & Consoles category: https://lenovopress.com/servers/options/kvm

Related publications and links

For more information, see these resources:

• ThinkSystem 18.5″ LCD Console User Manuals: https://www.vertiv.com/en-us/support/avocent-support-lenovo/
• Rack & Power Infrastructure Options web page https://lenovopress.com/lp0766-rack-power-infrastructure-options
• ServerProven web site: http://www.lenovo.com/us/en/serverproven/

Related product families

Product families related to this document are the following:

• KVM Switches & Consoles
