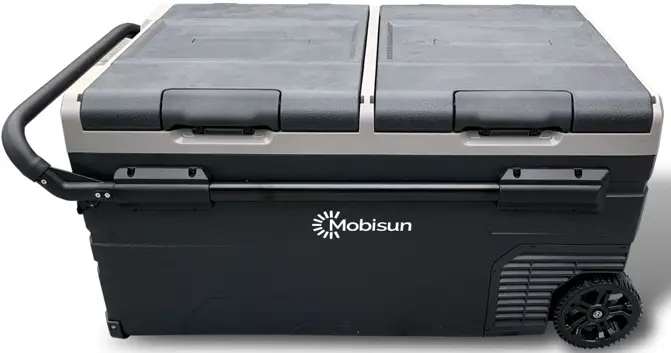

MKVC95L Car Refrigerator
User Manual

Please read this operating manual carefully before starting the device. Keep it in a safe place for future reference..

SAFETY INSTRUCTIONS

WARNING! Failure to obey these warnings could result in a malfunction of your device and possible injury for yourself and other users.

• Do not operate the device if it is visibly damaged.
• Do not block the gaps of the device with things like pins, wires, etc.
• Do not expose the device to rain or soak it in water.
• Do not place the device near naked flames or other heat sources (heaters, direct sunlight, gas ovens, etc.)
• Do not store explosive substances like spray cans with flammable propellants in the device.
• Before starting the device, ensure that the power supply line and the plug are dry.
• Check if the voltage specification on the type plate matches that of the energy supply.
• Once unpacked and before turning on, the device must be placed on a level surface for more than 6 hours.
• Make sure that the device stays horizontally when it is running. The tilt angle must be less than 5° for a long time running and less than 45° for short time running.
• The refrigerator must be well ventilated for heat dissipation and make sure to keep some space around it (Back Space-200mm, Side Space? -100mm).
• The device may only be repaired by qualified personnel. Improper repairs can lead to safety hazards. If the power cable is damaged, it must be replaced by the manufacturer, customer service, or a similarly qualified person in order to prevent safety hazards.

NOTICE!

• The device can be used by children aged 8 or over, as well as by persons with reduced physical, sensory or mental capabilities or a lack of experience and/or knowledge, providing they are supervised or have been taught how to use the device safely and are aware of the resulting risks.
• Children must be supervised to ensure that they do not play with the device.
• The installation of DC power in the boat must be handled by qualified electricians.
• Disconnect the device or switch it off when you turn off the engine. Otherwise, you may discharge the battery.
• Food is suggested to be stored at a suitable temperature, you can refer to the suggested temperatures for common food as shown below:

Drinks	Fruits	Vegetable	Delicatessen	Wine	Ice cream	Meat
5°C/41°F	5-8°C/41-46°F	3-10°C/37-50°F	4°C/39°F	10°C/50°F	-10°C/14°F	-18°C/0°F

PRODUCT FEATURES

• High-efficiency DC compressor and conversion module.
• CFC-free and great heat insulation.
• Lithium battery recharged by solar(12-50V), DC12/24V, or AC 100-240V (using the adapter).
• Fast cooling to -20°C/-4°F (based on 25°C/77°F room temperature).

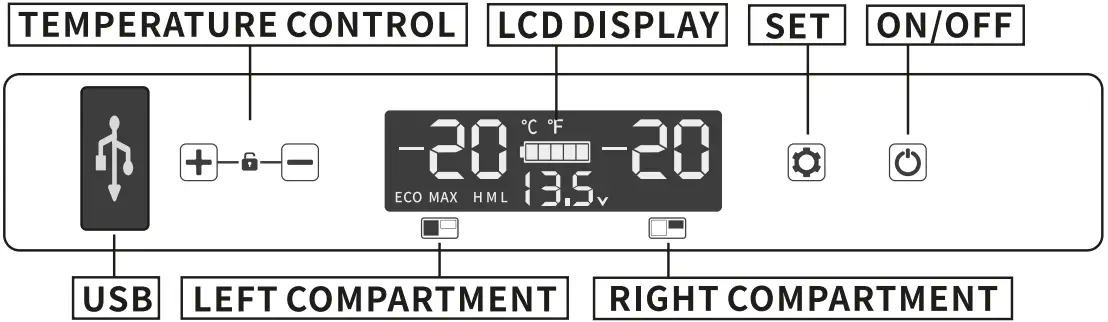

• LCD digital display for temperature setting.
• Dual compartments with individual temperature control.
• Three-stage battery protection system prevents vehicles from running out of battery.
• Specific parts: wire storage baskets, interior drain plug, oversize wheels, telescoping handle, detachable battery, cupholder door, interior LED light.

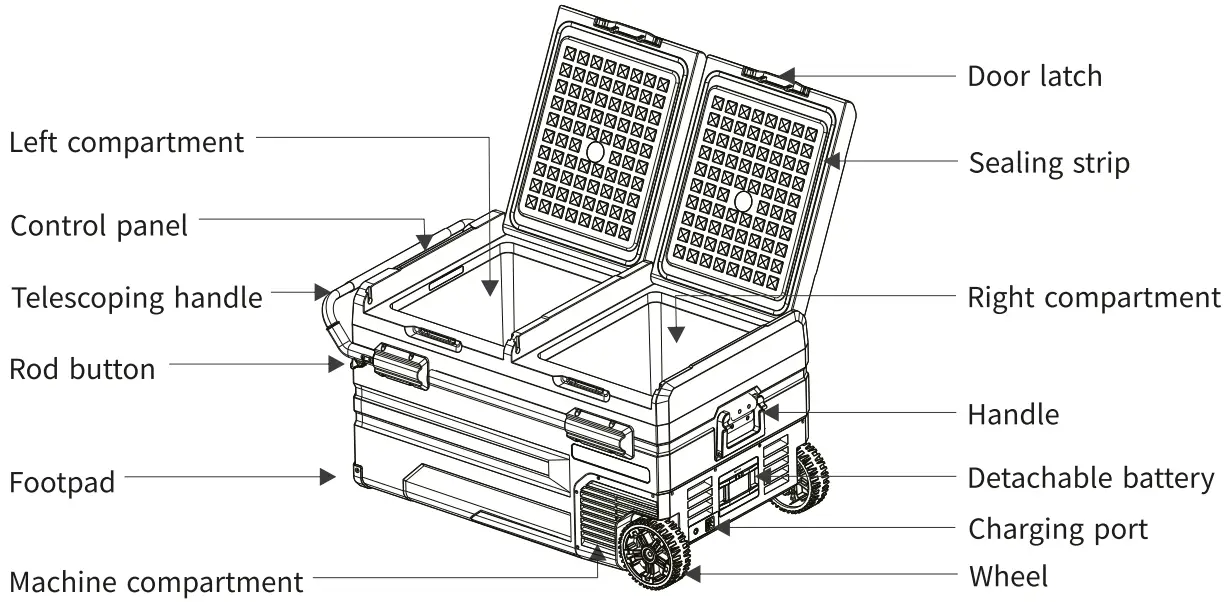

PRODUCT STRUCTURE

Note:
* Removable battery: press left and right to remove/insert the battery.
* press the rod buttons on both sides of the telescoping handle at the same time to pull the rod.

INSTALLATION

The door opening direction can be changed according to actual needs, please follow the instructions below:
Door Disassembly:

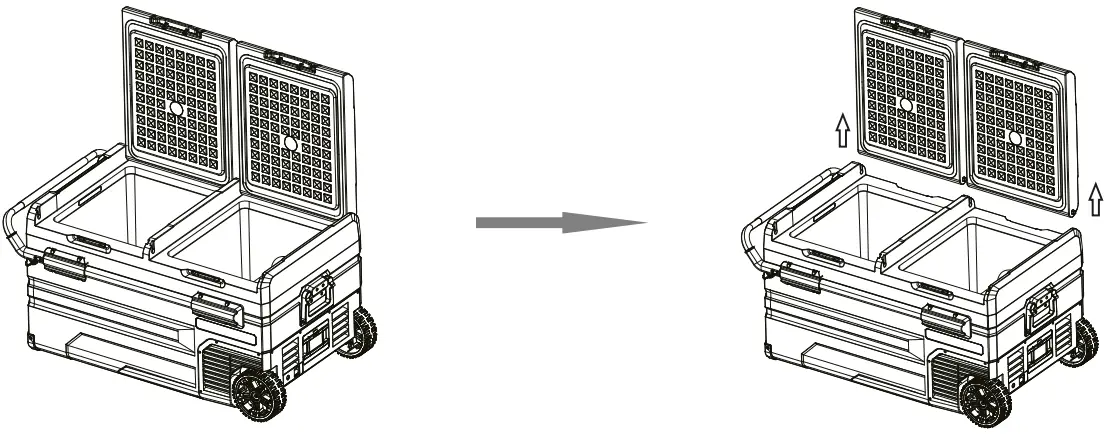

Open the door at a 90° angle	Take off the door body vertically

Door Installation

Align the door shaft with the compartment hole and insert it	Finish installation The direction has been changed

FUNCTION AND OPERATION

• Power supply: connect to 12V/24V DC power, 100-240V AC power(using the adapter), or solar(12-50V).
• Display Screen Initialization: when the fridge is connected to the power supply, the buzzer will make a long beep, and the display will be on for two seconds then enter the normal operating mode.
• Power On/Off long press for three seconds to switch ON/OFF.

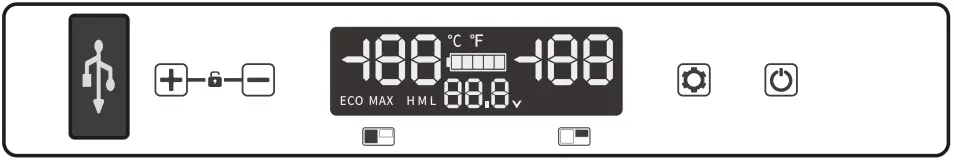

• Function unlock: the panel will be locked automatically when stop pressing any button after the 20s. Long press at the same time for 2 seconds to unlock (when the circle in the screen changes from clockwise to counterclockwise, it is unlocked).
• Temperature Setting: under the running state, long press and at the same time for three seconds to switch ON/OFF the left compartment, long press and at the same time for three seconds to switch ON/OFF the right compartment, two compartments cannot be switched off at the same time.
  When both left and right compartments are set in running state, press or enter the left compartment temperature setting, press to increase temperature, press to decrease the temperature, and press to switch left/right compartment. The setting will be saved after stopping operating for four seconds(Note: the temperature displayed is the current temperature of the compartments, it takes a while to reach the set temperature.)
  Temperature setting range: -20-20°C (-4-68°F)
• Cooling Mode: under the running state, presso to switch MAX(fast cooling) and ECO (Energy saving Mode). (*Factory setting is MAX.)
• Temperature Unit Setting: switch off the fridge, long press for three seconds until El displays, then switch to E5 by pressing again. Under E5 mode, press or select Celsius or Fahrenheit. (*Factory setting is °C.)
• Battery Protection Mode: under the running state, long press for three seconds until the screen flashes, then press again to select protection mode H(High), M(Middle), and L(Low) (*Factory setting is H.) H should be set when the product is connected to car power, and M or L should be set when it is connected to a portable battery or other backup battery.
  The battery gear should be set from H to M or from M to L if there is a voltage protection code Fl shown on the panel. The battery gear should be set to H if the product keeps working after turning off the car engine, or the product may drain the battery.

Voltage Reference:

* The voltage is a theoretical value, there may be a deviation in different sceneries.
* USB output: +5V DC/1A, suitable for small devices like mobile phones, tablets, etc.

• Reset: switch off the fridge, long press for three seconds until El displays, under El mode, long press   at the same time until the screen displays as below:

BATTERY OPERATION

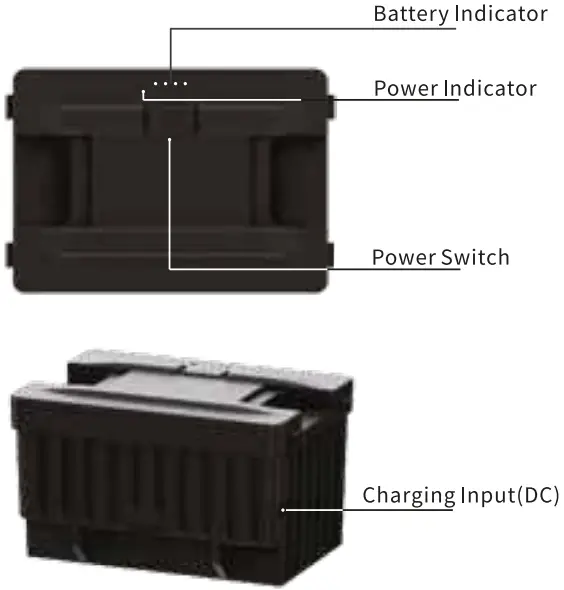

• Battery ON/OFF: long press the power switch button of the battery to turn on/off, and short press to display the current battery.Battery bank:
  Model No.: FSAK-002
  Battery Capacity: 15600mAH
  Rated Voltage: 11.1V
  Charging Limited Voltage(DC): 12.6V
  Charging Limited Current(DC): 3A
  Warning: do not disassemble the battery!
• Battery charging: Charge the battery in the refrigerator: the battery will also be charged when the refrigerator is connected to the power supply. But the power supply will mainly power the compressor when the refrigerator is running, which will cause the battery to charge slowly. If you want to charge the battery quickly, please turn off the refrigerator.
  Charge the battery separately: use a dedicated adapter to connect to the DC charging port of the battery(the dedicated adapter is not included in the package).
• Note: When the battery is charging, the power indicator will turn green, and the battery indicator will flash to show the charging status.
• Battery Saving: It is recommended to fully charge the refrigerator before your departure, and you can put your food & beverages in the refrigerator in advance so that the battery can last longer. Unplug the battery or turn it off to prevent self-discharge when not in use.
  * If the refrigerator won’t be in use for a long time, fully charge the battery and turn it off.

  Discharge time( ECO and L mode)
  Refrigeration	About 10 hrs
  Freezing	About 5 hrs

• Instruction for solar charging
  Insert the solar charge cable into the refrigerator’s “SOLAR” terminal.
  MAX Solar Input Voltage: 50V; MAX Solar Input Current:10A. When connecting to a solar panel, please place the refrigerator in a cool place to dissipate heat. The battery icon on the refrigerator display will show the charging status when the battery is charging.
  The charging input power should be higher than the working power of the refrigerator (about 40-45W) or turn off the refrigerator to enter the standby state, otherwise, the battery will not be able to charge. It is recommended to use a 100W solar panel.

CLEANING AND STORAGE

■ Cleaning:

• Unplug the device first to avoid electric shock.
• Use a wet cloth to clean the device and dry it.
• Remove the cover and drain from the hole at the bottom of the device.
• Do not soak the device in water and do not wash it directly.
• Do not use abrasive cleaning agents as these can damage the device.

■ Storage:
If the device will not be in use for a long time, please follow the steps:

• Turn off the power and remove the plug.
• Remove all the items stored in the device.
• Remove the cover and drain from the hole, and wipe off excess water with a soft rag.
• Put the device in a cool and dry place.
• Leave the lid slightly open to prevent odors from forming.

■ Defrosting:
Humidity can form frost in the interior of the cooling device or on the evaporator, which will affect the cooling performance. Defrost the device regularly to avoid this.

• Switch off the device.
• Take out the contents of the device.
• Remove the cover and drain from the hole.
• Keep the lid open.
• Wipe off the defrosted water.

Never uses hard or sharp tools to remove ice or to loosen objects which have frozen in place.

TROUBLESHOOTING

WARRANTY AND MAINTENANCE

If the device gets malfunctions, a limited warranty will be provided for 1 year from the date of purchase, except following situations:

• Contrived damage.
• Damage caused by force majeure such as earthquakes, conflagration, etc.
• Damage from inappropriate use or violating this instruction.
• Damage or malfunction caused by disassembling without permission.

TECHNICAL INFORMATION

Mode	75 liter	95 liter
Rated Voltage	DC 12V/24V, AC100-240V(using the adapter), Solar(12-50V)
Power Consumption	80W
Capacity	75L/2.7Cu.Ft.	95L/3.4Cu.Ft.
Noise Emission	≤ 45dB
Climate Class	T/ST/N/SN
Temperature Range	-20°C to +20°C (-4°F – +68°F)
Dimensions (W*H*D)	492*465*826mm (19 3/8*18 1/4 *32 1/2 inch)	528*465*896mm (20 3/4*18 1/4 *37 15/16 inch)
Weight	22kg/491bs	24kg/531bs
Testing/ Certification

* Due to product improvement, the technical information might be different from the actual information, please refer to the rating label on the product.
■ Disposal:
Place the packaging material in the appropriate recycling waste bins wherever possible.
If you wish to finally dispose of the product, ask your local recycling center or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.
