Installation Guide
1000BASE-T SFP+ Module
Model AXM765v2

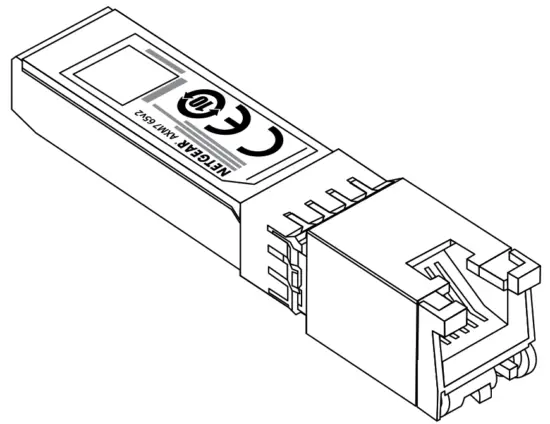

The AXM765v2 SFP+ module is a low-power, high-performance, 1000BASE-T transceiver.
The AXM765v2 delivers 10 Gb network connectivity with cabling up to 262.5 feet (80 meters) of Category 6a (Cat 6a) or Cat 7 Ethernet cable.
The module is compatible with the IEEE 802.3az/an standard.
The switch automatically detects the module, so you can simply plug it into an available module slot. You can insert or remove the module while the switch is operational.

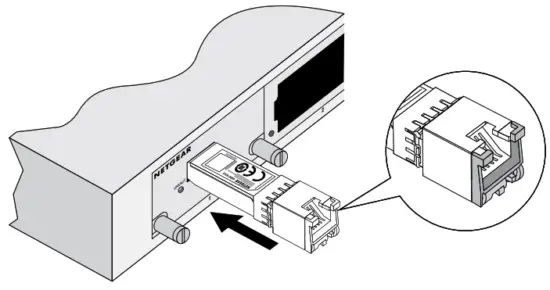

Install the Module
Insert the module firmly into a slot that supports the SFP+ interface. Make sure that the cable you use is a Category 5e (Cat 5e) or a higher-rated Ethernet cable (Cat 6,
Cat 6a, or Cat 7). Supports links up to 80m using Cat 6a/7 Cable.

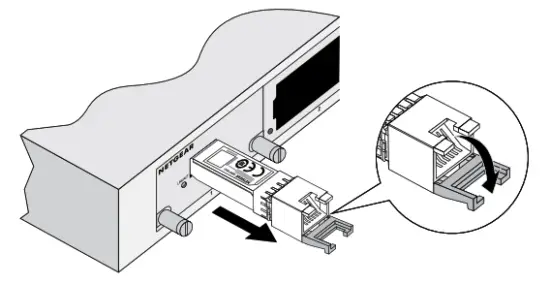

Remove the Module
- Lower the latch on the front of the module.
- Grasp the sides of the module and pull it straight forward out of the slot.
Technical Specifications.
| Standards | IEEE 802.3an, IEEE 802.3az, SFF-8431 and SFF-8432 MSA-compliant |
| Dimensions (H x W x D) | 0.54 in. x 0.54 in. x 2.71 in. (13.8 mm x 13.7 mm x 68.8 mm) |
| Weight | 0.5 oz (14.17 g) |
| Operating temperature | 32–158ºF (0–70ºC) |
| humidity | 85% at 77ºF (25ºC) |
| Operating distance | 10GBASE-T up to 262.5 ft (80 m) with Cat 6a (or higher rated) Ethernet cable |
| Connectors | RJ45 |
| Power consumption | 2.5W |
| Safety certification | IEC/EN 60950-1, UL60950 |
| Environmental compliance | RoHS |
Support and Community
Visit netgear.com/support to get your questions answered and access the latest downloads.
You can also check out our NETGEAR Community for helpful advice at community.netgear.com.
Regulatory and Legal
(If this product is sold in Canada, you can access this document in Canadian French at https://www.netgear.com/support/download/.)
For regulatory compliance information including the EU Declaration of Conformity, visit https://www.netgear.com/about/regulatory/.
See the regulatory compliance document before connecting the power supply.
For NETGEAR’s Privacy Policy, visit https://www.netgear.com/about/privacy-policy.
By using this device, you are agreeing to NETGEAR’s Terms and Conditions at https://www.netgear.com/about/terms-and-conditions. If you do not agree, return the
device to your place of purchase within your return period.
