EVERBILT HD-SUP80 Submersible Waterfall/Utility Pump
Quick Reference Guide

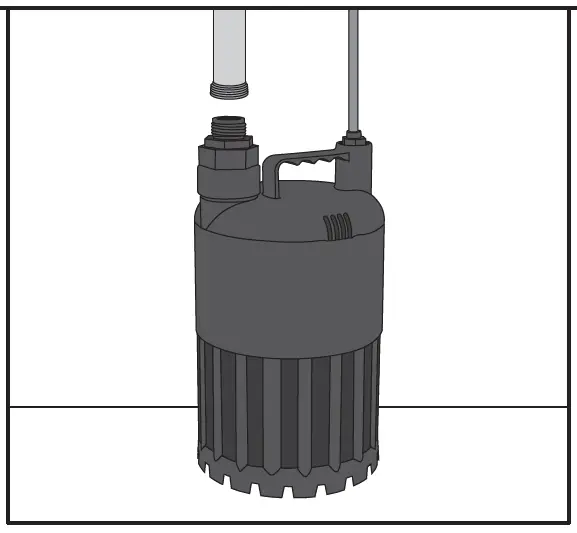

- Select the correct adapter attachment for connecting the discharge line dependent on the pump application
- Install the pump on a firm, level base. Avoid pumping mud, rock, or other debris.
- The pump will need a minimum of 2-9/16” of water to prime. Once primed, the pump can remove water down to 2″

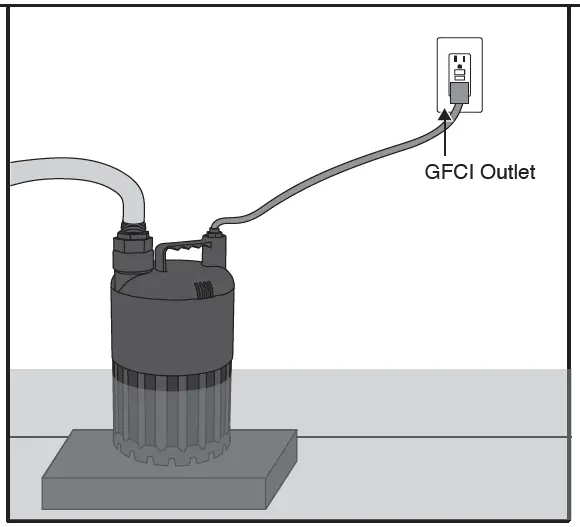

- Plug the pump in to a 115V GFCI Power Outlet

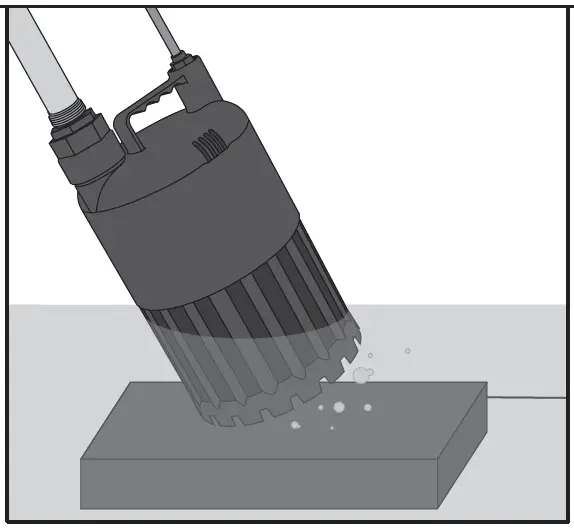

- To avoid airlock, pump must be sufficiently submerged before pumping. If the pump is not pumping, tilt the pump to release the air bubbles from the bottom, then return to the vertical position. Unplug the pump from its power source when finished pumping, do not let the pump run dry.
