Thank you for choosing this Hornbach device. You have purchased a quality device that you will enjoy for many years. Using this device with respect and care will reduce the risk of personal injury or material damage.

CAUTION

Read the user instructions carefully and completely before using (and installing) this device.

Introduction

This manual describes the correct and safe use of this device. Keep this manual for future reference. The manual is an essential part of the device and must be given to the new owner upon resale or exchange. This manual has been compiled with the utmost care. Nevertheless, we reserve the right to improve and adjust this manual at any time. The images used may differ.

The following symbols and terms are used in this manual to alert the reader on safety issues and important information

WARNING

Indicates a hazardous situation which, if the safety instructions are not followed, can lead to injuries to the operator or bystanders, light and/or moderate damage to the product or to the environment.

CAUTION

Indicates a hazardous situation which, if the safety instructions are not followed, can lead to light and/or moderate damage to the product or to the environment.

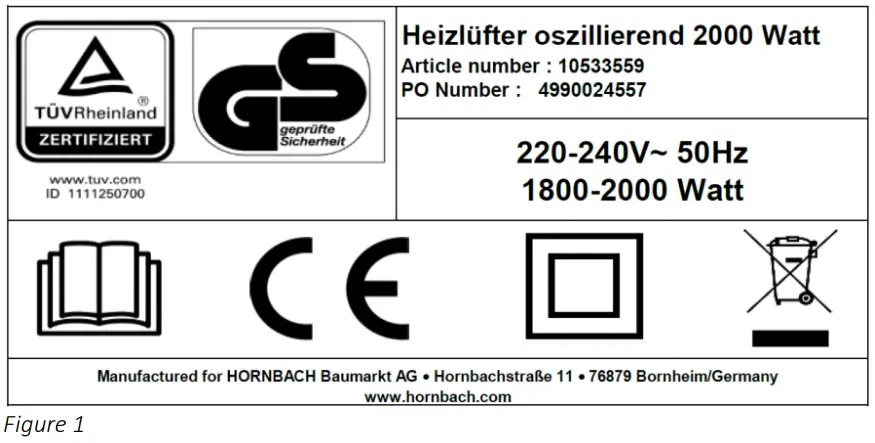

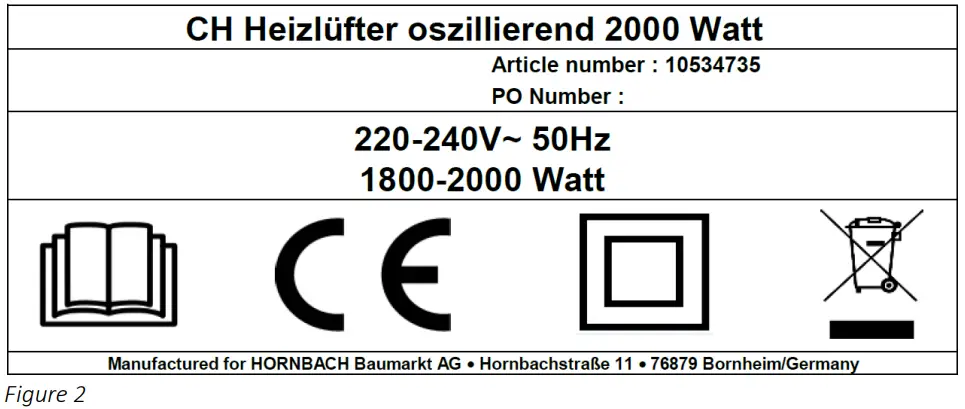

Identification

Specifications

Description

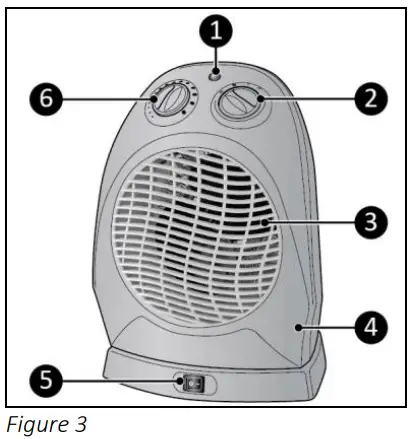

The Heizlüfter oszillierend 2000 Watt is an easy-to-use electric heater for indoor domestic use, see (Figure 3)

1. Light indication
2. Control knob
3. Safety grill
4. Main body
5. Motion switch
6. Thermostat knob

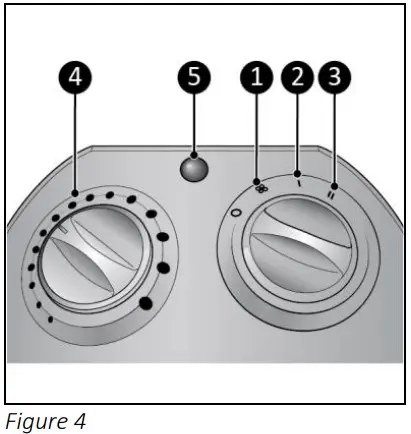

Control pane

1. Ventilation mode
2. Heating mode low
3. Heating mode high
4. Thermostat knob
5. Light indication

Safety

Please read and understand these safety instructions. Incorrect use can cause injury and will void Hornbach’s warranty

Children under the age of 3 are to be kept away unless under constant supervision. Children from the age of 3 years and younger than 8 years may only switch the device on and off if they are supervised or have been instructed in the safe use of the device and have understood the resulting dangers, provided that the device is in its normal position of use placed or installed. Children from 3 years and younger than 8 years are not allowed to put the plug in the socket, to adjust the device, not to clean the device and/or not to carry  out usermaintenance. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or a lack of experience and knowledge if they have been given supervision or instruction concerning use of the  appliancein a safe way and understand the hazards involved. Children shall not play with the appliance.

Do not use this device in small rooms when they are occupied by people who are incapable of leaving the room on their own, unless constant supervision is provided. Never leave the device unattended while it is in operation.

The device is equipped with an overheating protection, which switches it off automatically in case of internal overheating. Switch the device off, unplug the power plug, remove the source of overheating, let the device cool down and use as normal. Do not use the device if the source of overheating cannot be traced or if the problem persists, but always contact your supplier

The device is fitted with a tipping safeguard, which ensures it automatically shuts off if it tips over. When the device is returned to its upright position, it will resume functioning normally. Before reusing the device, switch it off, unplug it and check it for damage. Do not use the device if it is damaged or malfunctioning, but always contact your supplier. Do not use this device if it has been dropped.

General safety instructions

WARNING

• Prevent splashing water on or in the device.
• Do not immerse any part of the device in water or other liquids.
• Never insert fingers or other objects into the openings of the device.
• Do not expose the device to strong vibrations or mechanical stress.

WARNING

Some parts of the product can become very hot and cause burns. Special care should be taken when children and vulnerable people are present. Do not touch the device during use or within five minutes after use

CAUTION

In order to avoid overheating, do not cover the device during usage or after use while the device is still hot. To reduce the risk of fire, keep textiles,  curtains, tent canvasses and other flammable material at a minimum distanceof 1 meter from the device

Safety during operation

WARNING

Do not use the device:

• outdoors or in a small space (< 4 m2 );
• if any parts are dirty or wet;
• after it has been dropped;
• near or in a humid environment, like a bathroom or laundry room;
• near a water source, like a bath, shower or swimming pool;
• near or in a dusty and dirty environment;
• near flammable materials, liquids or fumes, like a shed, stable or green house;
• near other heat sources and open fire;
• immediately below a socket outlet;
• with a programmer, timer, separate remote-control system or any other device that switched the heater automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

If the device, the electric cable or plug shows damage or is malfunctioning, immediately take the appliance out of use and disconnect the power supply.

Transport and storage

• Clean the device before storing it.
• Transport the device upright.
• Store the device upright in its original packaging in a cool, dry and dust-free area.

Installation

The device is packed in one box. Remove all packaging material and check that the device is not damaged. Do not use the heater if it is damaged, but always contact your supplier. Keep the packaging for safe storage and transport.

WARNING

Do not use an extension cable, this can cause overheating and fire. If using an extension cable is unavoidable, make sure it is undamaged. Use an extension cable with a minimum power of 2000 Watt. Always unwind the extension cable completely to prevent overheating.

CAUTION

Make sure that the main voltage is the same as indicated on the identification label of the device. All electrical connections must stay dry under all circumstances. Always unwind the power cable completely.

1. Place the device on a level and steady surface.
2. Place the device with a minimum distance of 1 meter to any object, wall or ceiling.
3. Do not place the device directly below a socket outlet.

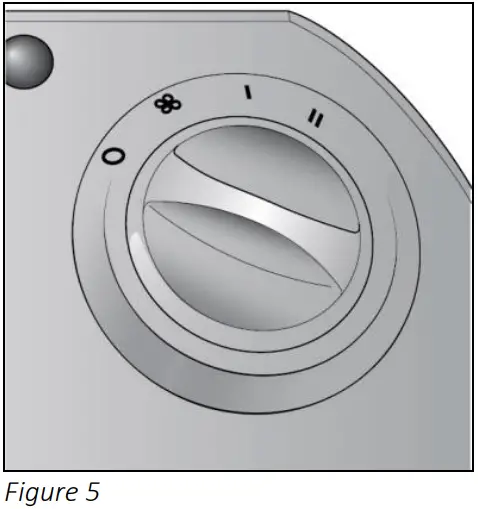

4. Make sure the control knob switch is in the OFF position (Figure 5).
5. Put the power plug into a wall socket that is easily accessible. Use a wall socket with a minimum power of 2000 Watt.

Operation

WARNING

Before every use, make sure that:

• you operate the device with dry hands;
• the device is clean and dry;
• the device is not damaged;
• the device stands on a level and stable surface.

CAUTION

When the device is turned on it can give off smoke and an odor. This is normal and will disappear after a few minutes.

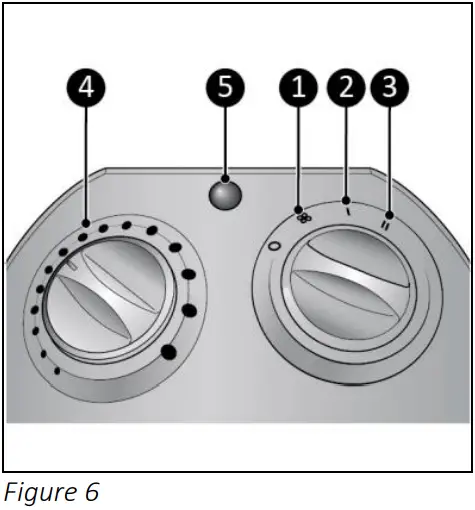

1.  Turn the control knob to the desired setting:
   • ventilation mode (Figure 6, pos. 1);
   • heating mode low (Figure 6, pos. 2);
   • heating mode high (Figure 6, pos. 3).
2. Turn the thermostat knob clockwise as far as possible (Figure 6, pos. 4)
3. The light indication turns on (Figure 6, pos. 5)

Setting temperature

When the room reaches the desired temperature in heating mode, slowly turn the thermostat knob on the device counter-clockwise until it clicks. The device will stop heating. The temperature is now set. The device will turn on and off automatically to maintain the given temperature.

Motion function

CAUTION

The motion switch is only for activating and deactivating the motion function. This switch is NOT an ON/OFF switch.

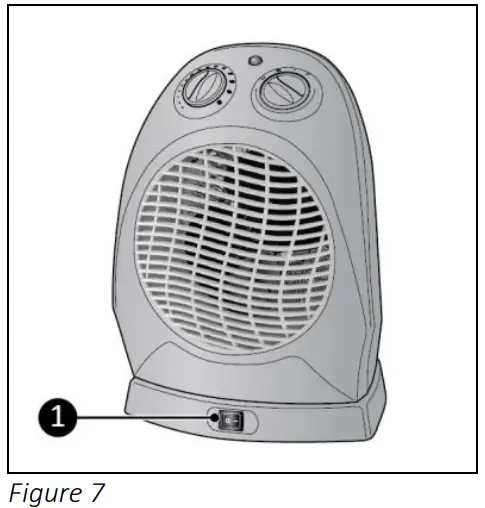

• Switch the motion switch to the I position (Figure 7, pos. 1). The device starts rotating from left to right in an angle of 90°.
• Switch the motion switch to the 0 position to deactivate the motion function.

After operatio

CAUTION

Do not use the power cable to unplug or carry the device. Do not wind the power cable too tightly or in sharp corners. Do not wrap the power cable around the device.

1. Make sure the control knob switch is in the OFF position (Figure 5).
2. Disconnect the power plug from the power outlet.
3. Let the device cool down before touching it.
4. Wind the power cable.

Maintenance

WARNING

Do not perform any repairs or modifications to this device.

Maintenance and repairs must be carried out by a Hornbach authorized professional. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Cleaning

 WARNING

The device becomes very hot. Make sure the device is turned off, unplugged and completely cooled down.

CAUTION

Do not use

• scouring pads;
• hard brushes;
• flammable, aggressive or chemical cleaning products.

Prevent water from entering the device. Do not immerse any part of the device in water or other liquids

It is recommended to clean the device after each use and prior to storage.

1. Carefully vacuum the openings to remove dust and dirt.
2. Wipe the device with a damp, clean, soft, lint-free cloth or a soft brush.
3. Let the device dry completely prior to use and storage.

Disposal

At its end of life, discard the device according to the local laws and regulations, or deliver the device to your supplier.

Support

Manufactured for: HORNBACH Baumarkt AG
Hornbachstraβe 11
76879 Bornheim Germany
Model: Heizlüfter oszillierend 2000 Watt Date: 28/07/2022
Product code: 10533559
10534735 (Swiss plug)

Version: v5.0
Declaration of Conformity and User manual can be found at:
https://www.hornbach.com/productcompliance
