QUICK REFERENCE GUIDE > 3U24GS2ERA

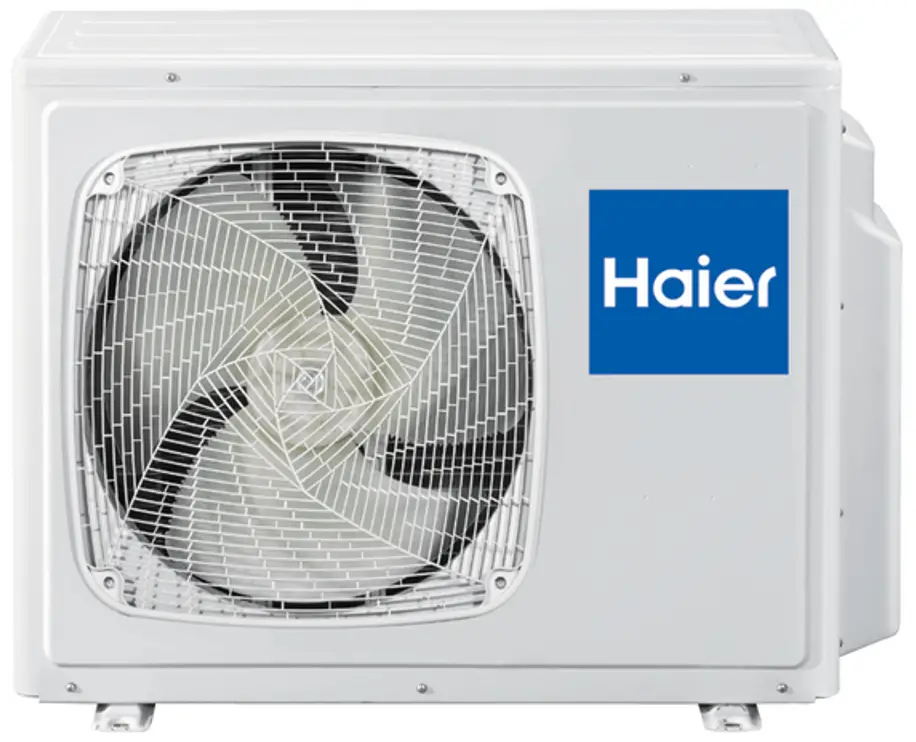

Multi-Head Outdoor Unit, 6.9 kW
MULTI-HEAD White
DIMENSIONS
| Height | 730 mm |
| Width | 345 mm |
| Depth | 940 mm |
SPECIFICATIONS
Accessories
| Central controller | Optional |
Capacity
| Cooling capacity (kW) | 6.9kW |
| Heating capacity (kW) | 7.0kW |
Consumption
| COP | 3.74 |
| HER | 3.6 |
Features
| Blue fin coils | • |
| Compressor type | Twin rotary |
| DC inverter | 180° sine wave |
| DRED (Demand Response) ready | • |
| Inverter controlled compressor | • |
| MEPS approved | • |
Installation
| Liquid line | 6.35mm |
| Maximum number of indoor units | 3 |
| Suction line | 9.52mm |
Performance
| Airflow | 690l/s |
| DC inverter | 180° sine wave |
| R410a refrigerant | • |
| Sound power | 67dBA |
| Sound pressure | 54dBA |
| Working temperature cooling | -10°C to +46°C |
| Working temperature heating | -15°C to +24°C |
Power Requirements
| AMP draw | 15.3A |
| Power phase | Single |
| Supply frequency | 50/60Hz |
| Supply voltage | 220-240V |
Product dimensions
| Depth | 940 mm |
| Height | 730 mm |
| Net weight | 53kg mm |
| Width | 345 mm |
Warranty
| Parts and labor | 5 years |
| SKU | 51041 |
The product dimensions and specifications on this page apply to the specific product and model.
Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
