70W LED Flood Light with Yoke Mount
AFLD Series
AFLD-50K30-110-U
SYPERBRIGHTLEDS.COM

Important: Read all instructions prior to installation.

Safety and Notes

• The product should be installed and serviced in accordance with applicable national, state, and local building and electrical codes.
• To reduce the risk of electric shock, ensure that the main power source and circuit breakers are switched off before performing any installation or wiring procedures.
• Avoid looking directly into the lamp when illuminated.
• Ensure all mounts are securely attached and will support the weight of the fixture. Failure to properly support fixtures may result in damage or injury, for which the manufacturer does not assume responsibility.

Specifications

Check the product label for specific electrical specifications related to installation. Improper installation will void the warranty.

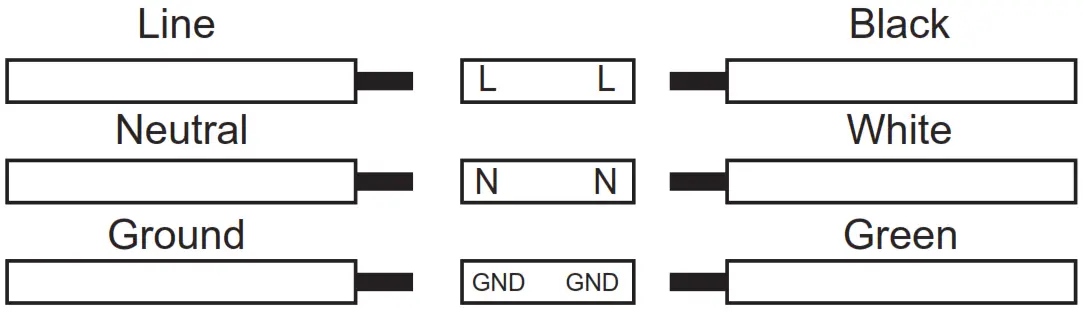

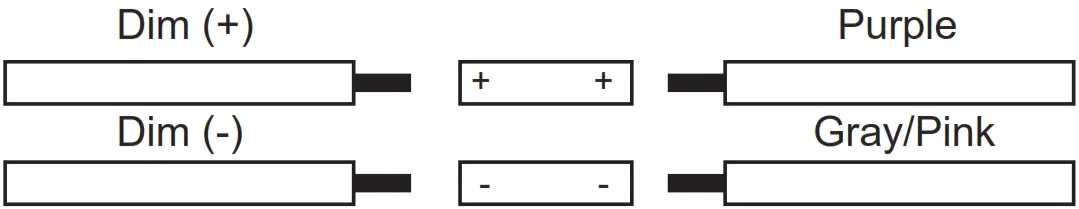

Wiring Diagram

120–277 VAC Input	1–10 V Dimming

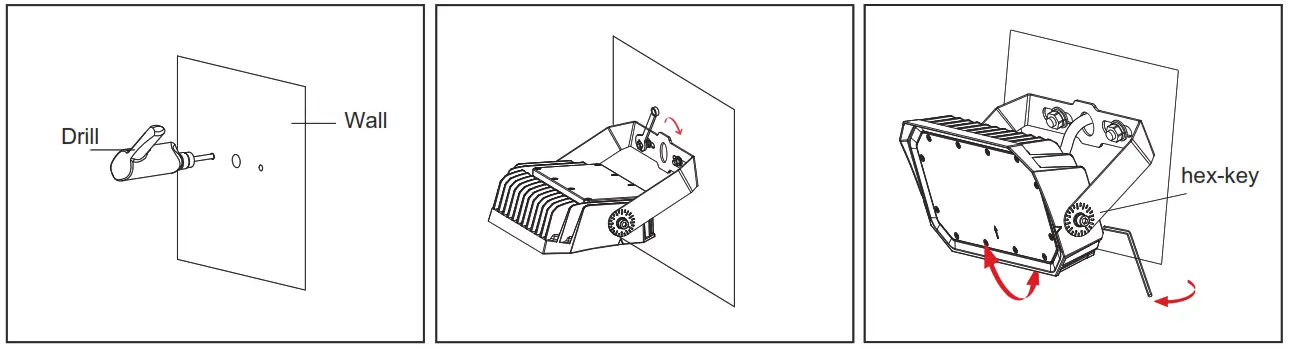

Installation Instructions (U-bracket/Yoke Mount)

1. Drill holes for mounting and wiring.
2. Loosen light head adjustment screws with a hex key.
3. Securely attach the light to the wall and connect the wiring.
4. Rotate the light head to the desired angle and tighten the adjustment screws.

LED Flood Light

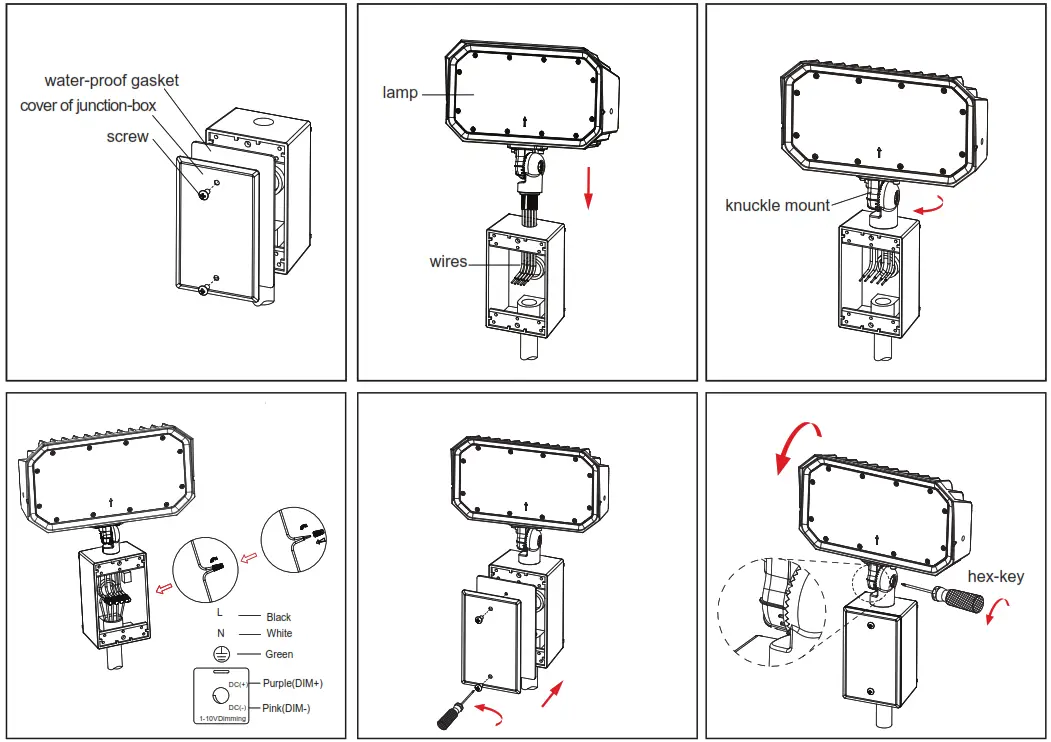

Installation Instructions (Knuckle Mount)

1. Open junction box and run wiring into box.
2. Securely mount the light to the junction box. Use a sealant to create a weatherproof seal.
3. Connect wiring.
4. Replace junction box cover.
5. Rotate the light head to the desired angle and tighten the adjustment screws.

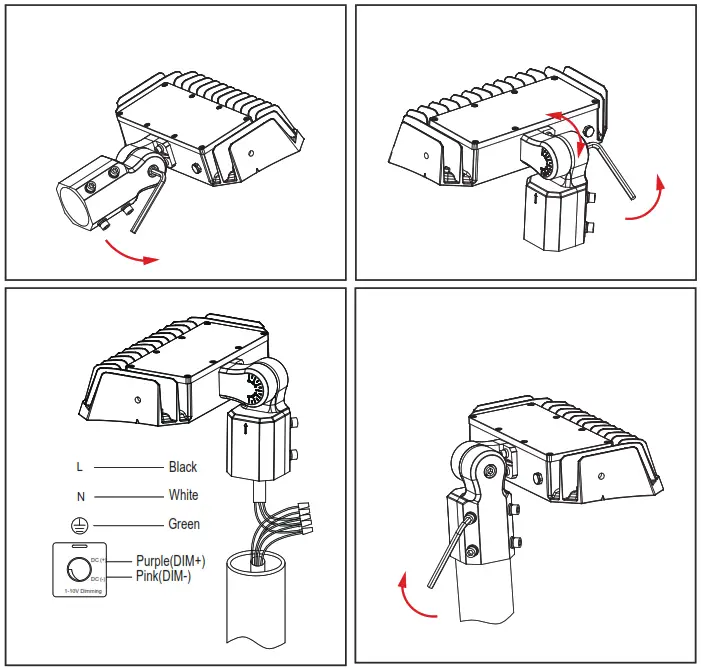

Installation Instructions (Slip-fitter)

Only available on 70 W and 90 W lights.

1. Loosen light head adjustment screw with a hex key.
2. Connect wiring.
3. Securely attach the light to the pole/post. The maximum pole/ post diameter is 2.375 in.
4. Rotate the light head to the desired angle and tighten the adjustment screw.

Rev Date: V1 02/14/2022
4400 Earth City Expy, St. Louis, MO 63045
866-590-3533
superbrightleds.com
