00184170
00184171
STEREO HEADPHONES
“Ocean”
Operating Instructions
https://link.hama.com/en/184170-pin
Warning and safety instructions
Warning
Take your time and read the following instructions and information completely.
Safety instructions
- The product is intended for private, non-commercial use only.
- Use the product for its intended purpose only.
- Children should be supervised to ensure that they do not play with the device.
- Do not use the product in areas where the use of electronic devices is not permitted.
- Do not attempt to service or repair the product yourself. Leave any and all service work to qualified experts.
- Do not open the device or continue to operate it if it becomes damaged.
- Do not bend or crush the cable.
- Do not drop the product and do not expose it to any major shocks.
- Dispose of packaging material immediately according to locally applicable regulations.
- Do not modify the product in any way. Doing so voids the warranty.
- Protect the product from dirt, moisture and overheating, and only use it in a dry environment.
- Do not use the product in the immediate vicinity of heaters or other heat sources or in direct sunlight.
- Use the item only in moderate climatic conditions.
- Keep this product, as all electrical products, out of the reach of children!
- Do not operate the product outside the power limits given in the specifications.
- Do not use the product in moist environments and avoid splashes.
- Do not allow yourself to be distracted by the product, for example when driving a vehicle or operating sports equipment. Always pay attention to the surrounding traffic and your environment.
- Do not install the holder within the deployment area of an airbag. If the airbag is released, it opens with a high impact pressure, which could cause the holder and tablet PC to fly through the interior of the car.
- Do not throw the battery or the product into fire.
- Do not tamper with or damage/heat/disassemble the batteries/rechargeable batteries.
- Do not use the product while it is charging.
Warning – High volumes
- High sound pressure level!
- There is a risk of hearing damage.
- To prevent hearing loss, avoid listening at high volume levels for long periods.
- Always keep the volume at a reasonable level.
Loud volumes, even over short periods, can cause hearing loss. - Using this product limits your perception of ambient noise. For this reason, do not operate any vehicles or machineswhile using this product.
Care and maintenance
Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents.
Warranty disclaimer
Hama GmbH & Co KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes.
Technical data

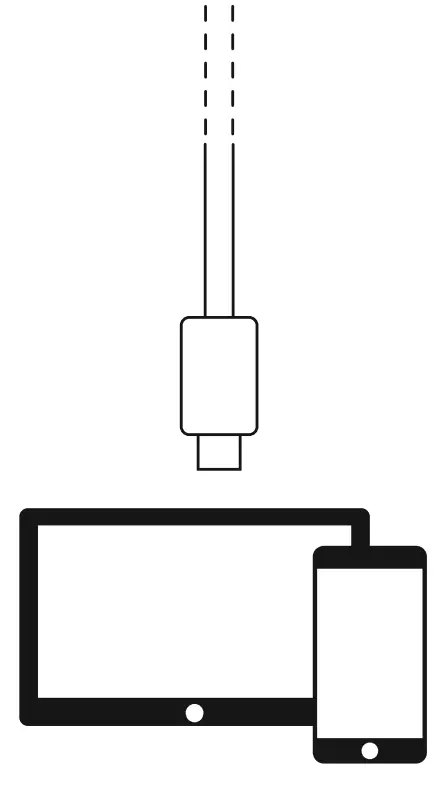

| Connection | USB-C connector |
| Cable length | 1.20 m |
| WBCV (Wide Band Characteristic Voltage) | ≥ 75 mV |
 | Headphones |
| Diameter | 14,2 mm |
| Frequency range | 20 Hz – 20 kHz |
| Impedance | 32 Ω |
| Sensitivity | 94 dB +/- 3 dB |
| Microphone |
| Frequency range | 50 Hz – 10 kHz |
| Impedance | ≤ 2.2 kΩ |
| Sensitivity | -44 dB +/- 3 dB |
Hama GmbH & Co KG
86652 Monheim / Germany
Service & Support
www.hama.com
+49 9091 502-0
All listed brands are trademarks of the corresponding companies. Errors and omissions excepted, and subject to technical changes. Our general terms of delivery and payment are applied.
00184170_71/12.22
