3005096
Please read all instructions carefully before use and retain for future reference.
CAUTION Potential finger trap/pinchment points
Protect your eyes.
Re-tighten fixings every 6 months
Protect your ears.
40kg/88lb
Protect your hands.
Maximum.
Max screen size.
Basic safety precautions should always be followed.
INTENDED USE This product is not intended for outdoor use. This product is not intended as a climbing structure and it is not a toy. Children should be supervised to ensure that they do not play with the product.
BEFORE FIRST USE Locate the product in a suitable area where it will not create an obstruction. Locate away from sources of combustion.
GENERAL SAFETY The assembly pack may contain small parts which can pose a choking hazard to children and pets. Do not overload the product as this may result in damage to the product or personal injury.
CLEANING & MAINTENANCE Do not clean the product with any abrasive cloths or chemicals. Solvents or detergents can cause damage to the surface.
Periodically check and re-tighten fittings where applicable. Re-tighten all fittings after first week following assembly. To clean, sponge down with warm water, a soft cloth and mild detergent. Ensure you have all the pieces listed. If you are missing any components, contact our customer services department at [email protected]
WALL MOUNTING GUIDE
IMPORTANT When drilling into walls always check that the there are no hidden wires or pipes.
Ensure that the screws and wall plugs being used are suitable for supporting the unit to be installed.
If you are unsure it is recommended you contact a suitable qualified tradesperson.
TIPS Ensure you use a recommended drill bit to match the wall plug and hole size.
Take extra care when drilling high walls, ceilings and ceramic tiles, ensure the wall plug is fitted below the ceramic tile to avoid splitting or cracking.
Ensure the wall plugs are well fitted and are a secure fit to the drilled hole.
The guide below will help to determine the most suitable wall plug type for your application.
Shield Anchor
For use with heavier items such as TVs.

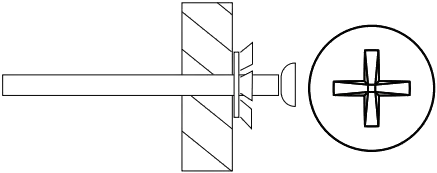

Hammer Fixing
Use with wall stuck with plaster board. The Hammer fixing allows it to be fixed to a wall rather than the plaster board.

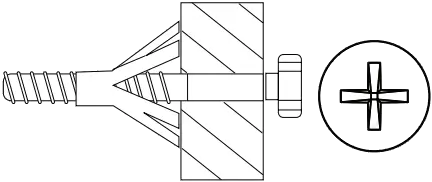

Cavity Fixing Heavy Duty
For use when supporting heavy loads for example cabinets and shelving.
Cavity Fixing
For use with plaster board partitions or hollow wooden doors.

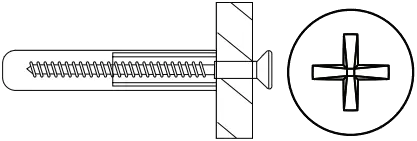

Standard Wall Plug
Suitable for use on most types of wall such as brick, breeze block, concrete, stone, wood or plaster.

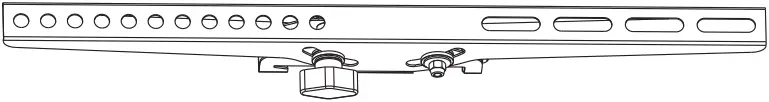

COMPONENTS
A (x1)
B (x1)
C (x1)
M6x30 (x4) M-A M8x30 (x4) M-B (x4) M-C
(x4) M-D M8x50 (x4) M-E
(x4) W-A (x4) W-B (x4) W-C
ASSEMBLY
DISPOSAL INFORMATION Please recycle where facilities exist. Check with your local authority for recycling advice.
CUSTOMER SERVICE If you are having difficulty using this product and require support, please contact
[email protected]
WARRANTY To register your product and find out if you qualify for a free extended warranty please go to www.vonhaus.com/warranty. Please retain a proof of purchase receipt or statement as proof of the purchase date. The warranty only applies if the product is used solely in the manner indicated in the warnings page of this manual, and all other instructions have been followed accurately. Any abuse of the product or the manner in which it is used will invalidate the warranty. Returned goods will not be accepted unless re-packaged in its original packaging and accompanied by a relevant and completed returns form. This does not affect your statutory rights. No rights are given under this warranty to a person acquiring the appliance second-hand or for commercial or communal use.
COPYRIGHT All material in this instruction manual are copyrighted by DOMU Brands. Any unauthorised use may violate worldwide copyright, trademark, and other laws.
THANK YOU
Thank you for purchasing your product/appliance. Should you require further assistance with your purchase, you can contact us at [email protected]
VonHaus is a registered trademark of DOMU Brands Ltd. Made in China for DOMU Brands. M24 2RW.
