LIGHTING THE WAY FOR SIXTY YEARS
MODEL #513-GA_CEILING
ASSEMBLY INSTRUCTION
513-GA_CEILING Three Light Ceiling Mount Broche

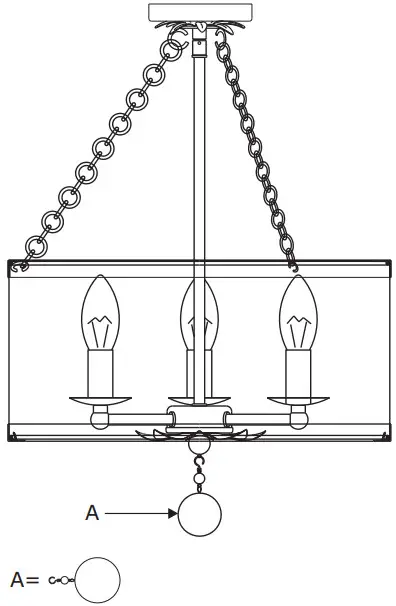

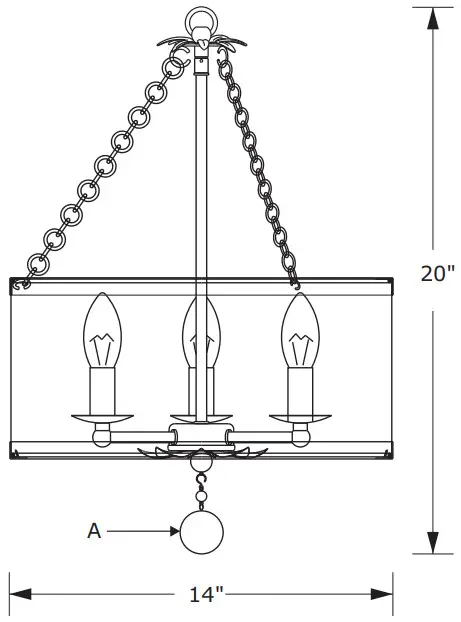

| FOR HANGING | FOR CEILING MOUNT |
 |  |
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 3 -Candelabra Base Bulb 40 Watts Recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE THIS FIXTURE IS DRY RATED
How to install
- Feed wires through stem/swivel/ loop.
- Attach the stem assembly onto the light cluster.
- Attach the swivel/loop assembly onto the stem.
- Put the top metal band ring over the top of the white cloth shade.
- Take one end of the decorative chain and hang it onto the hook on the loop assembly. Hang the other end to the hook inside the shade. Repeat for the other two decorative chains.
- Place the candle sleeve onto the socket, and insert recommended bulb (not included).
- Hang the metal ball “A” onto the bottom of the fixture.
- If installing as a ceiling mount, remove the loop from the loop assembly.
Place the canopy over the nipple and secure it with a hexnut.
Hangings
A.1 Set.
(1)10mm + (1)40mm
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov.

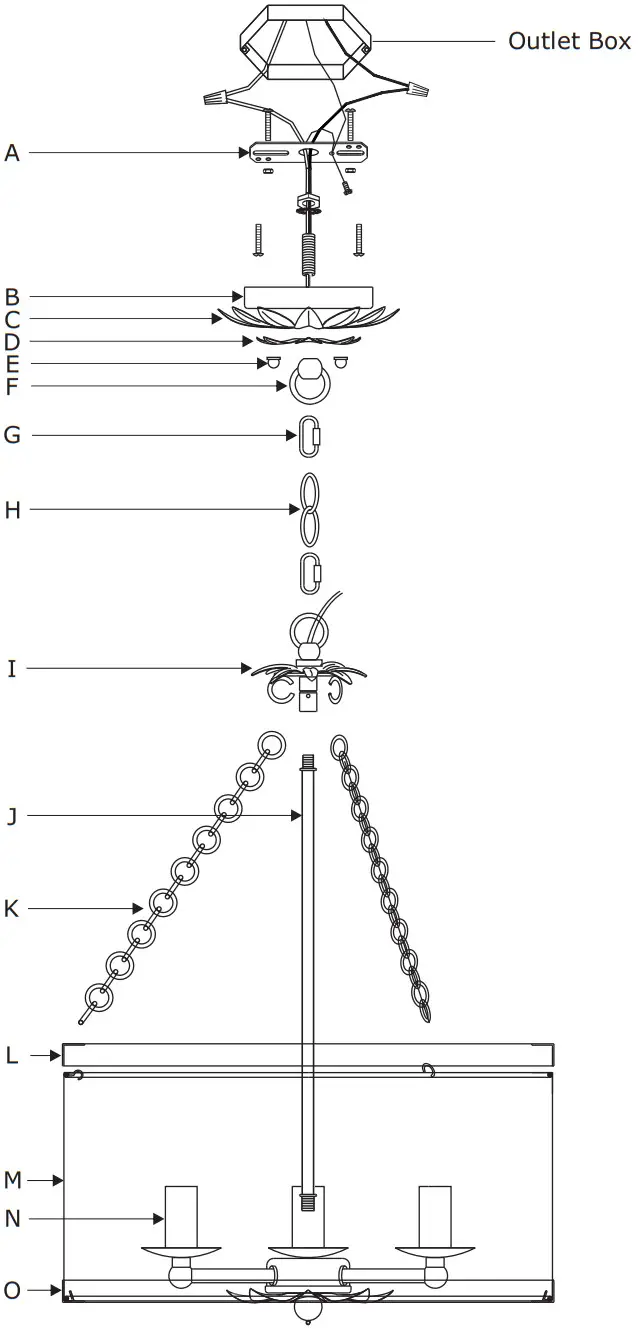

PART NUMBER
A. (1) – Mounting Hardware
B. (1) – Canopy(W5″,H0.75″) #XRE513GACAN5IN
C. (1) – Decorative Metal Leaves1
D. (1) – Decorative Metal Leaves2
E. (2) – Ball Nut #XRE513GABANUT
F. (1) – Fixture Loop #XRE513GALOOP
G. (2) – Quick Link
H. (1) – Hanging Chain(72″,3.4mm) #XRE513GACHA3.4MM
I. (1) – Loop Assembly
J. (1) – Center Stem(11.06″,9.7mm) #XRE513GASTEM
K. (3) – Decorative Chains(each9″,3mm) #XRE513GADECHA3MM
L. (1) – Top Metal Band Ring
M. (1) – White Cloth Shade(W13.78″,H6.5″) #XRE513GASHA14IN
N. (3) – Candle Sleeve(W0.87″,H1.97″) #XRE511GACDL2IN
O. (1) – Bottom Metal Band Ring
