Kmart 43170999 Sport Storage Medium Instructions
Hardware list
- Bolt (A x 12pcs)
- Washer (B x 12pcs)
- Wrench (C x 1pc)
- Wheel (D x 2pcs)
- Wheel with brake (E x 2pcs)
Part list
- Narrow side frame (F x 2pc)

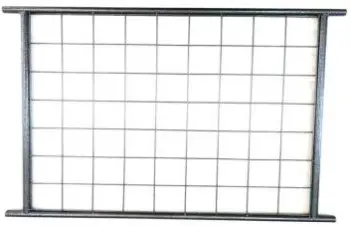

- Long side frame (G x 1pc)

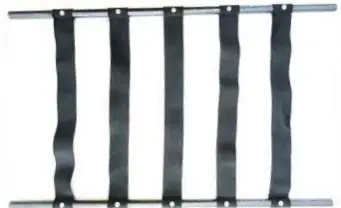

- Long side frame with straps (H x 1pc)

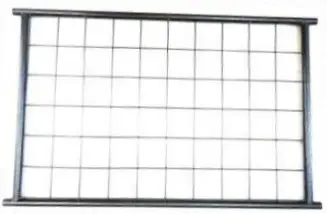

- Bottomframe (I x 1pc)
Assembly Instructions
Note: Keep the bolt 70% of tightness while assembling, then fasten all the bolts with wrench after fully assembled.

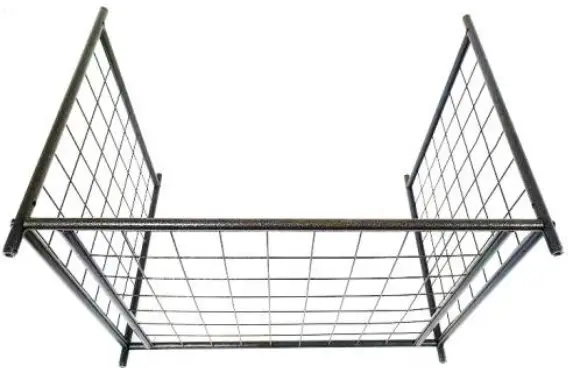

Step 1. Put the narrow side frame (F) and bottom frame (I) together, then secure them with bolt (A) and washer (B). Fig1.
Step 2. Put another narrow side frame (F) and the part from step 1 together, then secure them with bolt (A) and washer(B). Fig 2.
Fig 1
Fig 2

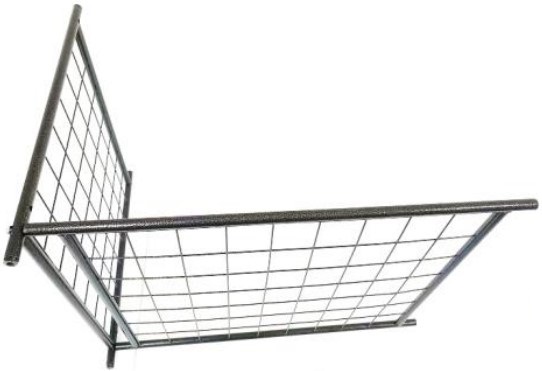

Step 3. Stand up the frame of the part. Put the long side frame (G) and the part from step 2 together, then secure them with bolt (A) and washer (B). Fig 3.

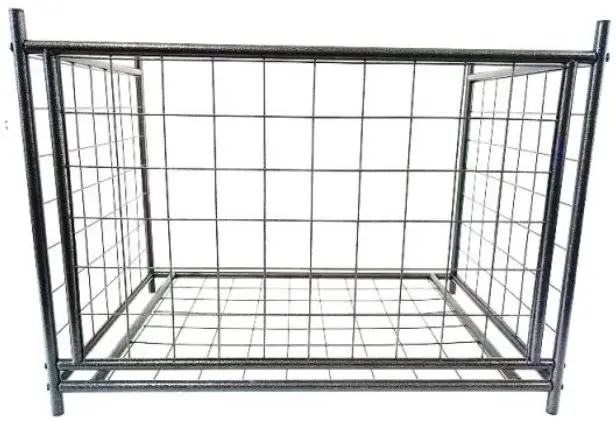

Step 4. Put the long side frame with straps (H) and the part from step 3 together, then secure them with bolt (A) and washer (B). Screw the 4pcs wheels (D & E) into the nut at the bottom of the frame, then your storage is successfully assembled. Fig 4.
Fig 3
Fig 4
