HOMEDEPOT WLWES290109EAA Smart Top Load Washer
Parts Description

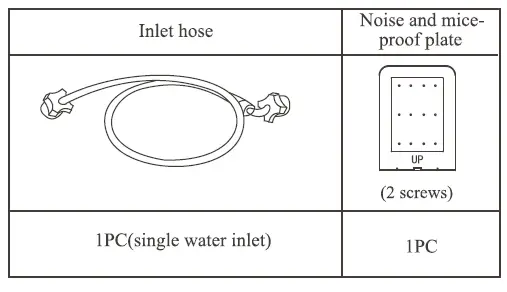

Accessories
Accessories

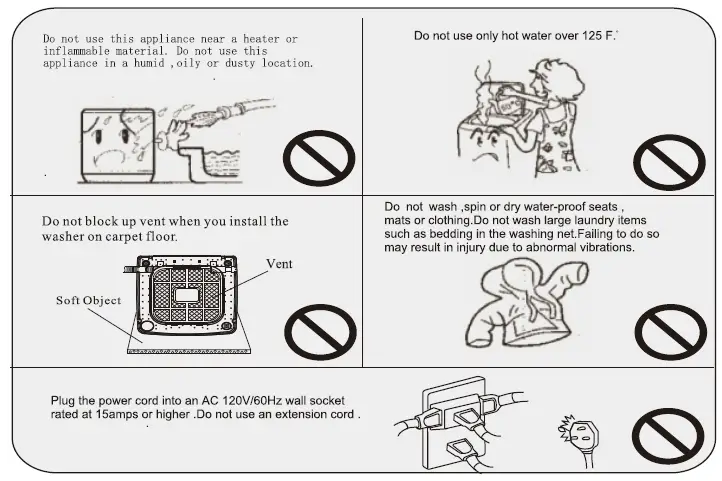

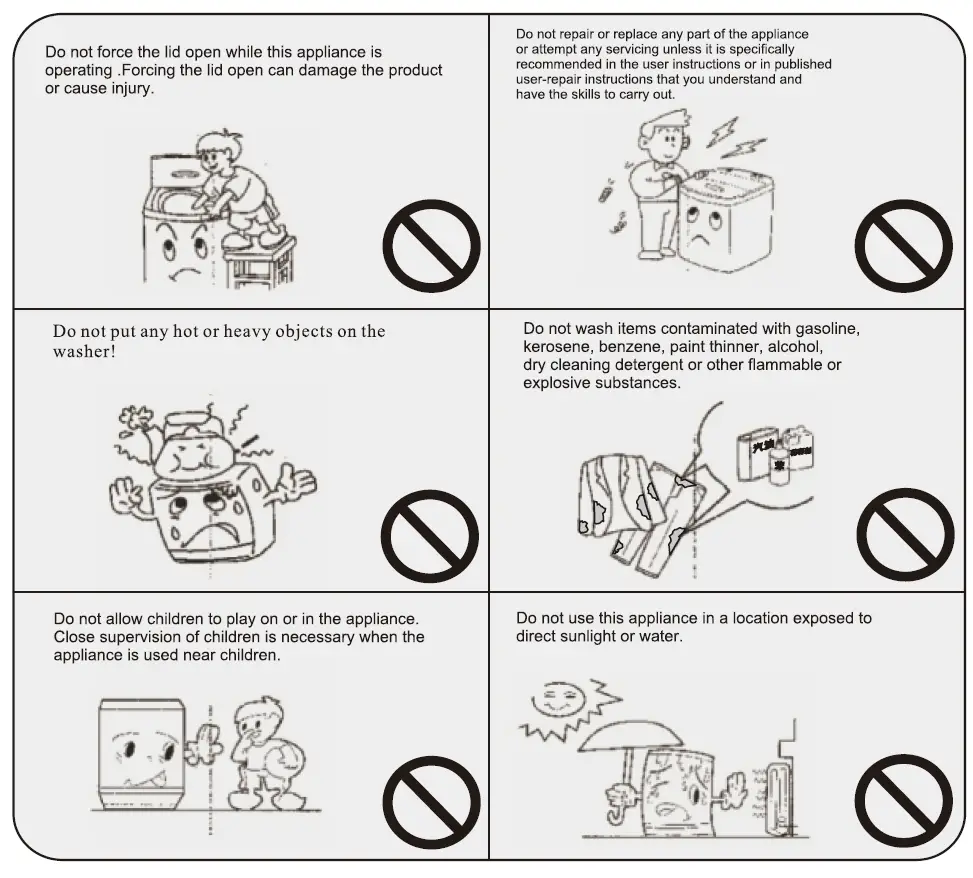

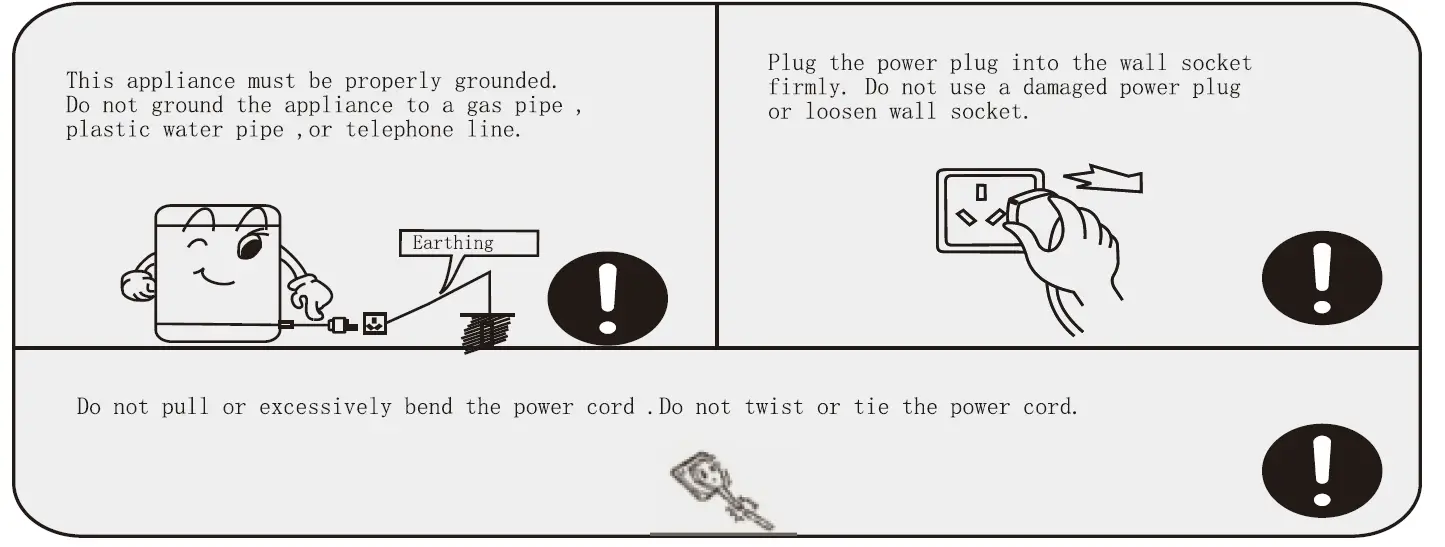

Precautions
Installation and Adjustment
Unpacking and Removing Shipping material
Remove the packing box and it tne wasie ay tr ne toam foam base cushion.
Open the d or wasner to take out all accessores inciuaing protecuon Toam.
Flooring

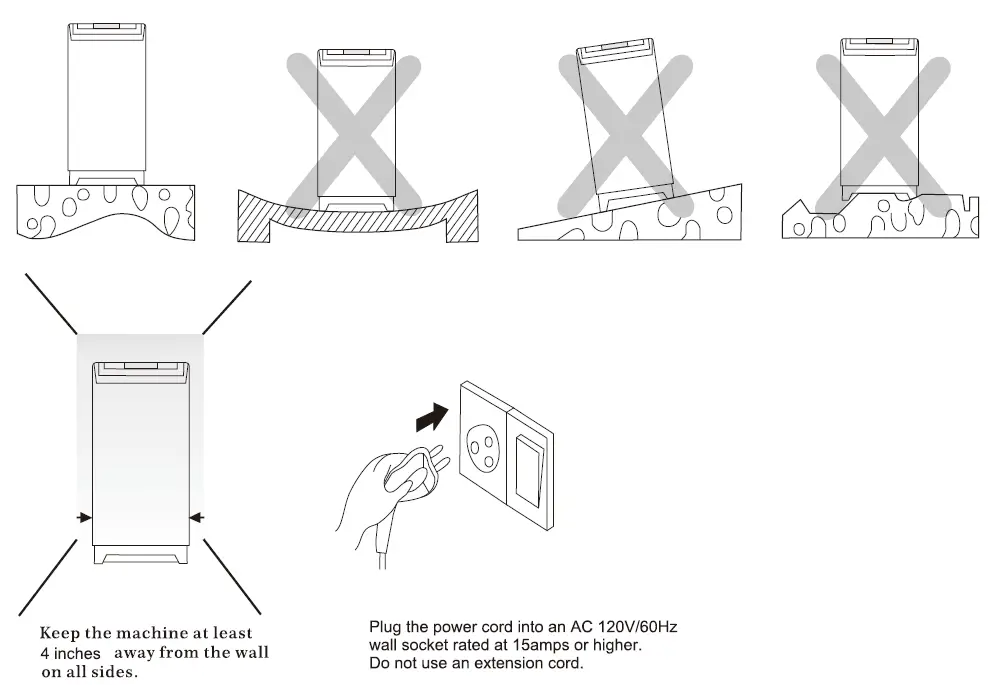

all this appliance on a solidly constructedf Wood floors may need to be reinforced to minimize vibration and/or unbalanced load situations.
Drain Pipe Usage

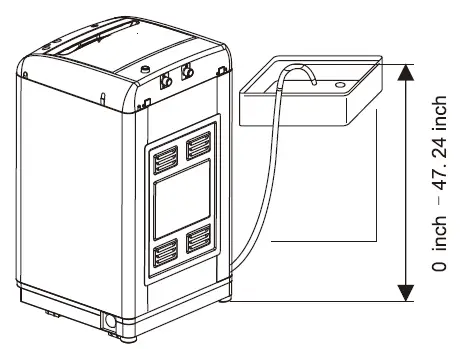

Connection of the drain hose Insert the end of the drain hose into the hook shelf, and hang the drain hose over a drain outlet.
Note: The highest point of the drain hose must be in the height of 0 inch~47.24inch above floor level, otherwise, the washer can not work normally.
Installation of the Water Inlet
Connect to the sink tap
The quick adaptor is primarily for quick connection to a tap faucet, such as typical sink in kitchen or bathroom. First of all, connect one side of inlet hose to the COLD water inlet valve on the washing machine.
- Pull back on the white ring to free the faucet fitting from the
- adaptor for installation into the faucet.
- If the faucet has internal screw threads, unscrew the aerator
- if present from the tip of the faucet. Then screw the faucet fitting into the faucet.
- Make sure that the black rubber washer is on the top of the adaptor before screwing it in.
- If the faucet has external screw threads, remove the one black
- washer from the top of the faucet fitting, then screw the fitting over the external threads.
- Pull back on the white ring to connect the two parts of the adaptor back together.

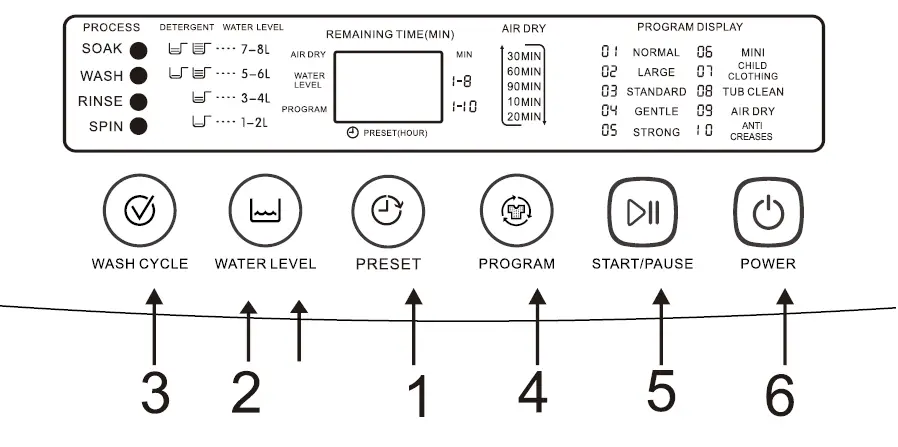

O PRESET selector
Press this button to reserve statustime of delay start.
StartPause button
Press this button to startpause the washing machine.
Water level button
Press this button to select water level.
Power button
Press this button to turn on/off the washing machine. Do not turn on the washing machine again until 3
wash cycle Duton
Press this button to select the process you need. minutes later after it is turned off.
Program button
Press this button to select the program you need. The washing machine will turn off at once automatically when the program finished, and it will turn off automatically if you do not press the start button to start the machine wIithin 10 minutes after press the power button to turn on the machine.
Operatting procedure
- Press the “POWER” button to turn on the machine.
- Press the “PROGRAM” button to choose the program you want.
- Press the “WATER LEVEL'” button to choose the water Ievel you and put detegrent accordingly.
- Close the wash lid.
- Press the “START/PAUSE” to start operating.
Note :
- Please make sure the highest point of clothes is beloW balance ring.

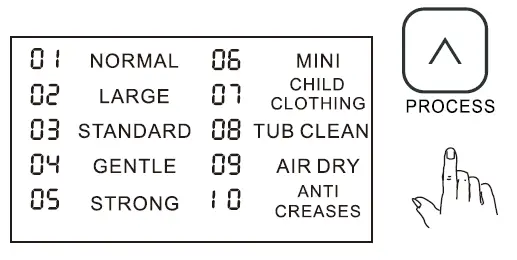

- If users want to choose air function,press “PROGRAM” button to choose air dry function,then pross “PRESET” button to choose time.
- FUZZY LOGIC is an intelligent program. Press PROGRAM button to choose NORMAL Tunction, the machine will choose the best procedure according to the wash capacity.
- Efficiency mode:Press START/PAUSE” button for 5s to enter efficiency mode. he detault water level is full,press PROCESS button to choose standard procedure to test
Detergent
High efficiency (HE) detergent is highly recommended for this washing machine. The normal amount of detergent to use is 4 to % of the maximum amount recommended by the detergent manufacturer. Always reduce the amount of detergent if the load is small or lightly soiled, or if your water is very soft. Never pour any liquid bleach directly onto the load. It may cause fabric damage, such as weakening of cloth fibers or color l
Maintenance
Clean the exterior
Power off the machine, unplug the power cord, then turn off the water inlet faucet. Use a soft damp cloth to wipe up the cabinet and control panel. Do not use abrasive powders or cleaning pads. Do not spray cleaners directly onto the panel.
Clean the interior
Clean the interior of your washer periodically to remove any dirt, soil, odor, mold, mildew, or bacterial residue that may remain in your washer. Failure to follow these instructions may result in unpleasant conditions, including odors and/or permanent stains on your washer or laundry. Hard water deposits may be removed, if needed, use cleaners labeled as “washer safe”. Run “Quick Wash” cycle with some bleach every month to clean the interior drum.
Clean lint filter

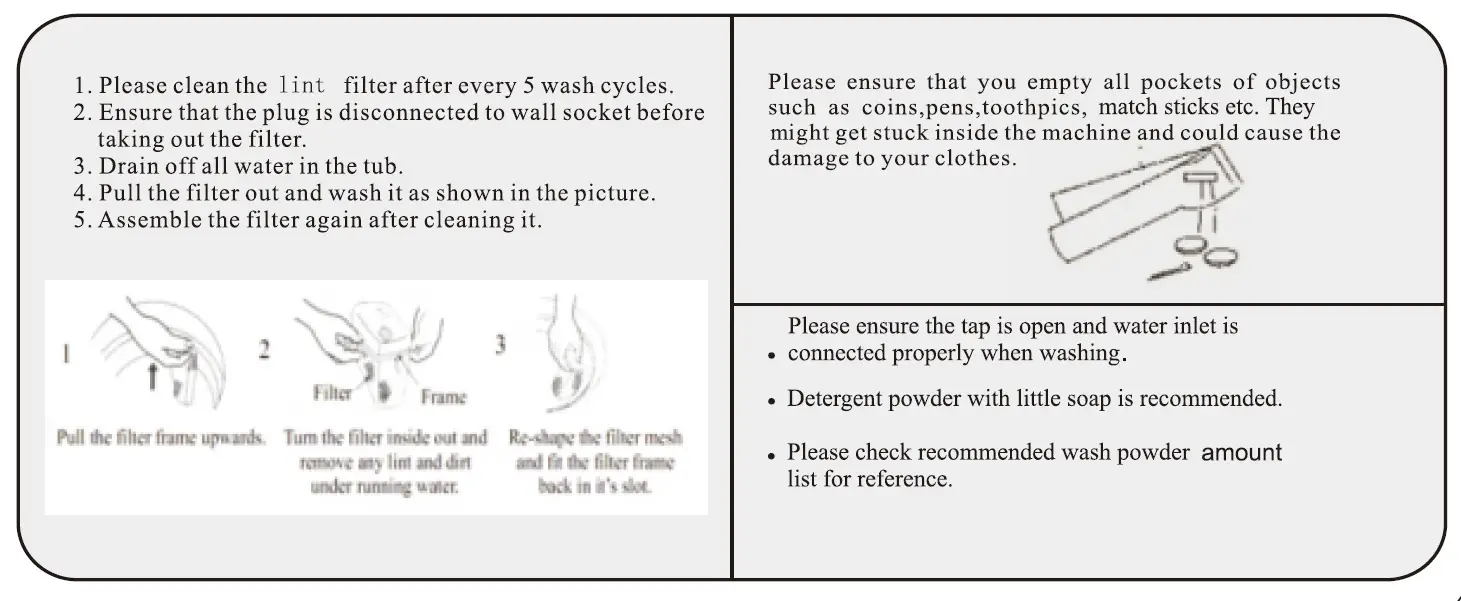

There is a built-in lint filter in the washing machine. It helps to collect dirt and lint during wash cycle. It is suggested to clean this lint filter every 5 cycles. Simply take out the lint filter, remove inside lint and dirt, clean the filter with water, then place it back into the washer.
Clean water inlet filter
Power off the washer and turn off the faucet, disconnect water inlet hose from the washer, use brush to clean the filter in the water inlet valve.
Trouble Shooting
| Problem | Possible Cause | Solutions |
| Thumping | Heavy wash loads may | This is normal. |
| sound | produce a thumping sound. | If sound continues, |
| Washer load may be out of balance. | washer is probably out of balance. | |
| Stop and redistribute | ||
| wash load. | ||
| Pause the cycle and redistribute the load. | ||
| Vibrating noise | Packing materials were | Pause the cycle and redistribute the load. Remove all packing material including foam base cushion and protection foam. Make sure that the floor is solid and does not flex. |
| not removed. | ||
| Wash load may be | ||
| unevenly distributed | ||
| in the tub. | ||
| Not all legs are resting | ||
| firmly and evenly on the | ||
| floor. |
| Problem | Possible Cause | Solutions |
| Water | Inlet hose | Check hose for leaks, cracks and |
| leaking | connection is loose | splits. |
| at faucet or washer. | Check and tighten the hose | |
| House drain pipes | connections. | |
| are clogged. | The washer pumps out water very | |
| Drain hose has | rapidly. | |
| come out or drain or | Check for water backing up out of the | |
| is not inserted far | drain pipe during drain. | |
| enough. | If water is seen coming out of the | |
| A large item such | drain, check for proper drain hose | |
| as a pillow or | installation and restrictions in the | |
| blanket is above the | drain. | |
| top of the tub. | Contact a plumber to repair drain | |
| pipe. | ||
| Tie drain hose to inlet hose or | ||
| standpipe to prevent it from coming | ||
| out during drain. | ||
| For smaller drain pipes, insert the | ||
| drain hose into the pipes as far as the | ||
| drain hose flange. | ||
| For large drain pipes, insert the drain | ||
| hose into the pipe 1-2 in. past the | ||
| flange. | ||
| Stop the washer and check the load. | ||
| Make sure the load does not crest | ||
| above the top edge of the tub. |
| Problem | Possible Cause | Solutions |
| Washer will not turn ON
NOTE: If the washer stopped during a cycle due to a loss of power, the washer will resume the cycle where it stopped when the power is restored. | Power cord is not properly plugged in. House fuse is blown, circuit breaker has tripped, or power outage has occurred. House fuse is blown, circuit breaker has tripped, due to multiple appliance on one outlet. | Make sure that the plug is plugged securely into a grounded, 3- prong, 120-VAC, 60-Hz outlet. Reset circuit breaker or replace fuse. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician. |
| Reset circuit breaker or replace fuse. 5.lf more than one appliance is connected | ||
| to the outlet, call an electrician to have an | ||
| additional circuit installed. |
| Problem | Possible Cause | Solutions |
| Water leaks | Over sudsing of detergent. | Over sudsing may create leaks, and may be caused by the type and amount of detergent used. |
| High-Efficiency | ||
| detergent is the only detergent recommended. | ||
| The normal amount of | ||
| detergent to use is 1/4 to 1/2 of the maximum amount recommended by the detergent | ||
| manufacture. | ||
| Always reduce the | ||
| amount of detergent if the load is small or lightly solid, or if your water bis very soft. | ||
| Never use more than | ||
| themaximum amount recommended by the detergent manufacture. |
| Problem | Possible Cause | Solutions |
| Wash cycle time is | The washer | This is normal. The |
| longer than usual | automatically adjusts | washer adjusts cycle |
| the wash time for the | time automatically to | |
| amount of laundry, | provide optimal | |
| water pressure and | results for the | |
| other operating | selected cycle. | |
| conditions. | The time remaining | |
| shown in the display is | ||
| only an estimate. | ||
| Actual time may | ||
| vary. | ||
| Water will not drain | Kinked drain hose. | Ensure that the drain |
| water | Drain located higher | hose is not kinked. |
| than 48 in. above the | Make sure that the | |
| floor. | drain hose is no higher | |
| than 4 ft. | ||
| above the bottom of | ||
| the washer and is no | ||
| more than 5 ft. away | ||
| from the washer. |
| Problem | Possible Cause | Solutions |
| Washer will not | Water supply is turned | This is normal. Press the |
| operate | off. | POWER button to turn the |
| Control Panel has | washer on. | |
| powered off due to | Make sure cord is plugged | |
| inactivity. | securely into a working out | |
| Washer is unplugged. | let. | |
| Controls are not set | The washer will not operate | |
| properly. | if the lid is open.4. Close the | |
| Lid is open. | lid and make sure that | |
| Circuit breaker/ fuse is | nothing is caught under the | |
| tripped/ blown. | lid preventing it from closing | |
| completely. | ||
| Check house circuit | ||
| breakers/ fuses. Replace | ||
| fuses or reset breaker. | ||
| The washer should be on a | ||
| dedicated branch circuit. | ||
| The washer will resume the | ||
| cycle where it stopped once | ||
| power is restored. |
| Problem | Possible Cause | Solutions |
| Washer will not operate | Control needs to be reset. START/PAUSE was not pressed after a cycle was set. Extremely low water pressure. Washer is too cold. Washer is running under Delay start program. | Press the POWER button, then re-select the desired cycle and press the START/PAUSE button. The washer will shut off if the START/PAUSE button is not pressed within ten minutes. Check another faucet in the house to make sure that household water pressure is adequate. If the washer has been exposed to temperatures below freezing for an extended period of time, allow it to warm up before pressing the POWER button. Otherwise, the display will not come on. It is normal if the unit does not operate under Delay start function. |
| It will start automatically after the delay time is out. |
Auto Alarm
| Error Code | Problem | Tactics |
| EO | It takes 25 minutes or more to fill water but cannot achieve preset water level. | Open and then close the lid. |
| E1 | It takes more than 7 minutes to drain water. | Open and then close the lid. |
| E2 | The washer runs out of balance. | Open the lid, re-balance the load, then close the lid. |
| E3 | Open the lid when machine is running. Or open the lid during the preset program. | Open and then close the lid. |
| E4 | Water level sensor loose | Call customer service 1-866-371-2888 |
Specification
| Models | XQB48-A879 |
| Power | 1 I0V-60Hz |
| Wash/ Spin Capacity | I !LBS |
| Input Power (W) | 300W |
| Inlet Water Pressure | 0.03Mpa~0.85Mpa |
| Water Proof Level | IPX4 |
| Production Dimensions (inch) | 18.5*18.7*33 INCH |
| Package Dmension(inch) | 20.8*21.2*35.4 INCH |
| NW | 21kg |
| Noise | Wash Noise:,( 60dB Spin Noise:,(70dB |
Packing list
| Name | Washing Machine | Quick Adaptor | Water Inlet Hose | Drain Hose &Clamp | User Manual | Bottom Cover |
| Quantity |
