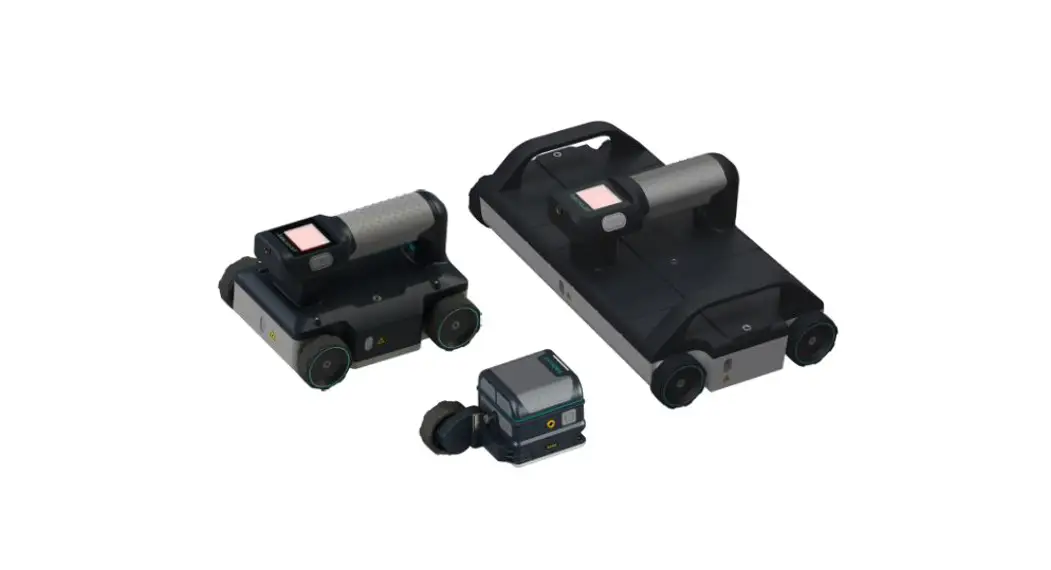

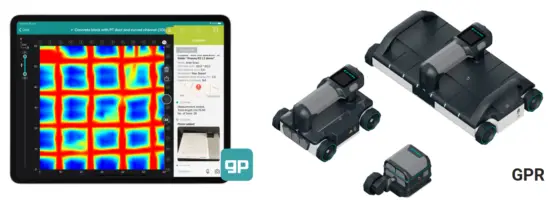

GP8800 | GP8100 | GP8000
Quick Start Guide & Product Certificates

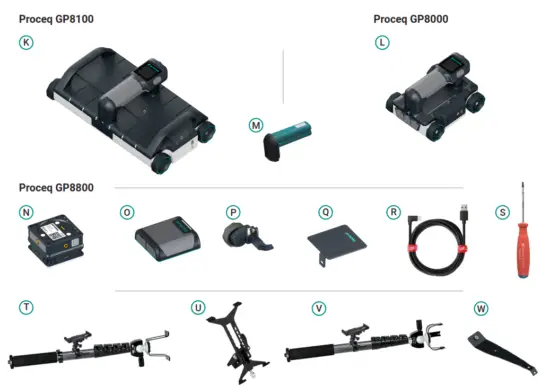

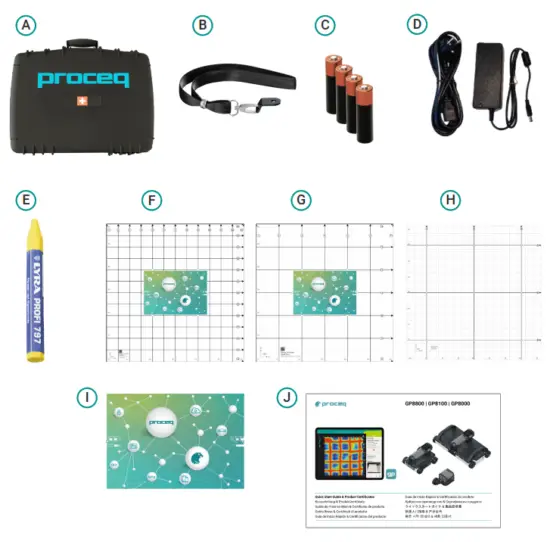

Proceq GP8000 | Proceq GP8800 | Proce GP8100 | |
| A | • | • | • |
| B | • | • | • |
| C | · (x2) | • | · (x2) |
| D | • | • | • |
| E | • | • | • |
| F | • | • | |
| G | • | • | |
| H | • | ||
| I | • | ||
| J | • | • | • |
| K | • | ||
| L | • | ||
| M | · (x2) | · (x2) | |
| N | • | ||
| 0 | · (x2) | ||
| P | • | ||
| Q | • | ||
| R | • | ||
| S | • | ||
| T | 0 | 0 | |
| U | 0 | 0 | |
| V | 0 | ||
| W | • |

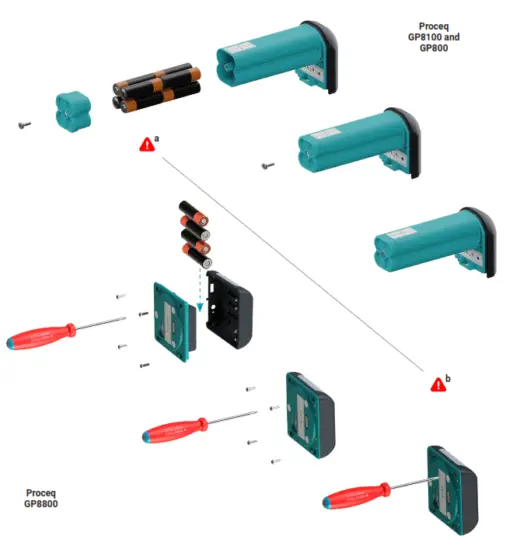

a Ensure correct polarity when inserting the rechargeable AA batteries.b Do not leave the batteries in the pack during storage for longer than 3 months. Remove the AA batteries by following the reverse procedure.

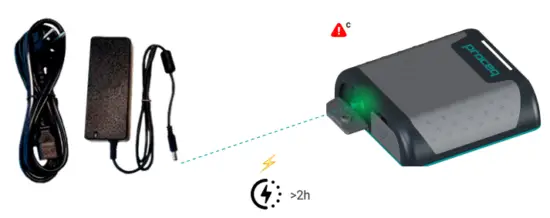

c Green: charging; off: charging complete; red: AA batteries incorrectly inserted, or temperature limit exceeded.

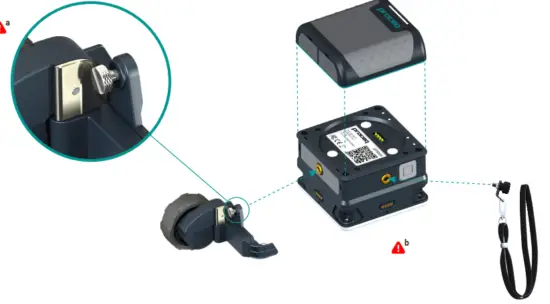

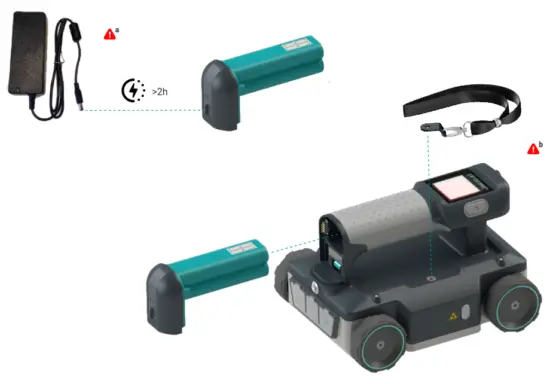

a Always ensure that the wheel assembly is securely attached with the screw.b Always secure the wrist loop with the screw and use it when operating the product.

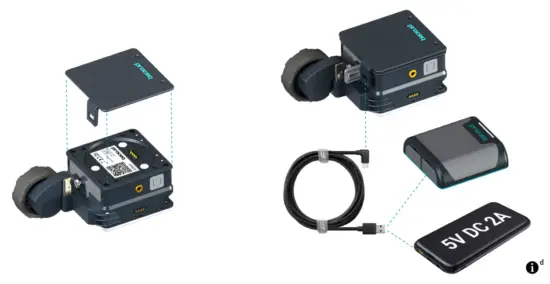

a Always use the cover when operating the device with an external power source.
d 5V DC 2A power bank not included.
5V DC 2A Powerbank nicht im Lieferumfang enthalten Chargeur externe 5V DC 2A non inclus.a Green: charging; off: finished charging; orange: almost fully charged, temperature limit exceeded (wait or disconnect); red: AA cells incorrectly inserted or temperature limit exceeded (wait or disconnect). Do not let the battery pack discharge for longer than one month.b Always use and secure the wrist loop with the screw when operating the product. Beim Bedienen des Gerätes immer Handschlaufe verwenden und mit der Schraube sichern.
a Green: charging; off: finished charging; orange: almost fully charged, temperature limit exceeded (wait or disconnect); red: AA cells incorrectly inserted or temperature limit exceeded (wait or disconnect). Do not let the battery pack discharge for longer than one month.b Always use and secure the wrist loop with the screw when operating the product. Beim Bedienen des Gerätes immer Handschlaufe verwenden und mit der Schraube sichern.
https://apps.apple.com/us/app/proceq-gpr-live/id1240095180

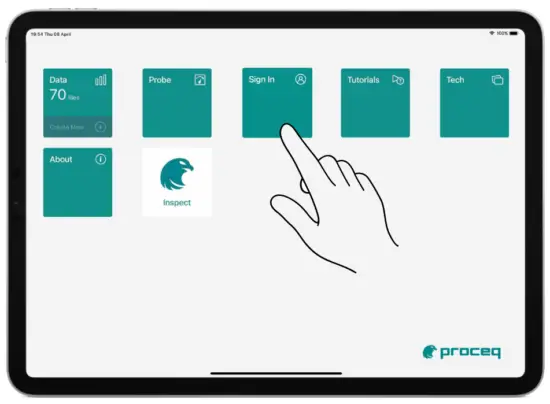

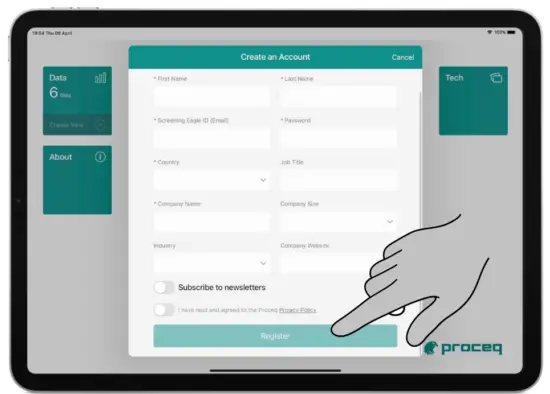

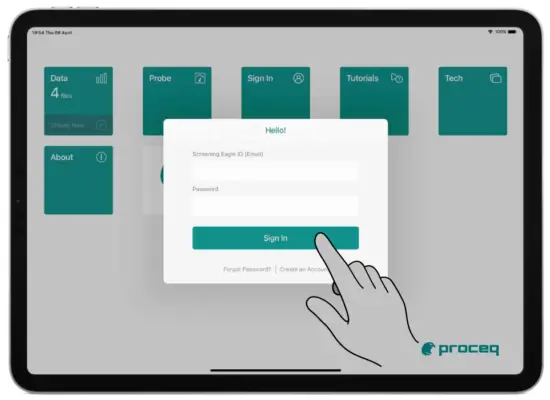

2 Create your account
3 Create your account
4 Create your account

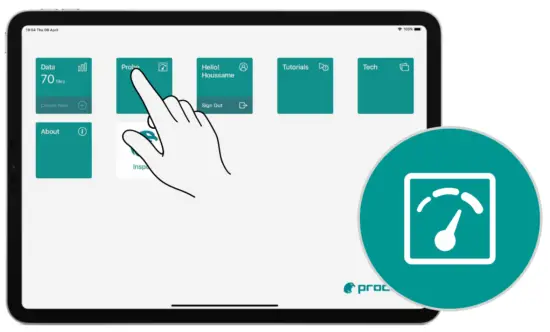

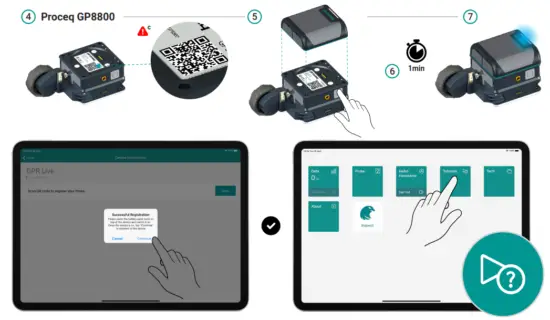

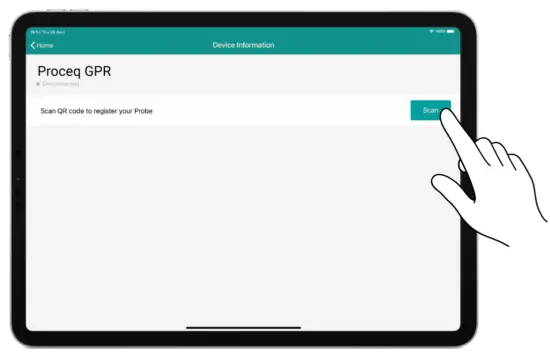

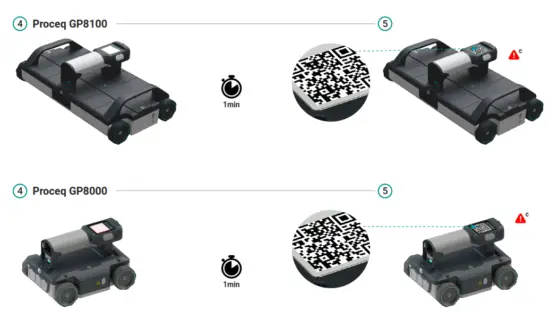

5 Register the probe
6 Register the probe
c Scanning the QR code is only needed once, for the initial setup.
c Scanning the QR code is only needed once, for the initial setup.
Declaration of Conformity
| Product: Proceq Part Numbers: Manufacturer: | Proceq GP8000, Proceq GP8800, Proceq GP8100 393 10 xxx, 393 30 xxx, 393 75 xxx Proceq SA, Ringstrasse 2 8603 Schwerzenbach, Switzerland |
We confirm that the Proceq GP8000, Proceq GP8800, and Proceq GP8100 products conform with the following directives and standards:
| Health: | EN 62749:2010 |
| Safety standards: | EN 61010-1:2010 |
| Laser classification: | EN 60825-1:2014 |
| Battery directive: | 2006/66/EC |
| Restriction of hazardous substances (RoHS): | 2011/65/EC |
The conformity is based on all essential and specific radio test suites for that radio equipment category identified by the involved Notified Body.
Proceq GP8000: the notified body IMQ S.p.A. (identification number 0051) performed the EU-type examination in compliance with Annex III Module B of the 2014/53/EU Directive and issued the EU-type examination Certificate No. TCF-1914UC19. The frequency range is 200 MHz to 4000 MHz with a maximum output power of ≤ -14 dBm (conducted).
Proceq GP8800: the notified body Timco Engineering, Inc. (identification number 1177) performed the EU-type examination in compliance with Annex III Module B of the 2014/53/EU Directive and issued the EU-type examination Certificate No. 0048-190607-01-CE. The frequency range is 400 MHz to 6000 MHz with a maximum output power of ≤ -14 dBm (conducted).
Proceq GP8100: the notified body Timco Engineering, Inc. (identification number 1177) performed the EU-type examination in compliance with Annex III Module B of the 2014/53/EU Directive and issued the EU-type examination Certificate No. E1177-210431.
The frequency range is 400 MHz to 4000 MHz with a maximum output power of ≤ -14 dBm (conducted).
All devices complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Schwerzenbach, 20.05.2021
Patrick Waller
Chief Operating Officer
The English version of the content remains the official version.
All translated content should bear an appropriate notice to this effect.
For safety and liability information, please download at www.screeningeagle.com/safety-and-liability
Subject to change. Copyright © 2022 by Proceq SA, Schwerzenbach. All rights reserved.
