RT-NI3SG Remote Key
Instruction Manual
RT-NI3SG Remote Key
Company: Remote Tech LLC
Address: 310 ALDER RD,Dover,DE 19904,USA
Name:Remote Key
Model: RT-NI3SG
Operation instructions

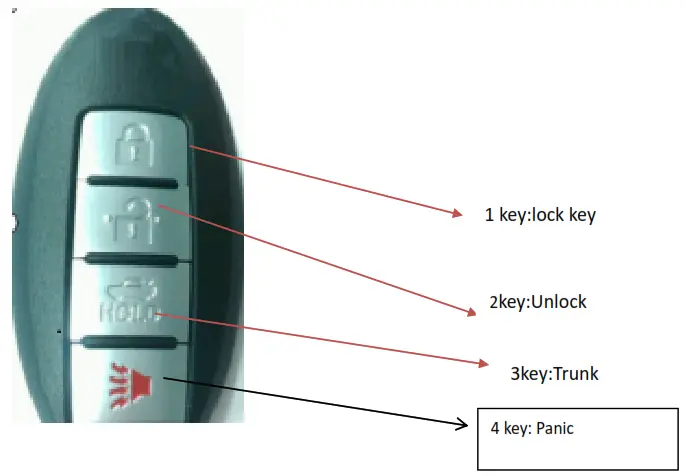

- After matching the key to the car, press 2 the unlock key for 2 seconds to open the door and press 1 the lock key for 2 seconds to close the door.
- The trunk key is used to open or close the trunk.
Product parameters
| Rated voltage | DC 3V |
| Working current | <12mA |
| Operating voltage | DC 3.3V-2.2V |
| Transmit power | >-8dbm |
| Key operation force | 200±50g |
| Operating temperature | -5°C +45°C |
| Stand-by current | ＜7uA |
| transmitting frequency | 315MHZ±75KHZ |
| Modulation | ASK |
| Battery | CR2032 |
| Key durability | More than 70,000 times |
FCC COMPLIANCE STATEMENT:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
IC WARNING
This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science, and Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions:
- This device may not cause interference.
- This device must accept any interference, including interference that may cause undesired operation of the device
Radiation Exposure Statement
The device has been evaluated to meet general RF exposure requirements.
The device can be used in portable exposure conditions without restriction.
