Kc Hilites 4230 Replacement Tj Headlight Instruction Manual

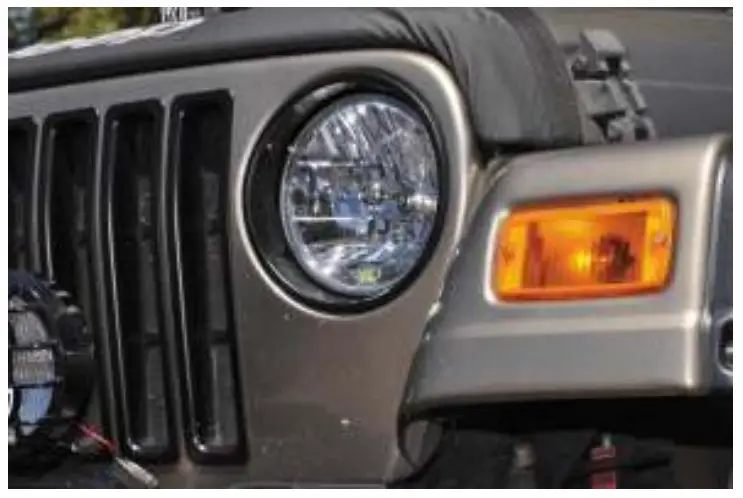

4230 Replacement TJ Headlight
Instruction Manual

Thanks for choosing a KC HiLiTES product. We take pride in building the highest quality, best-engineered systems possible. Your satisfaction with our product is important, so if you have any questions, please call our customer service line at 800-528-0950.

Tools Needed:
* Phillips Screwdriver

Installing the KC Replacement TJ Headlight:

1. Remove the three Phillips screws from the headlight bezel. Grab the bezel and remove it from around the headlight.
2. Remove the four Phillips screws from the headlight retaining ring. Remove the retaining ring away to access the headlight.
3. Hold the headlight and pull it toward you. On the back of the headlight, you will find an electrical plug; unplug it from the headlight.
4. Connect the electrical plug to the back of the H-4 Bulb in your new KC Replacement Headlight. Insert the headlight back into its mount (hold it in place). Position the retaining ring around the headlight and install the four Phillips screws to secure it.
5. Reattach the headlight bezel around the headlight and install the three Phillips screws to finish.
6. You’re DONE! —- enjoy.

23 Year Warranty
See details on our website at
www.kchilites.com

IF YOU HAVE ANY PROBLEMS OR QUESTIONS, PLEASE CALL
CUSTOMER SERVICE AT 800-528-0950

KC HiLiTES, Inc. 2843 W. Avenida de Luces, Williams, Arizona 86046-0155 * 800-528-0950 *
www.kchilites.com
