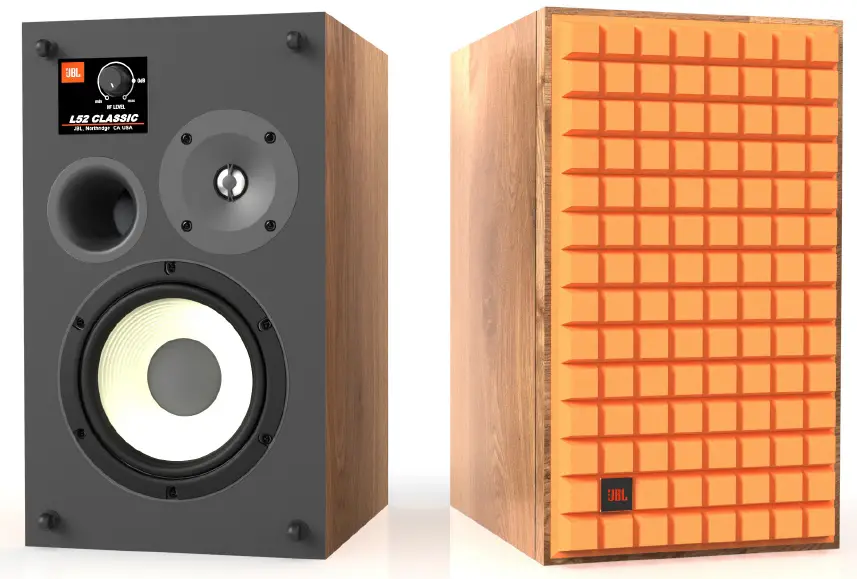

JBL L52 Classic 5.25-inch (130mm) 2-way Bookshelf Loudspeaker
Features
- 0.75-inch (20mm) titanium dome tweeter with acoustic lens waveguide
- 5.25-inch (133mm) cast-frame, white pure pulp cone woofer in bass-reflex design with a front-firing tuned port
- Vintage Quadrex foam grille in a choice of three colors: black, burnt orange, and dark blue
- Satin walnut furniture-grade wood veneer
- High-frequency level attenuator
- Mirror-imaged stereo pairs
- Wall-mount capable
- 100% Sustainably packaged
Specifications
- Type: 2-way bookshelf loudspeaker
- Low Frequency Driver: 5.25″ (133mm) Pure Pulp cone woofer (JW135PW-4)
- High Frequency Driver: 0.75″ (20mm) Titanium dome tweeter (JT020TI1-4) with waveguide
- Recommended Amplifier Power: 10 – 75 WRMS
- Impedance: 4 Ohm
- Loudspeaker Sensitivity: 85dB/2.83V/1m
- Frequency Response: 47Hz – 24kHz (-6dB)
- Crossover Frequency: 2.8kHz
- Enclosure: Front-ported bookshelf in satin walnut furniture-grade wood veneer
- Grille: Foam Quadrex grille available in three colors: black, burnt orange and dark blue

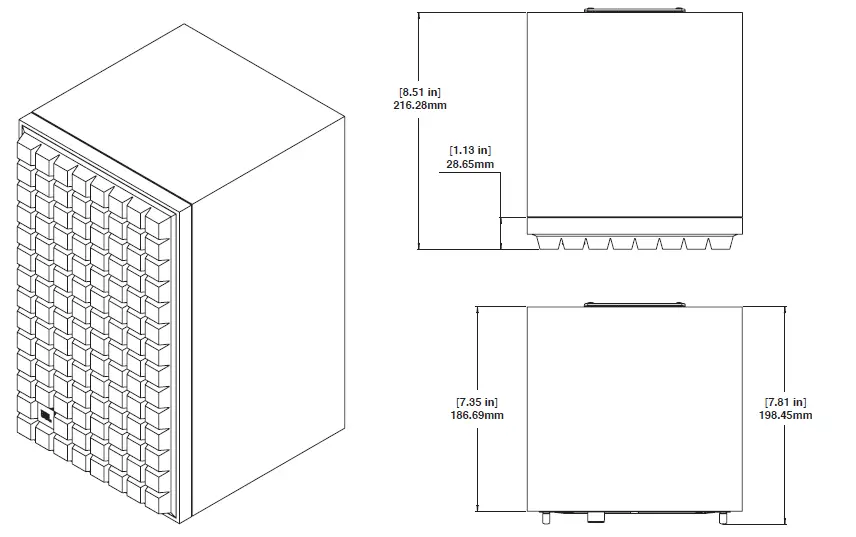

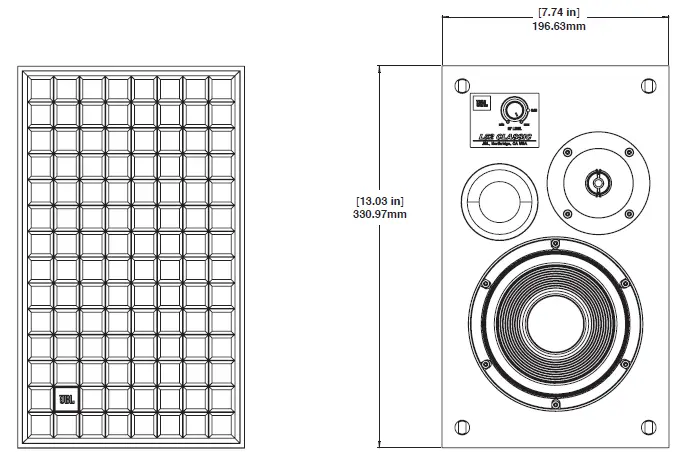

Dimensions with grille: 13″ H x 7.74″ W x 8.51″ D (330.2mm x 196.6mm x 216.2mm) - Controls: HF level control
- Input Type: Gold-plated binding posts
- Product Weight (Each): 11 lbs. (5.0kg)
- Shipping Weight: 30.4 lbs. (13.8kg)
- Shipping Units of Measure: Mirror-imaged stereo pair
- Warranty: 5 Years
- Recommended stand height: 24″ (609mm)

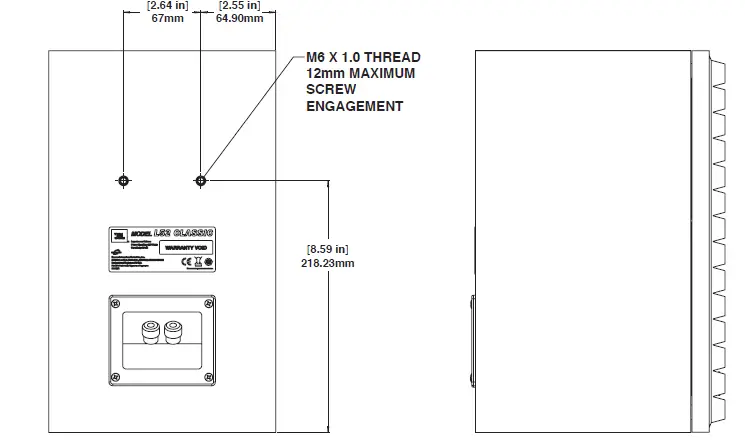

- Wall bracket insert/spacing: M6 x 1.0 thread, 12mm max screw length / spaced 2.64″ (67mm) center-to-center
