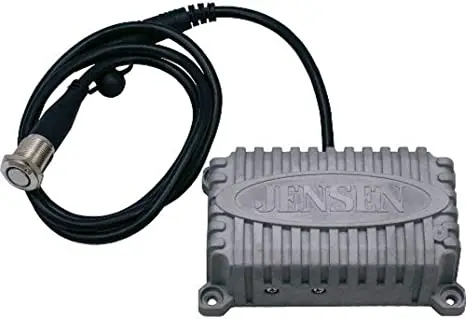

JENSEN JAHD240BT Waterproof Heavy Duty Two Channel Audio Amplifier
Features
- Bluetooth Audio (A2DP)
- 2 x 40 Watt Max Power Rating
- 2 x 20 Watt RMS
- 4 Ω – 8 Ω (ohm) Stable
- Frequency Response: 20 Hz – 20 kHz
- Epoxy Potted Enclosure
- 10 Amp Fuse in Waterproof Holder
- Waterproof to IPx6
- Corrosion Resistant to ASTM B117

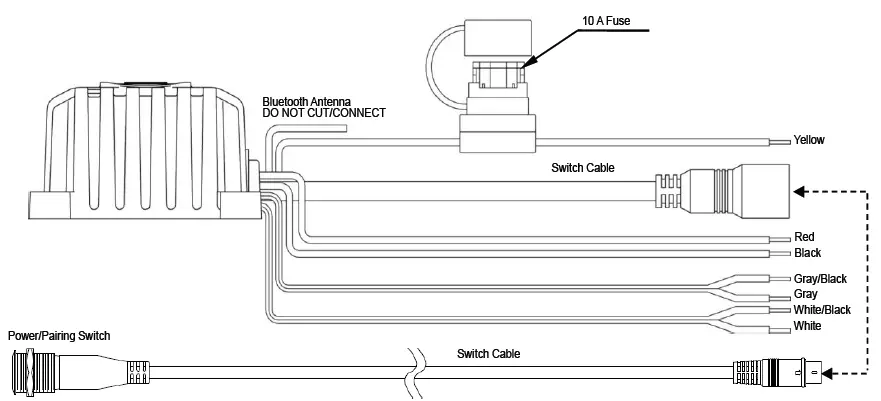

Wiring
| Black | Ground |
| Yellow | +12V Battery |
| Red | +12V Switched |
| Gray | Right Front Speaker + |
| Gray / Black | Right Front Speaker – |
| White | Left Front Speaker + |
| White / Black | Left Front Speaker – |
Installation
- Choose a smooth, flat, sturdy location that will allow the JAHD240BT amplifier to be mounted securely and allow enough room to run the connection wires.

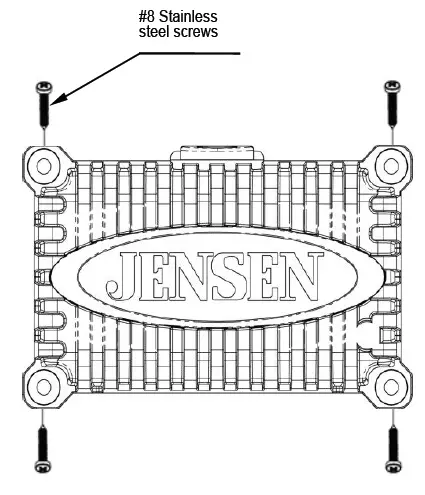

- Mount amplifier using #8 stainless steel screws (not included)
- Drill 5/8” hole in desired location, install switch and route cable from desired location to the amplifier
- Route and connect power, ground, and speaker cables (see reverse page

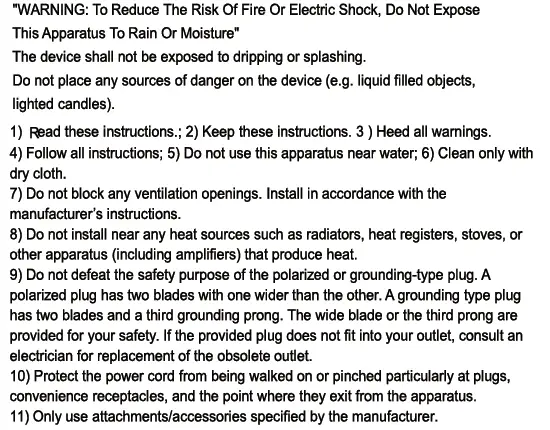

Important:
- Do not mount unit where it can be submerged
- Do not mount near engine or areas exposed to excessive heat

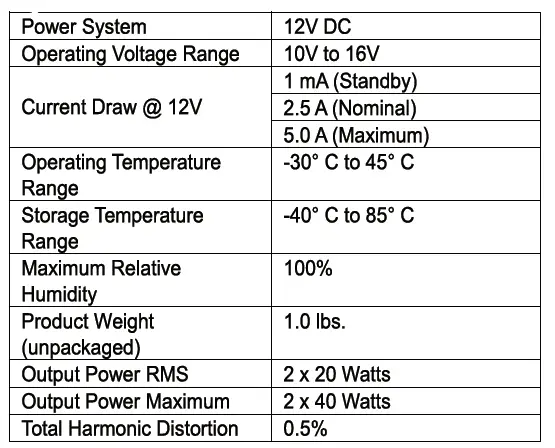

SPECIFICATIONS

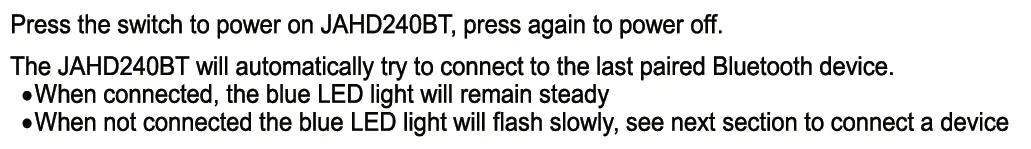

BLUETOOTH OPERATION

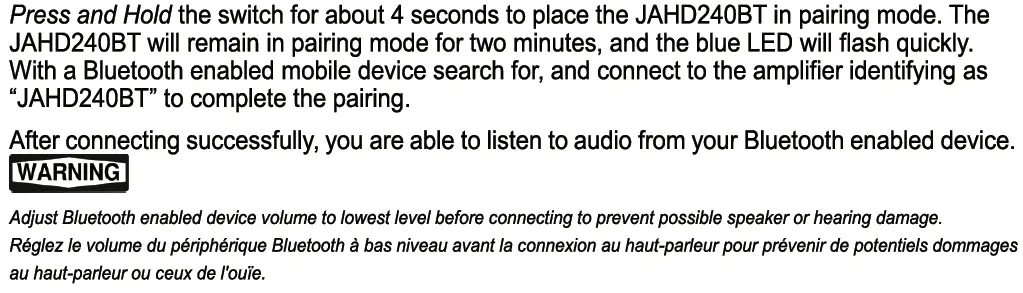

PAIRING A BLUETOOTH DEVICE

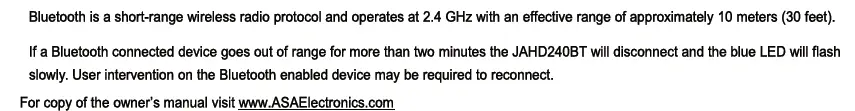

BLUETOOTH RANGE
