MITTLED
Instruction Manual
This document covers the household LED cabinet lighting strip with a sensor and serves as a guide on the product’s assembly, connection, operation, transportation, storage, and disposal.
! Read this manual carefully before using the unit. Please keep the manual until the end of the product’s operation.
! Information on types of hazardous exposure
The product contains no hazardous or harmful substances that may release during the product’s life cycle according to operating rules.
GENERAL INFORMATION
The product was designed for the general lighting of indoor spaces.
The product is certified.
TECHNICAL FEATURES
Source voltage (direct current), V …………………………………………………….. 24V
The maximal total capacity of the lamp, W ……………………………………………… 2W
Bulb socket type ………………………………………………………………………………. Built-in LED light source
Operating temperature, °С ……………………………………………………………… +5 – +40
Relative humidity, %, not exceeding …………………………………………………. 80
The product’s protection rating ……………………………………………………….. IP20
Material …………………………………………………………………………………………… Aluminium, plastic
Service life ……………………………………………………………………………………….. 25 000 h
The product can still be used after the end of service life, if you follow the safety information and other instructions in the user manual. When you decide to stop using the product, please contact your local recycling facility regarding the disposal of the product.
OPERATION
Safety measures
Installation, dismantling, and maintenance of the product must be carried out at a disconnected power supply.
In order to avoid accidents, it is strictly forbidden:
- Operate the product that has mechanical damage.
- Install, disassemble when the power is on.
- To use chemically active or aggressive cleaning agents to clean the product.
- To overload the product.
How to use
Inspect the product in order to ensure the integrity of the plug or socket and the cord. Insert the plug into the socket.
MAINTENANCE
Pull the plug before cleaning.
- Wipe clean with a damp cloth. Wipe dry with a clean cloth.
TRANSPORTATION AND STORAGE
The product should be transported and stored in the package in compliance with safety precautions to avoid mechanical damage and exposure to atmospheric precipitation.
DISPOSAL
The product should be disposed of in compliance with local legal requirements.
The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
PROBABLE MALFUNCTIONS AND METHODS FOR REMEDY
Important! All works targeted at the remedy of a possible malfunction of the product should be performed only with a disconnected power supply!
| The product doesn’t work | – check the supply-line voltage – check the integrity of connected parts and lamps |
If these methods were of no use, contact qualified specialists.
PRODUCT DATA
| Product name | MITTLED |
| Product type | Integrated lighting, kitchen drawer light with sensor |
| Product model or Art.nr | Typ L1912 MITTLED |
| Trademark | IKEA |
| Country of origin | China |
| Manufacturer | IKEA of Sweden AB |
| Address | Box 702, ALMHULT, S-343 81, Sweden |
| Regarding the quality of IKEA products contact seller | LLC IKEA DOM, Russia, 141400, Moscow Region, Khimki, IKEA microdistrict, bldg. 1 – through the form on website http://www.IKEA.ru/, by phone 8 (800)234-55-66 or to the IKEA Service department in any IKEA store. |
| Importer | LLC “IKEA TORG”, bld. 1, micro rayon IKEA, Khimki, Moscow region, 141400 Russia, tel.: +7(495)737-5301, fax: +7(495) 737-5324 |
| Manufacture date: | Date of manufacture specified in the format DD.MM.YY on the label or package |
For questions about the quality of IKEA goods, please contact the seller: LLC IKEA DOM, Russia, 141400, Moscow Region, Khimki, IKEA microdistrict, bldg. 1 – through the form on website http://www.IKEA.ru/, by phone 8 (800) 234-55-66 or to the IKEA Service department in any IKEA store.
IMPORTANT SAFETY INSTRUCTIONS
For indoor use only.
Regularly check the cord, the transformer and all other parts for damage. If any part is damaged the product should not be used.
Important information! Keep these instructions for future use.
The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.
The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similarly qualified person.
ONLY USE A SAFETY TRANSFORMER WITH A SELV OUTPUT AS A SUPPLY FOR THE PRODUCT.
Use only IKEA LED drivers suited for this product. The total wattage of the lamps connected to one LED driver must not exceed the maximum power stated on that LED driver and never more than 30W.

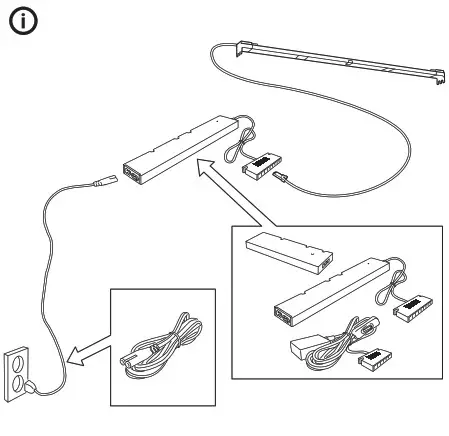

LED driver and power supply cord are sold separately.
© Inter IKEA Systems B.V. 2020
2021-06-10
AA-2270143-2
