Shantou Dreamhouse Toys Industrial 21007 Super Monster Truck Instruction Manual

Shantou Dreamhouse Toys Industrial 21007 Super Monster Truck

Caution

1. Small parts. Keep out of reach of small children.
2. Please operate in an open field without any wave interference.
3. When the transmitter is low in power. please stop and change the batteries immediately.
4. 0n backout after the removal. please do not place discarded to avoid contamination sanitation.
5. Please store the car and the transmitter in a dry and cool environment.
6. Keep away from fire. hot or humid environments.
7. if the car battery is wet, be sure to wipe and dry it completely to avoid any damage.

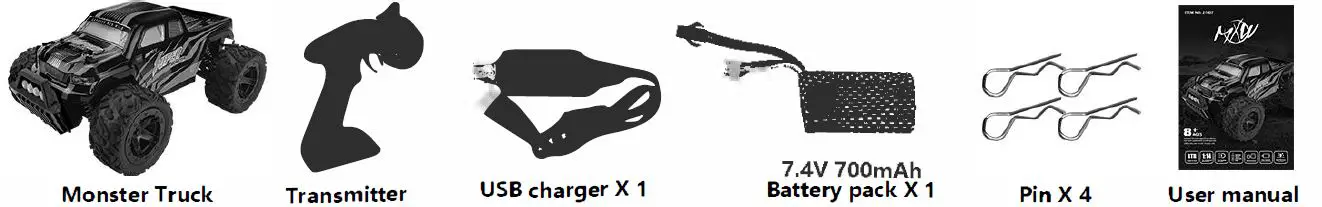

Product Configuration

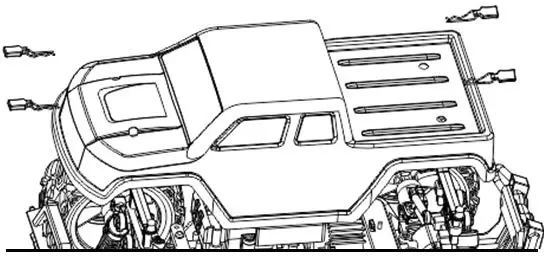

Remove The Truck Body

Pull out the pins and remove the body Make sure all accessories are properly attached, remove the protection film from the body before turning on the truck.

lnstall Transmitter Batteries

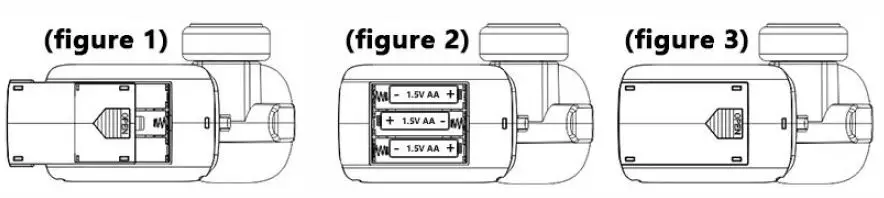

1. Remove the battery cover on the bottom of the transmitter(figure 1)
2. lnstall3*1.5VAA batteries( not included) in correct polarities (Figure 2)
3. Close the battery cover (Figure 3)

NOTICE

1. When installing batteries. please be sure to match the polarities labeled on the battery holder.
2. Do not mix old and new batteries.3.Do not mix different type of batteries.

Charge and Install Rechargeable Battery Pack

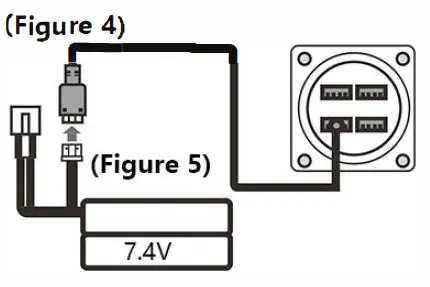

1. Insert the USB charger into the (Fig. outlet ( figure4 ) note the power light turns red flash.

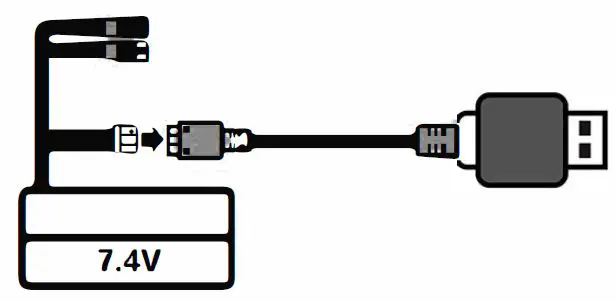

   1. Connect the battery pack to the USB charger (figure 5) note red light turns solid
   2. When charging is completed, the red light turns off.
2. Loosen the latch of the battery cover on the chassis then remove it (Figure 6).

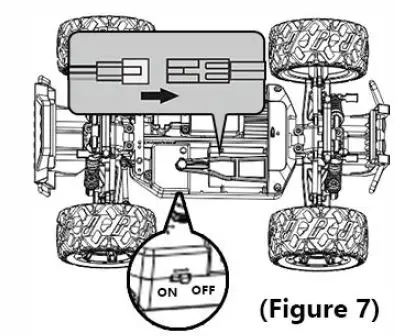

3. Place your fully charged battery in the battery slot. connect the battery connector. Don’t force it, it only goes one way(Figure 7).

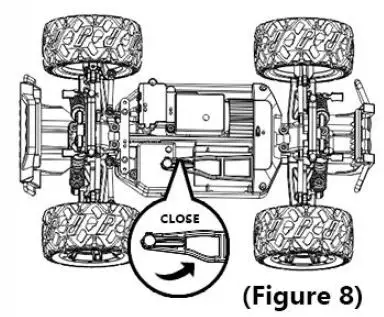

4. Replace the battery cover, and tighten the latch (Figure 8).

USB Charger Precautions

CAUTION

1. The USB charger does not apply the input current greater than 4A
2. When the input current is bigger than 4A, the USB charger will start up protection mode, all the lights will turn off.

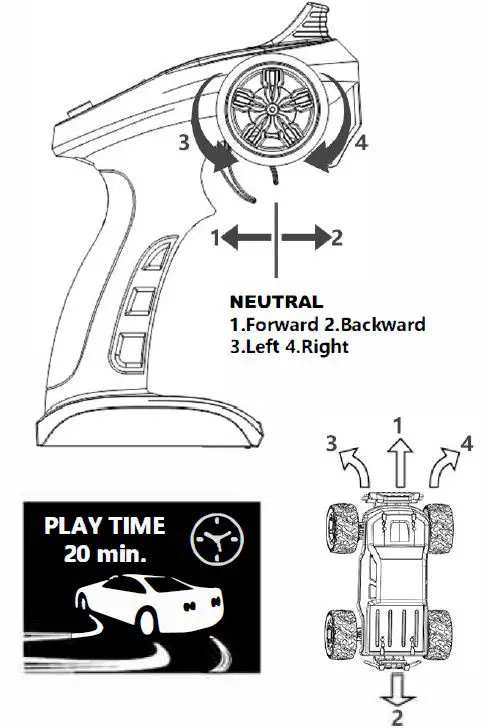

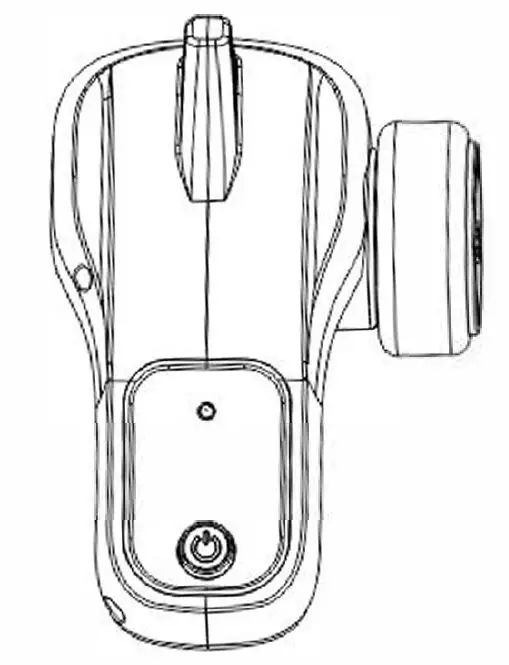

Transmitter instructions

1. Turn on the power switch on the transmitter.red LED will flash.
2. When paired successfully with the car, the red LED will turn solid.

Transmitter switch instructions

Power Switch

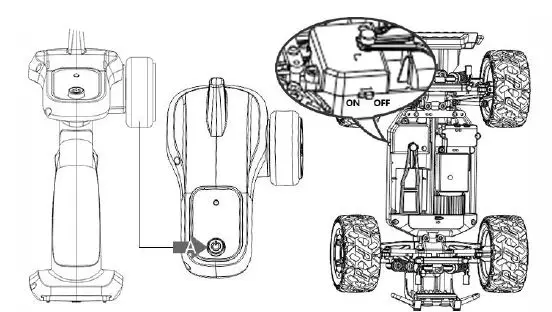

When pairing for the first time. both the car and the transmitter have to be turned on within 3 seconds to pair the frequency. The red LED on the transmitter will be solid when pairing successful.

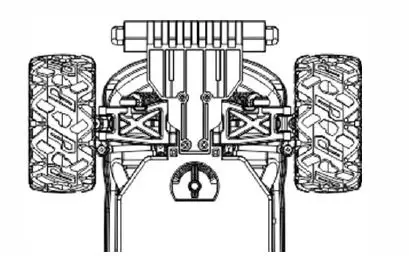

Steering Trim

When the chassis switch is open and the front wheel is not straight, use direction trimming on the bottom of the car to adjust the position.

OPERATION

1. ALWAYS turn on your transmitter before you turn on the receiver in the vehicle. Always off the receiver before turning your transmitter off.

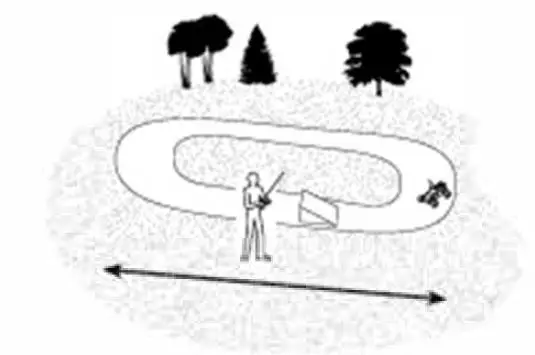

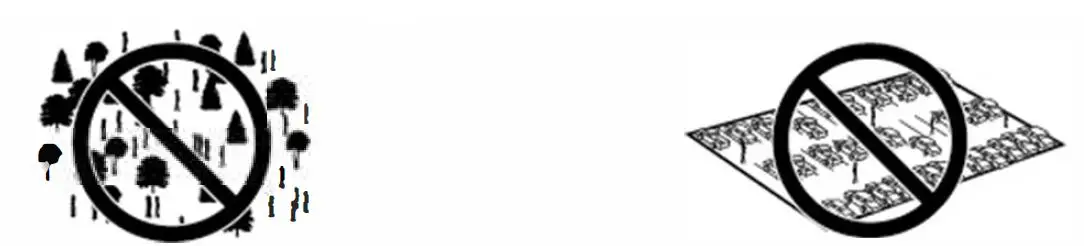

2. ALWAYS operate )’Our vehicle in a wide Ol)en area. Operating the vehicle on slippery floors or indoors may crash because of the high speed.

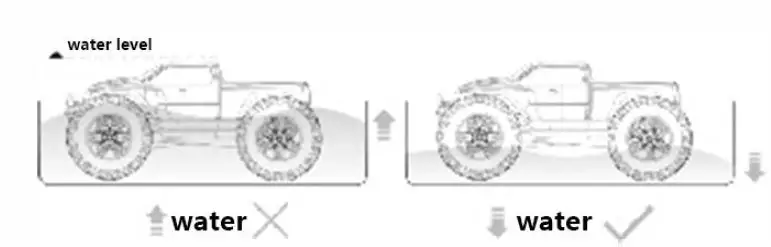

3. WARNING: please be cautious that the water level should be lower than the bottom of the truck. If an excessive amount of water gets into the body of the truck and causes damage or other related problems, we will not be responsible for such damages. customers will be responsible for any replacements and additional accessories if needed.

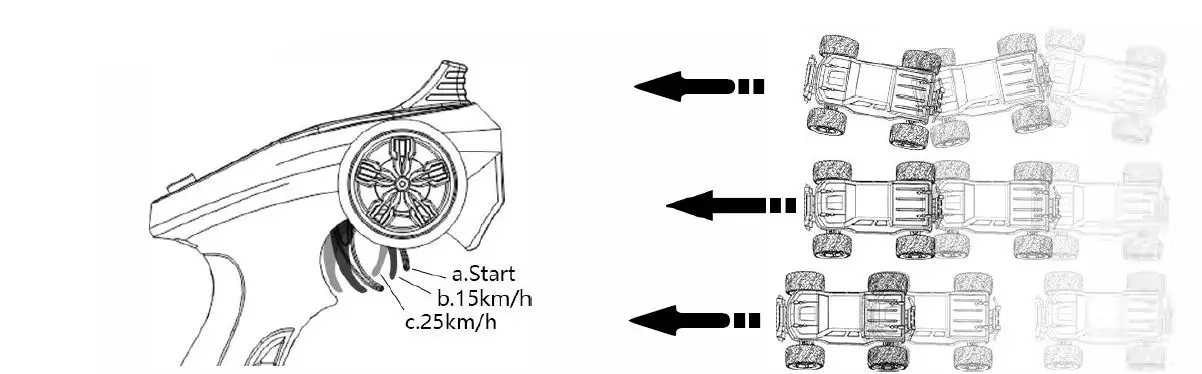

4. ALWAYS start at low speed, or the vehicle may slip or run on curves. (as shown on Pie 1) NEVER operate your vehicle in max speed. Operating the vehicle in the highest speed may hurt you and damage your vehicle.

MOTOR CARE

• Seat the motor brushes by driving smoothly on a flat surface during the use of the first battery charge. Failing to do so can greatly reduce motor performance and functional life.
• Prolong motor life by preventing overheating conditions. Undue motor wear results from frequent turns. stops and starts, pushing objects, driving in deep water and tall grass, and driving continuously uphill.

TROUBLESHOOTING
