Before You Start
Please read all instructions carefully and keep it for future reference.
WARNING
Attention: The Product is not suitable for the children under 3 years
Danger: Keep all small parts and packaging materials for this product away from babies and children, otherwise they may pose a choking hazard.
WARNING:
CHOKING HAZARD-Small parts. Not for children under 3 years.
General Warnings:
The product must be installed and used under the supervision of an adult.
Read through each step carefully and follow the proper order.
Remove all packaging, separate and count all parts and hardware.
Please ensure that all parts are correctly installed, incorrect installation can lead to a danger.
We recommend that, where possible, all items are assembled near the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled.
Ensure a secure surface during installation, and place the product always on a flat, steady and stable surface.
Ax6 71*8*1.8cm ![]()
Bx2 71*8*1.8cm ![]()
Cxl 53*4*1.8cm ![]()
Dx2 36*7*1.8cm
Ex2 38*4*1.8cm
Fx4 61*6*1.8cm
Gx2 79*7*1.8cm
Hx16
φ 6*35mm Jx38
φ 3.5*35mm
Kx2
Lx2
Mx4
φ 2*15mm
1

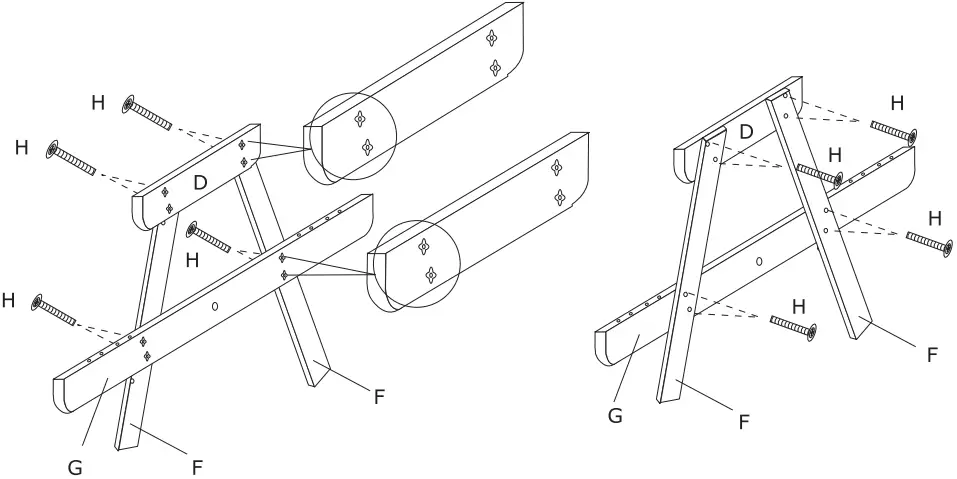

1. Please make sure that the guide holes of Panel D and G should be upward while assembling (so that the table and bench part can be screwed tightly on the following process).
2. Please check that the Plum nuts on the Panel D and G should be placed face to face (see the diagram), then screw in 8 screws H from the other side.
2

3

4

5

6
