Magnusson 3663602850816 15m Self-levelling Laser Level Instruction Manual

MAGNUSSON 3663602850816 15m Self-Levelling Laser Level

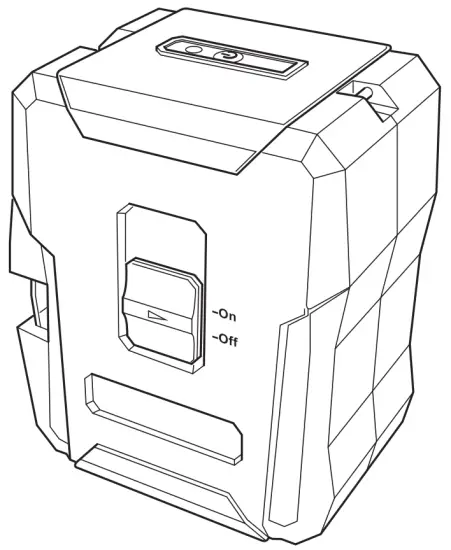

Product description

1. LED.
2. Mode Button.
3. Lock Switch.

Before you start

General laser safety warnings

	IMPORTANT: Please read this instruction manual carefully before using the product, and familiarise yourself with the operation, adjustments, and functions of the various switches. Consider and follow the safety and operating instructions in order to avoid possible risks and hazards. Keep these instructions for future use. If the product is passed on to a third party then these instructions must be included.
	WARNING! Danger of permanent eye injury! Laser radiation! Do not stare into beam. Class II laser product.
	WARNING! DO NOT operate the tool around children or pets, this product is not a toy and is not intended for use by children. DO NOT remove or destroy any label appearing on this instrument. DO NOT stare directly at the laser beam, as this can cause blindness. Only turn the laser ON when being used. DO NOT place the tool in a position that may cause anyone to stare at the laser beam, whether intentionally or unintentionally, and ensure bystanders are aware of the dangers. DO NOT point the laser beam emitted by the instrument at people or animals DO NOT point the laser onto shiny or reflective surfaces such as glass or polished metals, as this could reflect the beam back at the operator or passers by. DO NOT attempt to modify the performance of this laser device in any way. This may result in a dangerous exposure to laser radiation.
	CAUTION! DO NOT attempt to repair or disassemble the laser-measuring tool. If unqualified persons attempt to repair this product, serious injury may occur. Any repair required on this laser product should be performed only by qualified service personnel. DO NOT operate the tool in explosive environments, such as in the presence of flammable liquids, gases or dusts. Sparks can be created in the tool which may ignite the dust or fumes. ALWAYS turn off the instrument whenever it is not in use. Failure to do so will increase the possibility of someone inadvertently looking directly at the laser beam. DO NOT use optical instruments with this product, as this will increase risk of injury to the eyes. DO NOT use laser viewing glasses as safety goggles, as they do not protect the eyes against laser radiation. DO NOT use parts or accessories that have been designed for use with other laser tools, as this could result in serious injury or loss of performance. The accuracy or performance of the instrument may be reduced if it is used beyond it’s designed range, or in strong lighting conditions. DO NOT expose the product to shock, continuous vibration or extreme hot or cold temperatures, as this could damage the tool and/or cause serious injury to the user. ALWAYS handle the laser product with care. Treat it as you would any other optical device such as a camera or binoculars, and DO NOT touch the lens directly.

 To install batteries

1. This instrument requires 2 x 1.5V AA batteries (not included).

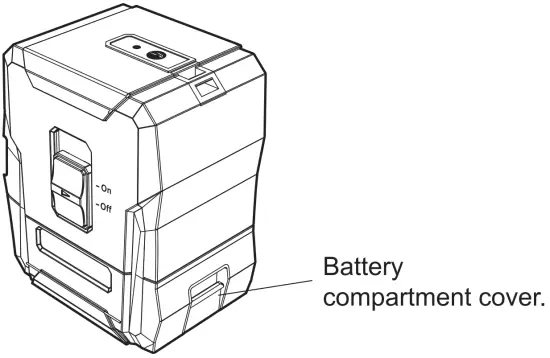

2. Remove the battery compartment cover.
3. Insert the batteries paying attention to the polarity (+/-) marked on the compartment and batteries.
4. Close the battery compartment cover.


CAUTION! ALWAYS turn off the instrument before replacing the batteries. ALWAYS remove the batteries if the instrument is not to be used for extended periods. • ALWAYS use high quality batteries of the same brand, type and age. If the instrument does not work properly, or the low battery icon is displayed, replace the batteries immediately. DO NOT expose the batteries or instrument to extreme temperatures or direct heat source, as this can cause the batteries to leak. If the batteries should leak, remove them using a cloth and dispose of them according to local regulations. Clean any leaked battery acid avoiding any contact with skin, eyes & mouth. If any contact does occur, rinse affected areas immediately with fresh water and seek medical advice.

Functions and settings

Operation instructions

Your self-levelling cross-line laser level has two working modes.

Self-levelling mode

In this mode, the tool will level itself if it is within ±4° of horizontal.

1. Place the self-levelling cross-line laser level on a flat, smooth surface that is within ±4° of horizontal
2. Turn the tool on by sliding the Lock switch to the up position. The self-levelling cross-line laser level will automatically level within 5 seconds.
3. Press the mode button until the desired laser-projection mode is achieved and the laser line is projected from the laser aperture.
4. If the laser level is greater than ±4°, the laser line will blink
5. To turn off the laser lines, slide the Lock switch to down position. Press and hold the mode button until the laser shuts off.

Lock mode

This mode cannot be used to perform horizontal or vertical levelling, because the laser lines are no longer self-balancing. In this mode, the LED indicator will always shine green.

1. Keep the Lock switch off.
2. Press the mode button to turn the laser on and to change the laser-projection mode.
3. To turn the laser off, press and hold the mode button until the laser shuts off.

Working advice

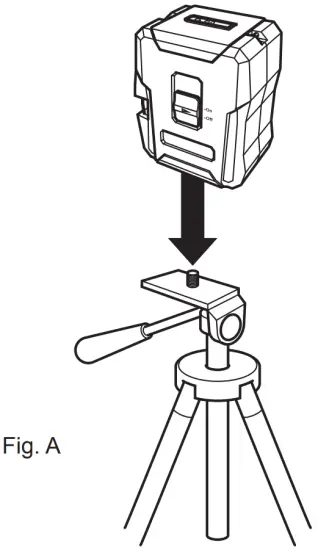

Working with the Tripod (Fig A)

A tripod or a clamp offers a stable, height-adjustable measuring support and can be connected by the 1/4” male thread of the tripod and screw the locking screw of the tripod tight (Tripod and clamp are not included).

Cleaning

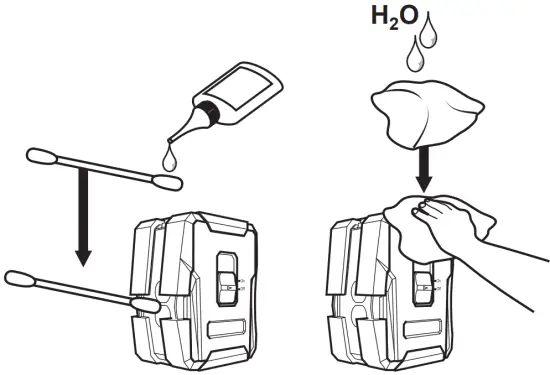

• To ensure the instrument operates at optimal performance it should be regularly cleaned.
• ALWAYS switch the instrument OFF before cleaning.
• The housing can be cleaned with a damp cloth, taking care that no water enters the product.
• DO NOT immerse the electrical/optical parts of the product in water or other liquids, and never hold it under running water.
• Any lenses can be cleaned using a cotton bud with a small amount of distilled water or alcohol.
• After cleaning, ensure that all parts dry properly before use.
• The product should be stored carefully, so that it is protected from dust and scratches.


Technical data

Commercial guarantee

At Magnusson we take special care to select high quality materials and use manufacturing techniques that allow us to create ranges of products incorporating design and durability. That’s why we offer a 5 year guarantee against manufacturing defects on our Self Levelling Laser Level.
This product is guaranteed for 5 years from the date of purchase, if bought in store, or delivery, if bought online, for normal (non-professional or commercial) household use. You may only make a claim under this guarantee upon presentation of your sales receipt or purchase invoice. Please keep your proof of purchase in a safe place.
The guarantee covers product failures and malfunctions provided the Self Levelling Laser Level was used for the purpose for which it is intended and subject to installation, cleaning, care and maintenance in accordance with standard practice and with the information contained above and in the user manual. This guarantee does not cover defects and damage caused by normal wear and tear of the Self Levelling Laser Level and damage that could be the result of improper use, fau lty installation or assembly, neglect, accident modification of the product. The guarantee is limited to parts recognised as defective. It does not, in any case, cover ancillary costs (movement, labour) and direct and indirect damage.
If the Self Levelling Laser Level is defective during the guarantee period, then we reserve the right, at our discretion, to replace the defective Self Levelling Laser Level with a product of equivalent quality and functionality or to provide a refund.
This guarantee only applies to the country of purchase or delivery and is not transferrable to any other countries. This guarantee is non-transferrable to any other person or product. Relevant local law will apply to this guarantee. This guarantee is in addition to and does not affect your statutory rights relating to faulty goods as a consumer.
Guarantee related queries should be addressed to a store affiliated with the distributor you purchased the Self Levelling Laser Level from.

Disposal and recycling

Environmental protection: Discarded electrical products are recyclable and should not be discarded with the domestic waste. Please recycle where facilities exist, or check with your local authority or local store for recycling advice.

	Th is p roductcomplies with conformity requirements of the applicable European Regulations or Directives.
	This product complies with conformity requirements of the applicable UK Regulations.
	Waste electrical products should not be disposed of with house hold waste. Please recycle where facilities exist check with your local authority or local store for recycling advice.
