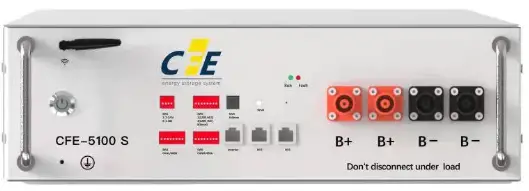

CFE 5100S Inverter

CFE-5100S-Inverter-PRODUCT

Product Information

The CFE 5100/5100S/2400 is an inverter designed for low voltage and high voltage applications. It supports various protocols, including CAN and RS485. The inverter is compatible with different brands and types of inverters, such as CFE, Lithium, Li L52, Old luxpower, LIB, WOW, Pylon, Cerbo GX BMS, and Default Non-Standard.

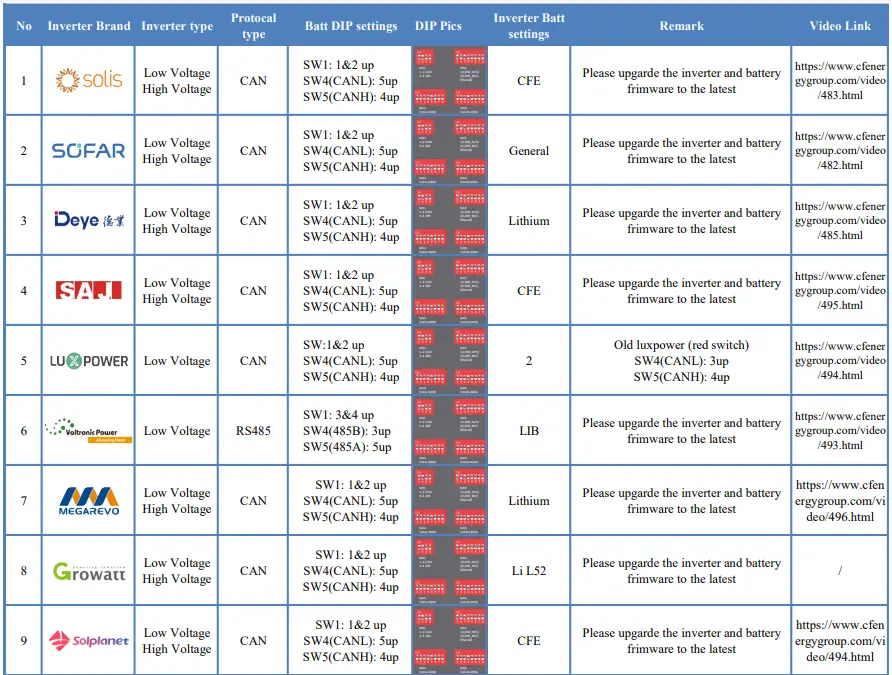

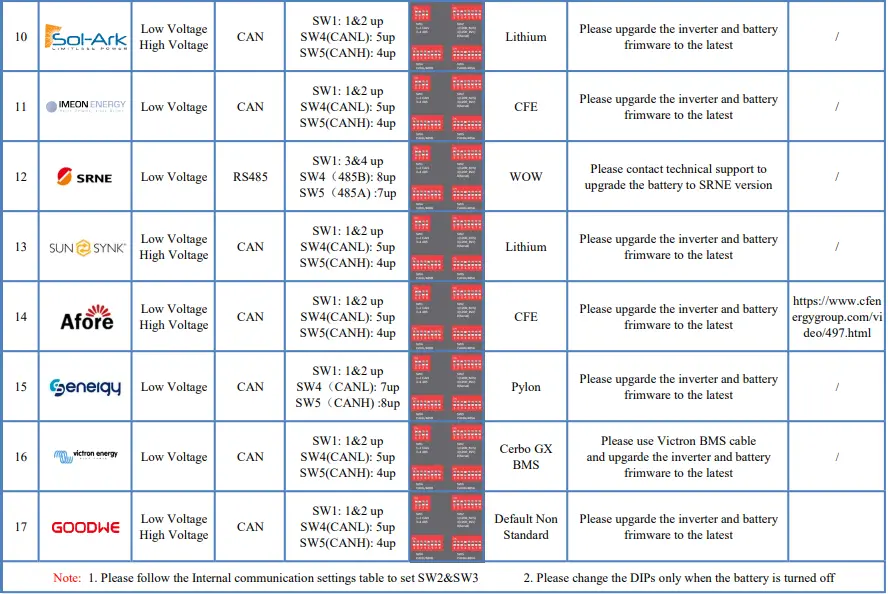

Inverter Connection Instruction

CFE-5100S-Inverter-FIG-1CFE-5100S-Inverter-FIG-2

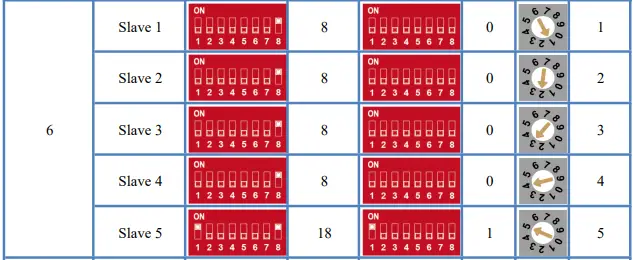

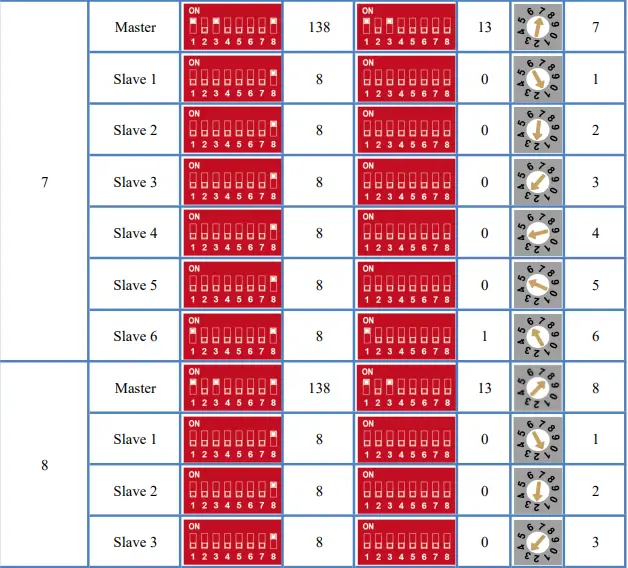

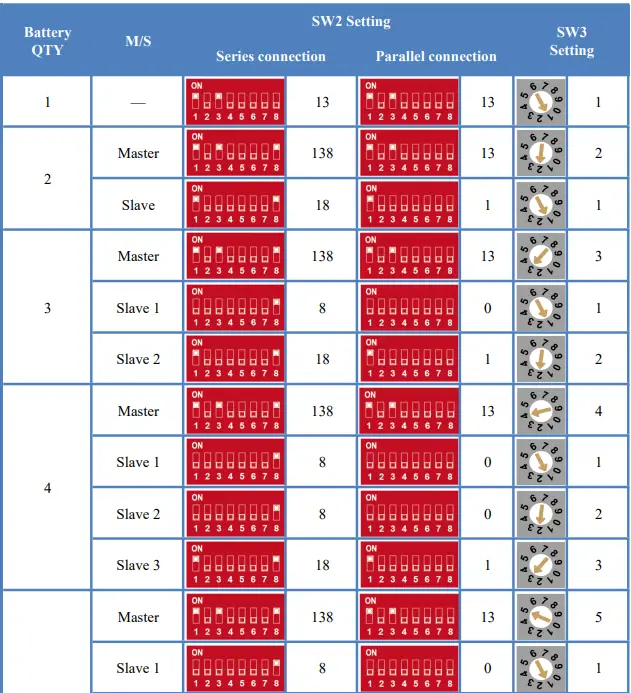

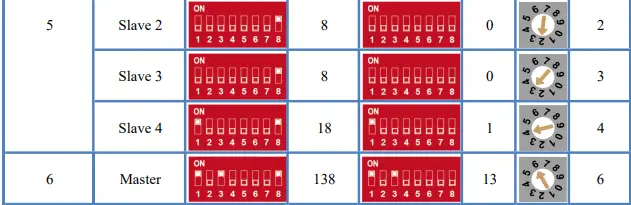

Communication Settings

CFE-5100S-Inverter-FIG-3CFE-5100S-Inverter-FIG-4CFE-5100S-Inverter-FIG-5CFE-5100S-Inverter-FIG-6CFE-5100S-Inverter-FIG-7
