V-TAC LogoV TAC VT 10241 120x2W Folding Solar Panels120x2W
Folding Solar Panels

VT-10241 120x2W Folding Solar Panels

V TAC VT 10241 120x2W Folding Solar Panels - Figure

LISTING DETAILS

Model No:VT-10241
SKU Code:11565
EAN Code:3.80016E+12
GENERAL DATA
Standard Working Power120W(-5%,+10%)
Standard working Voltage17.6V
Standard Working Current6.36A
Open Circuit Voltage Voc (@STC)21.2V
Short Circuit Current Isc(@STC)6.83A
OUTPUT SOLAR CHARGER BOX
DC 5521 Working Power120W(-5%,+10%)
DC 5521 Working Voltage19.3V(-5%,+10%)
Typc-C5V/3A,9V/3A,12V/3A,15V/3A,17.6V/2.25A. 45W
USB-A5V/2.4V
USB-A(QC3.0)5V/3A,9V/2A,12V1.5A 18W
MASTER BOX PACKAGING
Qty Per Pallet:500 pcs
Gross Weight:12.8KG±0.5KG
Folded Size:430**540*54mm±5mm
Expanded Size:1930*430*25±5mm

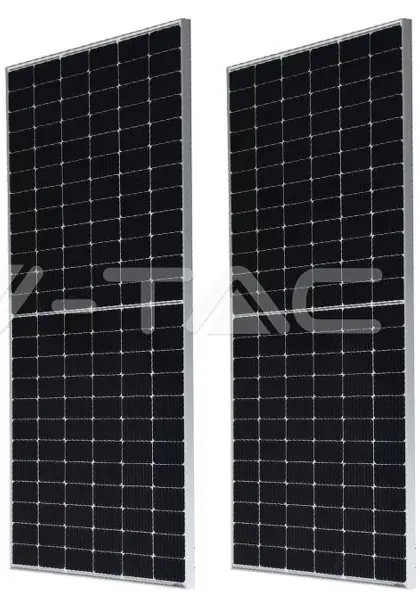

Folding Solar Panels

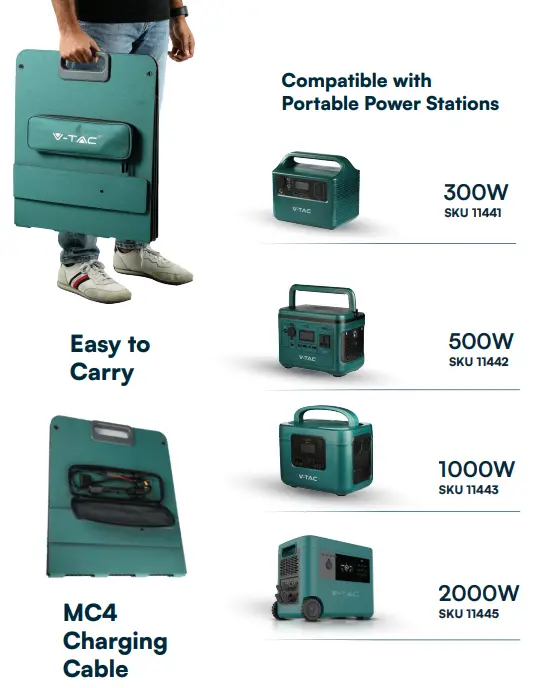

V TAC VT 10241 120x2W Folding Solar Panels - Power Stations

Folding method: 1 * 4 fold * 2piecesV-TAC Icon 1
