Eduplink Portable Bluetooth Speaker 40 Watt Bocina Wireless Powerful Bass Loud Stereo-complete Features/user Guide

EDUPLINK Portable Bluetooth Speaker 40 Watt Bocina Wireless Powerful Bass Loud Stereo

Specifications

• Product Dimensions
  8.7 x 3.15 x 3.15 inches
• Item Weight
  1.92 pounds
• Batteries
  2 Lithium Polymer batteries
• Connectivity Technology
  Bluetooth, Auxiliary, USB
• Speaker Type
  Dual Speaker
• Recommended Uses For Product
  Indoor/Outdoor
• Brand
  EDUPLINK

Introduction

The EDUPLINK M8 Party Speaker blasts EXTRA BASS energy and flashing lighting throughout the room. With 30 hours of gameplay, strobe and speaker lights offer a memorable experience, and parties can be conducted anywhere.

PREFACE

Dear customer: Thank you for purchasing the M8 Bluetooth Speaker, For your better user’s experience please read the user manual carefully before use. Enjoy the music journey!Please keep this user manual for your later reference

PACKAGE CONTENT

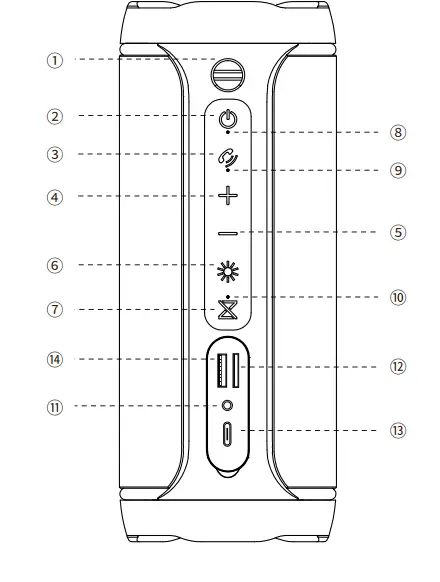

• 1*M8 Main device

1. Strap hook
2. Power: Long press Turn on/off Short press Play/Pause
3. Bluetooth/Phone
   Long press force to disconnect Bluetooth connection
   Short press switch Bluetooth/ Aux in mode Answer/Hang off phone call
4. Plus: Short press to increase volume Long press to next track
5. Minus:
   Short press to decrease volume Long press to the previous track
6. Lights key:
   Short press turn on/off lights
7. TWS pairing
   Short press on/cancel TWS connection Long press to clear away TWS pairing
8. Charging light/Power bank light /Low power indicator
9. Bluetooth light
10. TWS light
11. AUX interface
12. TF card slot
13. Type-C interface
14. Power bank output interface/ USB flash disk interface

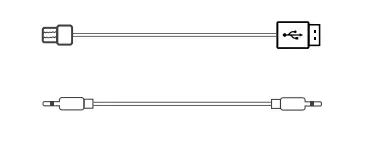

• 1* Type-C cable
• 1* 3.5mm Aux in cable
• 1* User Manual

OPERATION INSTRUCTION

Bluetooth mode

1. Turn on the speaker and enter into BlueTooth mode, the BlueTooth light starts to flash. Turn on the BlueTooth on your device search for “ M8 ” and connect to your speaker, If it’s connected successfully, you will hear a prompt tone that“device paired ”. The BlueTooth light is always on, now you can play music on your device by BlueTooth.
2. When the BlueTooth is connected successfully and you make calls with a phone, the voice will automatically enter into the BlueTooth hands-free mode. Short press key to answe incoming call,Long press to reject the call.

AUX in mode
Please connect one end of the 3.5mm audio cable to the headphone output port of the mobile phone/computer, and the other end to the audio. The audio will automatically switch and prompt “external sound source mode” to play music.  Due to the lower power supply capability, most computers’ USB interfaces can not meet the speaker’s operational requirements.It is not recommended to use the computer’s USB for charging synchronously when you play music in the AUX in mode while connecting the computer.

TF card play
Please insert the TF card into the speaker, the speaker will switch mode automatically with a prompt tone “TF card mode”, and the speaker will play music saved in the card automatically, TF card memory maximum is 32G. (This mode only applies to some models, please consult the local dealer for details.)

USB flash disk playback mode
Insert the USB flash disk with music files into the audio USB interface, The audio automatically switches to USB flash disk mode and the voice prompts “USB flash disk mode” to automatically play music in USB flash disk, The memory supports 32gu disk at most. (This mode is only applies to some models, please consult the local dealers for details.)

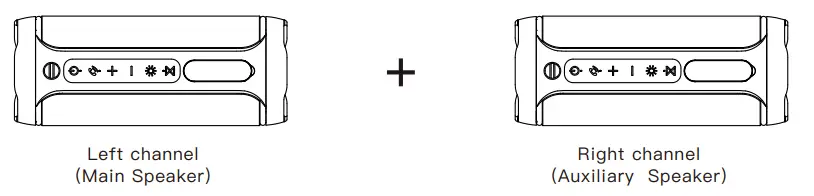

TWS stereo sound play
Turn on two M8 speakers and enter into Bluetooth mode. Short press the “ ”button of one speaker. TWS light starts to flash, the speaker will automatically search the other for TWS connection,if they connected successfully, two speakers will switch into left and right channels automatically. Repeat the Bluetooth connection operation and connect to the phone, If they connected successfully, music will play on the speaker showing dual stereo sound effect.

Note
This function requires two speakers,make sure both are turned on and in the Bluetooth mode. No Bluetooth connection to any other devices before TWS paring. When TWS is connected, short press“ ”key of one speaker to cancel the interconnection.

Cool party light
Party lights on is defaulted setting when you turn on the speaker, Short press“the”key to turn on/off lights. (Tip: when the volume of the mobile phone is above 70%, the party lights will present different light images with the music rhythm, and when the volume is below 70%, the light will present a slow breathing image. )

Type-C Quick charge
Do not use a power adapter that has not been certificated by safety certification. A power adapter with output 5V 2A is recommended for charging.

1. Audio voice prompt “Out of battery”, and the red light of the charging prompt light flashes. Please charge the speaker as quickly as possible.
2. This speaker supports self-adaption charging. It’s able to choose to charge current automatically according to the external rated power of the adapter, When charging by USB interface on the computer, the current is smaller and it takes a longer time to complete charging.
3. When a speaker is charging, the power light is red and always on. When the speaker is fully charged the power light is green and always on.

Energy saving
The speaker will automatically shut down to save power under the below circumstances.

1. In Bluetooth mode, after 20 minutes of waiting for no device pairing.
2. In any modes, short press  key pause for 20 minutes without any operation the speaker  will shut down automatically, Please long press the power key to turn it on again

Power bank output
The USB and Type C interfaces of the same charing line are forbidden to be inserted into the speaker simultaneously.

1. USB-A OUTPUT: 5V 1A(Power bank function only works when the speaker is turned on）.
2. Turn on the speaker inserts the standard USB cable into the output interface of the power bank, and connect the other end to the mobile. At this time the power bank indicator is green, the green indicator will be off after the mobile is fully charged.
3. Turn off the speaker in the process of using the speaker to charge the mobile, the speaker will standby power bank function works normally, and the speaker can be awakened by long pressing the power key

TROUBLESHOOTING

1. Can not connect to BlueTooth or no sound when playing music? Please make sure the speaker is in Bluetooth mode, and also make sure your device supports bluetooth function and bluetooth has already been turned on searching for devices. Check if there are too many Bluetooth devices around, which might bring difficulties to the searching process. Please turn off another Bluetooth device.
2. What if TF card/USB flash disk doesn’t respond ? Please make sure the TF card/USB flash disk is of good quality, and check whether the audio file is MP3 playing format,If all problems above are excluded , it might be TF card/USB flash disk compatibility issue, you can consider of formating TF card/USB flash disk to FAT32 or change a different TF card/USB flash disk.

HOW TO EMAIL QUICKLY

Please scan QR code and email to us

•  [email protected]
• [email protected]

V.6.0.2
Manufacture: Shen zhen ZhiQi Technology Co., Ltd.
Address
 B902 Baochengtai Square, No.38 Qinfu road, Liuyue Community, Henggang Street, Longgang District, Shenzhen. China

Frequently Asked Question

• Can work on a motorcycle?
  Sure strap it on there.
• Are you able to turn the light show off while playing music?
  Yes, You can use the button on the speaker that controls the light.
• Does this speaker fit in a cup holder?
  It most likely will not. It’s a very large mug size in circumference.
• When do know when it’s fully charged?
  When you click on your Bluetooth connection in Android it’ll tell you a percentage under the speaker name.
• Are all ED speakers pairable? Or do they have to be the exact model?
  Hello, you have to pair between 2 same model speakers for the true wireless sound.
• What is the battery capacity in mAh?
  The battery capacity is 7200 mAh.
• USB play?
  No
• Do this speaker support sd card?
  Thank you for your message. The M8 speaker supports a max 32G cf card.
• Does it have a built-in rechargeable battery?
  yes, it does. I have two of these units. One’s battery last about 20 hours and the other about 15. Nowhere close to what they advertise.
• How do you turn the lights off?
  You can use the button on the speaker that controls the light.
