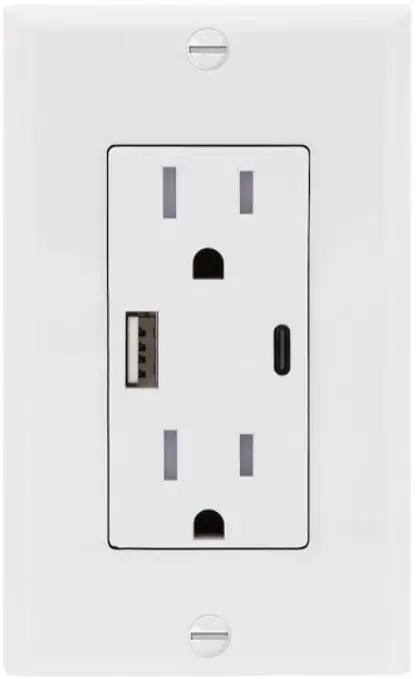

maxxima USB480C TR WALL OUTLET C PORTS
PARTS INCLUDED

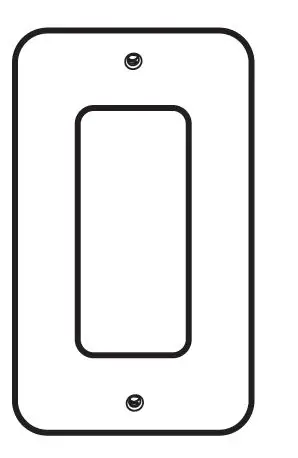

Decorative Wal Plate (1)

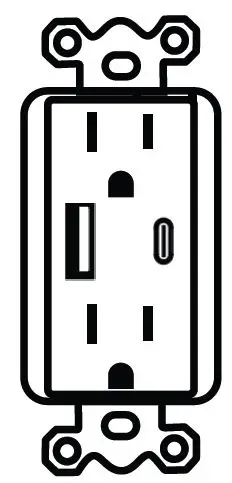

Outlet 1
Inner Frame Screws 2
Mounting Screws 2
WARNING
This product may represent a possible shock or fire hazard if improperly installed or attached in any way. Product should be installed in accordance with the owners manual, current electrical codes and/or the current National Electric Code (NEC).
RISK OF ELECTRIC SHOCK
TURN OFF THE MAIN POWER AT THE CIRCUIT BREAKER BEFORE INSTALLING.
RISK OF FIRE
DO NOT EXCEED ELECTRICAL RATINGS USE INDOORS ONLY. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. This device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation.
Note
This equipment has been tested and found to comply with the limits a Class B digital device, pursuant to part 15 of the FCC Rules. These limits ar designed to provide reasonable protection against harmful interference in. residential installation. This equipment generates, uses and can radiate rad frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particu installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment of and on, the user is encouraged to try to correct the interference by one or more of the following measures.Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device is to be installed in an outlet box that measures at least 3in x 2in x 2.5in and wired in accordance with NEC article 314 box fill requirements. CAUTION: This device is to be used with Class 2 USB connectors and interconnecting cables. The Class 2 USB ports are not intended to physically support products or appliances. The Class 2 USB cables must be routed away from the 120V receptacles and inserted plugs This device is to be used with copper or copper clad wire only.
CAUTION
To reduce the risk of fire and overheating, check for compatibility with the appliance manufacturer’s charging instructions.
1 YEAR WARRANTY
Maxima extends a 1 year limited warranty to the original purchase that the products listed are free from defects in material and/or workmanship only. Maxxima will replace any warrantied product to the original consumer/purchaser if the product fails because of defects due to workmanship and/or materials within the limited warranty period. Limited warranty is not transferable and applies to the original installation of the Maxoxima product. This offer does not constitute in any way a product guarantee and Maxxima does not hereby assume any obligation whatsoever beyond sending a free replacement product.

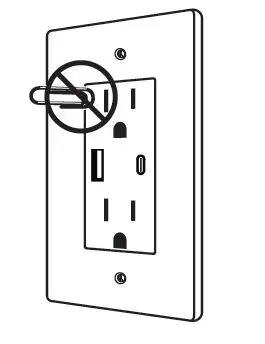

TAMPER RESISTANT RECEPTACLES
Built in shutter keeps children safe
Works with smart phones, tablets, digital cameras
Installation
WARNING
SHOCK HAZARD. MAY RESULT IN SEROUS INJURY OR DEATH. TURN OFF POWER AT CIRCUIT BREAKER BEFORE INSTALLING. IF YOU’RE UNFAMILIAR WITH PROPER ELECTRICAL WIRING OBTAIN THE SERVICES OF A QUALIFIED PERSON.
TURN POWER OFF
Turn power off at circuit breaker or remove fuse.
REMOVE EXISTING OUTLET
Take off wall plate and outlet by removing mounting screws.

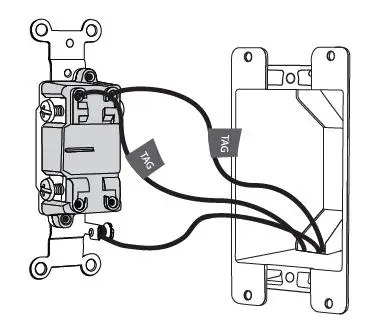

Carefully pull out outlet from wall Label wires connected to existing outlet box and disconnect wires.
STRIP WIRES
Strip wires to 5/8 inch if necessary. Use with #14 or #12 AWG copper or copper clad wire.
WIRE YOUR NEW OUTLET

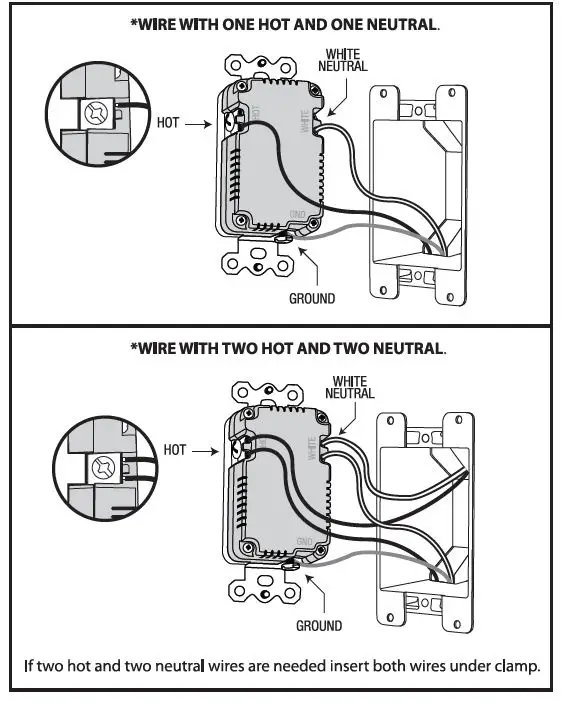

Wire device as shown below. Use a screwdriver to secure wires to terminals.

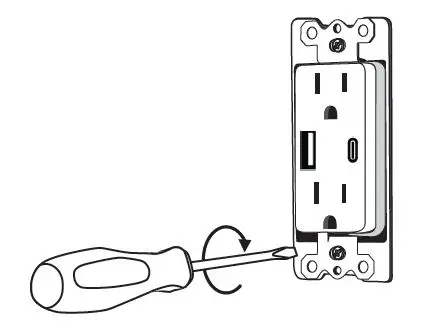

INSERT OUTLET INSIDE THE OUTLET BOX
Position all wires inside the outlet box with care, leaving enough room to insert the device. Use provided mounting screws to attach the device securely inside the outlet box.

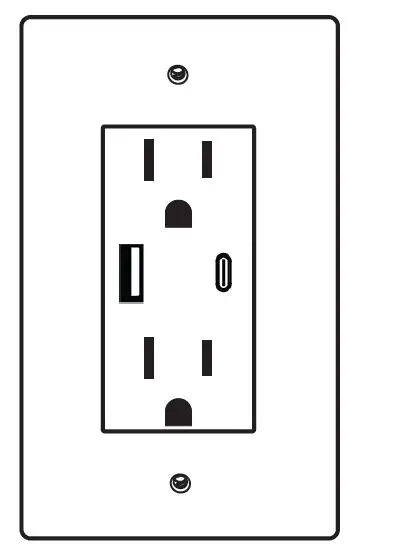

ATTACH FACE PLATE ONTO THE OUTLET

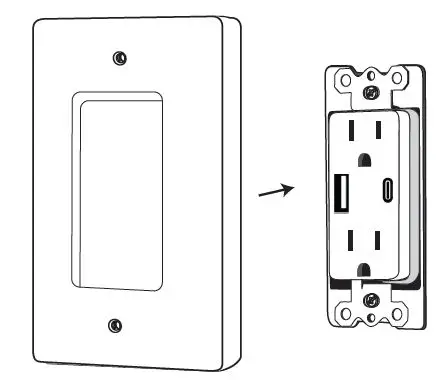

Place the wall plate over the device. Gently push wall plate to ensure flush fit.

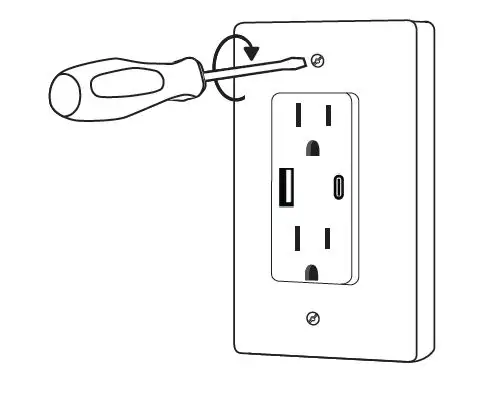

Secure the plate onto the outlet using provided screws.
TURN POWER ON
Turn power on at circuit breaker or replace the fuse.
