Use & Care Guide
LED Grow Light Strip
Model No.TS0ZW06

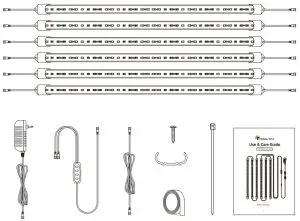

PACKAGE INCLUDES
- 6 * LED Plant Grow Light Bar (16 in)
- 1 * Power Adapter (12V 3A)
- 1 * Power Cord with Controller (5.3 ft)
- 4 * Extension Power Cord (20 in)
- 1 * Double-sided Tape (10 ft)
- 20 * Clip
- 20 * Screw
- 20 * Cable Tie
- 1 * User Manual
SPECIFICATIONS
CT CAPETRONIX each LED grow light strip contains 12 pcs Red (660 nm), 6 pcs Blue (460 nm) and 18 pcs Warm White (full spectrum) LEDs consuming only 36W with 216 LEDs of 6 light strips in total, perfect and even better alternative to replace average 250W plant lights. The light illuminated by grow light can completely replace natural light to ideally solve the problem of lack of light and slow growth of indoor plants.
| Product Model | TSOZW06 |
| Material | Aluminum+PC |
| Rated Power | 36W |
| Protection Grade | IP55 |
| Input Voltage | AC100-260V; 50-60HZ |
| Output Voltage | DC 12V 3A |
| LED Qty | 216 Pcs LEDs (6 x 36/Bar) |
| LED Chips Per Bar | 12(Red)+6(Blue)+18(Warm White) |
| Light Wavelength | Red-660nm; Blue-460nm; Warm White-3000K |
DIMENSIONS

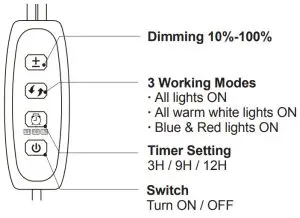

OPERATION GUIDE
FEATURES
- 3/9/12Hrs Timer
Set 3/9/12Hrs timer according to different needs of the plant growth stage. - Auto On/Off On Daily Basis
After setting, the light will automatically turn on/off as scheduled on a daily routine. - 10 Brightness Levels
Smooth dimming of bright & abundant light output from 10% to 100%. - 3 Working Modes
Switching modes to accommodate various stages of plant growth. - Excellent Performance
A high-quality aluminum shell provides efficient heat dissipation.
INSTALLATION
- Fix with Installation Clips & Screws (Included).
- Fix with Double-Sided Tape (Included).
- Fix with Cable Tie (Included).
ATTENTION
This product shall be used and installed in accordance with the instruction manual. Do not modify the product or replace its internal parts and components.
If necessary, seek professional assistance. Don’t soak the plant growth lamp. Keep away from fire and heat source.
Excellent after-sale service will always be with you, should you have any problems or suggestions associated with this product please kindly contact us and we will try our very best to resolve them within 24 hours.
