Razer Naga Pro Manual And Faq (+ PDF)

Why specialize in one genre, when you can rule them all? Adapt to every game with the Razer™ Naga Pro | RZ01-03420 — a wireless mouse upgraded with our latest Razer technologies, and equipped with 3 swappable side plates for the button layouts you need to master MMOs, battle royales and more.

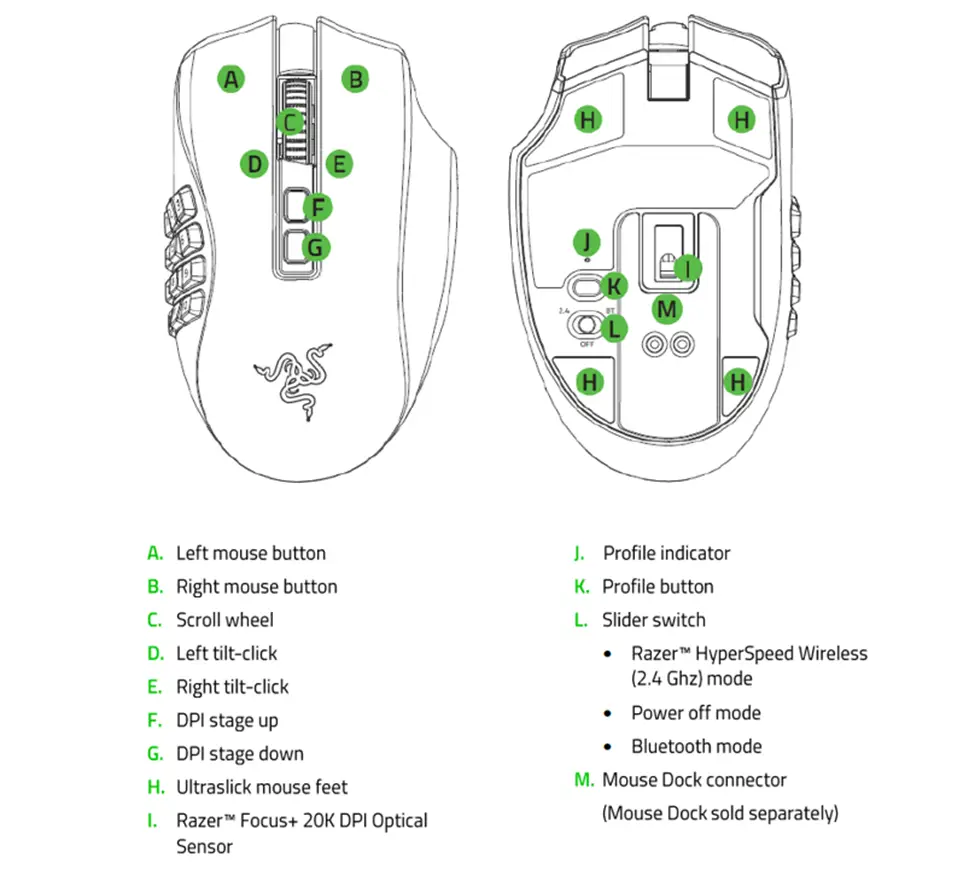

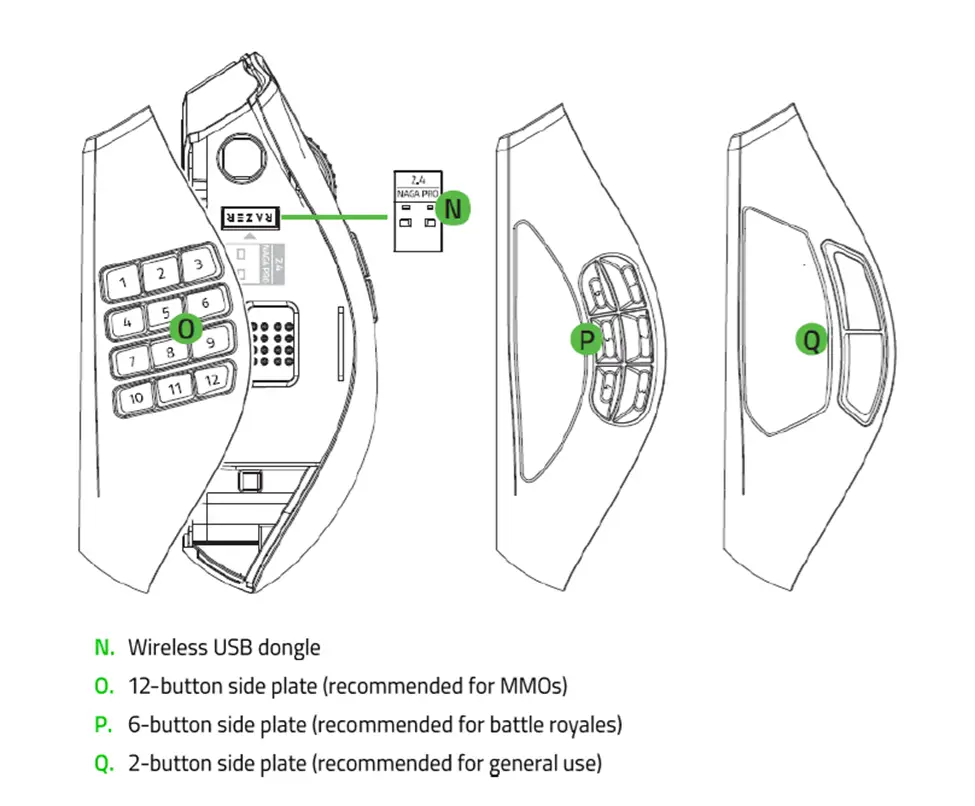

Device Layout

Full Technical Specifications

Sensitivity	True 20,000 DPI Focus+ optical sensor with 99.6% resolution accuracy
Acceleration	Up to 650 inches per second (IPS) / 50 G acceleration
Ultrapolling	1000 Hz polling rate
Razer Synapse Support	Razer Synapse 3 enabled
Razer Chroma	Powered by Razer Chroma™ RGB with true 16.8 million customizable color options
Inter-device Synchronization	Yes
On-the-Fly Sensitivity Adjustment	On-The-Fly Sensitivity Adjustment (Default stages : 400/800/1600/3200/6400)
Storage	Advanced on-board memory (4+1 profiles)
Connectivity	Dual wireless – Hyperspeed (2.4Ghz) and BLE
Design Factor	Ergonomic right-handed design with textured side-grips.
Approx. Dimensions	· L: 119 mm / 4.69 in · W: 74.5 mm / 2.93 in · H: 43 mm / 1.69 in
Approx. Weight	117g / 0.257 lbs (Excluding dongle)
Gaming Console Compatibility	Compatible with Xbox One for basic input
Programmable Buttons	(19+1) programmable buttons (with 12-buttons panel)
Cable Type	1.8 m / 6 ft Speedflex cable for charging and wired use
Razer Mechanical Switches	Razer™ Optical Mouse Switches rated for 70M clicks (M1/M2 only)
Scroll Type	Gaming-grade tactile scroll wheel with infinitely customizable resistance
Other Features	Advanced Lift-off/Landing distance customization Large 100% PTFE mouse feet (0.8 mm thick)

What kind of mouse is the Razer Naga Pro?

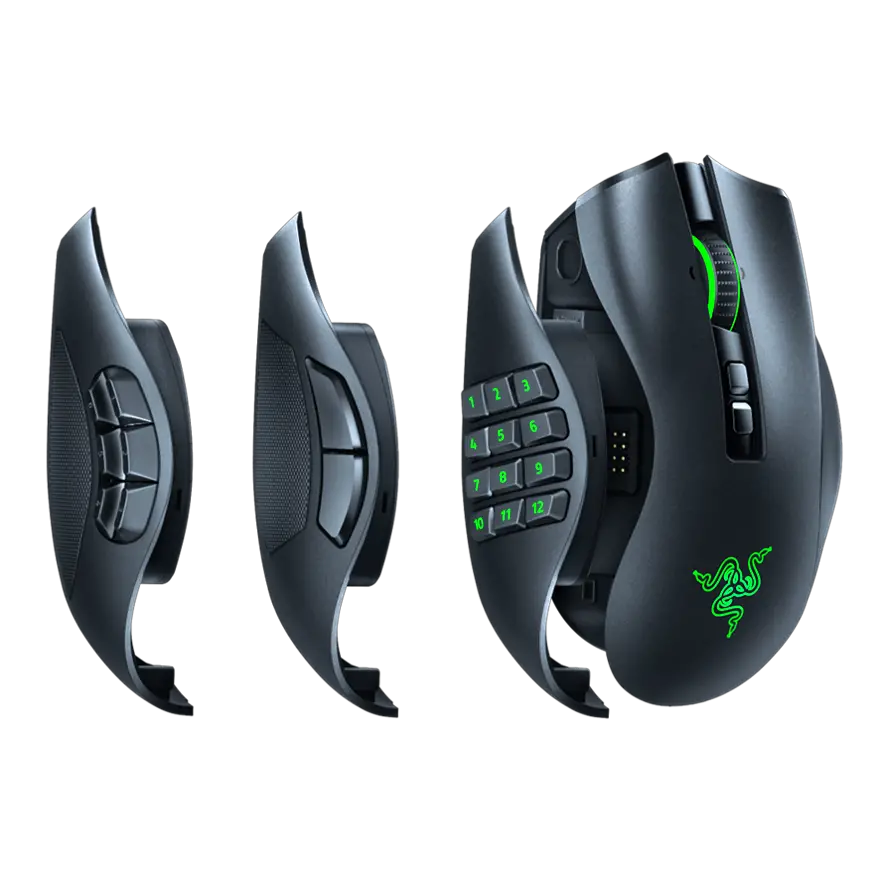

It is modular, it has 3 swappable side plates that you can install depending on your desired functionality. You can swap between a 2-button, 6-button, or a 12-button plate to meet your gaming needs.

What kind of sensor does the Razer Naga Pro have?

The Razer Naga Pro is equipped with a 20,000 DPI Razer™ Focus+ Optical Sensor. To learn more about Razer™ Focus+ Optical Sensor, click here.

What are the connections available on the Razer Naga Pro?

The Razer Naga Pro has 3 modes of connection – RazerTM HyperSpeed Wireless using the included 2.4GHz wireless dongle, Bluetooth and wired using the RazerTM Speedflex cable.

Where can I find the wireless USB dongle?

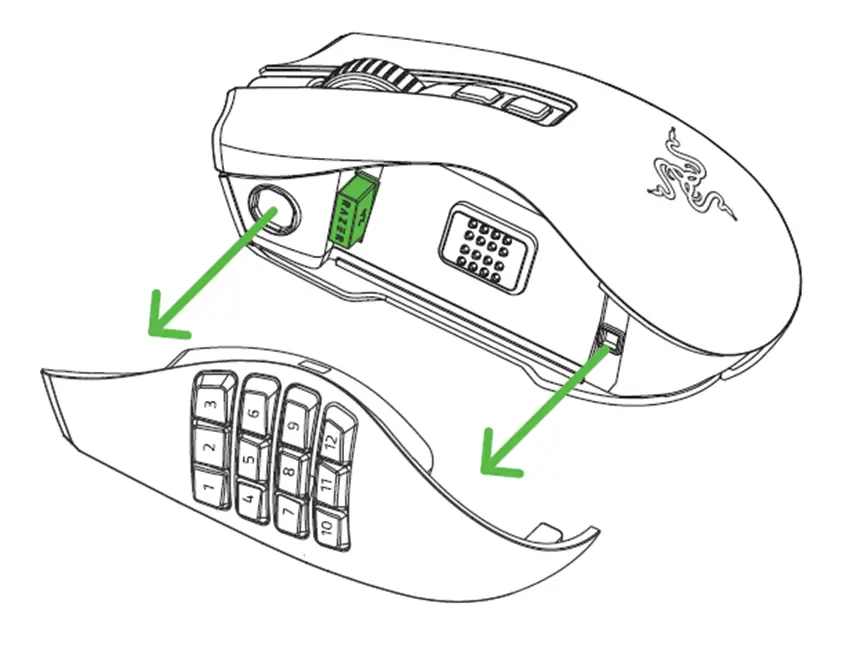

The USB dongle can be found by removing the attached side plate from the Naga Pro.

Is the Razer Naga Pro compatible with the Razer Mouse charging dock?

Yes, the Razer Naga Pro can charge seamlessly with the Razer Mouse charging dock. It is compatible with the Razer Mouse charging dock included with the Razer Viper Ultimate or Razer Basilisk Ultimate.

Does the Razer Naga Pro come with the Razer Mouse charging dock?

No, the Razer Naga Pro does not include a Razer Mouse charging dock.

How To

How to add a device to a multi-device dongle

To add a device to the multi-device dongle, follow the steps below:

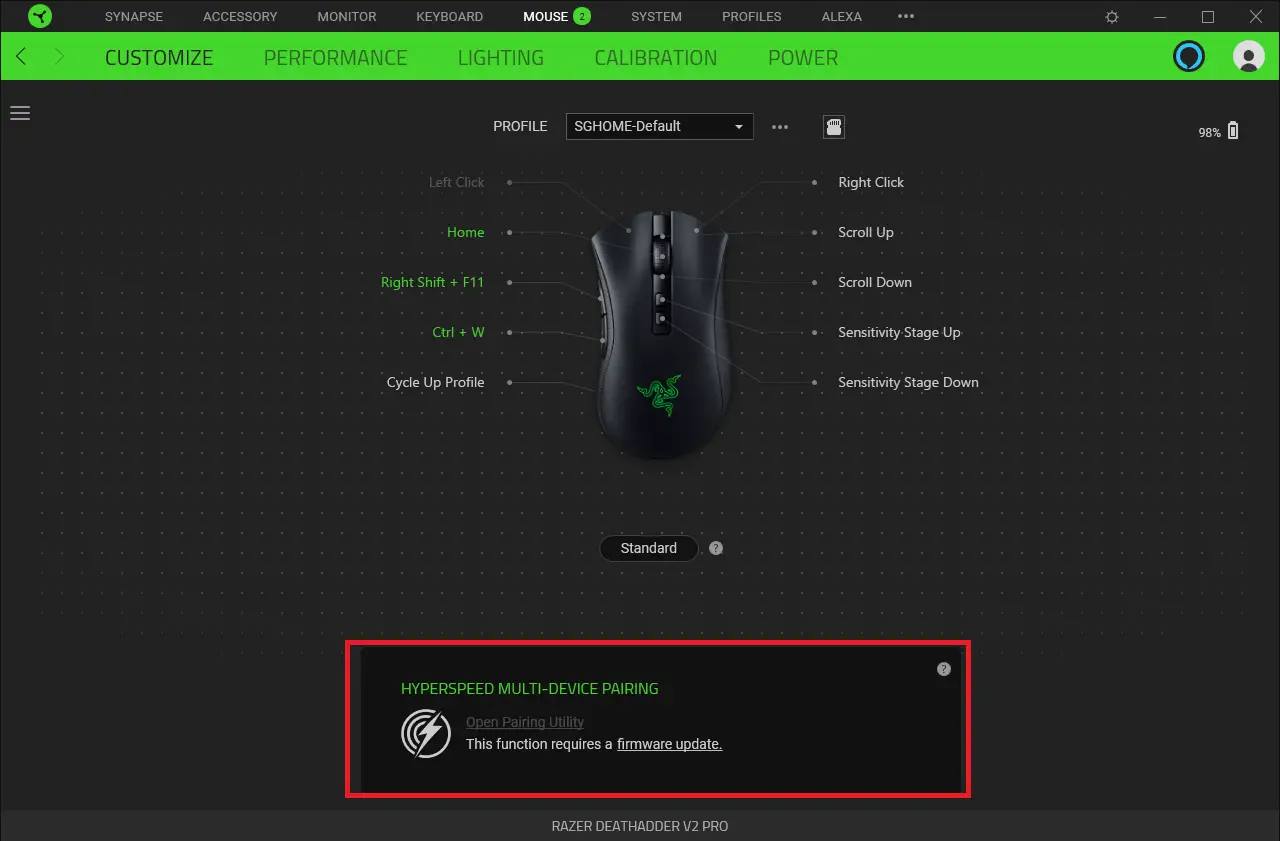

1. Launch Synapse 3 and go to your device’s profile. If your device is not on the latest firmware, you will be prompted for an update.

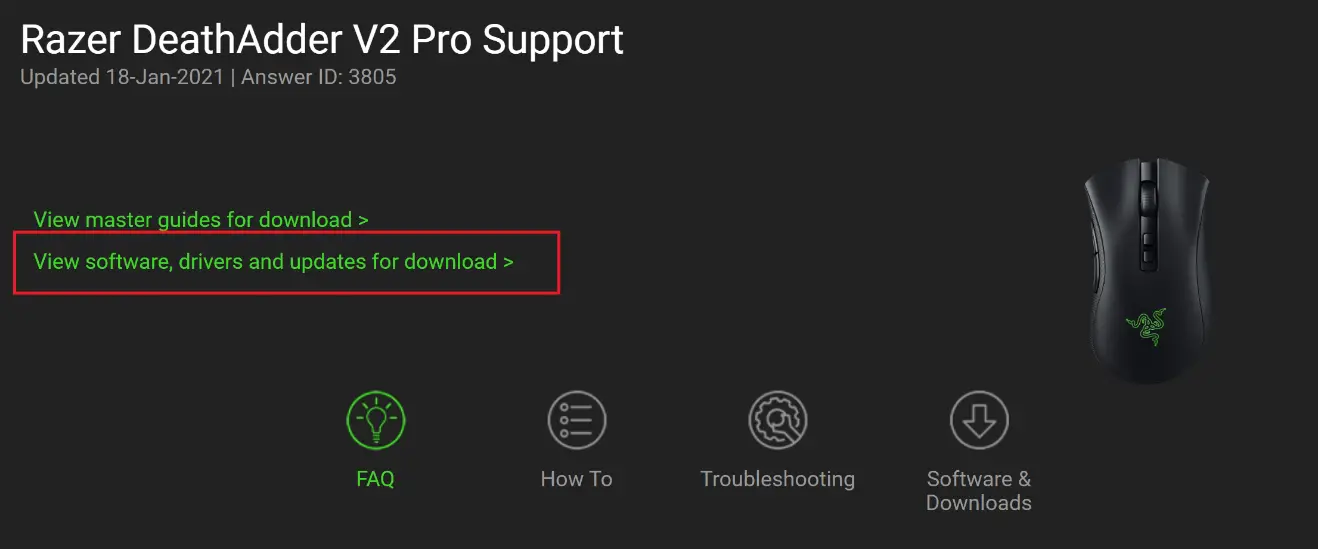

2. Update your device to the latest firmware. Visit Razer Support to check for firmware updates and make sure to download and install them on your device.

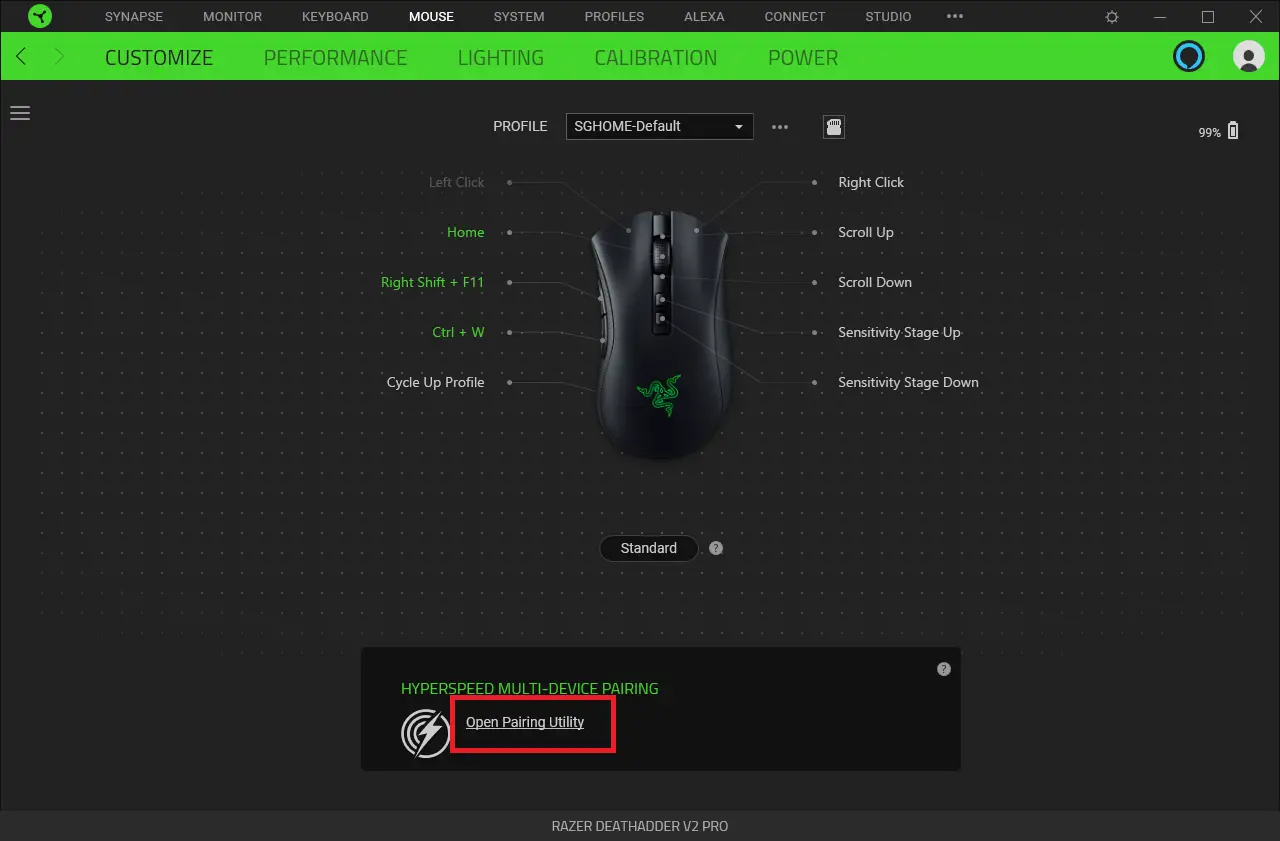

3. Click on “Open Pairing Utility”.

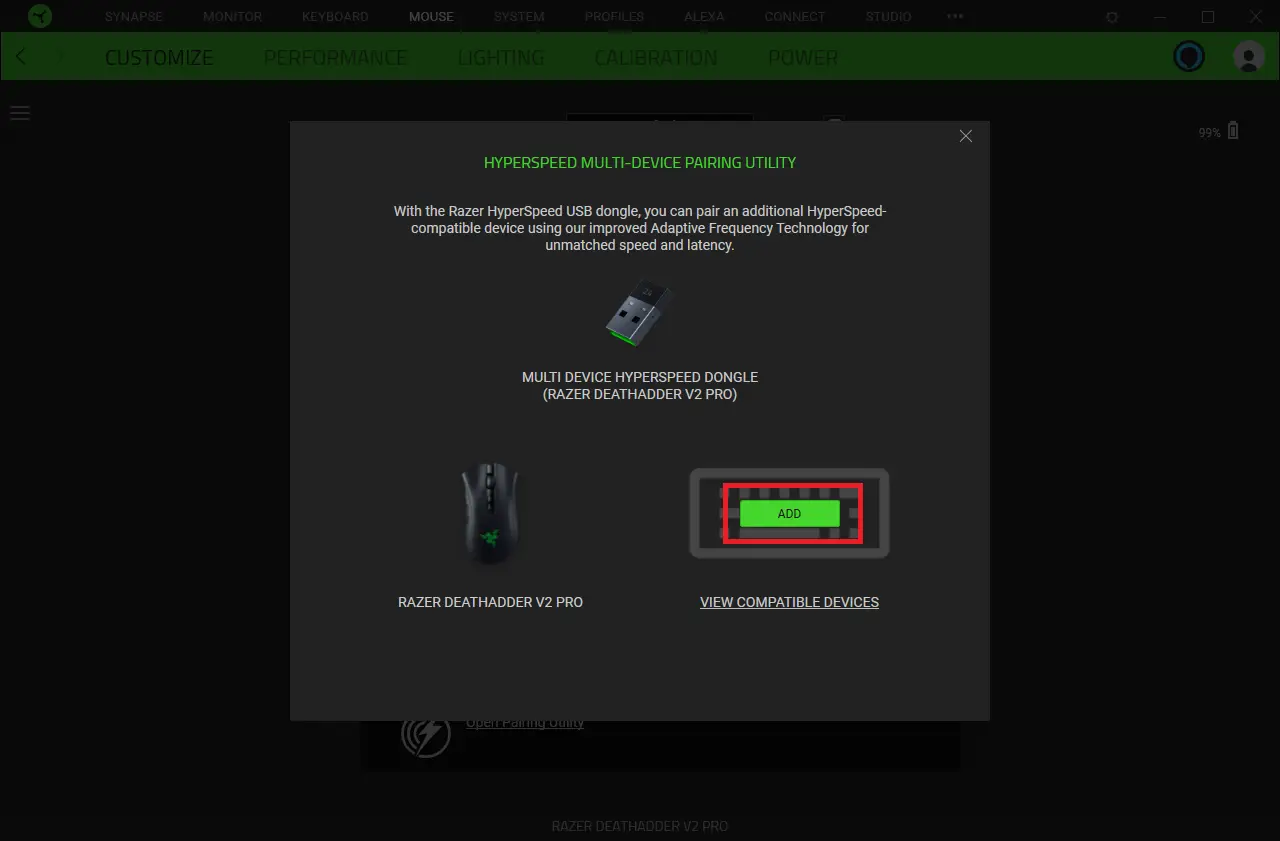

4. Click the “ADD” button to start scanning for a device.

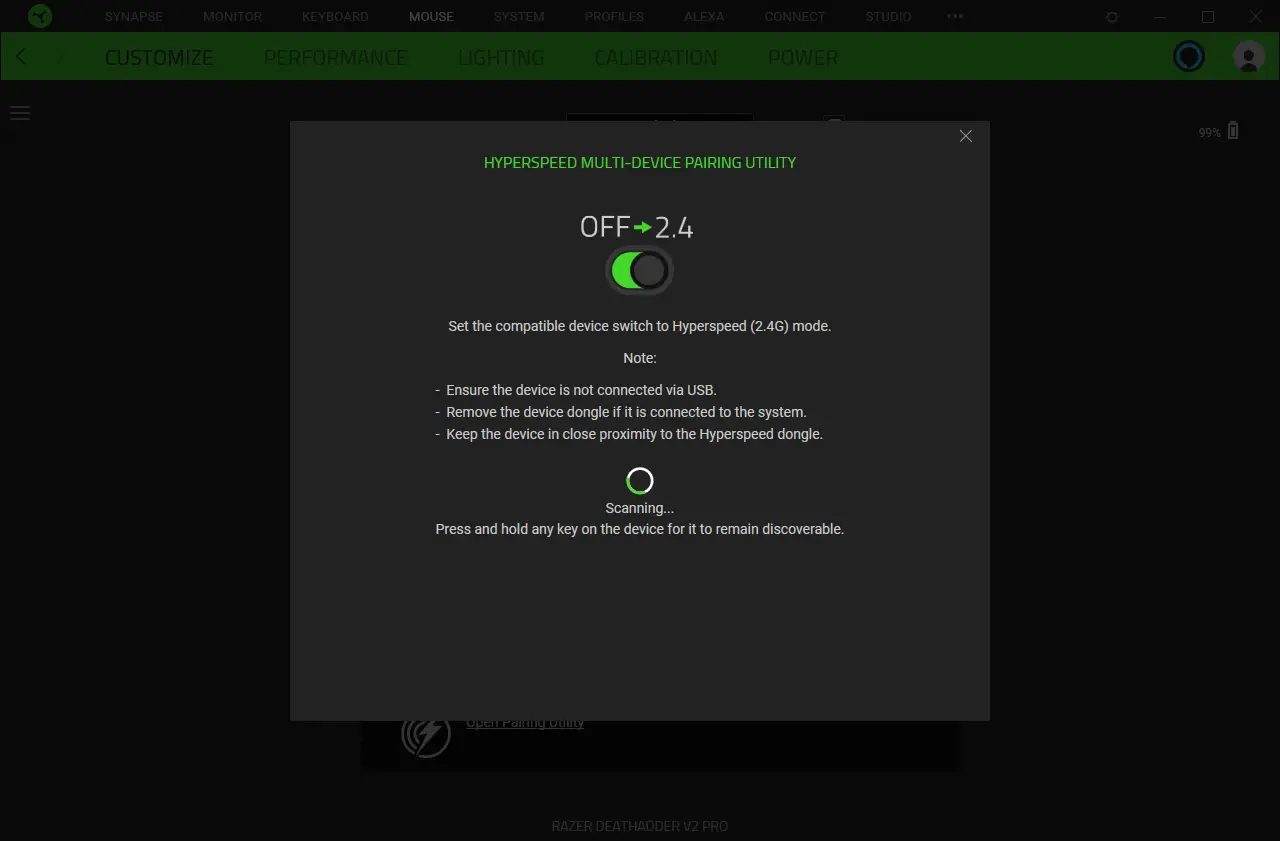

5. Set the compatible device switch to Hyperspeed (2.4G) mode. Press and hold any key on the device you want to pair for it to remain discoverable. Wait while scanning is in progress.

Notes:

Ensure the device is not connected via USB cable
Remove the additional device’s USB dongle if it is connected to the system
Keep the device in close proximity to the Hyperspeed dongle

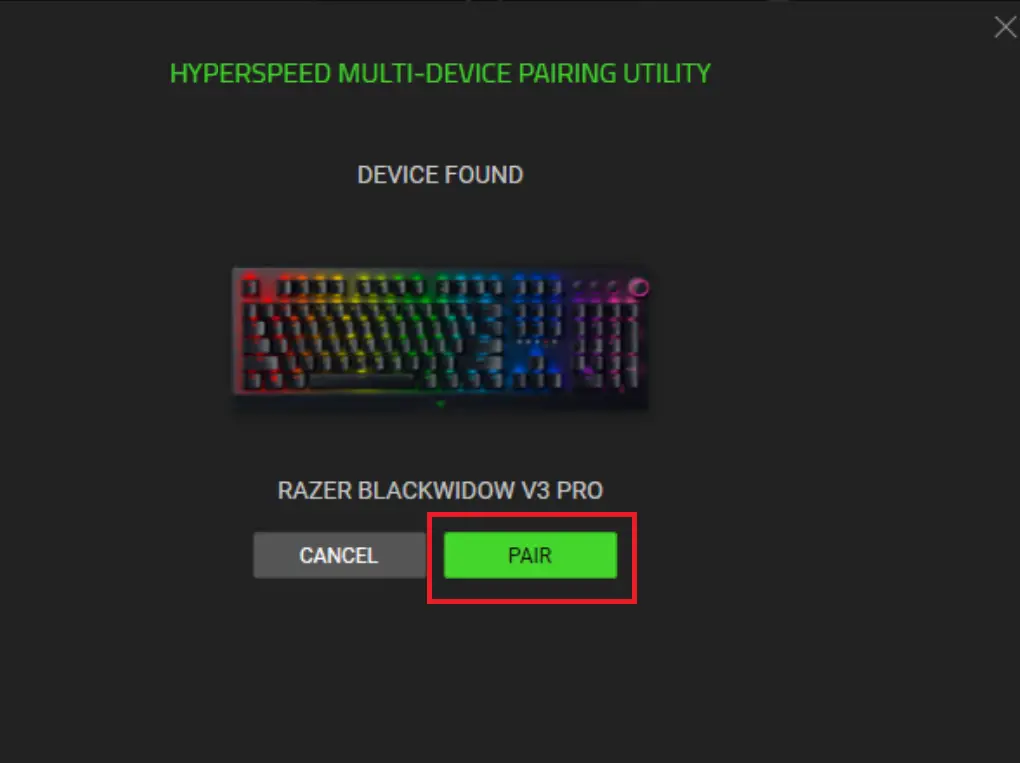

6. As soon as your device is found, click “PAIR”.

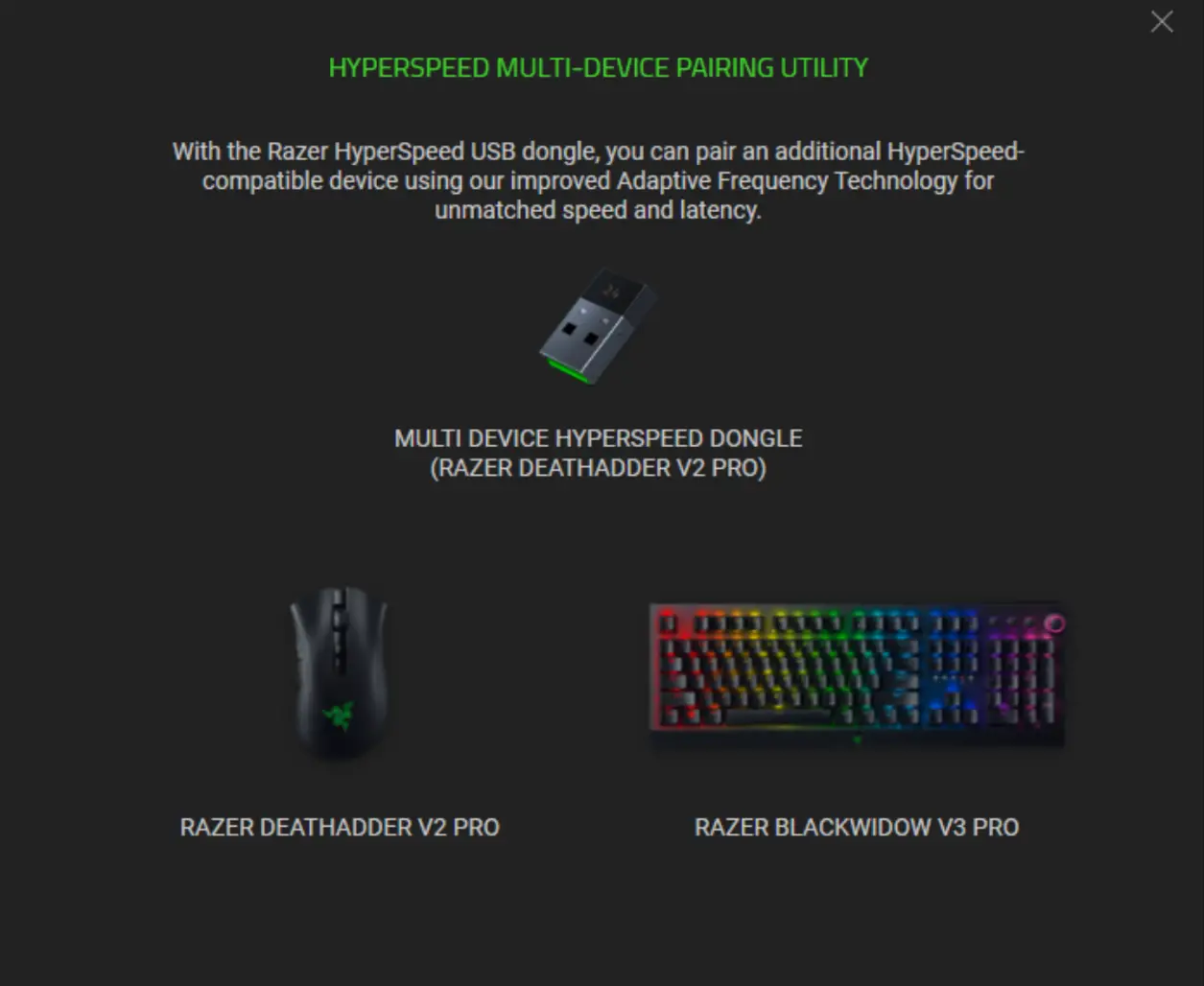

The additional paired device will now be visible.

How to register the Razer™ Naga Pro?

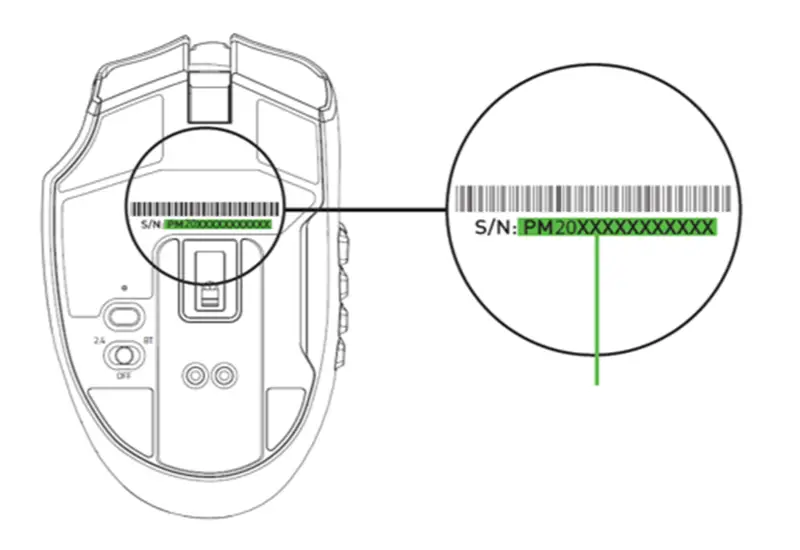

To register your Razer mouse, take note of the serial number found at the bottom of the device and input it in razerid.razer.com.

How do I connect the Razer Naga Pro to my PC using RazerTM HyperSpeed Wireless?

Connecting your Razer Naga pro via Razer™ HyperSpeed Wireless (2.4 GHz) Mode is done with the following steps …read more

How to connect the Razer Naga Pro to the PC using Bluetooth

Connecting your Razer Naga pro via Bluetooth Mode is done with the following steps:

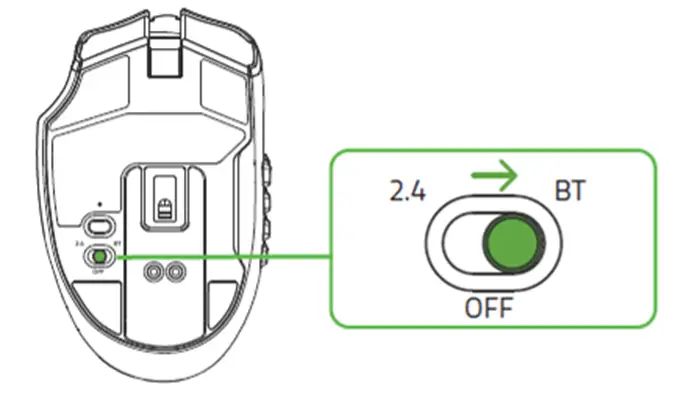

Push the slider switch to Bluetooth mode.

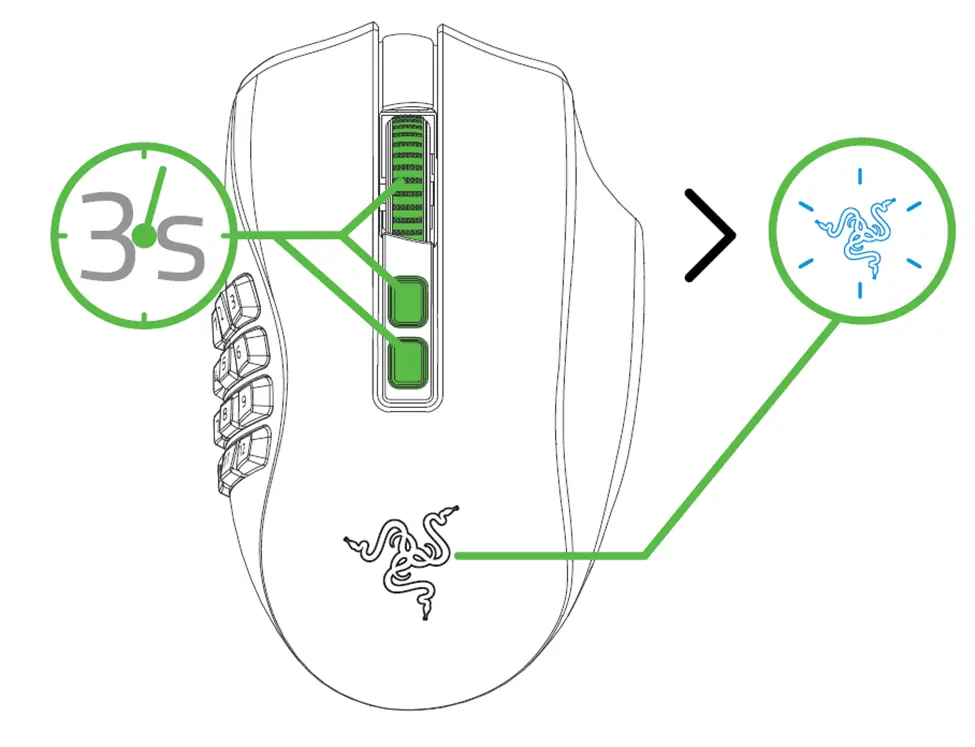

Press and hold the scroll wheel, DPI stage up and DPI stage down buttons simultaneously for three seconds to activate pairing mode. The Razer logo will blink twice in repeated intervals to show that the device is in pairing mode.
Activate Bluetooth on your device, search for new Bluetooth devices, and select Razer Naga Pro from the list of devices found.
Wait until the mouse pairs with your device. When paired, the Razer logo will briefly turn static blue before displaying its current lighting effect.
Note: Once paired, your Razer Naga Pro will automatically reconnect to your device whenever in Bluetooth mode and within range. Keep the pairing devices within close proximity of each other for a faster and more stable connection.
Your Razer Naga Pro is now connected to your PC via Bluetooth and ready to use.

How do I charge my Razer Naga Pro?

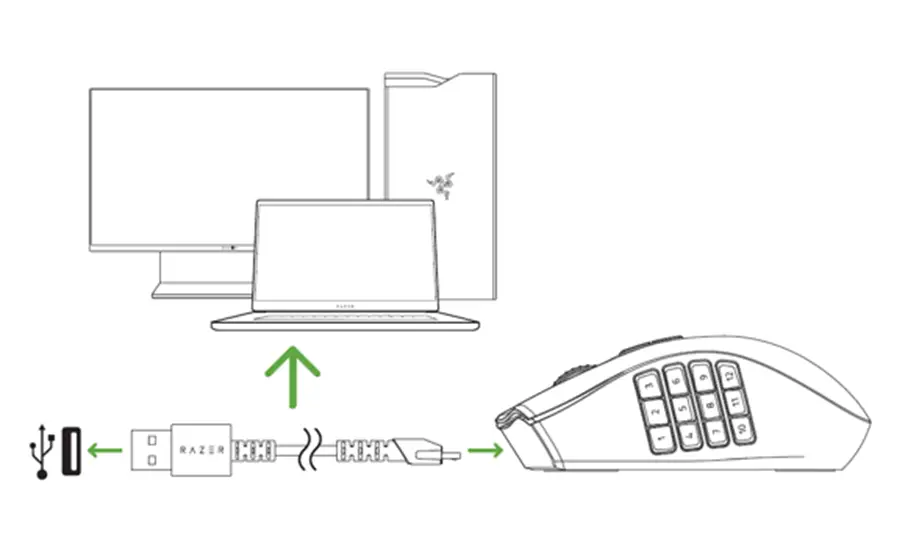

Plug the charging cable from your computer’s USB port to your Razer Naga Pro. For best results, please fully charge the mouse before using it for the first time. A depleted battery will be fully charged in approximately 4 hours. This connection also acts as the wired mode for your Razer device.

Note: The Razer Naga Pro requires a USB connection that can supply sufficient power to charge the device. The charging process may be affected when connecting to a non-powered USB hub or non-powered USB mostly found on keyboards and peripherals. It’s recommended to always connect the Razer Naga Pro directly to the USB port of your computer.

How do I clean my Razer™ mouse?

We cannot say with certainty what type of dirt and debris may be on your product, or how certain cleaning products may react with it, but we have had good luck cleaning Razer products using commonly available monitor cleaning wipes.

To clean the body of your Razer mouse, please take a monitor wipe and use gentle wiping motions. Do not scrub the surface of your Razer mouse. You can clean the sensor using a Q-Tip lightly coated with rubbing alcohol. Let the sensor dry for five minutes before attempting to use it.

Troubleshooting

When the mouse is paired to my laptop via Bluetooth, the connection intermittently cuts in and out. How do I fix this?

Try updating your Intel drivers by visiting: https://www.intel.com/content/www/us/en/support/intel-driver-support-assistant.html

My Razer Naga Pro Side Button Modules do not work on my Razer Naga Trinity and Vice Versa.

Razer Naga Pro Side Button Modules are not backward compatible with Razer Naga Trinity and Vice Versa. Hence, it is not expected to work.

My Razer Naga Pro is taking a long time to add or switch profile in Synapse while on Bluetooth connection.

Bluetooth transmission is expectedly slower than Wired or Dongle connection. We recommend to use either the wired connection or wireless connection using the 2.4GHz dongle for quicker profile adding or switching in Synapse.

The Hypershift function bound to the number pad on the side button module continues to execute even after releasing the Hypershift modifier key but the number pad key is still pressed.

The number pad side module behaves the same way as the keyboard keys. Hence, it is expected to continue to execute until both Hypershift modifier key and number pad button are released.

Software & Downloads

Do I need to install additional software or drivers to use the Razer Naga Pro Click?

You may use the standard mouse functions by simply connecting the Razer™ Naga Pro to your computer using the USB cable, USB dongle or Bluetooth connection. However, you will need to install Synapse 3 in order to enable advanced features such as macro recording, profile settings, Chroma customizations and more.
