HCG905WFCG3 Gas on Glass Cooktop 90cm
User Guide
QUICK REFERENCE GUIDE > HCG905WFCG3
Gas on Glass Cooktop, 90cm
Black Glass

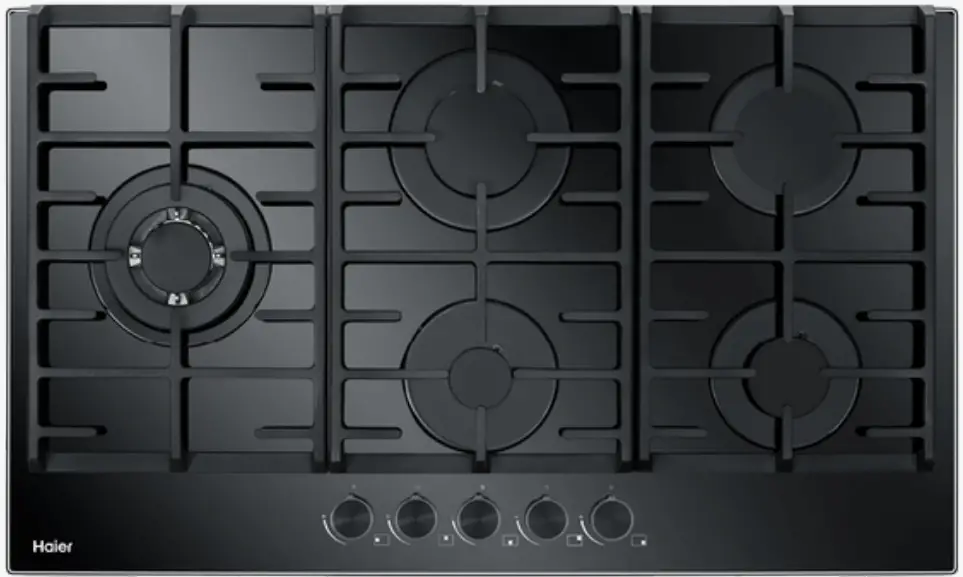

HCG905WFCG3 Gas on Glass Cooktop 90cm
Cook with the flair and flame of gas, this large cooktop gives you room to cook multiple dishes at once.
- Five burners, including a wok burner for high heat cooking
- Single surface cast iron trivets make it easy to slide cookware between burners
- Includes a flame failure safety system
- Designed to pair with a Haier wall oven in black glass
DIMENSIONS
| Height | 98 mm |
| Width | 860 mm |
| Depth | 510 mm |
FEATURES & BENEFITS
Rapid heating and control
Master high heat cooking with the powerful wok burner, or use a smaller burner for low simmer control.
Intuitive controls
With electronic ignition and intuitive dial controls.
Flame failure safety
If the flame is accidentally extinguished, a flame failure device turns off the gas for your safety.
A joy to use
Cast iron trivets form a flat surface, making it easy to slide your pots and pans across the cooktop as you create a delicious meal.
Matching design
This gas on glass cooktop matches the wider Haier family of appliances, pairing well with a black wall oven.
SPECIFICATIONS
| Burner ratings | |
| Centre front | Auxiliary 3.6MJ/h |
| Centre rear | Rapid burner 10.8MJ/h |
| Left front | Wok burner 13.7MJ/h |
| Right front | Semi rapid burner 6.3MJ/h |
| Right rear | Semi rapid burner 6.3MJ/h |
| Burners | |
| Number of burners | 5 (incl. 1 wok) |
| Controls | |
| Dial with anisotropic finish | • |
| Family match | Black wall ovens |
| Single surface trivet | • |
| Performance | |
| Cast iron trivets | • |
| Electronic ignition | • |
| LPG/Natural gas compatible | • |
| Power requirements | |
| Supply voltage | 220 – 240V |
| Product dimensions | |
| Depth | 510 mm |
| Height | 98 mm |
| Installation cutout dimensions | 477 mm |
| Installation cutout dimensions | 832 mm |
| Width | 860 mm |
| Safety | |
| Flame failure system | • |
| Warranty | |
| Parts and labour | 2 years |
| Zones | |
| Cooking zones | 5 (including 1 wok burner) |
| SKU | 61756 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
