LP Adjustable Beds Bas-X HCS Adjustable Base Remote Control

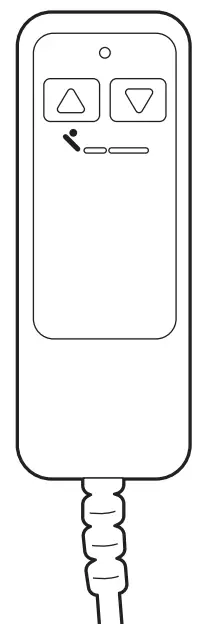

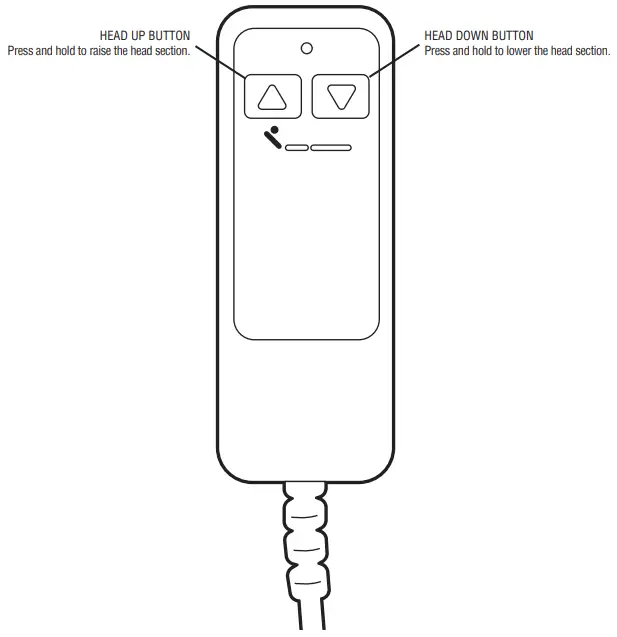

REMOTE CONTROL FUNCTION

REMOTE CONTROL PROGRAMMING – 1 REMOTE TO OPERATE 1 BASE

STEP 1

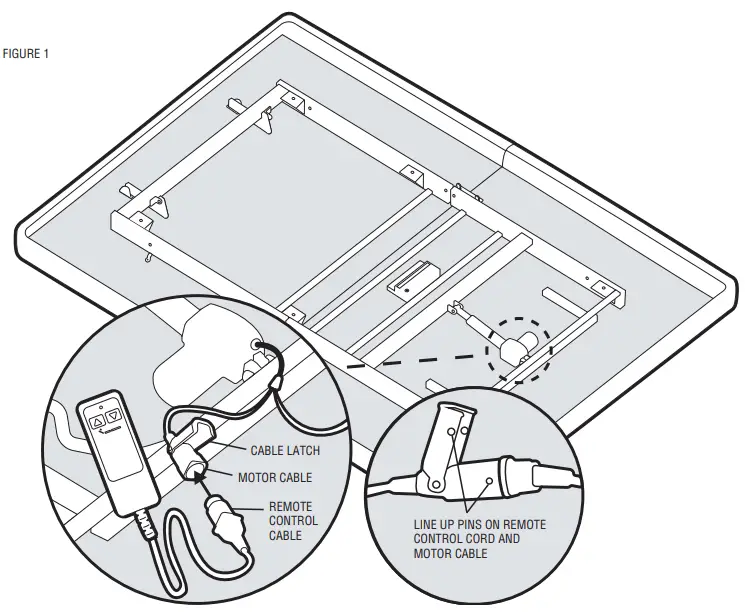

Plug remote control cord into base motor cable (FIGURE 1). Pivot cable latch downward and snap cable latch in closed position (FIGURE 1).
NOTE: ALIGN PINS BEFORE INSERTING PLUGS
(FIGURE 1). DO NOT WEAVE CORDS THROUGH BASE STRUCTURE.

STEP 2
Plug electrical power cord into a working, grounded electrical outlet.
NOTE: AN ELECTRICAL SURGE PROTECTION DEVICE IS RECOMMENDED (NOT INCLUDED).

STEP 3
Operate the remote control to verify the base functions correctly.

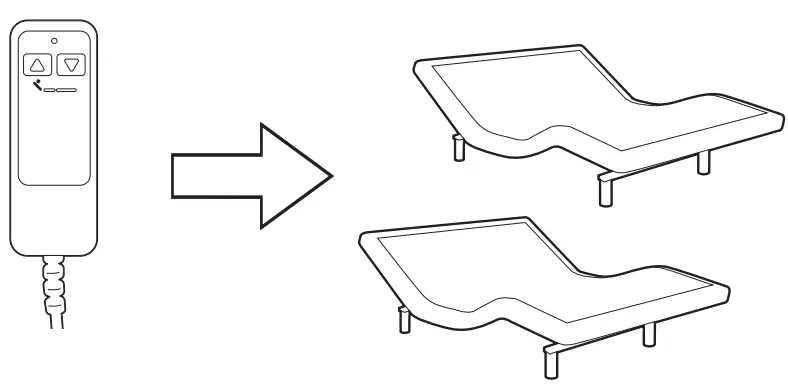

TANDEM SYNCING

To tandem sync two bases to operate as one base, perform the following procedure:

STEP 1

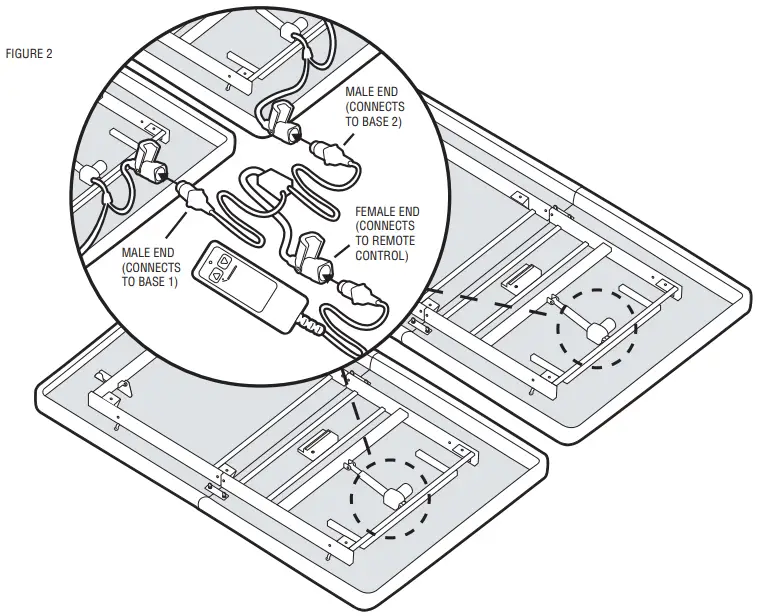

Locate the sync cable (FIGURE 2).

STEP 2
Unplug both remote control cords from respective base motor cables.

STEP 3
Plug (1) male end of sync cable into motor cable of base 1; place the other male end of sync cable into motor cable of base 2 (FIGURE 2).

STEP 4
Plug (1) remote control cord into female end of sync cable (FIGURE 2).
Second remote is not needed. Retain for future use.

TROUBLESHOOTING

If the adjustable base fails to operate, investigate the symptoms and possible  solutions provided in the chart below:

CUSTOMER SERVICE toll free: (800) 888-3078
