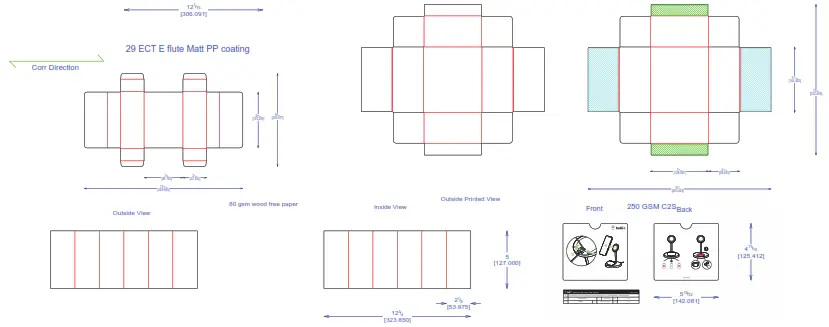

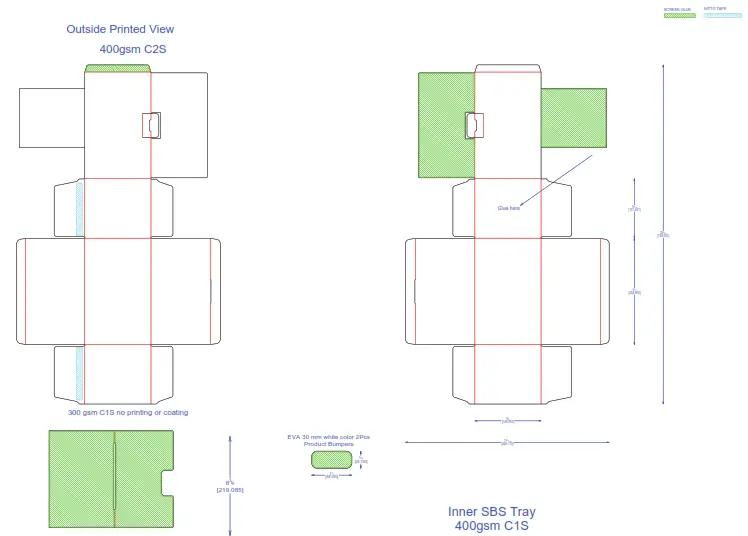

Die Line File: IDL_EL SEGUNDO APL
Artwork File: QSG_WIZ010xxXX-APL_8820-03130_RevA00_BOOSTCHARGE_PRO_2_in_1_Wireless_Charger_Stand_with_MagSafe
REV B 00
DIE LAYOUT
| SKU | WIZ010 |
| Outer Box | Refer artwork |
| Paper insert | Refer artwork |
| Paper insert | Refer artwork |
| QING | Refer artwork |
| EVA Foam | Refer artwork |
| PET Tray | Refer artwork |
| FCC | 7100-01511 |
PRINT SPECS:
Business Unit: Core
Program Manager:
Packaging Engineer: Pushpak Jain
Retail Outside Dimension (Including Hang Tab)
L x W x D (in):
L x W x D (mm):
DIE/MATERIAL SPECS:
Material: Please refer to the drawing
Blank Size (in): 62.571 x 66.215
Blank Size (mm): 1589.305 x 1681.857
This dieline works for the following SKUs (if any)
Unit: IN/MM
Side Shown: PRINT SIDE
Flute/Grain: horizontal
Tolerance:+/- 1/32″ – 0.8mm
Drawing Scale 1:1
RELEASE DATE: 10/26/2020
DIELINE:
Intermediate
THIS DOCUMENT & THE INFORMATION IN IT ARE THE CONFIDENTIAL PROPERTY OF BELKIN INTERNATIONAL AND MUST NOT BE COPIED, REPRODUCED, OR USED IN ANY MANNER WITHOUT THE WRITTEN CONSENT OF BELKIN CORPORATION. IT MUST BE RETURNED UPON REQUEST
PRINT SPECS:
Finish: OVERALL PP COAT
Notes:
ALL TEXT AND GRAPHIC ELEMENTS COLOR: BLACK, PMS 7488C, PMS 185C, PMS 130C
DO NOT PRINT
DIE LINES, PRINTERS NOTES
