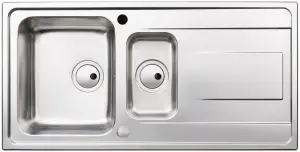

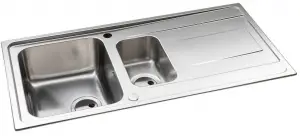

adobe AW5103 Ixis Stainless Steel 1.5 Bowl and Drainer
Fitting type: Inset
Sink handing: Reversible
Finish style: Brushed steel
|
|
Included parts

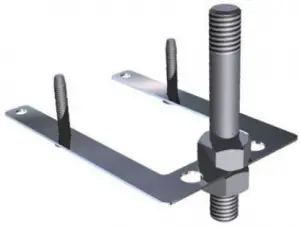

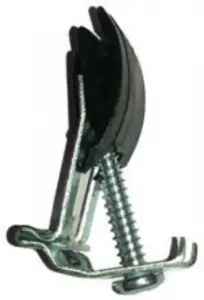

1 X AX1012 (m) |
1 X AX1014 (m) |
1 X AX1071 (m) |  1 X AX1057 (m) |
 1 X AX1009 (m) |  1 X AX4016 (m) |
Recommended accessories

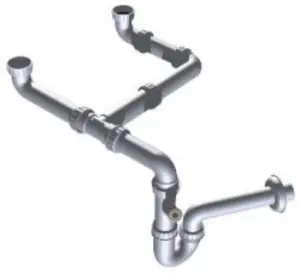

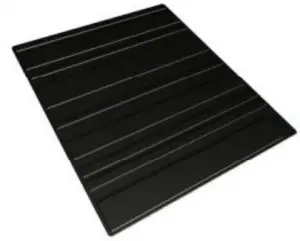

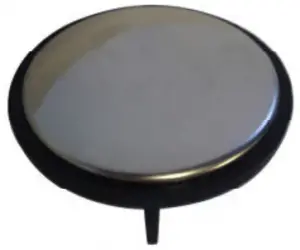

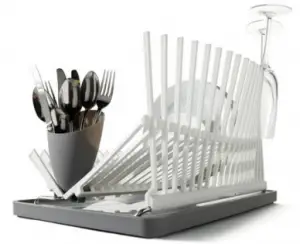

 1 X AX1011 |  1 X AX2501 |
1 X AX2503 |
All accessories can be purchased directly from www.abode-shop.co.uk or phone 01226 283434
Materials and workmanship warranty summary
- Sink materials & workmanship 10 years.
- Waste kits 1 year.
- Connecting pipework 1 year.
Care instructions
- Clean the products regularly using soapy water and a non abrasive cloth, regular cleaning will prevent the build up of lime scale and dirt.
- Avoid contact with corrosive or abrasive substances.
- After cleaning rinse thoroughly with clean water then dry.
- For more detail see supplied booklet or www.abodedesigns.co.uk
Product dimensions and installation information
Note:

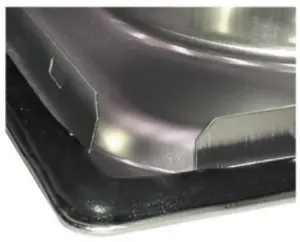

symbol indicates position of acoustic pad on stainless products
Additional notes:

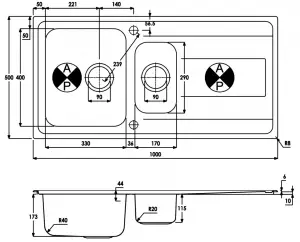

Overall product size: 1000 x 500 x 195 corner radius 8mm
Tap hole(s) detail: 2 x Ø 35mm, precut
Compatibility with large square taps:

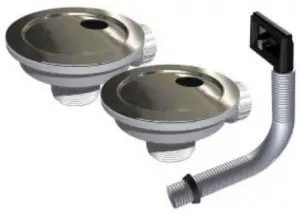

Waste hole(s) detail (mm): 90 / 90 / N/A (nb. 90mm wastes accept a waste disposal unit)
Min. base unit (refers to space required for bowl, tap and overflow only): fits 600mm carcass
Min. Recessed fitting width: required (bowl(s), tap and overflow: 550mm

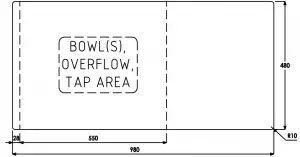

*Worktop cut out size: 980×480 corner radius 10mm, for .DXF cut files please see www.abode.eu

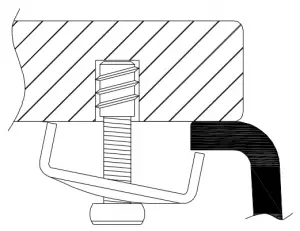

Min. & Max worktop depth or clip depth reach range: 24 – 44mm
Fitting temple supplied? No, use cut out instructions as supplied
Dishwasher under drainer? Distance from top of worktop to underside of the drainer 10mm
*Important, fabricator / installer notes for undermount & flushmount sinks:
The cut out size indicated is aligned with outside edge of the bowl top radius (see example below).
You should confirm with your client if the worksurface cutout is to be cut flush, inside or outside this suggested perimeter shape & size.
If you create the cutout smaller or larger than the indicated size then the fit of the accessories may be affected and should be physically checked.
General:
All details are provided in good faith but do not include the tolerances of the material or manufacturing process.
We request that a test cutout is made in scrap timber and checked against the actual sink to be installed before committing to cutting the final worksurface.
Abode can not accept liability for problems or costs incurred by failure to follow this request.
Note: the dimensions on ceramic fireclay products are subject to wider tolerances due to the nature of this natural material and the firing process.
CAD cutout files can be downloaded from www.abodedesigns.co.uk
| Bowl details: (sizes in mm unless specified otherwise) | ||
| Bowl 1 (typically main bowl): | Bowl 2 (typically ½ or ¾ bowl): | Bowl 3: |
| Bowl 1 size L x W x D (mm): 330 x 400 x 173 | Bowl 2 size L x W x D (mm): 170 x 290 x 115 | Bowl 3 size L x W x D (mm): N/A x N/A x N/A |
| Bowl 1 construction: Welded, 0.80mm | Bowl 2 construction: Welded, 0.60mm | Bowl 3 construction: N/A, N/Amm |
| Bowl 1 floor radius (mm): 40 | Bowl 2 floor radius (mm): 20 | Bowl 3 floor radius (mm): N/A |
| Bowl 1 Wastehole diameter (mm): 90 | Bowl 2 Wastehole diameter (mm): 90 | Bowl 3 Wastehole diameter (mm): N/A |
| Bowl 1 overflow: Slotted, std equal pattern | Bowl 2 overflow: N/A | Bowl 3 overflow: N/A |
| Bowl 1 texture: Brushed stainless | Bowl 2 texture: Brushed stainless | Bowl 3 texture: N/A |
| Bowl 1 apx. volume (litres): 16.80 | Bowl 2 apx. volume (litres): 5.40 | Bowl 3 apx. volume (litres): N/A |
This sheet is a summary of the product information full details are available on request, errors & omissions excepted, details are subject to change without prior notification. www.abodedesigns.co.uk
