Lasko Fh610 Tower Heater Fan With Remote Control Instruction Manual

T ower Heater Fan with Remote Control
Instruction Manual

Register Your Product Today www.lasko.com/product-registration/  You will benefit from: – Efficient and enhanced support – Future product updates

Have a Question? Need a Part?
Please Do Not Return Product to Store! Contact Lasko Customer Service: (800) 233-0268 Monday-Friday 8 AM – 5 PM EST. (Valid in the USA, its Territories, and CANADA Only)
Read and Save These Instructions Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. failure to comply with instructions could result in personal injury and/or property damage! This Unit is for residential use only. It is not intended to be used in commercial, industrial, or agricultural settings.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, these instructions and warnings should always be followed to reduce the risk of fire, electrical shock, and injury to persons:

Read all instructions before using this Unit.

WARNING

• PLUG UNITS DIRECTLY INTO A 120V WALL OUTLET/RECEPTACLE ONLY. NEVER USE WITH AN EXTENSION CORD. DO NOT PLUG THE UNIT INTO  ANY OTHER CORD-CONNECTED DEVICE, SUCH AS A POWER STRIP, SURGE PROTECTOR, MULTIPLE OUTLET ADAPTER, CORD REEL, OR OUTLET-TYPE AIR FRESHENER. THE USE OF SUCH DEVICES MAY CREATE A FIRE HAZARD. DO NOT PLUG MULTIPLE DEVICES IN THE SAME OUTLET OR  ON THE SAME CIRCUIT AS THE UNIT.
•  FAUL TY WALL OUTLET CONNECTIONS MAY CAUSE THE WALL OUTLET TO OVERHEAT. BE SURE THAT THE UNIT PLUG FITS TIGHTLY INTO THE OUTLET  BEFORE EACH USE. DURING USE, CHECK TO MAKE CERTAIN THE UNIT PLUG IS NOT OVERHEATING. IF NECESSARY HAVE A QUALIFIED  ELECTRICIAN CHECK AND/OR REPLACE THE WALL OUTLET. DO NOT USE THIS UNIT WITH ANY SOLID-STATE SPEED CONTROL DEVICES.
• Make certain that the power source conforms to the electrical requirements of the Unit.
• Extreme caution is necessary when any Unit is used by or near children or invalids. The Unit should not be left operating unattended. Never leave children unattended when the Unit is on or plugged in.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
• DO NOT use the Unit in areas where gasoline, paint, or flammable liquids are used or stored. DO NOT use Unit in locations where flammable or explosive chemicals are stored, or in wet atmospheres.
• Do not operate any Unit with a damaged cord or plug or after the Unit malfunctions, or has been dropped or damaged in any manner. To disconnect the unit, turn the Unit OFF then remove the plug from the outlet.
  Always unplug the Unit when not in use. Unplug the power cord before servicing or moving the Unit.
• Do not insert or allow fingers or foreign objects to enter any ventilation or exhaust opening as it may cause an electric shock, fire, or damage the Unit. Do not block or tamper with the Unit in any manner while it is in operation.
• Do not block air intake or exhaust in any manner. Do not place on soft surfaces, like a bed, where openings may become blocked. Do not depend on the on/off switch as the sole means of disconnecting power when servicing or moving the Unit. Always unplug the power cord.

CAUTION

• Always place the unit on a stable, flat, level surface when operating, to avoid the chance of the Unit overturning. Locate the Power Cord so the Unit or other objects are not resting on it. DO NOT run Power Cord under carpeting. DO NOT cover Power Cord with throw rugs, runners, or similar coverings as this may cause the cord to overheat.  range Power Cord away from room traffic and where it will not be tripped over.
• This Unit is HOT when in use. To avoid burns, do not let bare skin touch hot surfaces. Always use a handle when moving this Unit. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the Unit and keep them at least 1 foot (0.3 m) from the sides and rear.
• This Unit is not intended for use in wet or damp locations. This Unit is not intended for use in bathrooms, laundry areas, and similar indoor locations. NEVER locate a Unit where it may fall into a bathtub or other water container.
• DO NOT use the Unit outdoors.
• This Unit is not suitable for use in agricultural facilities including areas where livestock, poultry, or other animals are confined. Please refer to National Electric Code (NEC)  Article 547-7 (2008), or applicable state or local codes or standards relating to electrical requirements for Agricultural Buildings. THIS UNIT DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 547-7 (2008).
• This Unit is not suitable for use in hazardous locations. Please refer to National Electric Code (NEC) Article 500 or applicable state or local codes or standards relating to electrical requirements for Hazardous locations. THIS UNIT DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 500 (2008).
• Remote controls for other appliances or electronic equipment can sometimes interfere with the operation of this Unit. If this occurs, move the Unit to another location.
• Keep the Unit remote control unit away from chairs and your bed where it may be sat or laid upon and inadvertently turn on the Unit.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV  technician for help. The user is cautioned that changes and modifications made to the equipment without the approval of the manufacturer could void the user’s authority to operate this equipment.

SAVE THESE INSTRUCTIONS

Parts Included

Assembly

1. Push the Bosses on Support Base A into the Boss Slots on Support Base B.	2. Thread the Power Supply Cord through the large hole in the center of the Support Base Assembly.	3. Secure the Support Base Assembly to the bottom of the Body with (4) Thumb Screws.

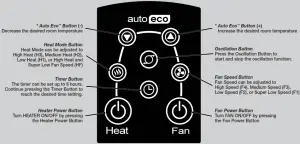

Controls

* FOR A MORE DETAILED DESCRIPTION OF AUTO ECO ™ FUNCTION, SEE PAGE 4

AUTO ECO ™ THERMOSTAT
Pressing the () or () buttons while in any Heater function or speed will turn on the Auto Eco™ function.

1. To set the room at a specific temperature press the () or () buttons to the desired temperature. The display will now reflect the Auto Eco™ symbol and the temperature will be flashing. The Unit is now in Auto Eco™ Mode.
2.  When you reach the temperature at which you want to set the unit, the set temperature will flash several times and then the display will return to indicate the current room temperature and will gradually change as the room temperature changes. NOTE: the temperature display does not indicate the temperature of the heated air being emitted by the Unit.
3.  Once the room temperature reaches 2 degrees above the set temperature, the Heater will shut off. The Heater will continue to run for 15 seconds after the element has turned off.
4.  If the ambient temperature is equal to the SET temperature, the Unit will run in LOW heat.
5.  If the ambient temperature is less than the SET temperature by more than 3 degrees, the Unit will run in HIGH heat. All of this happens automatically with Lasko Auto  Eco™ Technology. To deactivate the Auto Eco™ function, turn the Unit off or press the () button.
   NOTE: In Auto Eco™, the Unit will display the current room temperature in ° Fahrenheit. Press the () and () buttons at the same time to change the display to° Celsius. Press the same two buttons together again to change the display back to ° Fahrenheit.

REMOTE CONTROL

All the functions performed with the Remote Control work identically to the manual controls except changing °F to °C.

1. Install two “AAA” batteries (not included).
2.  Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries.
3. DO NOT DISPOSE OF BATTERIES IN FIRE. BATTERIES MAY EXPLODE OR LEAK.
4. Always purchase the correct size and grade of battery most suitable for the intended use.
5. Clean the battery contacts and also those of the device prior to battery installation.
6. Remove batteries from equipment that is not to be used for an extended period of time.
7. Remove batteries if consumed or if the product is to be left unused for a long time.
   If you lose your remote control, please call Customer Service to order a replacement at (800) 233-0268, Monday through Friday, between the hours of 8:00 a.m. and 5:00 p.m. EST.

SAFETY FEATURE

1.  A thermal overload protector is built in to prevent overheating.
2. If an overheat temperature is reached, the unit will automatically shut off. It can only resume operation when the user resets the unit.

To Reset Unit:

1. Unplug the Unit and wait 10 minutes for the unit to cool down.
2. After the Unit has cooled down, plug the unit into a 120V~ electrical outlet and follow the operation instructions described in this manual.

TROUBLESHOOTING TIPS

If your unit shuts off unexpectedly or fails to operate, the previously mentioned safety feature may have been activated to prevent overheating.

1.  Be sure the power cord is plugged into a working electrical outlet.
2. Make certain the batteries in the remote control are new and properly installed.
3. Check your Temperature setting. The unit may be off because it has reached the desired temperature setting.
4. If your unit runs for several minutes and shuts off repeatedly, your unit may require cleaning. See the Maintenance section below.
   SERVICING: For servicing, other than general user maintenance, please contact Customer Service at (800) 233-0268, Monday through Friday, from 8 am-5 pm Eastern.
   LUBRICATION: Motor is permanently lubricated.
   STORAGE: Store the Unit with these instructions in the original carton in a cool, dry place.
   DISPOSITION: Corrugated packaging materials are recyclable. For environmentally responsible disposal of this product, contact your local waste service provider or visit www.1800recycling.com®

MAINTENANCE.

To reduce the risk of electrical shock and fire please observe the following instructions. Cleaning the Unit regularly will help to maintain its efficiency.

• Always unplug the cord before moving, servicing, or cleaning.
•  NEVER place the unit in or near water. DO NOT IMMERSE THE UNIT IN WATER.
• Clean the unit only with a vacuum equipped with a brush attachment; the vacuum will remove the lint and dirt from the surface of the unit.
• Vacuum intake grills every two weeks; this will help to maintain optimum performance.
• Use a toothbrush or other soft bristle brush to gently loosen any dirt not removed by the vacuum.
•  NEVER attempt to take apart the unit.
• Clean the body of the unit with a soft cloth only.
• NEVER use ALCOHOL or SOLVENTS such as gasoline, benzene, paint thinner, or other harsh cleaners.

LASKO PRODUCTS, LLC LIMITED WARRANTY (VALID IN THE USA, ITS TERRITORIES, AND CANADA ONLY Y)
WHAT THIS WARRANTY COVERS: This product is warranted against defects in workmanship and/or materials.
HOW LONG THIS WARRANTY LASTS: This warranty extends only to the original purchaser of the product and lasts for three (3) years from the date of original purchase or until the original purchaser of the product sells or transfers the product, whichever first occurs.
WHAT LASKO WILL DO: Lasko will, at its sole option, repair or replace any part or parts that prove to be defective or replace the whole product with the same or comparable model. For all warranty claims, the product must be returned to Lasko Products, LLC at customer expense with proof of purchase within the warranty period.  contact the Lasko customer service department to obtain a Return Authorization (“RA”). DO NOT return products without an RA or the warranty claim will not be processed.
WHAT THIS WARRANTY DOES NOT COVER: This warranty does not apply if the product was damaged or failed because of the accident, improper handling or operation, shipping damage, abuse, misuse, unauthorized repairs made or attempted, or the use of the product for commercial or nonresidential service. This warranty does not cover shipping costs for the return of products to Lasko for repair or replacement. Lasko will pay return shipping charges from Lasko following warranty repairs or replacement.
ANY AND ALL WARRANTIES, EXPRESSED OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY), LAST THREE YEARS FROM THE DATE OF ORIGINAL PURCHASE OR UNTIL THE ORIGINAL PURCHASER OF THE PRODUCT SELLS OR TRANSFERS  THE PRODUCT, WHICHEVER FIRST OCCURS AND IN NO EVENT SHALL LASKO’S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY  INCLUDE (I) INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM ANY CAUSE WHATSOEVER, OR (II) REPLACEMENT OR REPAIR OF ANY HOUSE FUSES, CIRCUIT BREAKERS OR RECEPTACLES. NOTWITHSTANDING ANYTHING TO THE CONTRARY, IN NO EVENT SHALL LASKO’S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY EXCEED THE PURCHASE PRICE OF THE PRODUCT AND ANY SUCH LIABILITY SHALL TERMINATE UPON THE EXPIRATION OF THE WARRANTY PERIOD.
Some states and provinces do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these exclusions or limitations may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary from state to state and province to province. Proof of purchase is required before a warranty claim will be accepted.

CUSTOMER SERVICE:
Toll-Free (800) 233-0268. Email: [email protected]
Our Customer Service team is available to assist you with product and service questions, and replacement parts. They can be reached Monday through Friday,
8 am-5 pm Eastern. Please have your model number available, as well as the type and style (located on the underside of your product).
Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19380
(Please do not send the product to this location) www.lasko.com
PARTS FOR DISCONTINUED, OBSOLETE, AND CERTAIN OTHER PRODUCTS MAY NOT BE AVAILABLE. DUE TO SAFETY REASONS, MANY ELECTRONIC
COMPONENTS AND MOST HEATER COMPONENTS ARE NOT AVAILABLE TO CONSUMERS FOR INSTALLATION OR REPLACEMENT.
