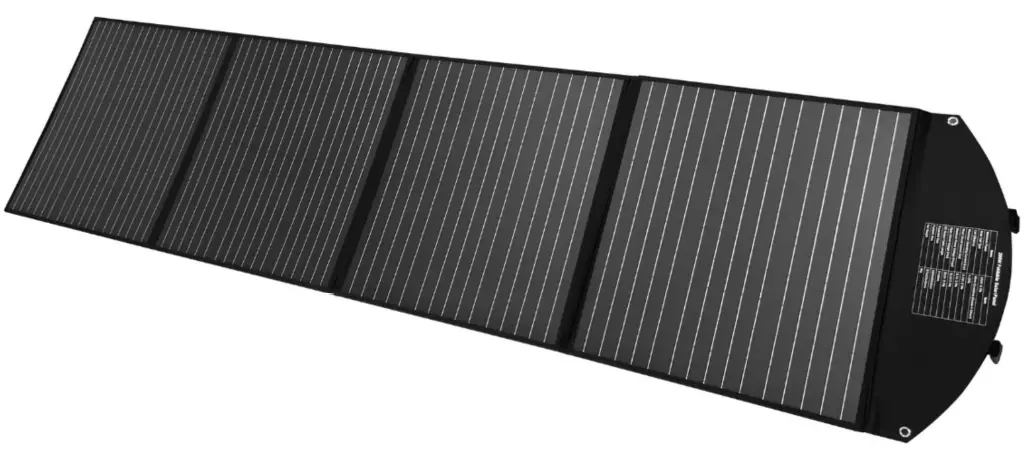

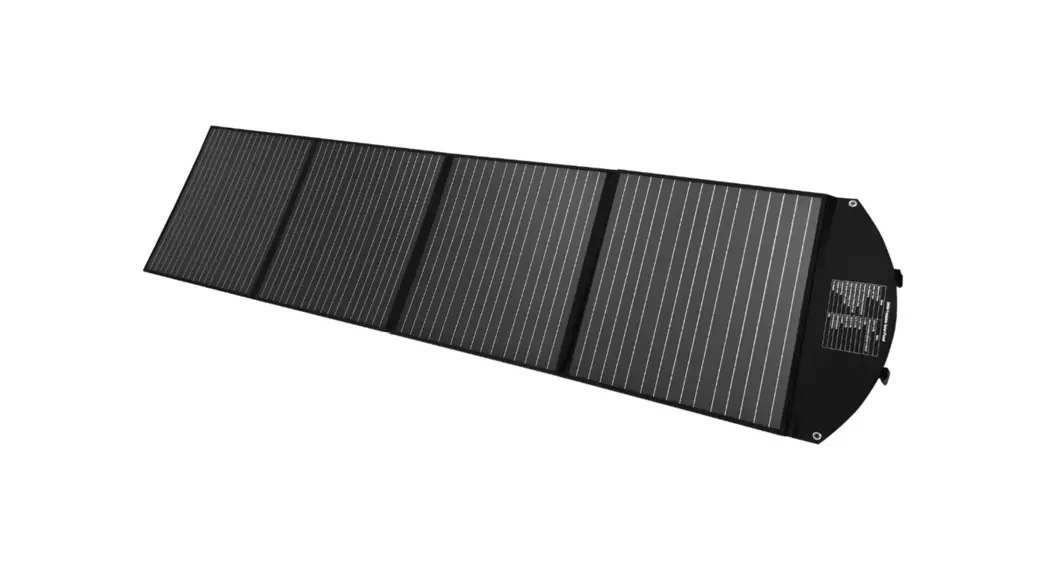

Monocrystalline Foldable Solar Panel 200W
Instruction Manual
SOLAR PANEL 200W
Product Features
- Eco-friendly
- High efficiency
- Portable and lightweight
- Easy to set-up
- Support simultaneous charging of devices
- Waterproof rugged durability
Safety & Warranty
Safety Tips
- Do not bend the solar panel.
- Do not immerse the solar panel in water.
- Keep the solar panel away from extreme heat or fire.
- Clean the solar panel with a dry cloth.
- Do not pierce the solar panel casing with any sharp objects.
- Do not disassemble the panel – contact our technical team if you have any issues with the panel.
Warranty
Please refer to the Warranty section on www.srportables.com for more details on product warranty.
The solar panels DO NOT include a Solar Charge Controller. A 10A Solar Charge Controller can be purchased separately.
Technical Specifications
| ITEMS | SPECIFICATIONS |
| Maximum Power | 200W |
| Solar Cell Type | Monocrystalline |
| Cell Efficiency | 21.40% |
| Maximum Operating Current (Imp) | 10.7A |
| Maximum Power Voltage (Vmpp) | 18.7V |
| Open Circuit Voltage (Voc) | 22.1V |
| Short Circuit Current (Isc) | 11.21A |
| Output Tolerance Wattage | ±3% |
| DC Output Connector | DC5521 x1 or Other Type |
| DC Output Current | 18V 5A Max. |
| USB-A Output | 5V 3A (Optional) |
| USB-A Output | QC3.0 5V/3A 9V/2A 12V/1.5A (Optional) |
| IP Rating | IPX4 |
| Working Temperature | -40°C ~ 80°C |
| Expanded Size | 2240x565x3mm |
| Foldable Size | 585x565x50mm |
| Net Weight | 8kg |
Visit our website www.srportables.com for more information or contact our technical team on +61 3 8618 6984
