Anderson Composites 2020-22 Carbon Fiber Pillar Cover Instruction Manual

ANDERSON COMPOSITES 2020-22 Carbon Fiber Pillar Cover

The Carbon Fiber Pillar Cover is a replacement part for the OE factory pillar cover of the 2020-22 Chevrolet Corvette. This cover is made of high-quality carbon fiber material, which provides a sleek and stylish look to the car. The installation of this cover is easy and requires only a few tools.

Required Tools

• Phillips screwdriver

Installation Instructions

1. Open the door of the car.

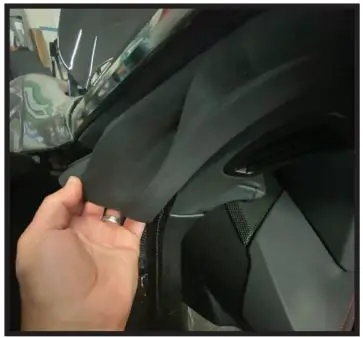

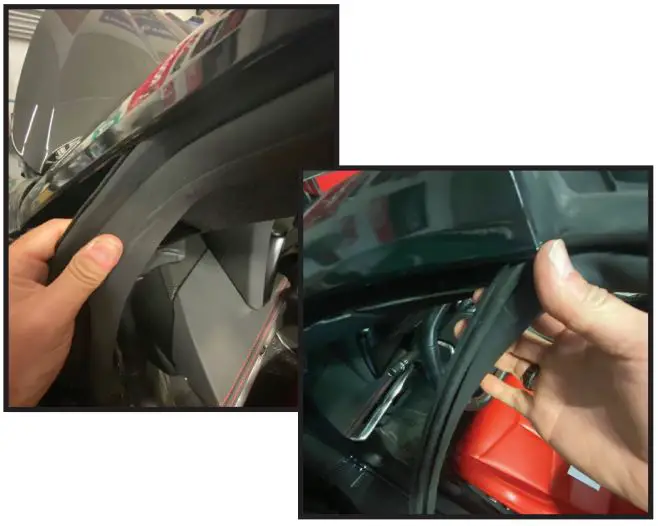

2. Pull the weatherstrip outward to un-snap the three retaining clips at the end of the pillar.
3. Pull the weatherstrip down and let it hang from the top of the pillar.

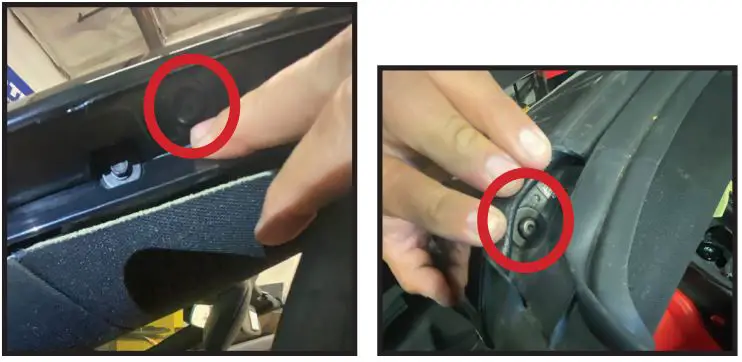

4. Remove the five screws with a Phillips screwdriver along the pillar and one screw at the top of the pillar. You will need to pull the weatherstrip back a bit to access the top screw.
5. Remove the OE factory pillar cover.

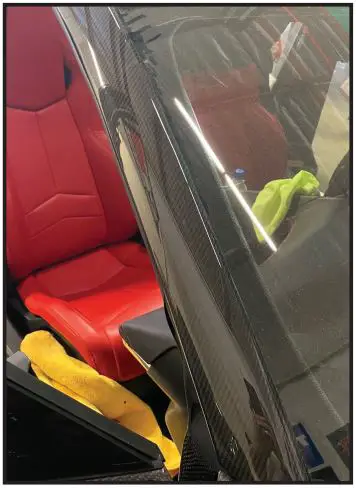

6. Install the carbon fiber pillar cover.
7. Reverse the removal process to secure the pillar cover. Repeat the steps for the other pillar cover.

For any further queries or assistance, contact AndersonComposites.com at 1-626-333-7024, Monday-Friday 9-5:30 PST.
