Qazqa 97803 Deco Hanging Lamp Crystal 65cm Gold Instruction Manual

97803 Deco Hanging Lamp Crystal 65cm Gold
Instruction Manual

SAFETY INSTRUCTION

Please study the instruction manual and below information carefully before installing or using this product.
Please keep this user manual for further reference

1. The luminaires may only be installed by authorized and qualified technicians according the valid regulations for electrical installation.
2. Maintenance of the luminaires is limited to their surfaces. During maintenance no moisture can come into contact with any areas of the terminal connections or voltage control parts.
3. The electrical supply must be switched off at the outset, preferably by means of a switch in the distribution box, before any installation, maintenance or repair work is undertaken.
4. Exterior lighting must not be installed during rain.
5. Take account of the minimal separation distance from other objects and the room required around the fitting.
6. If in any doubt, consult a professional, taking local installation requirements into account. Some countries stipulate that lighting may be installed only by registered installers.
7. Clamping screws in electrical connections must be adequately tightened. This is particularly the case with 12V low voltage conductors.
8. When replacing a halogen lamp, wait for it to cool, for a minimum of 5 minutes.
9. Clean with a clean, dry cloth or brush, use no solvents or abrasives. Avoid dampness on all electrical components
10. Take account of all available technical information.
11. Take note of the symbols when connecting wires:
    N =Neutral
    L =Live
    =Earth
12. Meaning of symbols:

	For indoor use only, where direct contact with water is impossible
	This icon indicates the level of water-proof and dust-proof
	Protection Class I: the fitting must be earthed
	Protection Class Il: the fitting is doubled insulated and does not require earthing
	Protection Class Ill: the fitting is low voltage
	Minimum distance from lighted objects (meters)
	Only the self-shielded halogen lamp should be used with the luminaire
	Strip the wire to the indicated length (mm);different items require different length
	Connect using the specified cable; different items require different cables
	The type of lamp and maximum size and wattage indicated in each lighting unit must not be exceed; different items require different kind of light sources with different bulb icons
	The type of lamp and maximum size and wattage indicated in each lighting unit must not be exceed; different items require different kind of light sources with different bulb icons
	The luminaire can be used in combination with a dimmer
	The reference light angle and light space of the luminaire
	This luminaire cannot be disposed together with normal domestic waste in standard rubbish can, but you have to bring it to a staging area for electrical waste

INSTRUCTION MANUAL

Kasbah HL 65 Gold 97803

WE STRONGLY RECOMMEND INSTALLATION BY A LICENSED ELECTRICIAN.

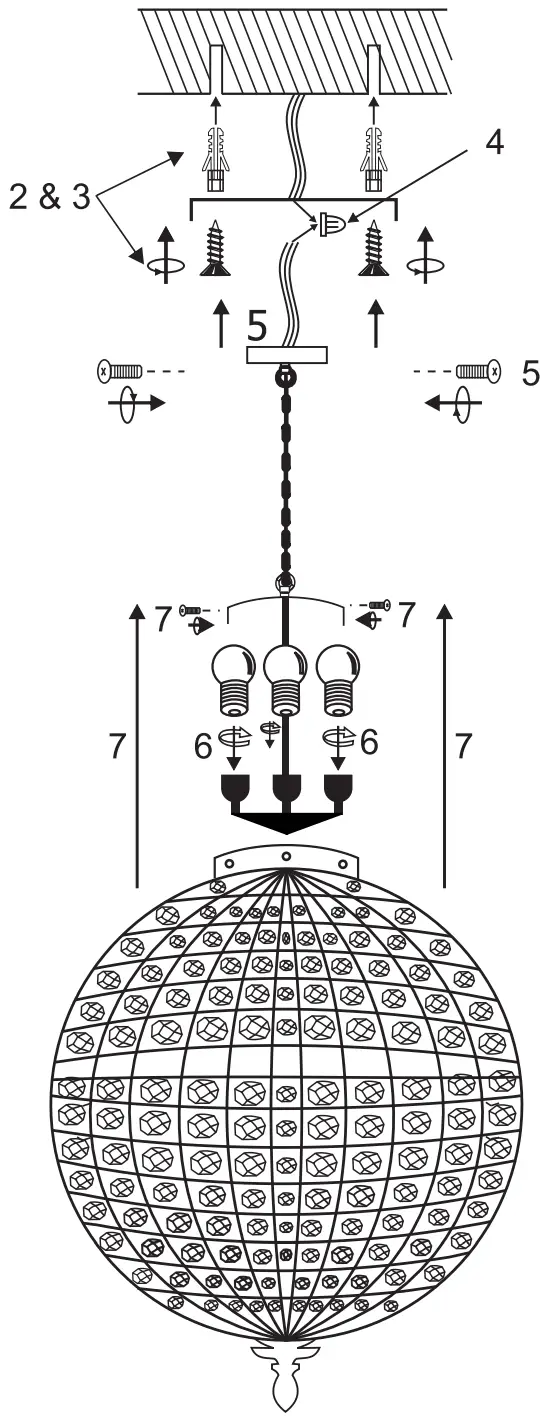

Assembly:

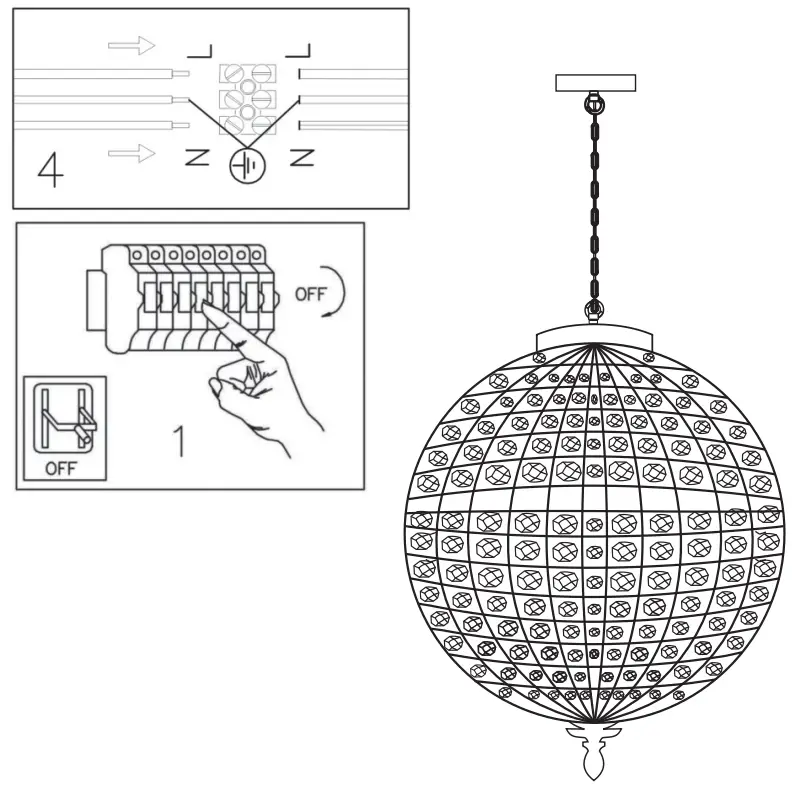

1. Shut off main electrical supply.
2. &
3. Use screws to mount the bracket on the ceiling.
4. Connect the electrical cable provided with the lamp with the mains wire.
5. Install the ceiling canopy on the mounting bracket using the two canopy screws.
6. This lamp has a centre body comprising of 3 lamp holders which takes 3x E27 Bulbs. Install the 3 bulbs on the lamp holders.
7. Carefully use the set screws provided with the lamp to install the Crystal fitting on the top gallery.
8. Once the fitting is complete as shown in the below image, power on the Chandelier for use.
