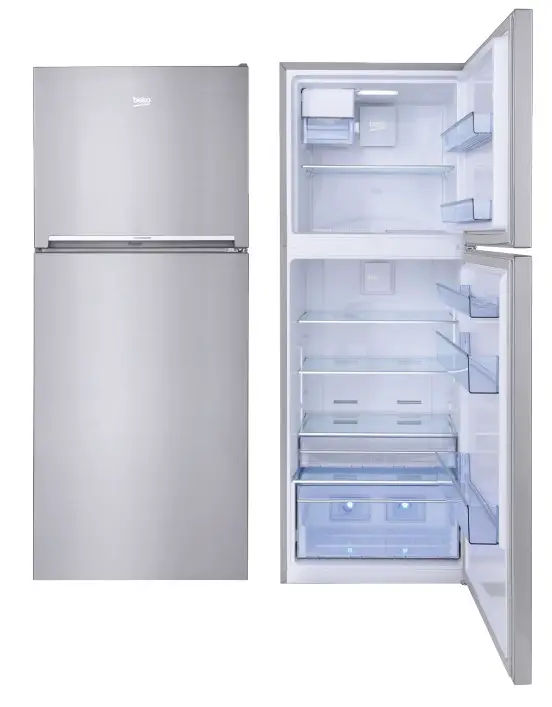

28” Top Mount Stainless Steel with Ice Maker
Owner’s Manual
BFTF2716SSIM Top Mount Refrigerator
| GENERAL PROPERTIES | |
| Cooling System | NeoFrost Dual Cooling Technology |
| Control System | Electronic Controls |
| Finish | Stainless Steel – Coated Finish for Easy to Clean |
| Field Reversible Door | Yes |
| Type | Freestanding |
| CAPACITY | |
| Total Net Volume | 13.53 cu. ft. |
| Fresh Food Net Volume | 10.10 cu. ft. |
| Freezer Net Volume | 3.43 cu. ft. |
| PERFORMANCE | |
| Fresh Food Temperature Range* | 33° F to 46° F |
| Freezer Temperature Range* | -11° F to 0° F |
| Freeze Guard | Works in Temperatures between 23° F and 110° F |
| Modes | On/Off Power, On/Off Icemaker, Temperature Control, Vacation, Economy |
| Annual Energy Consumption | 326 kWh/year |
*Actual temperatures may vary upon different options.

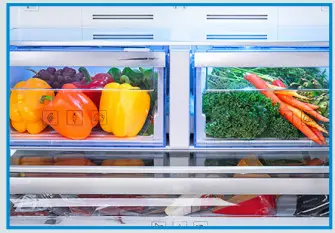

ACTIVE FRESH BLUE LIGHT
Fruits and vegetables stay fresh up to 30% longer, and retain vitamins and nutrients with this amazing new technology that simulates natural lighting conditions, extending the photosynthesis of fruits and vegetables stored in your refrigerator.

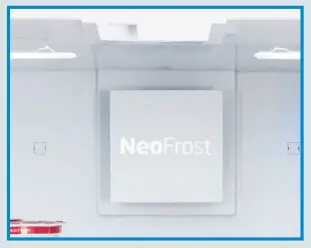

NEOFROST DUAL COOLING TECHNOLOGY™
NeoFrost™ Dual Cooling’s separate cooling systems for each compartment maintain ideal air flow and optimal temperatures with a high level of humidity in both the freezer and the fridge.

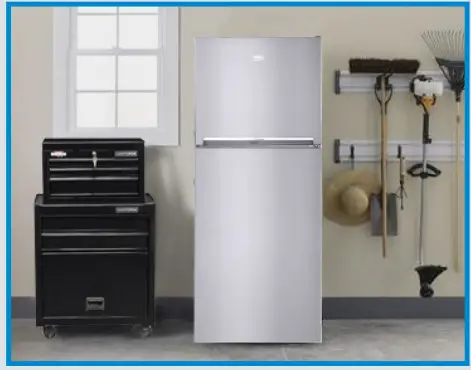

FREEZE GUARD
Beko freezers will work in ambient temperatures between 23°F and 110°F without any loss of performance at any pre-set temperature of the unit, thanks to effective usage of inverter compressor and electronic control technology.
28” Top Mount Stainless Steel with Ice Maker
| FRESH FOOD | |
| Active Fresh Blue Light | Yes |
| Auto Defrost | Yes |
| Inner Illumination | LED Side Walls |
| Shelves | 3 – Full-depth Glass Shelves |
| Crisper | 1 |
| Deli Drawer | 1 |
| Door Shelves | 3 |
| Electronic Control Display Type | Digital Inner Display |
| Compressor | Variable Speed VCC |
| FREEZER | |
| Automatic Ice Maker | Up to 2.2 lbs. a day |
| Interior Illumination | Yes |
| Auto Defrost | Yes |
| Door Racks | 2 |
| TECHNICAL INFORMATION | |
| Required Power Supply | 120 V / 60 Hz |
| Rated Current | 1.25 A |
| Noise Level | 38 dBA |
| Refrigerant | R600a |
| Plug Type | NEMA 3-Prong |
| Power Cord Length | 6 ft. |

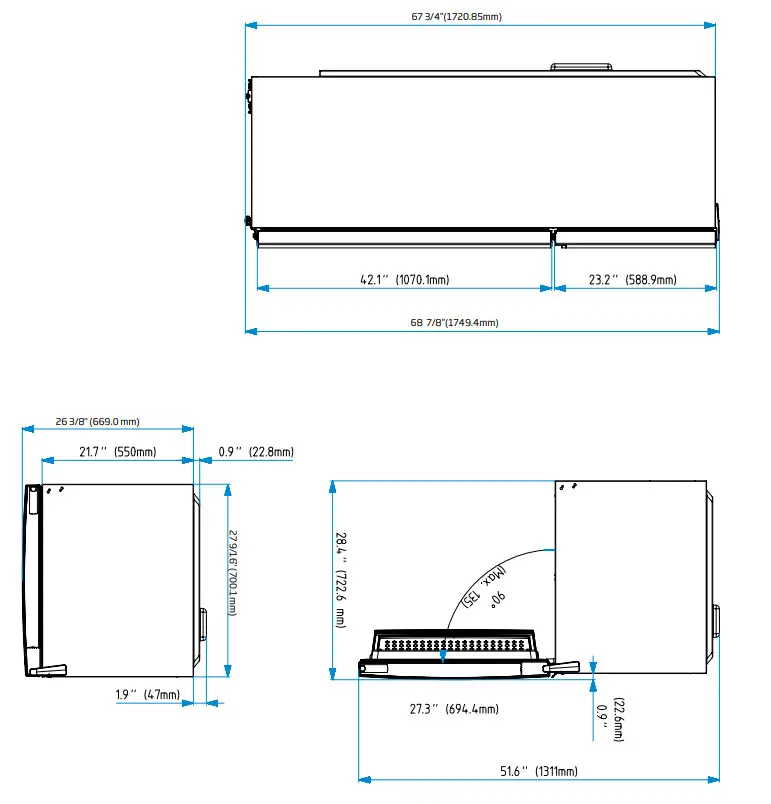

| DIMENSIONS | |
| H x W x D (in) | 67 3/4 x 27 1/2 x 26 3/8 |
| H x W x D (mm) | 1720 x 700 x 597 |
| Height with Hinge Cap (in) | 68 7/8 |
| Width (in) | 27 1/2 |
| Depth without Door (in) | 21 11/16 |
| Product Weight (lbs) | 147.71 |
| Product Weight (kg) | 67 |
| Packed Weight (lbs) | 165.35 |
| Packed Weight (kg) | 75 |
| ACCESSORIES | |
| Water Filter | No |
| WARRANTY | |
| All Products | 2 -year Full Warranty |
| Sealed System Parts Only | 5-year Warranty |
| ProSmart Inverter Motor | 10-year Warranty — parts only |
28” Top Mount Stainless Steel with Ice Maker
NOTE TO THE INSTALLER: All height, width, and depth dimensions are shown in inches (as well as metric). Beko U.S., Inc. reserves the absolute and unrestricted right to change product materials and specifications, at any time, without notice. Please visit our website, www.BekoAppliances.com, or call 888.352.2356 to verify the latest specifications with final dimensional data and other details prior to installation and making a cutout. Applicable product limited warranty information may be found in accompanying product materials, or you may contact your account manager for further details. Proper installation is the responsibility of the installer. Product failure due to improper installation is not covered under the Limited Warranty.
