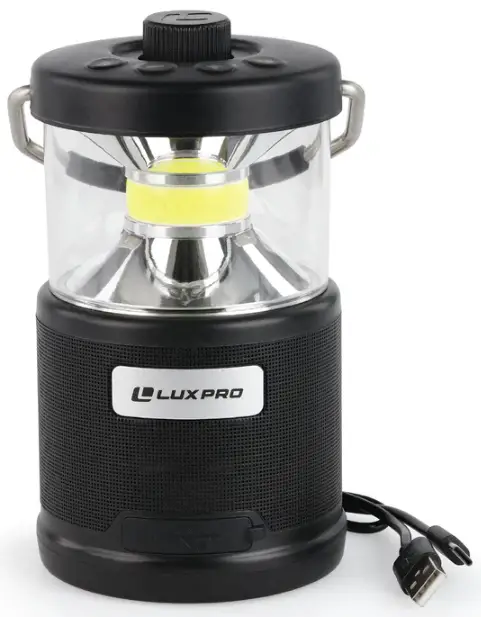

LUX PRO LP 1530 Rechargeable Lantern & Bluetooth Speaker User Manual
Features
- Rechargeable battery built-in
- Bluetooth speaker & controls
- 360° LEDs for continuous and even light
- Power bank to charge portable devices
- Variable mode dial
- O-ring sealed weather-resistant
- Rubberized metal handle
- USB-C charging cable included
ANSI/PLATO FL1 STANDARD | |||
| MODES |  LUMENS |  RUN TIME |
|
High | 572 lm | 3h 45m | 25m |
| Low | 37 lm | 29h 45m | 6m |
Bluetooth Speaker Run Times on Lowest Volume | |||
With Lantern on High | 3h 45m | ||
| With Lantern on Low | 21h 45m | ||
With Lantern Of | 99h 45m | ||

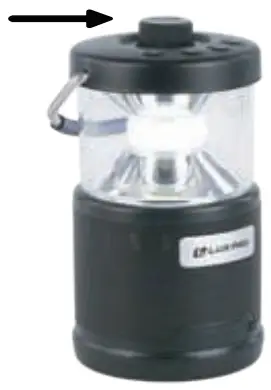

Lantern Operation Instructions
Lantern On/Off: Turn the dial on the top of the lantern clockwise to turn the light on. Turn the dial counterclockwise to turn the light off.
Adjust Brightness: Turn the dial clockwise to increase the brightness, and counterclockwise to decrease the brightness.

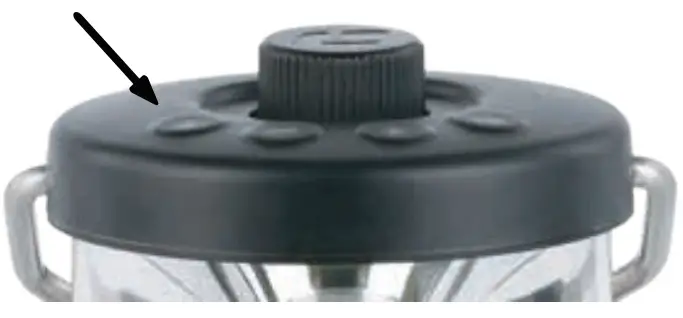

Speaker Operation Instructions
Speaker On: Press the Bluetooth symbol to turn on the speaker. The buttons will illuminate, the speaker will play an audible “on” sound, and it will automatically enter pairing mode.
Bluetooth Pairing: Turn on your Bluetooth device that you would like to pair to the speaker and enter pairing mode. Select LUXPRO 1530. The speaker will play an audible sound indicating the speaker is paired to your device.
Play/Pause: Press the play/pause button to play and pause your music.
Volume: Press the “ – ” button to turn the volume down. Press the “ + ” button to turn the volume up. The speaker will beep when max volume is reached.
Next/Back: To skip to the next song, press and hold the “ + ” button. To start the current song over, press and hold the “ – ” button. To skip to the previous song, press and hold the “ – ” button. This will start the current song over, then press and hold the “ – ” button again to skip to the previous song.
Speaker Off: Press the Bluetooth symbol to turn off the speaker. The speaker will play an audible “off” sound.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Luxpro® is under license. Other trademarks and trade names are those of their respective owners.
Charging Instructions

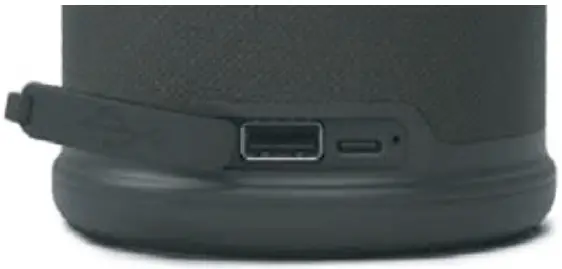

Charging Lantern: To charge the lantern, locate the USB dust cover on the front of the light, near the bottom. Lift the cover to expose the two charging ports.
Plug the supplied USB cable into the smaller USB port on the right. Plug the opposite end of the cable into a USB power source.
A red LED light next to the smaller USB port will light up to indicate the lantern is charging. The lantern is fully charged once the LED turns green.
The lantern and speaker can be used during charging.
The lantern will fully charge in approximately 8 hours.
Charging Other Devices: The LP1530 can also be used as a power bank to charge other devices. To use as a power bank, plug the large end of your charging cable into the larger USB port on the left. Plug the oppostie end of the cable into your device.
The lantern and speaker can be used while the lantern is charging other devices.
Product Warranty
The LP1530 has a Limited 1-Year Warranty Against Manufacturer’s Defects from time of purchase.
For warranty claims please contact us by calling 801-553-8886 or sending an email to [email protected]
Support
14725 S Porter Rockwell Blvd Ste C
Bluffdale, UT 84065
luxpro.com
866.553.8886
